PIONEER 14-IN-1 көп куралдуу колдонуу боюнча колдонмо

Introduction

The NEXTORCH PIONEER 14-IN-1 Multi-tool is a heavy-duty, versatile tool designed for a wide range of applications, including emergency response, outdoor activities, and everyday tasks. Crafted from high-quality stainless steel with a stone washing finish, it offers durability and resistance to scratches. Its compact and foldable design ensures portability, making it an essential companion for professionals and enthusiasts alike.

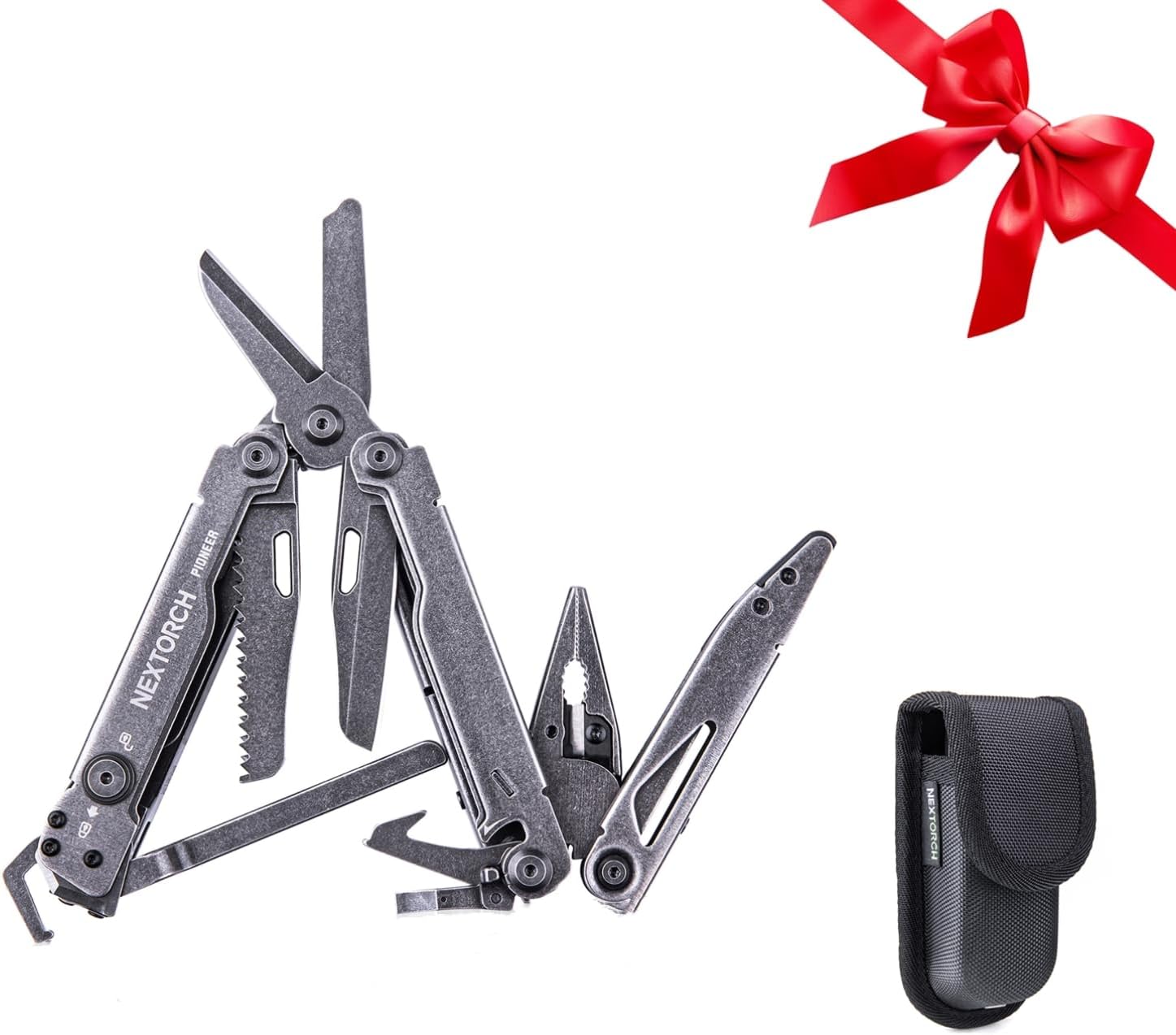

Figure 1: The PIONEER 14-IN-1 Multi-tool and its included nylon sheath.

Коопсуздук маалыматы

• Always handle the multi-tool with care. Blades and sharp edges can cause injury.
• Keep fingers clear of moving parts when opening or closing tools.
• Ensure tools are fully locked into place before applying force during use.
• Балдар жетпеген жерде сактаңыз.
• Do not use the tool for purposes other than its intended design.
• Regularly inspect the tool for any damage or wear. Do not use if damaged.

Компоненттери жана өзгөчөлүктөрү

The PIONEER multi-tool integrates 14 essential functions, each designed for reliability and efficiency.

Figure 2: ашыкview of the PIONEER Multi-tool's 14 functions.

Куралдардын тизмеси:

1. Ийне мурун кычкачтары: For precision gripping and bending small objects.
2. Кадимки кычкачтар: Standard pliers for general gripping tasks.
3. Premium Replaceable Wire Cutters: Designed for cutting various types of wires.
4. Premium Replaceable Hard-Wire Cutters: For tougher wire cutting applications.
5. Nylon Handcuff Scissors / Trauma Shears: Specialized shears for cutting through tough materials like fabric, leather, plastic, and zip ties. Features a round tip design to prevent secondary injuries.
6. Cutting Hook / Strap Cutter: For quickly cutting straps, cords, or seatbelts in emergency situations.
7. Көрдү: A sharp saw blade for cutting wood or other fibrous materials.
8. Бычактын мизи: A sharp, versatile blade for general cutting tasks.
9. Башкаруучу: Integrated ruler for quick measurements.
10. Back Clip / Pocket Clip: For secure attachment to a belt or pocket, ensuring easy access.
11. Oxygen Bottle Wrench: A specialized wrench for opening oxygen tank valves.
12. Бөтөлкө ачкыч: Бөтөлкөдөгү суусундуктарды ачуу үчүн.
13. Flat Head Screwdriver: A flat-head tip for various screw types.
14. Алмаштыруучу аксессуарлар: Includes components for maintaining replaceable parts.

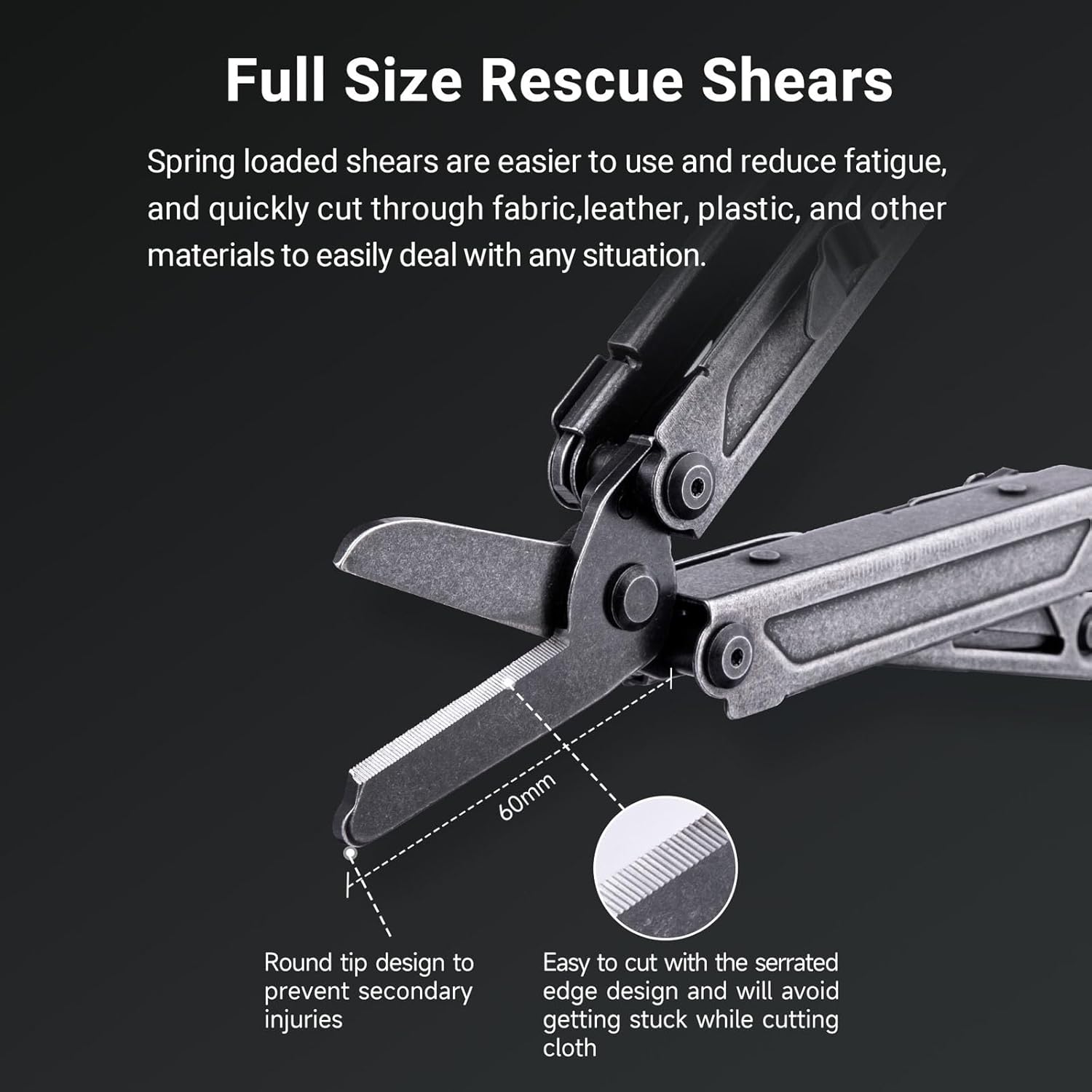

3-сүрөт: Детальдуу view of the full-size rescue shears and pliers.

Figure 4: The spring-loaded rescue shears feature a serrated edge for efficient cutting.

Figure 5: Demonstrating the use of the needlenose pliers.

Figure 6: The dedicated plastic cable tie cutter with slide latch mechanism.

Жайгашуу

The PIONEER multi-tool comes ready for use. No assembly is required. It is recommended to familiarize yourself with the location and operation of each tool before critical use.

Unfolding and Accessing Tools:

• To access the pliers and shears, unfold the two main handles of the multi-tool. They will click into place when fully extended.
• Individual tools like the knife, saw, and bottle opener can be deployed by gently pulling them out from their stored position within the handles.
• Some tools, such as the knife and saw, feature a locking mechanism for safety. Ensure they are fully locked before use and disengage the lock before folding them back into the handle.

Figure 7: The multi-tool in its unfolded state, ready for use.

Carrying the Multi-tool:

The PIONEER multi-tool is designed for everyday carry. It includes a back clip for attaching to a belt or pocket, and a durable nylon sheath for secure storage and transport.

Figure 8: The compact design allows for easy pocket carry.

Иштөө нускамалары

This section provides guidance on using the various tools integrated into your PIONEER multi-tool.

Using the Pliers and Wire Cutters:

• Unfold the multi-tool handles until the pliers are fully extended and locked.
• Use the needle nose section for fine work and the regular pliers for general gripping.
• The integrated wire cutters are located at the base of the pliers. Position the wire between the cutting jaws and squeeze the handles firmly.
• The premium replaceable wire cutters and hard-wire cutters are designed for specific wire types. Ensure you use the appropriate section for the material to prevent damage.

Figure 9: Using the integrated wire cutters.

Using the Rescue Shears:

• The rescue shears are spring-loaded for ease of use. Unfold them completely until they are ready to operate.
• The serrated edge is effective for cutting through tough materials.
• The round tip design helps prevent accidental punctures or secondary injuries during use, especially in emergency situations.

Using the Plastic Cable Tie Cutter:

• Locate the dedicated cable tie cutter. It features a single-edge blade and an ergonomic right-angle design.
• Slide the latch to unlock the cutter, position the cable tie, and apply pressure to cut.

Башка куралдар:

• Knife and Saw: Carefully deploy the desired blade. Ensure it locks into place before use. Always cut away from your body.
• Strap Cutter: Position the strap or cord into the cutting hook and pull to sever.
• Oxygen Bottle Wrench: Align the wrench with the oxygen bottle valve and turn to operate.
• Flat Head Screwdriver: Use for appropriate screw types.
• Бөтөлкө ачкыч: Standard bottle opener function.

Figure 10: Demonstrations of various auxiliary tools.

Расмий продукт видеолору:

Техникалык тейлөө

• Тазалоо: After each use, especially in dirty or wet conditions, clean the multi-tool with a damp cloth. For stubborn dirt, use a small brush. Ensure all parts are dry before storage to prevent rust.
• Майлоо: Periodically apply a small amount of light machine oil to the pivot points and moving parts to ensure smooth operation. Wipe off any excess oil.
• Бычакты курчутуу: The knife and saw blades may require sharpening over time. Use a suitable sharpening stone or tool, following proper sharpening techniques.
• Сактагыч: Store the multi-tool in its nylon sheath in a dry environment to protect it from moisture and damage.
• Алмаштылуучу бөлүктөр: The wire cutters are replaceable. Refer to the manufacturer's guidelines for replacement procedures and compatible parts.

Проблемаларды чечүү

Техникалык шарттар

• Бренд: NEXTORCH
• Модел: ПИОНЕР
• Материал: Дат баспаган болот
• Куралдардын саны: 14
• Элементтин өлчөмдөрү (L x W x Y): 4.29 x 1.54 x 1.1 дюйм (109 мм x 39 мм x 28 мм)
• Элемент Салмагы: 14.9 унция (болжол менен 268 грамм)
• Metal Hardness: >HRC54 (50Cr15MoV high-quality alloy steel)
• Камтылган компоненттер: Nylon handcuff scissors, ruler, needle nose pliers, regular premium replaceable wire cutters, hard-wire cutting hook, replacement accessories, saw, back clip, oxygen bottle wrench and opener.

Кепилдик жана колдоо

NEXTORCH products are designed for durability and performance. For specific warranty details and support inquiries, please refer to the official NEXTORCH webсайтка же түздөн-түз кардарларды тейлөөгө кайрылыңыз.

Өндүрүүчү: NEXTORCH

Webсайт: www.nextorch.com (Сураныч, расмий текшерүү website for the most current contact and warranty information.)

For any issues not covered in this manual, or for parts replacement, please reach out to NEXTORCH customer support.
