ANTEC GSK850 ATX3.1 850W толук модулдук кубат берүүчү түзүлүштүн колдонуу боюнча колдонмосу

1. Киришүү

Thank you for choosing the Antec GSK850 ATX3.1 850W Full Modular Power Supply Unit (PSU). This manual provides essential information for the proper installation, operation, and maintenance of your new power supply. The GSK850 is designed to deliver stable and efficient power to your computer system, featuring ATX3.1 and PCIe 5.1 compatibility, 80 PLUS Gold certification, and a full modular design for optimized cable management.

Figure 1.1: Antec GSK850 850W Full Modular Power Supply Unit

2. Коопсуздук маалыматы

Please read and follow all safety instructions carefully before installing or operating the PSU. Failure to do so may result in personal injury or damage to the product or system components.

• Электр коркунучу: PSUну ачпаңыз casinг. Жогорку томtagТүзмөктүн розеткадан суурулган учурда да ичинде бөлүктөрү бар. Ичинде колдонуучу тейлей турган тетиктер жок.
• Вентиляция: Ensure adequate ventilation around the PSU. Do not block the fan or ventilation openings.
• Нымдуулук: Do not expose the PSU to water or excessive humidity.
• Температура: Operate the PSU within the specified temperature range. Avoid extreme heat or cold.
• Негиздөө: Ар дайым кубат булагын жерге туташтырылган розеткага туташтырыңыз.
• Өчүрүү: Always disconnect the AC power cord from the wall outlet before installing, removing, or servicing the PSU or any connected components.

3. Пакеттин мазмуну

Пакетте бардык буюмдар бар экенин текшериңиз:

• Antec GSK850 ATX3.1 850W Full Modular Power Supply Unit
• Modular Cable Set (see Section 4.2 for details)
• AC Power Cord
• Монтаждоо бурамалар
• Колдонуучунун Колдонмосу (бул документ)

4. Продукт бүтүп калдыview

4.1 Негизги өзгөчөлүктөрү

• ATX3.1 & PCIe 5.1 Compatible: Designed to meet the latest standards for reliability and power efficiency, ensuring compatibility with modern hardware, including NVIDIA GeForce RTX 40 Series graphics cards.
• 80 PLUS Алтын тастыкталган: Achieves high power efficiency, reducing energy consumption and heat generation.
• Full Modular Cable Management: Allows users to connect only the necessary cables, improving airflow and reducing clutter inside the PC case.
• Жогорку сапаттагы жапон конденсаторлору: Ensures tight voltage regulation, minimal ripple and noise, and extended lifespan.
• PhaseWave Design (LLC + DC-DC): Provides stable and efficient power delivery.
• Нөлдүк айлануу/минут менеджери: The fan remains off at low loads for silent operation, activating only when necessary.
• 120mm FDB Silent Fan: Features a fluid-dynamic bearing fan for quiet operation and durability.
• CircuitShield Protection Suite: Comprehensive industrial-grade protections including OCP, OVP, UVP, SCP, OPP, OTP, SIP, and NLO for system safety.

4.2 Modular Cable Management and Compatibility

The full modular design of the GSK850 allows for flexible cable management, enabling you to use only the cables required for your system. This reduces cable clutter, improves internal airflow, and simplifies installation.

Figure 4.1: Modular Cable Connectors and ATX 3.1 / PCIe 5.1 Compatibility

Figure 4.2: Detailed Cable and Connector Information

4.3 Internal Components and Design

The GSK850 incorporates high-quality components for reliable performance and longevity.

Figure 4.3: High-Quality Japanese Capacitors for enhanced stability and lifespan.

Figure 4.4: PhaseWave Design (LLC + DC-DC) for superior power delivery efficiency.

4.4 Муздатуу системасы

The PSU features an advanced cooling system to maintain optimal temperatures and quiet operation.

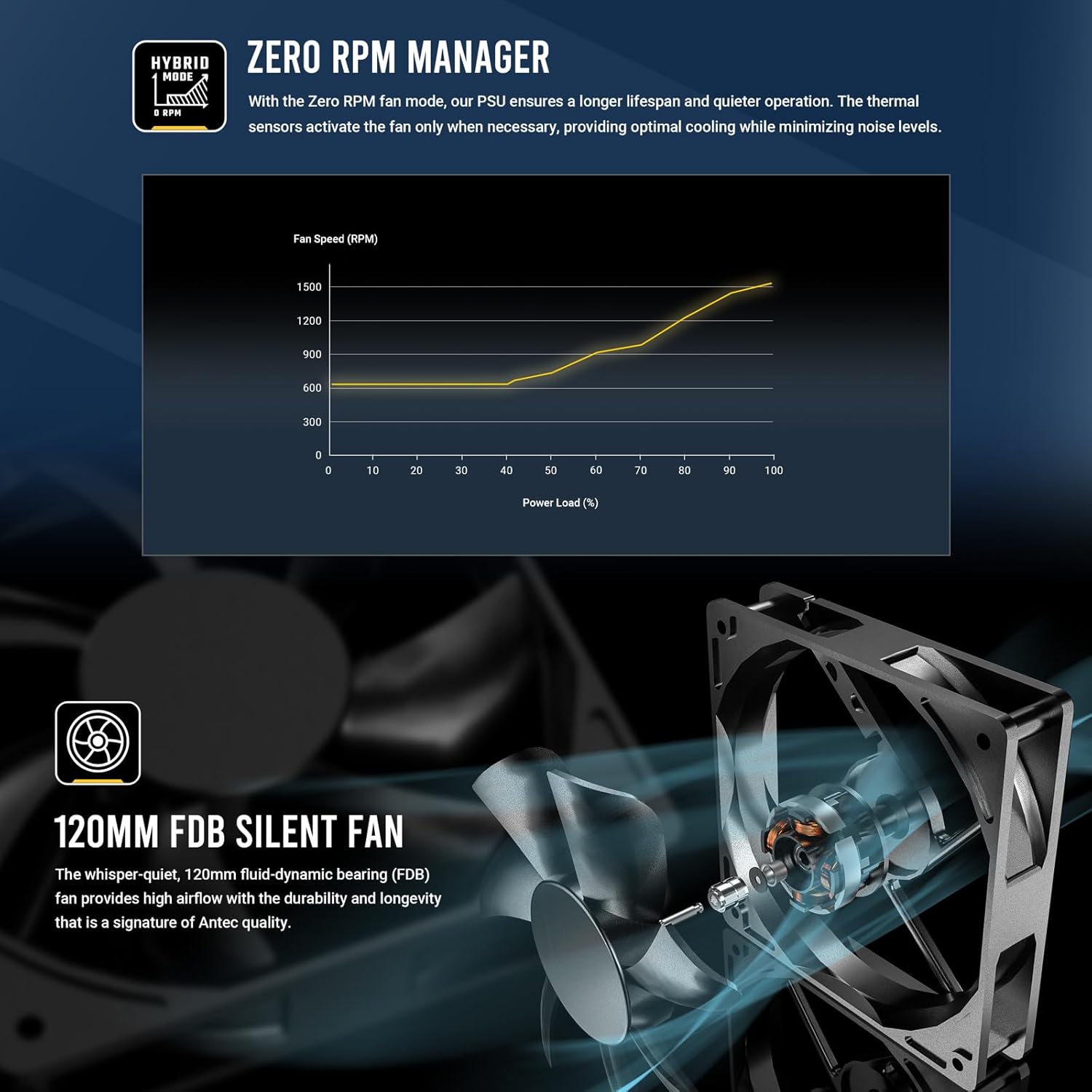

Figure 4.5: Zero RPM Manager fan curve, illustrating silent operation at low loads.

Figure 4.6: The 120mm Fluid-Dynamic Bearing (FDB) fan provides high airflow with low noise.

4.5 Compact Size

The GSK850 is designed with a compact form factor, making it suitable for a wide range of PC cases.

Figure 4.7: Compact dimensions of the GSK850 PSU, showing reduced volume compared to larger units.

5. Орнотуу жана орнотуу

Follow these steps to install your Antec GSK850 PSU into your computer system:

1. Системаңызды даярдаңыз: Компьютериңиз толугу менен өчүрүлгөнүн жана розеткадан суурулганын текшериңиз. Компьютериңиздин корпусун ачыңыз.
2. Эски PSUну алып салуу (эгер бар болсо): If replacing an existing PSU, disconnect all cables from the old PSU and remove its mounting screws. Carefully slide it out of the case.
3. Жаңы PSUну орнотуу: Slide the Antec GSK850 into the PSU mounting bay of your computer case. Align the screw holes and secure the PSU with the provided mounting screws.
4. Негизги кабелдерди туташтыруу: Refer to Figure 4.2 for cable types and lengths. Connect the necessary modular cables to the PSU first, then to your motherboard and components:
   • 24-пиндүү ATX энелик платасынын кабели: Эне платаңыздын негизги кубат туташтыргычына туташыңыз.
   • 8-pin (4+4) CPU Power Cable(s): Энелик платаңыздын CPU кубат туташтыргычына (суу өткөргүчтөрүнө) туташтырыңыз.
   • PCIe 5.1 12VHPWR (16-pin) or 8-pin (6+2) PCIe Cables: Керектүү учурда видеокартаңызга туташтырыңыз.
   • SATA электр кабелдери: Connect to SSDs, HDDs, and optical drives.
   • Molex Cables: Connect to any peripherals requiring Molex power.
5. Кабелдик башкаруу: Route cables neatly behind the motherboard tray or in designated cable management areas to improve airflow and aesthetics.
6. Корпусту жаап, кубаттуулукту туташтырыңыз: Once all connections are secure, close your computer case. Plug the AC power cord into the PSU and then into a grounded wall outlet.

6. Иштөө нускамалары

Operating the Antec GSK850 PSU is straightforward:

• Күйгүзүү: After installation, ensure the power switch on the back of the PSU is in the 'ON' (I) position. Then, power on your computer using the case's power button.
• Нөл RPM режими: The PSU's fan will remain off when the power load is low, providing silent operation. As the system load increases, the fan will automatically activate and adjust its speed to maintain optimal temperatures. This is normal operation and indicates the Zero RPM Manager is functioning correctly.
• Өчүрүү: To power off your system, use the operating system's shutdown function. For complete power disconnection, switch the PSU's power switch to the 'OFF' (O) position and unplug the AC power cord from the wall outlet.

7. Техникалык тейлөө

Proper maintenance ensures the longevity and optimal performance of your PSU:

• Чаңды тазалоо: Periodically clean dust from the PSU's fan grille and ventilation openings using compressed air. Ensure the PSU is powered off and unplugged before cleaning.
• Кабелдик текшерүү: Бардык туташкан кабелдерди эскирүүнүн, бузулуунун же бош байланыштардын белгилерин мезгил-мезгили менен текшерип туруңуз.
• Курчап турган чөйрө: Ensure the PSU operates in a clean, dry, and well-ventilated environment.

8. Кыйынчылыктарды

If you encounter issues with your Antec GSK850 PSU, refer to the following common troubleshooting steps:

• Кубат жок:
  • AC кубат шнурунун PSUга да, розеткага да бекем сайылганын текшериңиз.
  • Check that the PSU's power switch on the back is in the 'ON' (I) position.
  • Verify all modular cables are securely connected to both the PSU and the components.
  • Дубал розеткасын башка аспап менен сынап көрүңүз, анда кубат бар.
• Системанын туруксуздугу/бузуулар:
  • Сиздин PSU ватыңызды камсыз кылыңызtage тутумуңуздун бардык компоненттери үчүн жетиштүү.
  • Кабелдик туташуулардын боштугун текшериңиз.
  • The PSU's CircuitShield protection suite (OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO) will automatically shut down the PSU in case of an electrical fault to protect your components. If this occurs, disconnect power, check for short circuits or faulty components, and then attempt to restart.


  Figure 8.1: CircuitShield Protection Suite

• желдеткич айланбай жатат:
  • The GSK850 features Zero RPM mode. The fan will not spin at low loads. This is normal. The fan will activate when the system load increases.
  • If the fan does not spin even under high load, ensure there are no obstructions and contact support if the issue persists.

If the problem persists after following these steps, please contact Antec customer support.

9. Техникалык шарттар

10. Кепилдик жана колдоо

The Antec GSK850 ATX3.1 850W Full Modular PSU comes with a 7 жылдык кепилдик сатып алынган күндөн тартып. Бул кепилдик нормалдуу колдонуудагы материалдардагы жана жасалгадагы кемчиликтерди камтыйт.

For technical support, warranty claims, or further assistance, please visit the official Antec webсайтка же кардарларды тейлөө бөлүмүнө кайрылыңыз. Кепилдикти текшерүү үчүн сатып алганыңыздын далилин сактаңыз.

Antec расмий Webсайт: www.antec.com
