Introduction
Thank you for choosing the Linkind StarRay Solar Outdoor Spotlights. This manual provides detailed instructions for the safe and efficient use of your new solar lights. These spotlights are designed for outdoor use, featuring motion detection, three lighting modes, and a warm white light output of 3000K and 1000 lumens. Their IP67 rating ensures durability in various weather conditions.
Коопсуздук нускамалары
- Оптималдуу кубаттоо үчүн күн панелинин түз күн нурун алгандыгын текшериңиз.
- Do not attempt to disassemble or modify the product. This may void the warranty and pose safety risks.
- Keep the product away from fire or extreme heat sources.
- Do not immerse the product in water for extended periods, despite its IP67 rating.
- Handle the ground stake and wall mount components carefully during installation to avoid injury.
- Батареяны жергиликтүү эрежелерге ылайык таштаңыз.
Пакеттин мазмуну
Сураныч, бардык компоненттер бар экенин текшерүү үчүн пакетти текшериңиз:
- 4 x Linkind StarRay Solar Outdoor Spotlights
- 4 x Жер коюму
- 4 х дубалга орнотулган кронштейндер
- Mounting Screws and Wall Plugs (for wall installation)
- Колдонуучунун Колдонмосу (бул документ)
Image: Four Linkind StarRay solar outdoor spotlights, showing the main unit and the ground stake attachment. This illustrates the complete product package.
Продукт өзгөчөлүктөрү
- Жогорку жарыктык: Equipped with 22 LED beads, delivering up to 1000 lumens of 3000K warm white light.
- Advanced Optical Lenses: Enhanced lenses for a wider and more intense spot range.
- Кыймылды аныктоо: Integrated motion sensor with a detection range of 3-8 meters and a 120° angle.
- Үч жарык режими:
- Mode 1 (Continuous Dim): Low light output continuously throughout the night. Motion detection is inactive.
- Mode 2 (Dim to Bright): Low light output, brightens to 100% for 20 seconds upon motion detection, then returns to low light.
- Mode 3 (Off to Bright): Light is off, brightens to 100% for 20 seconds upon motion detection, then turns off.
- Туруктуу курулуш: IP67 waterproof, frostproof, and heatproof rating for all-weather performance.
- 2-бирде орнотуу: Can be installed in the ground using a stake or mounted on a wall.
- Жөнгө салынуучу бурч: Vertical 180° and horizontal 360° rotation for precise light direction.
- Энергияны үнөмдүү: Solar-powered with a high conversion rate (22%) for charging during the day and automatic illumination at night.
Сүрөт: жакын план view of the spotlight head, highlighting the 22 LED beads and unique optical lenses. Text indicates 1000 lumens output compared to 200 lumens from other lights.
Image: A visual representation of the three operational modes: 1) All night dim light, 2) Dim light that brightens with motion, and 3) Light off that brightens with motion.

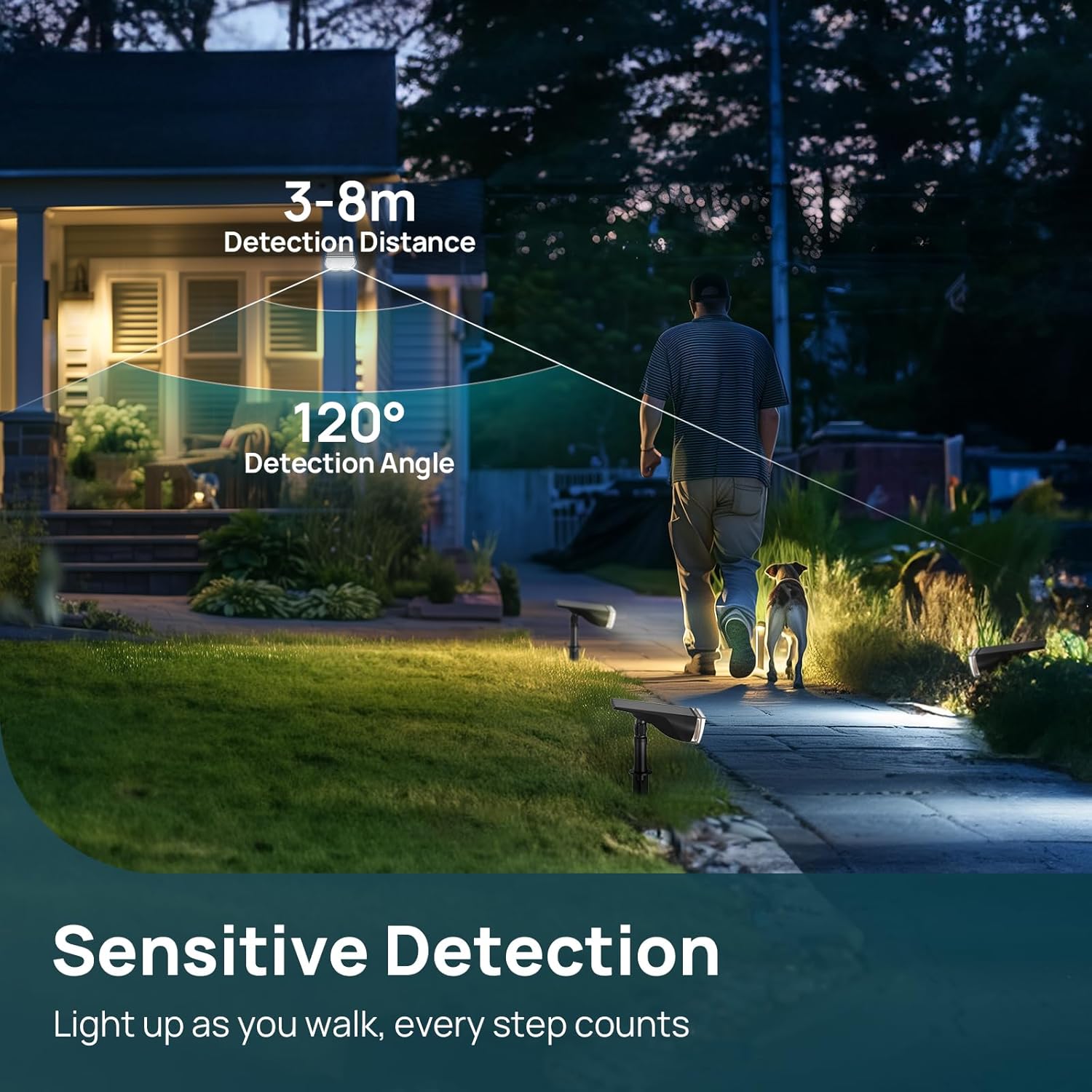

Image: A person walking with a dog, demonstrating the 3-8 meter detection distance and 120° detection angle of the motion sensor.
Сүрөт: Мисamples of the spotlights in use, illuminating garden stairs, a poolside area, and a fence, showcasing their versatility in different outdoor settings.
Орнотуу жана орнотуу
The Linkind StarRay Solar Spotlights offer two installation methods:
Method 1: Ground Installation
- Attach the ground stake to the bottom of the spotlight unit. Ensure it is securely fastened.
- Choose a location in your garden or yard where the solar panel will receive at least 6-8 hours of direct sunlight daily.
- Insert the ground stake firmly into the soil.
- Adjust the angle of the solar panel and the light head to your desired position. The light head can rotate 360° horizontally and 180° vertically.
Метод 2: Дубалга орнотуу
- Attach the wall mount bracket to the bottom of the spotlight unit.
- Select a suitable wall location that receives ample direct sunlight for the solar panel.
- Mark the positions for drilling holes using the bracket as a template.
- Тешиктерди бургула жана дубал тыгындарын салгыла.
- Secure the spotlight unit to the wall using the provided screws.
- Adjust the angle of the solar panel and the light head for optimal lighting and charging.
Image: Depicts the two installation methods: one spotlight installed in the ground and another mounted on a fence, illustrating versatility.
Иштөө нускамалары
The spotlight has a power button, usually located on the back or underside of the main light unit. Press this button to cycle through the three operating modes:
- Биринчи басма: Activates Mode 1 (Continuous Dim Light). The light will stay at a low brightness throughout the night.
- Экинчи басма: Activates Mode 2 (Dim to Bright with Motion). The light will be dim, then brighten to 100% for 20 seconds when motion is detected, returning to dim.
- Үчүнчү Басма: Activates Mode 3 (Off to Bright with Motion). The light will be off, then brighten to 100% for 20 seconds when motion is detected, returning to off.
- Төртүнчү басма сөз: Жарыкты өчүрөт.
The light will automatically charge during the day and activate its selected mode at dusk.
Image: Illustrates the solar panel charging during daylight hours with a 22% conversion rate, and the light activating at night upon motion detection (a dog walking).
Техникалык тейлөө
- Тазалоо: Дайыма күн панелин жумшак менен сүртүп, гamp чаңды, кирди же калдыктарды тазалоо үчүн кездеме. Таза панели натыйжалуу заряддоону камсыз кылат.
- Тоскоолдуктар: Эч кандай бак-дарактар, бадалдар же башка объекттер күн панелине тике күн нурунун түшүшүнө тоскоол болбошун текшериңиз.
- Батарея: The integrated AA lithium battery is designed for long-term use. If the light performance significantly degrades over time, consider replacing the battery with a compatible rechargeable AA lithium battery, if accessible and recommended by the manufacturer.
- Кышкы кам көрүү: In regions with heavy snow, clear snow from the solar panel to allow charging.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Түнкүсүн жарык күйбөйт. | Insufficient sunlight for charging. Battery depleted. Switch is OFF. | Ensure the solar panel is in direct sunlight for 6-8 hours. Turn the switch ON. Check for obstructions. |
| Жарыктын узактыгы кыска. | Insufficient charging. Solar panel is dirty. | Relocate the light to a sunnier spot. Clean the solar panel. |
| Кыймыл сенсор иштебейт. | Light is in Mode 1 (Continuous Dim). Sensor is obstructed. | Switch to Mode 2 or 3. Ensure the sensor is clear of obstructions. |
| Жарык күңүрт же бүлбүлдөп турат. | Low battery charge. Faulty LED. | Allow for full day charging. If problem persists, contact customer support. |
Техникалык шарттар
| Бренд | Linkind |
| Модель номери | 810175710075 |
| Жарык булагы | 22 LED мончок |
| Жарык агымы | 1000 Lumens |
| Түс температурасы | 3000K (жылуу ак) |
| Кыймылды аныктоо диапазону | 3-8 метр |
| Motion Detection Angle | 120° |
| Lighting Angle | 90° |
| Жөнгө салынуучу бурч | Вертикал 180°, Горизонталдуу 360° |
| Суу өткөрбөйт рейтинги | IP67 |
| Power Source | Күн энергиясы |
| Батарея | 1 AA rechargeable battery (included) |
| Материал | Акрилонитрил бутадиен стирол (ABS) |
| Продукциянын өлчөмдөрү (L x W x Y) | 13 x 31 x 17 см (5.1 x 12.2 x 6.7 дюйм) |
| Элемент Салмагы | 1.16 килограмм (2.56 фунт) |
Image: A spotlight being hit by water, demonstrating its IP67 rating for waterproof, frostproof, and heatproof durability.
Image: Technical diagram displaying the product dimensions, 360°/180° adjustable angle, motion sensor location, and PET surface layer of the solar panel.
Кепилдик жана колдоо
Specific warranty information was not provided in the product details. For warranty claims or technical support, please contact Linkind customer service through their official webпродукт сатылып алынган сайт же сатуучу. Кепилдикке байланыштуу суроолор үчүн сатып алганыңыздын далилин сактап коюңуз.
Кошумча жардам алуу үчүн, сиз иш сапары менен болот Linkind Brand Store.
