PetSafe Outlast Pumpless Cat & Dog Water Fountain

Introduction

Welcome to the user manual for your new PetSafe Outlast Pumpless Cat & Dog Water Fountain. This innovative pet fountain is designed to provide fresh, circulating water for your pets without the need for a traditional submerged pump. Featuring patented HydroSpin technology, it ensures a continuous flow of water, promoting better hydration and a healthier drinking experience for your cat or dog. Its unique design simplifies maintenance and enhances reliability.

Image: A cat drinking from the PetSafe Outlast Pumpless Water Fountain, highlighting its innovative design.

Жайгашуу

The PetSafe Outlast Fountain is designed for quick and easy assembly. Follow these steps to set up your fountain:

1. Компоненттерди таңгактан чыгаруу: Carefully remove all parts from the packaging. Ensure you have the Outlast 60 oz Fountain unit, 1 PetSafe® Ion-X™ Filter (PAC00-17260), Quick start guide, USB Power Cable, and Wall adaptor.
2. Жуучу компоненттери: Before first use, rinse all parts of the fountain (excluding the motor unit and power cable) with warm, soapy water. Rinse thoroughly to remove any residue.
3. Фонтанды чогултуу:
   • Place the main basin тегиз, туруктуу бетинде.
   • Insert the HydroSpin technology unit into its designated slot in the basin.
   • Install the Ion-X filter into the filter housing. Ensure it is seated correctly.
   • Place the top cover onto the basin, aligning it properly.
4. Суу менен толтуруу: Fill the fountain with fresh water up to the maximum fill line. Do not overfill.
5. Туташуу кубаты: Connect the USB Power Cable to the fountain and then to the Wall adaptor. Plug the adaptor into a standard electrical outlet.
6. Операцияны баштоо: The fountain will begin circulating water automatically once plugged in.

Image: A dog using the fountain, illustrating the ease of setup and cleaning.

Иштөө нускамалары

The PetSafe Outlast Fountain is designed for continuous operation to ensure your pet always has access to fresh, circulating water.

• Үзгүлтүксүз агым: The fountain's HydroSpin technology will continuously circulate water when plugged in, providing a constant stream for your pet to drink from.
• Smart & Quiet Motor: The intelligent sensors in the fountain are designed to slow water flow at night, reducing noise for a quieter environment. They also automatically shut off the motor when water levels are low to protect the motor and extend its life.
• LED көрсөткүчү: The integrated LED indicator will alert you when the water level is low, signaling that it's time for a refill. It also indicates when the filter needs to be changed.
• Толтуруу: When the LED indicator shows low water, unplug the fountain, remove the top cover, and refill with fresh water up to the maximum fill line. Reassemble and plug back in.

Техникалык тейлөө

Regular cleaning and filter replacement are crucial for maintaining the hygiene and performance of your PetSafe Outlast Fountain.

Фонтанды тазалоо

The PetSafe Outlast Fountain is designed for easy cleaning, with many components being dishwasher-safe.

1. Розеткадан сууруп, бөлүктөргө бөлүңүз: Always unplug the fountain from the power outlet before cleaning. Disassemble all removable parts, including the top cover, HydroSpin unit, and filter.
2. Идиш жуугучта коопсуз бөлүктөр: бasin, top cover, and HydroSpin unit (if removable from the motor housing) are dishwasher safe (top rack only).
3. Hand Wash Non-Dishwasher Safe Parts: The motor housing and power cable should never be submerged in water. Wipe them clean with a damp кездеме.
4. Кылдат тазалоо: Use warm, soapy water and a soft brush or sponge to clean any parts not placed in the dishwasher, paying attention to any areas where mineral deposits or debris might accumulate. Rinse all parts thoroughly.
5. Кургатуу жана кайра чогултуу: Фонтанды кайра монтаждоодон мурун бардык бөлүктөрү толугу менен кургагандыгын текшериңиз.

Фильтрди алмаштыруу

The Ion-X Filter is essential for keeping the water clean and fresh. It uses carbon to remove bad tastes and odors, and ion-exchange resin to soften the water and prevent mineral buildup.

• Жыштыгы: The suggested lifespan for each filter is 2 to 4 weeks, depending on usage and water quality. The LED indicator will also signal when a filter change is needed.
• Кадамдар:
  • Unplug the fountain and remove the top cover.
  • Эски чыпканы алып салып, аны жок кылыңыз.
  • Rinse the new PetSafe® Ion-X™ Filter (PAC00-17260) under cold water for 30 seconds to remove any loose carbon dust.
  • Insert the new filter into the filter housing, ensuring it fits securely.
  • Reassemble the fountain, refill with water, and plug it back in.

Image: Demonstrating filter replacement for the fountain.

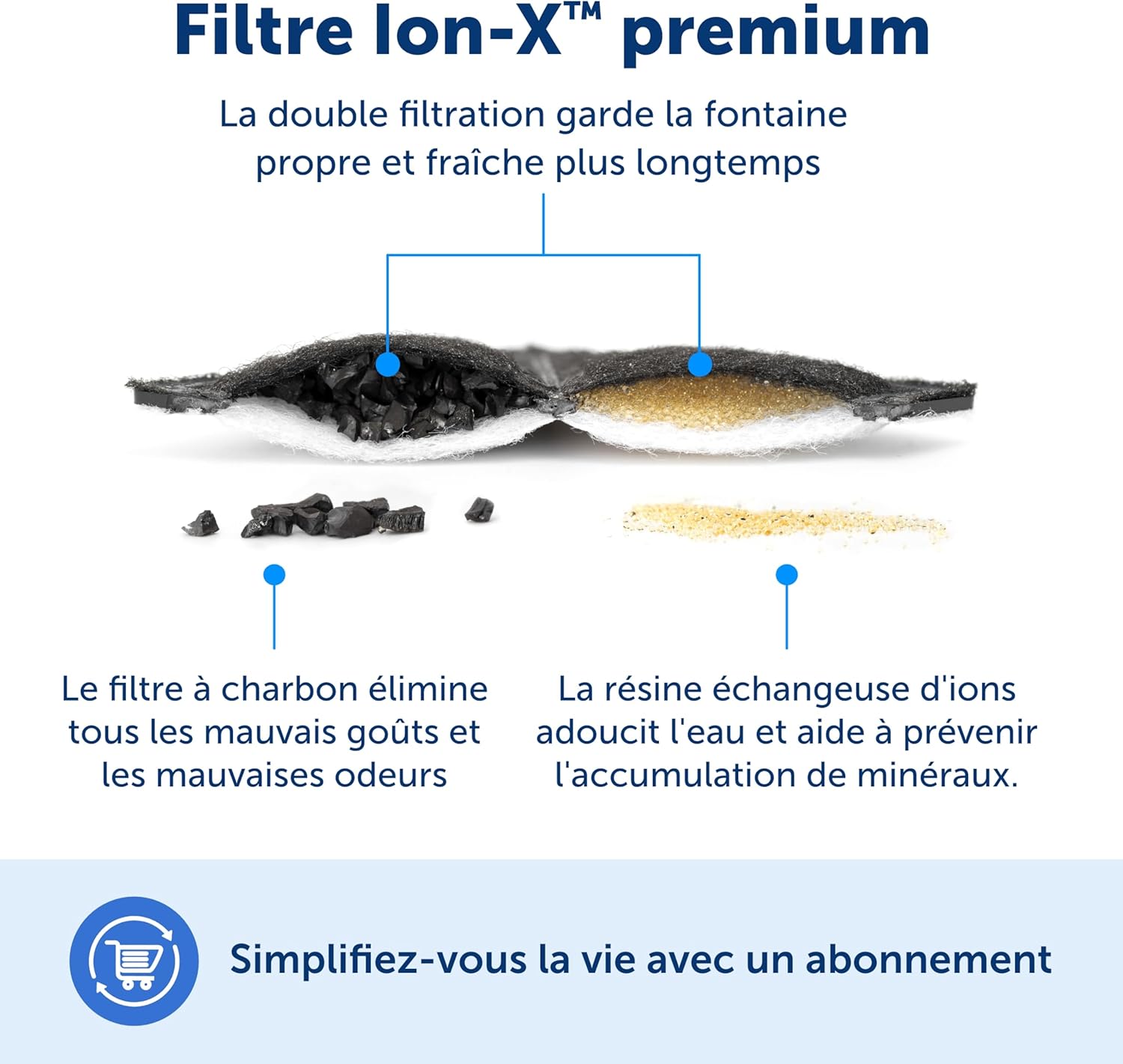

Image: Diagram of the Ion-X filter's internal structure and function.

Проблемаларды чечүү

If you encounter any issues with your PetSafe Outlast Fountain, refer to the following common problems and solutions:

Техникалык шарттар

Кепилдик жана колдоо

Your PetSafe Outlast Pumpless Cat & Dog Water Fountain comes with a 1 жылдык Чектелген Кепилдик сатып алынган күндөн тартып. Бул кепилдик нормалдуу колдонуудагы материалдардагы жана жасалгадагы кемчиликтерди камтыйт.

For warranty claims, technical support, or additional assistance, please contact PetSafe Customer Service.

• Онлайн ресурстар: You can often find FAQs, troubleshooting guides, and product registration on the official PetSafe webсайт.
• Байланыш маалыматы: Refer to the Quick Start Guide included with your product or visit the PetSafe website for the most current contact details (phone, email, or chat support).
• Колдонуучунун колдонмосу (PDF): PDF форматындагы толук колдонуучу колдонмосун жүктөп алууга болот бул жерде.
