Introduction
Thank you for choosing the BUGANI Bluetooth Speaker. This powerful and versatile speaker is designed to deliver high-fidelity audio with deep bass and clear highs, perfect for both indoor and outdoor environments. Featuring advanced Bluetooth 5.4 technology, TWS connectivity, and a durable, portable design, it ensures an immersive listening experience wherever you go. Please read this manual carefully to ensure proper use and maintenance of your speaker.
Сүрөт: алдыңкы view of the BUGANI Bluetooth Speaker in gold and black, showcasinанын кооз дизайны жана интеграцияланган туткасы.
Кутуда эмне бар
Сураныч, бардык буюмдар бар экенине ынануу үчүн пакетиңиздин мазмунун текшериңиз:
- 1 x BUGANI Brief Pro Speaker
- 1 x USB-C кабели
- 1 x AUX IN Cable
- 1 x User Manual
- 1 x Quick Start Guide
Image: The BUGANI Brief Pro speaker, USB-C cable, AUX cable, user manual, and quick start guide laid out, indicating package contents.
Продукт өзгөчөлүктөрү
Powerful 160W Audio System
Experience thunderous low-end clarity and rich sound with the BUGANI speaker's 160W peak output. It features a rear-mounted super-sized passive bass radiator, two 4-inch subwoofers, and two 1.6-inch tweeters (41mmx2) with AK-Y Silk Film Material for low distortion and natural sound up to 50kHz.
Сүрөт: жарылган view of the speaker's internal components, highlighting the 4-inch subwoofers and 1.6-inch tweeters, and the 160W power output.
Hi-Res Audio колдоо
The BUGANI Brief Pro is Hi-Res Audio certified, delivering exceptional detail and clarity to your music. Rediscover the charm of jazz and other genres with pure, rich sound that brings melodies, rhythms, and bass lines to life.
Image: The BUGANI speaker prominently displaying Hi-Res Audio and Hi-Res Audio Wireless certifications, emphasizing its high-fidelity sound capabilities.
Bluetooth 5.4 and TWS Connectivity
Equipped with the latest Bluetooth 5.4 module, the speaker ensures stable pairing, extended range, and high-fidelity sound. Utilize True Wireless Stereo (TWS) technology to connect two BUGANI Brief Pro speakers for an even more immersive stereo sound experience.

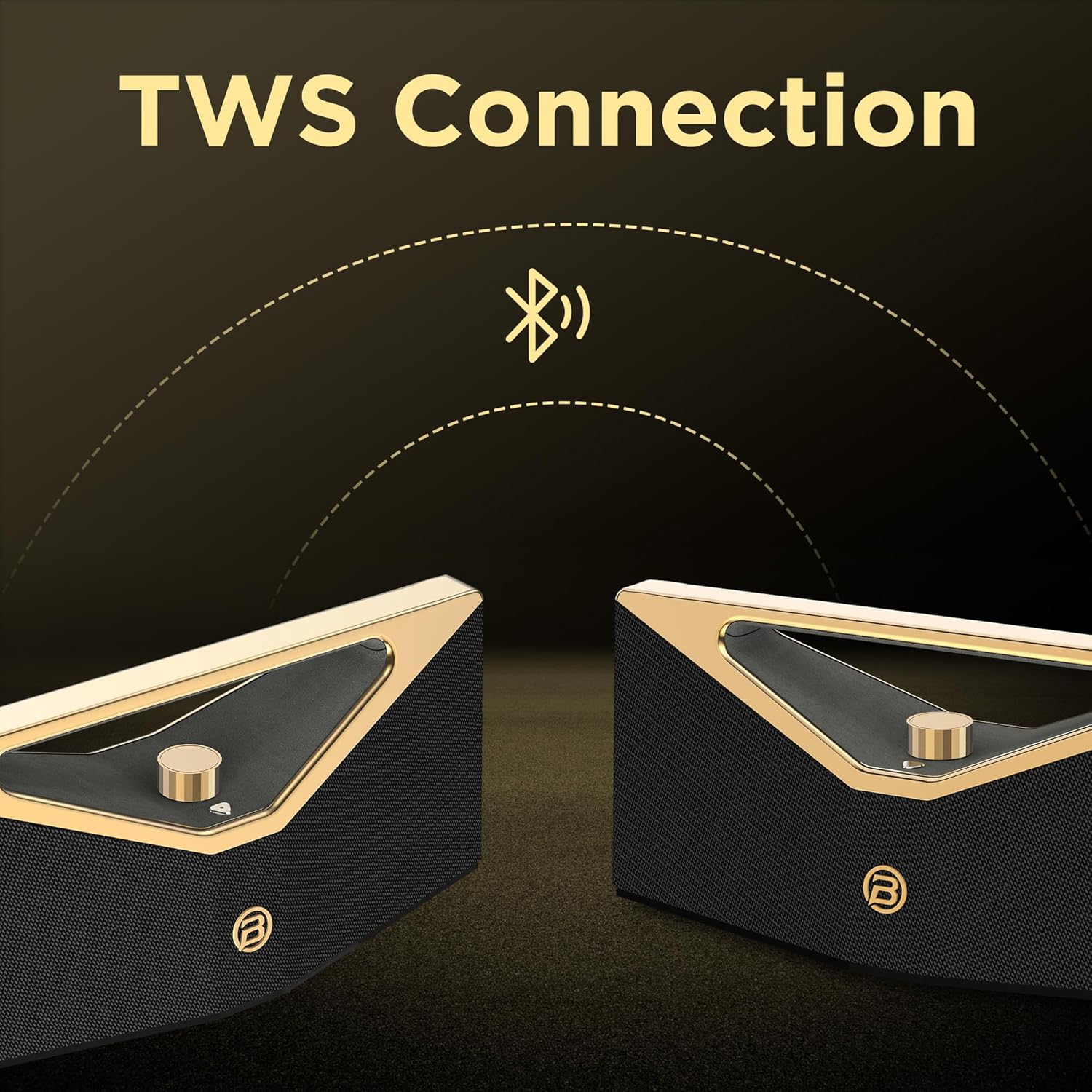

Image: Two BUGANI speakers shown connecting wirelessly via TWS (True Wireless Stereo) technology, indicating stereo pairing capability.
12-Hour Playtime & Portable Design
Enjoy up to 12 hours of continuous playtime on a single charge, making it ideal for all-day outdoor use. The speaker features an ergonomic handle design, making it easy to carry and enjoy music anytime, anywhere.
Image: The BUGANI speaker on a golden pedestal, highlighting its 12-hour continuous playtime feature.
Image: A person carrying the BUGANI speaker by its integrated handle, emphasizing its portability and ease of transport.
Versatile Connectivity & IPX5 Water Resistance
In addition to Bluetooth, the speaker supports AUX and USB inputs, allowing you to connect various devices. With IPX5 water resistance, it is protected against splashing water from any direction, making it suitable for outdoor adventures, beach parties, or poolside enjoyment.
Image: The BUGANI speaker with water droplets on its surface, illustrating its IPX5 water-resistant feature for outdoor use.
Жайгашуу
1. Динамикти кубаттоо
Before first use, fully charge the speaker. Connect the provided USB-C cable to the speaker's charging port and the other end to a compatible USB power adapter (not included). The charging indicator light will show the charging status. A full charge takes approximately 5 hours.
2. Күйгүзүү / Өчүрүү
To power on the speaker, press and hold the power button located on the control panel until you hear an audible prompt. To power off, press and hold the power button again.
3. Bluetooth Жупташтыруу
- Динамик күйгүзүлгөнүн жана Bluetooth жупташтыруу режиминде экенин текшериңиз (жаркылдаган LED менен көрсөтүлгөн).
- Түзмөгүңүздө (смартфон, планшет ж.б.) Bluetooth иштетиңиз жана жеткиликтүү түзмөктөрдү издеңиз.
- Select "BUGANI Brief Pro" from the list of devices.
- Туташтырылгандан кийин, сиз ырастоо үнүн угасыз жана LED индикатору туруктуу болуп калат.
4. Чыныгы зымсыз стерео (TWS) жупташтыруу
For an enhanced stereo experience, you can pair two BUGANI Brief Pro speakers together:
- Эки динамиктин күйгүзүлгөнүн жана башка Bluetooth түзмөгүнө туташпаганын текшериңиз.
- On one speaker (this will be the primary speaker), press and hold the TWS button (if available, or a specific button designated for TWS pairing, usually indicated in the quick start guide).
- The speakers will automatically search for and connect to each other. Once paired, you will hear a confirmation sound.
- Connect your device to the primary speaker via Bluetooth as described in step 3. Audio will now play in stereo through both speakers.
5. AUX/USB Connection
To play audio from devices without Bluetooth, use the provided AUX IN cable or a USB drive:
- AUX киргизүү: Connect one end of the 3.5mm AUX cable to the speaker's AUX IN port and the other end to your audio device's headphone jack. The speaker will automatically switch to AUX mode.
- USB киргизүү: Аудио камтыган USB дискти салыңыз files into the speaker's USB port. The speaker will automatically switch to USB mode and begin playing.
Иштөө нускамалары
Үндү көзөмөлдөө
The speaker features a prominent rotary knob for volume adjustment. Rotate the knob clockwise to increase volume and counter-clockwise to decrease volume.
Сүрөт: жакын план view of the gold rotary volume knob on the BUGANI speaker, indicating its control functionality.
Ойнотуу башкаруу
Specific playback controls (play/pause, next/previous track) are typically integrated into the speaker's control panel. Refer to the Quick Start Guide for detailed button functions.
Mode Switching
The speaker automatically switches modes when an AUX cable or USB drive is inserted. To manually switch between Bluetooth, AUX, and USB modes, press the mode button (if available) on the control panel.
Видео: Продукциянын расмий көргөзмөсүasing the BUGANI Brief Pro Speaker's design, internal components, and key features like 160W power, Bluetooth 5.3 (note: product specs say 5.4, video might be older), and TWS connectivity. This video provides a visual overview of the speaker's capabilities and aesthetic.
Техникалык тейлөө
- Тазалоо: Use a soft, dry cloth to clean the speaker's surface. For stubborn dirt, a slightly damp кездеме колдонсо болот. Катуу химиялык заттарды же абразивдүү тазалагычтарды колдонбоңуз.
- Суу каршылык: The speaker is IPX5 water-resistant, meaning it can withstand splashes. Do not submerge the speaker in water or expose it to strong jets of water. Ensure the charging port cover is securely closed when near water.
- Сактагыч: Динамикти түз күн нурунан жана өтө температурадан алыс салкын, кургак жерде сактаңыз.
- Батареяга кам көрүү: Батареянын иштөө мөөнөтүн узартуу үчүн динамикти бат-баттан толук кубаттап турбаңыз. Узак мөөнөткө колдонулбаса да, аны үзгүлтүксүз заряддаңыз.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Динамик күйбөйт. | Батареянын аздыгы; Кубат баскычы жетишерлик көпкө кармалбай калды. | Charge the speaker fully. Press and hold the power button for 3-5 seconds. |
| Bluetooth аркылуу жупташтыруу мүмкүн эмес. | Speaker not in pairing mode; Device Bluetooth off; Too far from speaker; Already connected to another device. | Ensure speaker is flashing LED for pairing. Turn device Bluetooth off/on. Move device closer. Disconnect from other devices. |
| Үн жок же үнү төмөн. | Volume too low on speaker/device; Incorrect input mode; Cable not fully inserted (AUX). | Increase volume on both speaker and device. Check if speaker is in correct mode (Bluetooth/AUX/USB). Re-insert AUX cable firmly. |
| Үндүн бузулушу. | Үн өтө жогору; Батареянын аздыгы; Интерференция. | Үнүн азайтыңыз. Динамикти заряддаңыз. Динамикти башка электрондук шаймандардан алыстатыңыз. |
| TWS жупташтыруу ишке ашкан жок. | Speakers already connected to other devices; Speakers too far apart. | Ensure both speakers are disconnected from other devices. Place speakers close to each other during pairing. |
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель аты | Brief Pro (M192) |
| Чыгуу күчү | 160 Вт (чоку) |
| Динамик түрү | Сабвуфер |
| Вуфер | 4" x 2 |
| Tweeter | 1.6" x 2 (41 мм x 2) |
| Bluetooth версиясы | 5.4 (Note: Video mentions 5.3, product specs indicate 5.4) |
| Өзгөчө өзгөчөлүк | Hi-Res Audio, TWS Function |
| Батарея сыйымдуулугу | 52.92Wh (Lithium Polymer) |
| Заряддоо убактысы | Болжол менен 5 саат |
| Ойнотуу убактысы | Approx. 12 hours (Normal Volume) |
| Заряддоо порту | USB-C |
| Суу каршылык | IPX5 |
| Продукциянын өлчөмдөрү | 18.5"D x 7.9"W x 7.9"H |
| Элемент Салмагы | 10.08 фунт |
| Connectivity Protocol | Bluetooth |
| Шайкеш түзмөктөр | Projector, Laptop, MP3 Player, Television, Tablet, Smartphone |
Image: A visual representation of the BUGANI Brief Pro speaker's technical specifications, including output power, input types, speaker dimensions, and battery life.
Кепилдик жана колдоо
The BUGANI Bluetooth Speaker comes with a Чектелген Кепилдик. For specific warranty terms and conditions, please refer to the warranty card included in your package or contact BUGANI customer support.
If you encounter any issues or have questions not covered in this manual, please contact BUGANI customer support through the retailer's platform or the official BUGANI webжардам үчүн сайт.
