EMOS GoSmart WiFi акылдуу гараж эшигин которуштуруу модулу H5111 (IP-2131SW) колдонуу боюнча колдонмо

1. Киришүү

The EMOS GoSmart WiFi Smart Garage Door Switch Module H5111 (also known as IP-2131SW) provides an advanced solution for controlling your garage door via Wi-Fi and a dedicated application. This module converts traditional garage door switches into smart switches, enabling automation and remote control from any location. It integrates seamlessly into your smart home system, offering enhanced security, comfort, and control.

This manual provides detailed instructions for the installation, operation, and maintenance of your EMOS GoSmart Garage Door Switch Module. Please read it thoroughly before installation and use.

2. Коопсуздук маалыматы

ЭСКЕРТҮҮ: Electrical installation should only be performed by a qualified electrician or a person with sufficient knowledge of electrical systems. Always disconnect power at the main circuit breaker before performing any electrical work.

• Орнотуудан же техникалык тейлөөдөн мурун электр кубаты өчүрүлгөнүн текшериңиз.
• The module operates at 230V~/50Hz. Do not exceed the maximum current rating of 10A.
• Бул аппарат үй ичинде колдонуу үчүн гана иштелип чыккан.
• Аппаратты суудан, нымдан жана экстремалдык температурадан алыс кармаңыз.
• Түзмөктү өз алдынча оңдоого же өзгөртүүгө аракет кылбаңыз. Тейлөө үчүн квалификациялуу адистерге кайрылыңыз.
• Ensure all connections are secure and properly insulated to prevent short circuits or electric shock.

3. Пакеттин мазмуну

Пакетиңизде бардык буюмдар бар экенин текшериңиз:

• EMOS GoSmart WiFi Smart Garage Door Switch Module (H5111 / IP-2131SW)
• Magnetic Sensor Cable (Reed Contact)
• Көрсөтмө (бул документ)

Image 3.1: EMOS GoSmart Garage Door Module H5111 packaging. Shows the product box with the module and a smartphone displaying the app interface.

Image 3.2: Magnetic sensor cable. This cable includes two magnetic contact parts (PS-3130N and PS-3150) and a long black cable for connection to the module.

4. Продукт бүтүп калдыview

The EMOS GoSmart H5111 module is a compact device designed to be installed behind your existing garage door switch. It features terminals for power input, connection to the garage door opener, and a sensor input for monitoring the door's status.

Сүрөт 4.1: Алдыңкы view of the EMOS GoSmart WiFi Garage Door Module H5111, showing its input voltage (AC100-240V, 50/60Hz) and terminal labels (S1, S2, L, N, S3, S4). A smartphone displaying the "Closed" status of a garage door in the EMOS GoSmart app is shown next to it.

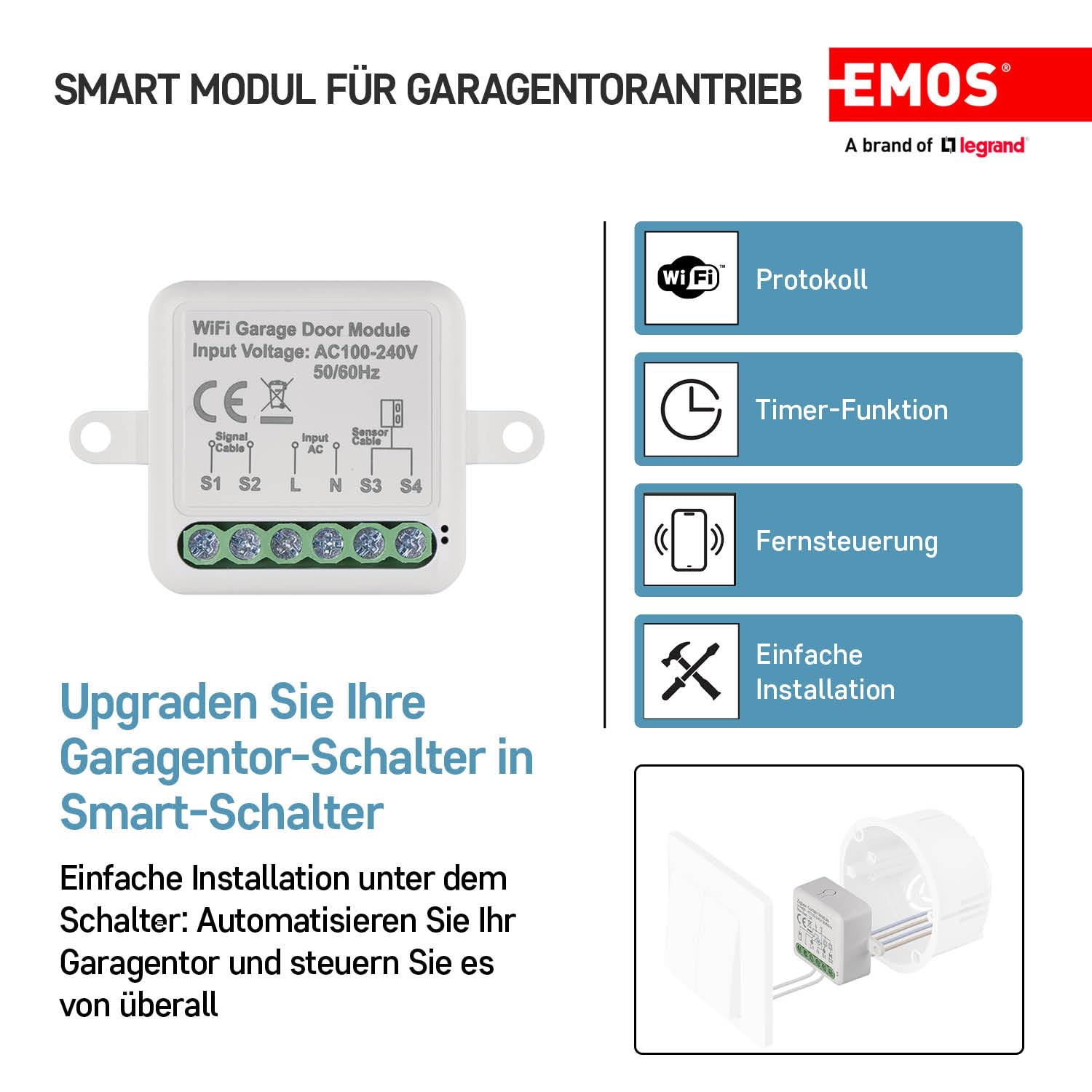

Image 4.2: Key features of the EMOS GoSmart Garage Door Module H5111, including WiFi Protocol, Timer Function, Remote Control, and Easy Installation. The module itself is depicted alongside these icons.

4.1. Terminal Descriptions

• L (Live): Connects to the live wire of your 230V AC power supply.
• N (нейтралдуу): Connects to the neutral wire of your 230V AC power supply.
• S1, S2 (Signal Cable): Output terminals for connecting to your garage door opener's control input.
• S3, S4 (Sensor Cable): Input terminals for connecting the magnetic sensor cable to detect door status (open/closed).

5. Орнотуу жана орнотуу

5.1. Электр монтаждоо

МААНИЛҮҮ: Ensure power is OFF before proceeding. A neutral wire (N) is required for this module.

1. Кубатты өчүрүү: Turn off the main power supply to your garage at the circuit breaker.
2. Кирүү которгуч кутучасы: Remove your existing garage door wall switch from its mounting box.
3. Модулга зымдар:
   • туташтыруу Live (L) wire from your power supply to the 'L' terminal on the module.
   • туташтыруу Нейтралдуу (N) wire from your power supply to the 'N' terminal on the module.
   • Connect the control wires from your garage door opener (typically the wires that go to your existing wall switch) to the 'S1' and 'S2' terminals on the module. The module acts as a dry contact switch.
   • Connect the magnetic sensor cable to the 'S3' and 'S4' terminals. The sensor detects the open/closed status of the garage door.
4. Модулду орнотуу: This module is designed for easy installation under the switch in various types of hollow wall boxes, including standard European switch boxes. Carefully place the module into the wall box behind the existing switch.
5. Install Magnetic Sensor: Mount the two parts of the magnetic sensor on your garage door and door frame. Ensure they are aligned and close enough to each other when the door is closed, and separate when the door is open. This allows the module to accurately detect the door's status.
6. Күчтү калыбына келтирүү: Бардык туташуулар коопсуз болуп, модуль коопсуз орнотулгандан кийин автоматтык өчүргүчтөгү кубатту калыбына келтириңиз.

Image 5.1: Diagram illustrating the installation of a smart home switch module behind a wall switch in a European-style wall box. This shows the compact size and how it fits within the existing electrical infrastructure.

5.2. Колдонмону орнотуу жана жупташтыруу

The EMOS GoSmart app is required to control your garage door module.

1. Колдонмону жүктөп алыңыз: Издөө "EMOS GoSmart" in the Apple App Store (for iOS) or Google Play Store (for Android) and install the application on your smartphone.
2. Катталуу/Кирүү: Колдонмону ачып, жаңы каттоо эсебин түзүү үчүн экрандагы нускамаларды аткарыңыз же сизде мурунтан эле бар болсо кириңиз.
3. Түзмөк кошуу:
   • Ensure your smartphone is connected to a 2.4 GHz Wi-Fi network. The module only supports 2.4 GHz Wi-Fi.
   • In the EMOS GoSmart app, tap the "+" icon to add a new device.
   • Select "Garage Door Opener" or a similar category.
   • Follow the app's instructions to put the module into pairing mode (this usually involves a specific button press sequence or power cycle on the module).
   • Confirm the Wi-Fi network and enter your Wi-Fi password when prompted.
   • The app will search for and connect to the module. Once connected, you can rename the device for easy identification (e.g., "Main Garage Door").

Image 5.2: A smartphone displaying the EMOS GoSmart app interface, showing a garage door icon with "Closed" status. A person is shown using a smartphone in a home setting, indicating remote control capabilities.

6. Модулду иштетүү

6.1. Колдонмону башкаруу

Once paired, you can control your garage door from anywhere using the EMOS GoSmart app.

• Ачык жабык: Tap the garage door icon or designated button in the app to open or close your garage door.
• Статус мониторинги: The app will display the current status of your garage door (Open or Closed) based on the magnetic sensor input.
• Тарых: View a log of when the garage door was opened or closed.

6.2. Таймер функциясы

The app allows you to set schedules and timers for your garage door.

• Графиктер: Set specific times for the garage door to open or close automatically (e.g., open at 7 AM, close at 9 PM).
• Артка саноо: Use the countdown function to automatically close the garage door after a set period if it's left open.

6.3. Үн менен башкаруу интеграциясы

The EMOS GoSmart module is compatible with popular voice assistants.

• Amazon Alexa: Enable the "EMOS GoSmart" skill in your Alexa app and link your account. You can then use commands like "Alexa, open the garage door."
• Google Жардамчысы: Link your EMOS GoSmart account in the Google Home app. Use commands such as "Hey Google, close the garage door."

7. Техникалык тейлөө

• Тазалоо: Wipe the module with a dry, soft cloth. Do not use liquid cleaners or solvents.
• Программалык камсыздоонун жаңыртуулары: Periodically check the EMOS GoSmart app for available firmware updates for your module to ensure optimal performance and security.
• Сенсор текшерүү: Regularly check the alignment and functionality of the magnetic sensor to ensure accurate door status reporting.

8. Кыйынчылыктарды

9. Техникалык шарттар
