YEELIGHT акылдуу парда чырактары үчүн колдонуучу колдонмосу

1. Киришүү

The YEELIGHT Smart Curtain Lights are innovative RGB LED string lights designed to transform any space with dynamic and customizable illumination. Featuring 475 individually controllable LEDs across a 5x6.5 Ft canvas, these lights offer a vast array of pre-set scenes, static patterns, and flexible DIY customization options. Control is made easy via the Yeelight APP, which also includes a Music Flow feature for synchronized light effects. With an IP65 waterproof rating and a wide operating temperature range, these lights are suitable for both indoor and outdoor use, making them perfect for holidays, parties, or daily decor.

2. Коопсуздук маалыматы

Please read and understand all safety instructions before installing and operating the YEELIGHT Smart Curtain Lights. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Орнотуудан же техникалык тейлөөдөн мурун электр кубаты өчүрүлгөнүн текшериңиз.
• Use only the provided power adapter. Do not use with dimmers or other control devices not specified by the manufacturer.
• Do not submerge the product in water, despite its IP65 rating. The IP65 rating protects against water jets, not submersion.
• Көрсөтүлгөн температура диапазонунда -20°Cден 60°Cге чейин (-4°Fден 140°Fге чейин) иштейт.
• Балдар жана үй жаныбарлары жетпеген жерде сактаңыз.
• Продукцияны оңдоого же өзгөртүүгө аракет кылбаңыз. Бардык тейлөө иштерин квалификациялуу адистерге тапшырыңыз.
• Avoid sharp objects or excessive force that could damage the LED strings.

3. Пакеттин мазмуну

Бардык компоненттердин бар экендигин жана жакшы абалда экендигин текшериңиз:

• YEELIGHT Smart Curtain Light Unit (5x6.5 Ft, 475 LEDs)
• Кубаттуу адаптер
• Mounting Accessories (Hooks, 3M Tape, Non-marking Nails)
• User Manual

4. Орнотуу жана орнотуу

The YEELIGHT Smart Curtain Lights offer flexible installation options for various surfaces. Choose the method best suited for your desired location.

4.1 Таңгактан чыгаруу жана даярдоо

1. Carefully remove the curtain lights from the packaging.
2. Gently unroll the light strings, ensuring they do not tangle.
3. Identify your desired installation area (e.g., window, wall, outdoor facade).

4.2 Орнотуу ыкмалары

The curtain lights provide a 5x6.5 feet canvas for your designs. Consider the dimensions of your installation area.

Figure 4.1: The 5x6.5 feet light canvas, ideal for various display sizes.

Three primary installation options are available:

Method 1: Mount on Curtain Hooks

Ideal for existing curtain rods or tracks. Simply attach the light unit's top loops to standard curtain hooks.

Method 2: Mount with 3M Tape

For smooth, clean surfaces. Peel the backing from the included 3M tape and firmly press the light unit's top bar onto the desired surface.

Method 3: Mount with Non-marking Nails

For walls where minimal impact is desired. Use the provided non-marking nails to secure the top bar of the light unit.

Figure 4.2: Three easy installation options for the YEELIGHT Smart Curtain Lights.

4.3 Кубат туташтыруу

1. Connect the power adapter to the light unit.
2. Кубат адаптерин стандарттуу электр розеткасына сайыңыз.
3. The lights should illuminate, indicating successful power connection.

5. Иштөө нускамалары

Control your YEELIGHT Smart Curtain Lights using the dedicated Yeelight APP for a full range of features.

5.1 Колдонмону жүктөп алуу жана туташуу

1. Download the "Yeelight" app from your device's app store (iOS App Store or Google Play Store).
2. Смартфонуңузда же планшетиңизде Bluetooth иштетилгенин текшериңиз.
3. Open the Yeelight app and follow the on-screen instructions to add your Smart Curtain Lights. The app will guide you through the pairing process via Bluetooth.

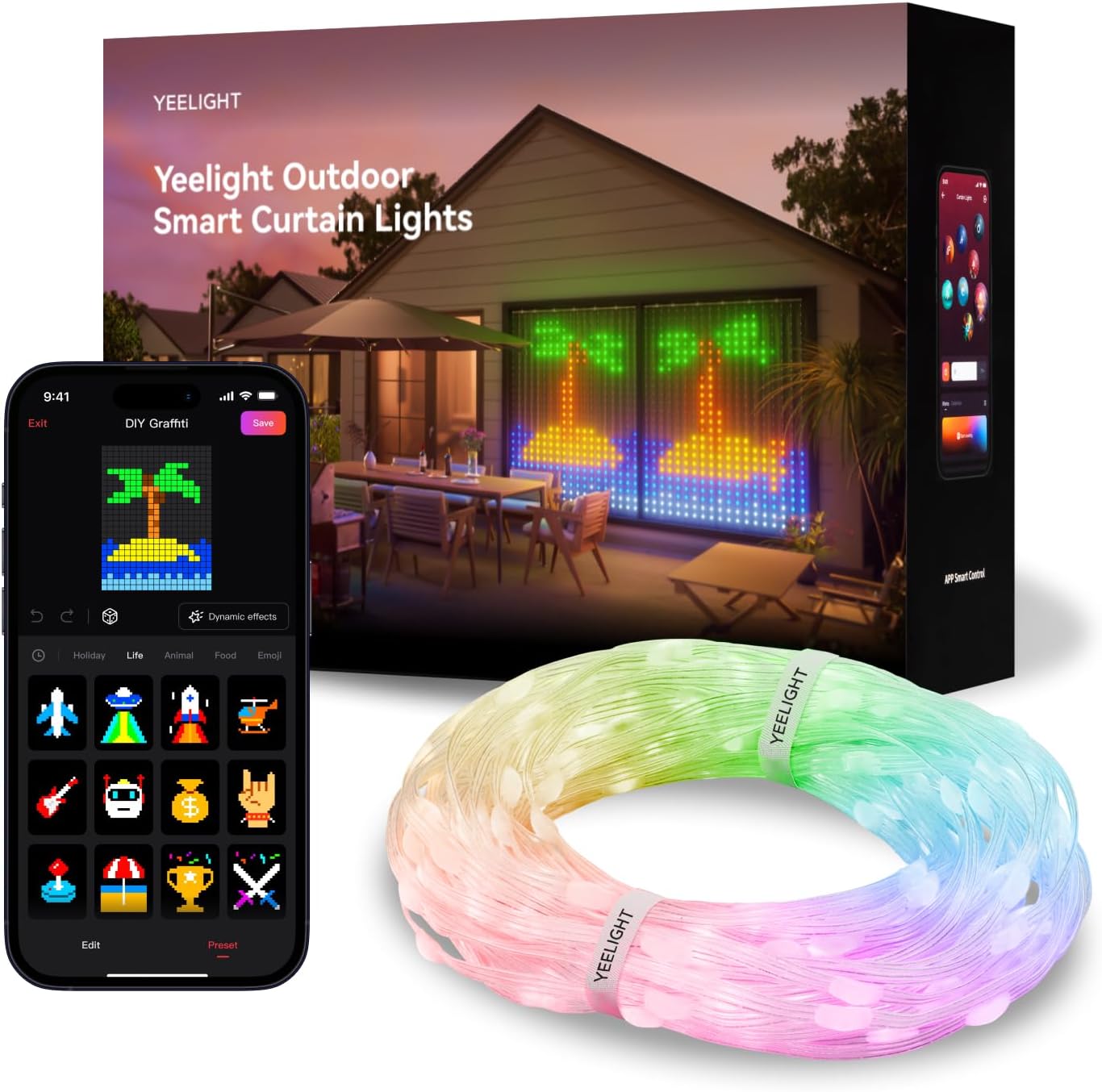

Figure 5.1: Product packaging and app interface for initial setup.

5.2 Негизги функциялар жана режимдер

The Yeelight app unlocks the full potential of your curtain lights:

• Rich Pre-set Scenes: Access over 20 dynamic light scenes and 100+ static patterns suitable for various occasions like holidays, parties, or daily ambiance.
• DIY ыңгайлаштыруу: Utilize the 475 individually controllable LEDs to create your own patterns and designs with 16 million colors. The app provides a pixel-art canvas for free DIY.
• Music Flow: Synchronize your lights with music. The Music Flow feature offers dynamic effects that react to the rhythm and beat of your audio, turning your space into a visual spectacle.

Figure 5.2: ашыкview of key features including LED count, patterns, and color options.

5.3-сүрөт: Мисamples of over 170 preset static patterns available.

5.4-сүрөт: Мисamples of over 20 dynamic lighting effects.

Figure 5.5: Music Flow feature in action, synchronizing lights with audio.

5.3 Негизги башкаруу каражаттары

• Күйгүзүү/өчүрүү: Use the power button within the app or disconnect from the power source.
• Жарыктыкты жөндөө: Adjust the light intensity via the app's brightness slider.
• Түс тандоо: Choose from 16 million colors for static displays or DIY patterns.
• Сахна тандоо: Browse and apply pre-programmed scenes and patterns.

6. Техникалык тейлөө

Proper maintenance ensures the longevity and optimal performance of your YEELIGHT Smart Curtain Lights.

• Тазалоо: Disconnect power before cleaning. Use a soft, dry cloth to wipe the light strings and control unit. For outdoor use, a damp cloth can be used, but avoid harsh chemicals or abrasive cleaners.
• Сактагыч: When not in use for extended periods, store the lights in a cool, dry place, away from direct sunlight and extreme temperatures. Gently coil the strings to prevent tangling and damage.
• Текшерүү: Periodically inspect the power cord and light strings for any signs of damage, fraying, or exposed wires. If damage is found, discontinue use and contact customer support.

Figure 6.1: The lights are designed for long-lasting indoor and outdoor use, featuring IP65 waterproof rating and resistance to temperatures from -4°F to 140°F.

7. Кыйынчылыктарды

If you encounter issues with your YEELIGHT Smart Curtain Lights, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact YEELIGHT customer support.

8. Техникалык шарттар

9. Кепилдик жана колдоо

YEELIGHT provides comprehensive support for its products.

• Кепилдик: Бул продукт сатып алынган күндөн тартып 2 жылдык кепилдик менен келет. Кепилдик дооматтары үчүн сатып алганыңыздын далилин сактап коюңуз.
• Кардарларды тейлөө: For any questions, technical assistance, or warranty inquiries, please contact YEELIGHT customer service at amazon-support@yeelight.com. Support is available 24 hours.
