Anona Aurora 4K Solar Security Camera User Manual

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your Anona Aurora 4K Solar Security Camera. Please read this manual thoroughly before using the product to ensure proper function and safety. The Anona Aurora camera offers advanced surveillance features, including 4K resolution, color night vision, AI detection, and solar-powered operation, designed for outdoor use.

Image: Anona Aurora 4K Solar Security Camera with its solar panel and a smartphone displaying the camera's live view.

Пакеттин мазмуну

Пакетте бардык компоненттер бар экенин текшериңиз:

• Anona Aurora 4K Security Camera Body
• Күн панели
• Монтаждоо кронштейндери жана буроолор
• USB заряддоо кабели
• Колдонуучунун Колдонмосу (бул документ)

Орнотуу жана орнотуу

1. Камераны жана күн панелин орнотуу

The Anona Aurora camera is designed for wall mounting. Choose a location that provides the desired viewing angle and ensures the solar panel receives at least 2 hours of direct sunlight daily for optimal charging.

1. Монтаждоо ордун тандоо: Identify a sturdy surface for mounting the camera and solar panel. Ensure the camera has a clear line of sight to the area you wish to monitor.
2. Бургулоочу тешиктер: Use the provided mounting template (if included) or mark the positions for the screws. Drill pilot holes into the wall.
3. Монтаждык кронштейнди тиркөө: Secure the camera's mounting bracket to the wall using the screws.
4. Камераны тиркөө: Slide the camera onto the mounting bracket. Adjust the camera angle as needed.
5. Күн панелин орнотуу: Mount the solar panel in a location with maximum sun exposure. Connect the solar panel cable to the camera's charging port.

Image: A hand securing the Anona Aurora camera onto its wall-mounted bracket, demonstrating easy installation.

2. Connecting to Wi-Fi and App Pairing

The Anona Aurora camera supports 2.4 GHz Wi-Fi networks only. 5 GHz Wi-Fi is not supported.

1. Download the Anona App: Издөө the 'Anona' app on your smartphone's app store (iOS or Android) and install it.
2. Каттоо эсебин түзүү: Колдонмону ачып, жаңы колдонуучу каттоо эсебин түзүү үчүн экрандагы нускамаларды аткарыңыз.
3. Камераны күйгүзүү: Камера күйгүзүлгөнүн текшериңиз.
4. Түзмөк кошуу: In the Anona app, select 'Add Device' or the '+' icon. The app will use Bluetooth for initial pairing to discover nearby devices.
5. Wi-Fi'га туташуу: Follow the app's prompts to connect the camera to your 2.4 GHz Wi-Fi network. Enter your Wi-Fi password when requested.
6. Толук орнотуу: Туташкандан кийин, сиз камераңызга ат коюп, баштапкы жөндөөлөрдү конфигурациялай аласыз.

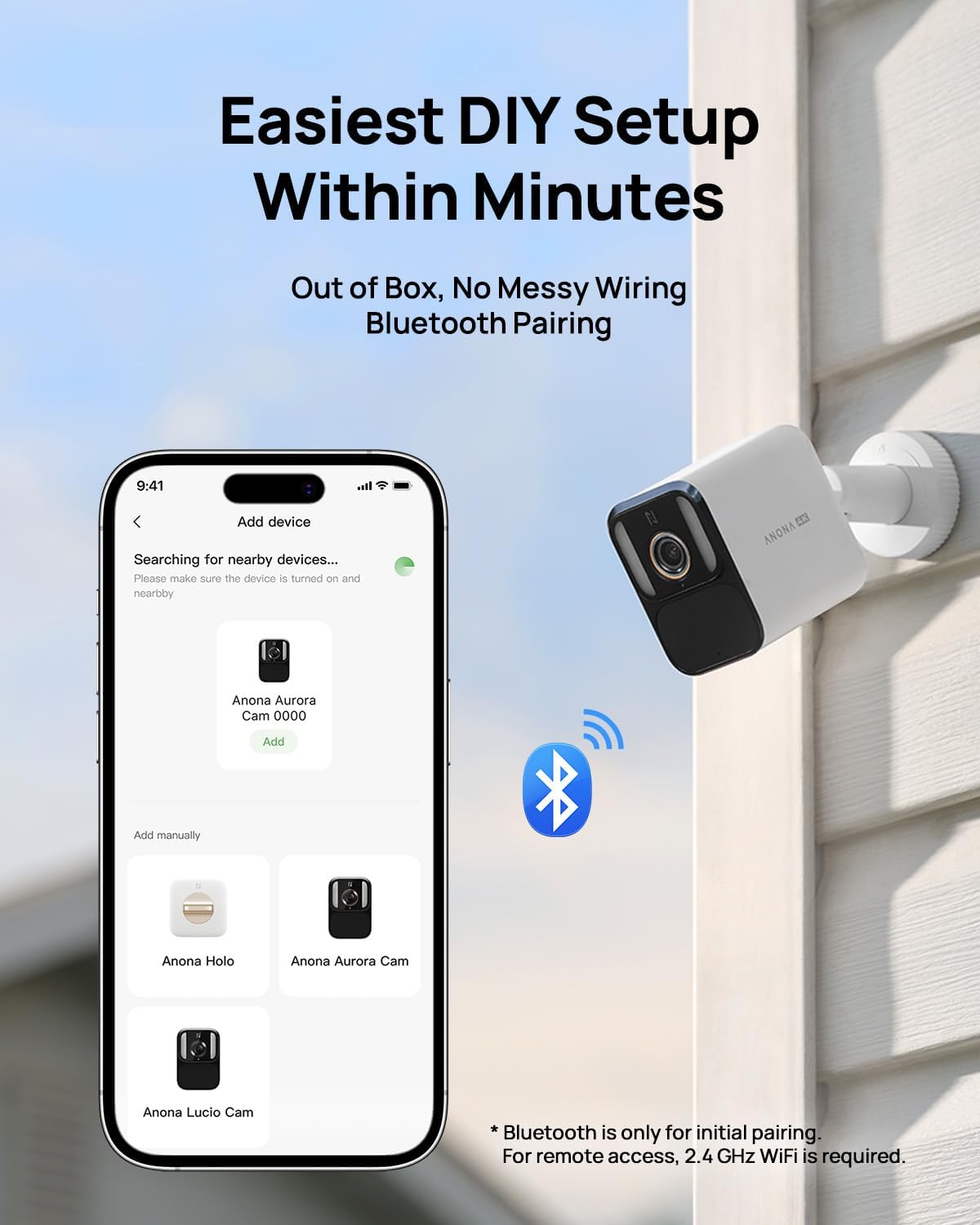

Image: A smartphone screen displaying the Anona app's device pairing interface, showing available Anona cameras for connection.

Иштөө нускамалары

1. Video Recording and Quality

The Anona Aurora camera captures video in stunning 4K UHD resolution (8 megapixels). It features a starlight sensor and an F1.2 large aperture for enhanced image clarity.

• Түнкү көрүнүш: The camera provides vibrant color night vision even in low-light conditions, offering more detail than traditional infrared black-and-white footage.
• Always-On Video (AOV) Recording: The camera supports 24/7 continuous time-lapse recording without requiring external AC power. This feature allows for a complete overview of daily events.

Image: A visual comparison demonstrating the clarity and detail of color night vision compared to what is visible to the naked eye and traditional IR night vision.

2. Электр энергиясын башкаруу

The camera is equipped with a 10000mAh battery and a 4.8W solar panel for continuous power.

• Күн кубаты: Ensure the solar panel is positioned to receive at least 2 hours of direct sunlight daily to maintain battery charge.
• Батареянын иштөө мөөнөтү: The large capacity battery provides approximately 180 days of operation on a single charge without solar assistance. With adequate sunlight, the camera can operate continuously.

3. Акылдуу аныктоо функциялары

The Anona Aurora utilizes AI-powered multi-object detection to provide accurate alerts.

• Объектти таануу: Камера адамдарды, унааларды, үй жаныбарларын жана жүктөрдү аныктай алат.
• Ыңгайлаштырылган кыймыл аймактары: Set specific areas within the camera's field of view to receive alerts only for relevant activity.
• Эскертмелер: Receive timely notifications directly to your connected device without any subscription fees.

Image: The Anona Aurora camera's AI detection capabilities highlighting a person, a package, a vehicle, and a pet within its surveillance area.

4. Storage and Data Access

The camera includes built-in local storage.

• 32GB eMMC Storage: камсыз кылат ample space for recordings, capable of holding over 4 months of playback (based on 20s/video, 30 videos/day) or approximately 18 days of 24/7 AOV recording.
• Ай сайынкы төлөмдөр жок: Access your recorded footage directly without the need for cloud subscriptions or additional SD cards.

5. Smart Home интеграциясы

The Anona Aurora camera is compatible with popular smart home platforms.

• Amazon Alexa: Integrate with Alexa-enabled devices to view live feeds using voice commands (e.g., "Alexa, show the backyard camera.").
• Google Home: Compatible with Google Home for similar voice control and viewжөндөмдүүлүктөрүн.

Image: A person using a smart speaker to control or view the camera feed, illustrating smart home compatibility.

6. Эки тараптуу аудио

The camera features two-way audio communication.

• Communicate Remotely: Use the Anona app to speak through the camera's speaker and listen through its microphone, allowing for interaction with visitors or deterrence of unwanted guests.

Image: A delivery person at a door, with speech bubbles indicating two-way audio communication through the Anona camera.

Техникалык тейлөө

1. Аба ырайына туруктуулук

The Anona Aurora camera has an IP67 waterproof rating, ensuring durability in various weather conditions.

• All-Year-Round Protection: The camera is built to withstand rain, snow, dust, and extreme temperatures (operating range: -20°C to 55°C / -4°F to 131°F). Note: Battery charging is recommended between -5°C and 55°C.
• Тазалоо: Камеранын линзасын жана күн панелин мезгил-мезгили менен жумшак, d менен сүртүп туруңузamp cloth to remove dirt and debris that may obstruct vision or charging efficiency.

Image: The Anona Aurora camera depicted enduring different weather conditions, including rain, sun, and snow, highlighting its IP67 weather resistance.

2. Күн панелдеринин эффективдүүлүгү

The solar panel is designed for high efficiency and durability.

• Оптималдуу жайгаштыруу: Ensure the solar panel is positioned to receive maximum direct sunlight throughout the day. Avoid shaded areas.
• Катмарлуу курулуш: The panel features an ETFE coating, 2-layer EVA, high-efficiency solar cells, and TPT anti-corrosion layers for long-term performance.

Проблемаларды чечүү

• Камера Wi-Fiга туташпай жатат:
  Ensure your Wi-Fi network is 2.4 GHz. The camera does not support 5 GHz Wi-Fi. Check your Wi-Fi password and router settings. Move the camera closer to the router during initial setup.
• Тез-тез өчүрүүлөр:
  Verify the camera has a strong Wi-Fi signal. Obstacles like thick walls can interfere. Consider a Wi-Fi extender if the camera is far from the router. If the issue persists, a physical reset of the camera might be necessary.
• Сүрөттүн сапаты начар:
  Ensure the camera lens is clean and free from dirt or condensation. Check for obstructions in the camera's field of view.
• Күн батареясы кубатталбай жатат:
  Confirm the solar panel is receiving direct sunlight for at least 2 hours daily. Clean the surface of the solar panel to remove any dust or debris. Ensure the connection cable between the solar panel and camera is secure.
• False Motion Alerts or Missed Detections:
  Adjust the AI detection sensitivity in the Anona app. Refine custom motion zones to focus on critical areas. Ensure the camera is mounted at an appropriate height and angle for optimal detection.
• Орнотуунун туруксуздугу:
  Ensure the mounting surface is solid and the screws are tightened securely. If the camera mount feels loose, reinforce the mounting point or consider alternative mounting hardware.

Продукт спецификациялары

Кепилдик жана колдоо

For warranty information and technical support, please refer to the official Anona website or contact Anona customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.

Anona Customer Service: Сураныч, келиңиз the Anona Store on Amazon же продуктунун таңгагында көрсөтүлгөн байланыш маалыматына кайрылыңыз.
