Mellif MFSS03-12 12-inch Cordless Brushless Snow Shovel User Manual

1. Киришүү

This manual provides essential information for the safe and efficient operation of your Mellif MFSS03-12 12-inch Cordless Brushless Snow Shovel. Please read all instructions carefully before use and retain this manual for future reference. This electric snow shovel is designed for clearing snow from driveways, sidewalks, and patios.

2. Коопсуздук боюнча маанилүү маалымат

WARNING: Always handle the machine with care, especially on slippery surfaces. Wear appropriate protective gear, including gloves and eye protection, during operation.

• Read and understand all instructions before operating the snow shovel.
• Колдорду, буттарды жана кийимдерди кыймылдуу бөлүктөрдөн алыс кармаңыз.
• Ensure the work area is clear of debris, rocks, and other objects that could be thrown by the machine.
• Do not operate the snow shovel on gravel surfaces, as this can damage the unit and throw debris.
• Туткаларды ар дайым бекем кармаңыз.
• аша чаап алба. Ар дайым туура бутту жана тең салмактуулукту сактаңыз.
• Do not allow children or untrained individuals to operate the snow shovel.
• Store the snow shovel in a dry, secure location away from children.
• Use only Mellif-approved batteries and chargers.

3. Продукциянын өзгөчөлүктөрү

• 12-inch Clearing Width: Efficiently clears snow up to 12 inches wide and 6 inches deep in a single pass.
• Brushless Motor: Features a 2400 RPM brushless motor with 14.4V low voltage protection, enhancing battery life and machine service time.
• Makita 18V Battery Compatibility: Designed to be compatible with Makita 18V batteries. Includes a Mellif 4.0 Ah battery and rapid charger.
• Adjustable Snow Deflector: Easily adjust the snow deflector with a range of ±30° to direct snow.
• Эргономикалык дизайн: Equipped with an ergonomically designed assist handle for better balance and comfort.

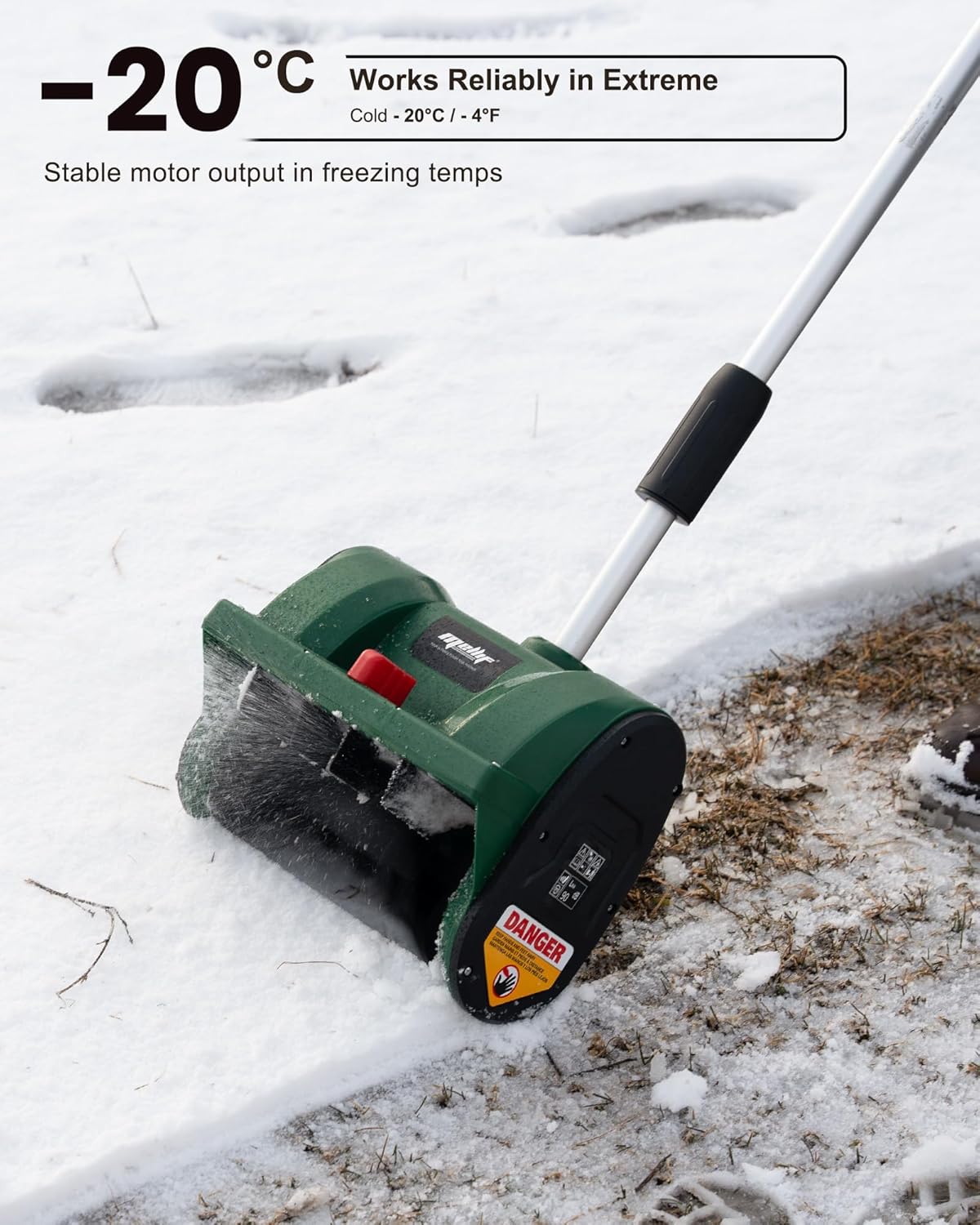

• Low-Temperature Reliability: The Mellif 18V battery is tested to remain functional at -4°F (-20°C).
• Lightweight and Detachable: Weighs only 9.6 lbs (tool only) and features a detachable design for easy storage.

4. Пакеттин мазмуну

• Mellif MFSS03-12 Brushless Snow Shovel Unit
• Жөнгө салынуучу алдыңкы тутка
• Mellif 4.0 Ah 18V Battery (10C/40Amps high output)
• Mellif 4.0 Rapid Charger
• User Manual

5. Орнотуу жана чогултуу

5.1 Ассамблея

The Mellif snow shovel is designed for quick and easy assembly. Simply connect the handle pieces and tighten them by hand. Ensure all connections are secure before use.

Figure 1: Mellif Snow Shovel components ready for assembly. The main unit, handle, and battery are shown.

Figure 2: Fully assembled Mellif Snow Shovel, ready for use. The ergonomic handle and main clearing unit are connected.

5.2 Батареяны орнотуу жана заряддоо

Insert the Mellif 4.0 Ah battery into the designated slot on the handle unit until it clicks into place. To charge the battery, connect it to the provided Mellif 4.0 Rapid Charger. The charger will indicate when the battery is fully charged.

Figure 3: Mellif 18V battery and rapid charger. The battery slides into the charger for power replenishment.

The Mellif snow shovel is compatible with Makita 18V batteries. If using a Makita battery, ensure it is fully charged using a Makita-compatible charger. Note that the included Mellif battery may not be compatible with Makita chargers.

5.3 Handle and Deflector Adjustment

Adjust the assist handle to a comfortable position for optimal balance and reduced strain during operation. The snow deflector can be adjusted ±30° to control the direction of snow discharge. This adjustment is typically made via a lever or knob on the deflector unit.

Figure 4: Close-up of the adjustable snow deflector. The red lever allows users to change the snow throwing direction.

6. Иштөө нускамалары

6.1 Баштоо жана токтотуу

To start the snow shovel, ensure the battery is installed and fully charged. Press the safety button (usually located on the main handle) and then squeeze the trigger. To stop, release the trigger.

Figure 5: User operating the Mellif Snow Shovel, demonstrating the ergonomic handle and trigger mechanism.

6.2 Кар тазалоо ыкмалары

• For optimal performance, clear snow in passes up to 12 inches wide and 6 inches deep.
• For deeper or wet, heavy snow, it may be necessary to make multiple passes or reduce the width of each pass.
• Adjust the deflector to throw snow away from cleared areas or desired locations.
• Avoid pushing the unit too hard into deep snow, as this can reduce efficiency and strain the motor.
• Be mindful of the throwing distance (up to 17 feet) to avoid throwing snow onto unwanted areas.

Figure 6: Visual representation of the snow shovel's 12-inch clearing width and 6-inch clearing depth capabilities.

Figure 7: The snow shovel in action, demonstrating its ability to throw snow up to 17 feet away from the clearing path.

6.3 Расмий продукт Videos

Watch these official videos for a visual guide on assembly and operation:

7. Техникалык тейлөө

• Тазалоо: After each use, remove any snow, ice, or debris from the unit. Use a damp cloth to wipe down surfaces. Do not use harsh chemicals.
• Сактагыч: Store the snow shovel in a dry, protected area. The detachable design allows for compact storage. Remove the battery before storing for extended periods.
• Батареяга кам көрүү: Keep batteries charged, especially during off-season storage. Store batteries in a cool, dry place.

8. Кыйынчылыктарды

• Unit not starting:
  • Батарея толук заряддалганын жана туура салынганын текшериңиз.
  • Verify the safety button is pressed before squeezing the trigger.
  • Check for any obstructions in the auger.
• Төмөндөтүлгөн аткаруу:
  • Battery may be low on charge.
  • Snow may be too deep or wet for a single pass; try reducing pass width.
  • Check for debris or ice buildup in the auger or chute.
• Адаттан тыш ызы-чуу же титирөө:
  • Immediately stop the unit and inspect for loose parts or damage.
  • Check for foreign objects caught in the auger.

9. Техникалык шарттар

10. Кепилдик жана колдоо

For warranty information and customer support, please refer to the documentation included with your product or contact Mellif customer service directly. Keep your purchase receipt as proof of purchase.
