1. Киришүү
The Lowrance Eagle Eye 9" Fishfinder is an advanced marine electronics device designed to enhance your fishing experience. It integrates multiple sonar technologies and detailed mapping capabilities to provide a comprehensive view of the underwater environment. This manual provides essential information for the proper installation, operation, and maintenance of your new fishfinder.

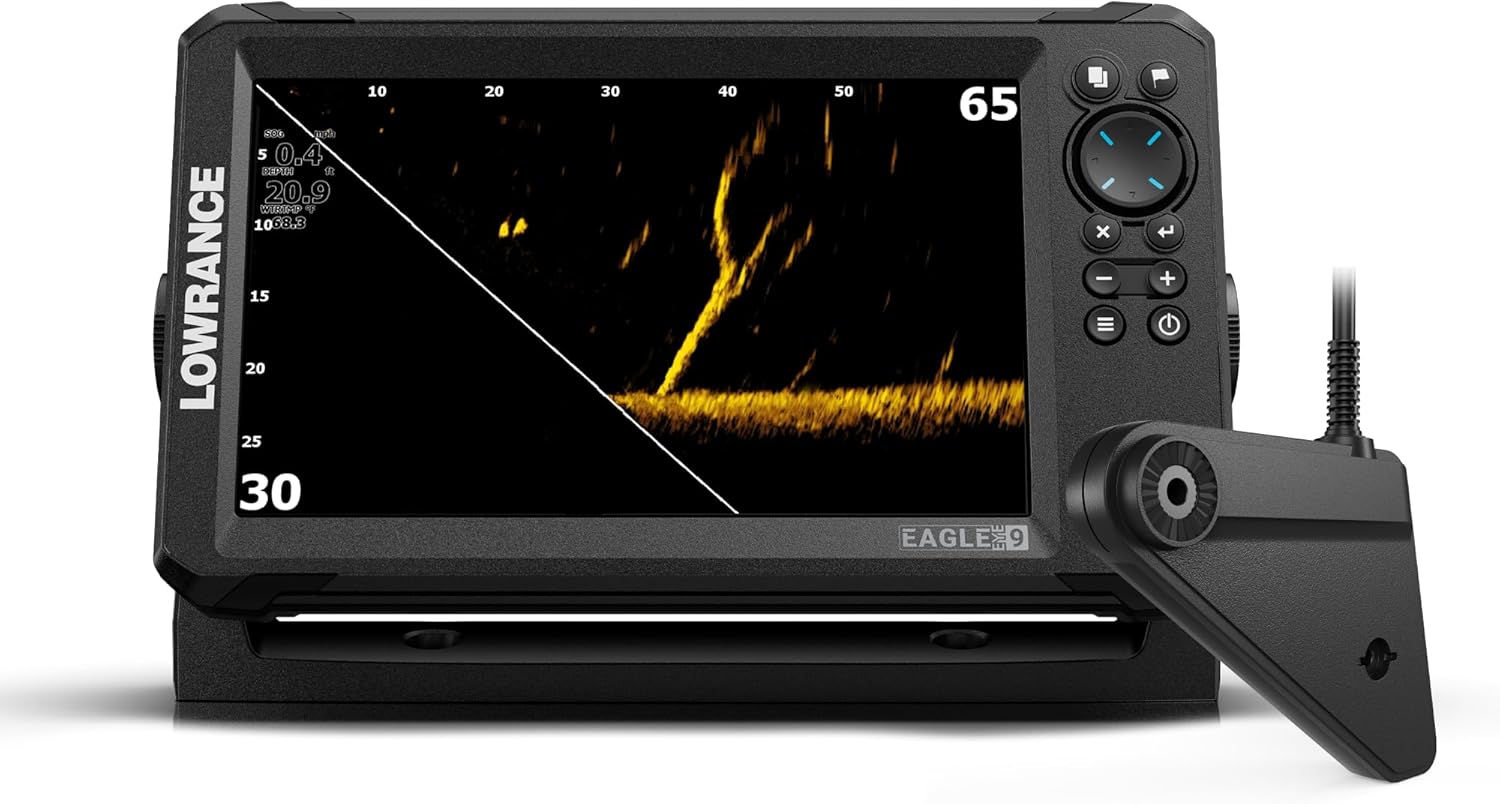

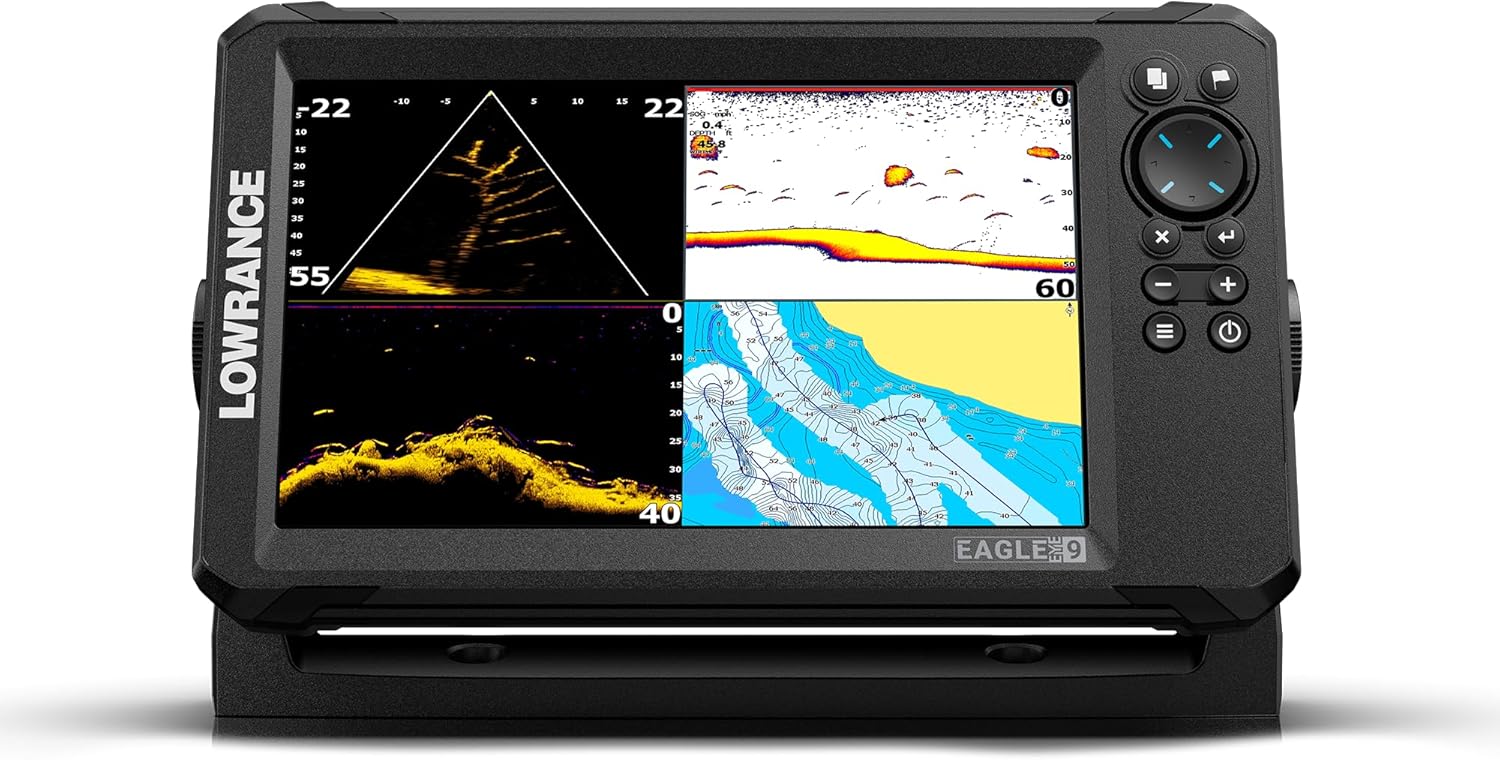

Figure 1: Lowrance Eagle Eye 9" Fishfinder main unit with transducer.
2. Негизги өзгөчөлүктөрү
- Integrated Sonar Views: Offers four distinct sonar views from a single transducer without requiring an additional module: Live Forward, Live Down, CHIRP Sonar, and DownScan Imaging with FishReveal.
- Autotuning Live Sonar: Features automatic tuning for live sonar, providing focused down and forward viewоптималдуу аткаруу үчүн с.
- Advanced Charting: Includes detailed C-MAP charts with Genesis Live functionality for real-time mapping.
- IPS Screen: Equipped with an IPS screen for wide viewing angles and clear visibility, even when wearing polarized glasses.
- Оңой орнотуу: Utilizes a new reliable twist-lock connector system for straightforward installation in various boat and kayak setups.
3. Орнотуу жана орнотуу
Before beginning installation, ensure all components are present: 9" Display, power cable, gimbal bracket, replacement twist locks, corner clips, and live transducer pack.
3.1 Дисплей блогун орнотуу
The Eagle Eye 9" display supports both panel mount and bracket mount configurations. Choose a location that provides clear visibility from your operating position and is protected from excessive direct sunlight and spray.
- Attach the gimbal bracket to the display unit using the provided hardware.
- Secure the gimbal bracket to your chosen mounting surface (panel or dash) using appropriate fasteners. Ensure the mount is stable and can withstand marine conditions.

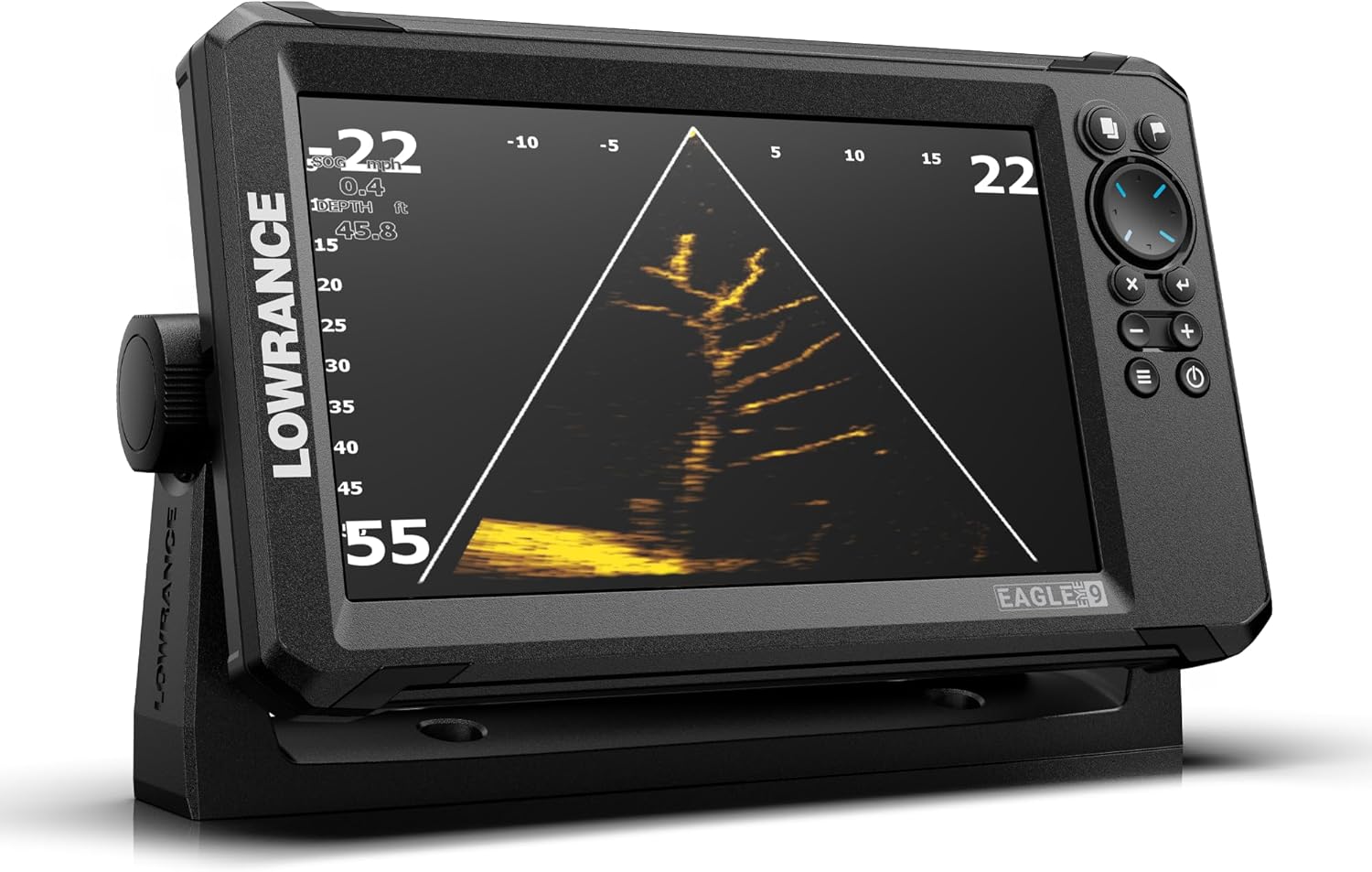

2-сүрөт: алдыңкы жана каптал views of the display unit, illustrating mounting points.
3.2 Өлтүргүчтү орнотуу
The live transducer is crucial for all sonar functions. Install the transducer in a location that provides an unobstructed view of the water, typically on the transom or trolling motor. Use the twist-lock connectors for a secure and waterproof connection to the display unit.
Note: Proper transducer placement is critical for optimal sonar performance. Refer to the detailed transducer installation guide included with your product for specific instructions based on your boat type.
4. Иштөө нускамалары
The Lowrance Eagle Eye 9" Fishfinder offers intuitive controls and multiple display modes to suit various fishing scenarios.
4.1 Күйгүзүү жана негизги навигация
Press and hold the power button to turn the unit on. Use the directional pad and menu buttons to navigate through the various sonar and chart screens. The IPS screen ensures clear visibility from different angles.
4.2 Sonar Views
The unit provides four primary sonar views from a single transducer:
- Live Forward: Displays a real-time view of the water in front of your boat, allowing you to see fish and structure as you approach them.

Figure 3: Live Forward sonar view, showing real-time underwater activity ahead of the boat.
- Live Down: реалдуу убакытты камсыз кылат view of the water directly beneath your boat, ideal for vertical jigging and understanding bottom structure.
Video 1: Demonstration of Lowrance Eagle Eye Live Down Scan sonar view, showing real-time underwater details directly below the transducer.

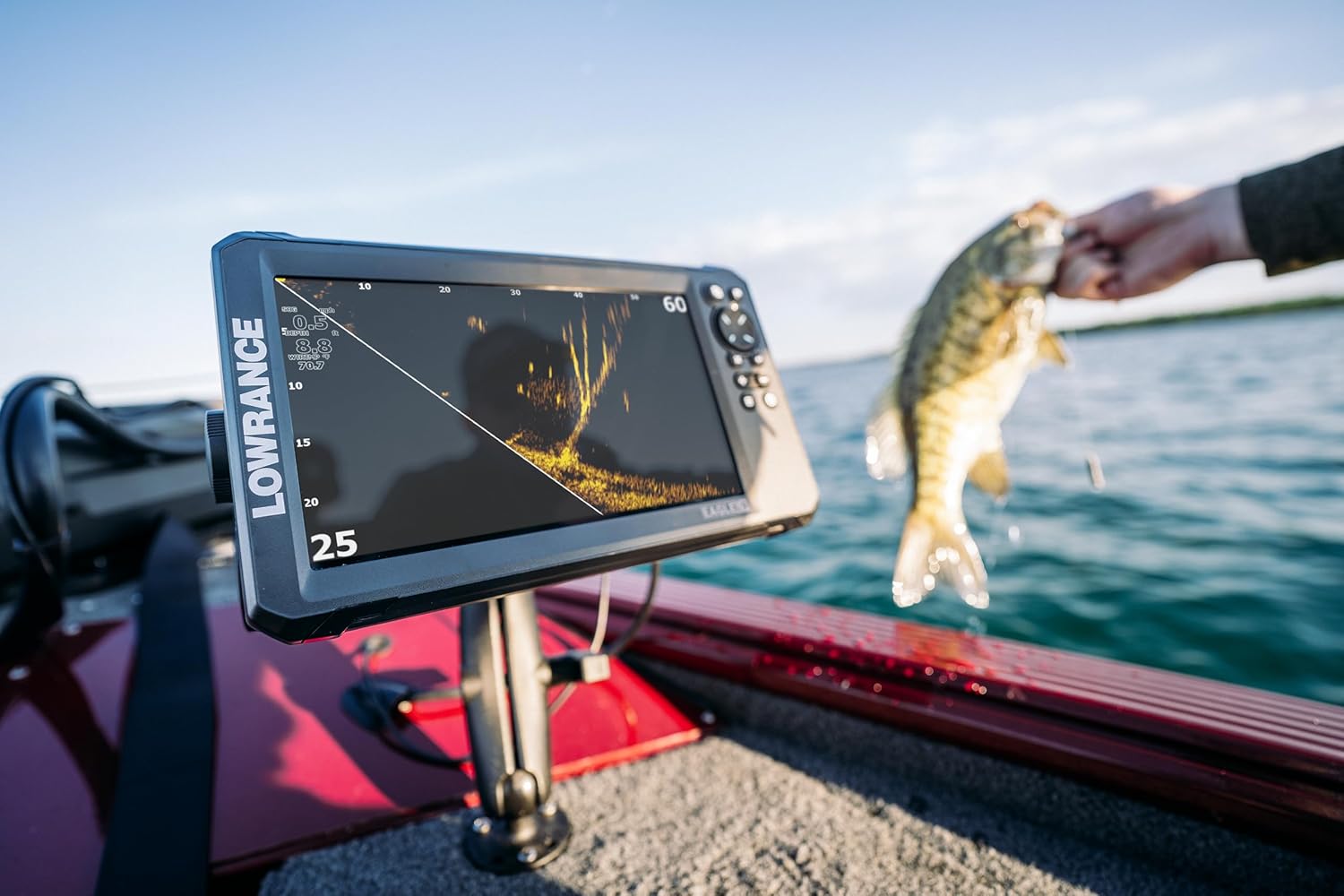

Figure 4: Live Down sonar view, providing a detailed look at the water column and bottom directly beneath the boat.
- ЧЫГЫРДАТУУЧУ Сонар: Offers traditional sonar views with excellent target separation and clarity, ideal for identifying fish arches and general underwater contours.

Figure 5: CHIRP sonar view, displaying traditional fish arches and bottom structure with high clarity.
- DownScan Imaging with FishReveal: Provides photo-like images of structure and baitfish directly below your boat, with FishReveal overlaying traditional sonar fish arches onto the DownScan view for easier identification.
Video 2: Official launch video for Lowrance Eagle Eye Live Sonar, showcasing its various features including DownScan Imaging.

Сүрөт 6: Бөлүнгөн экран view showing both sonar and C-MAP charting simultaneously.
4.3 C-MAP Charting with Genesis Live
Access detailed C-MAP charts to navigate and identify key fishing areas. The Genesis Live feature allows you to create custom, real-time contour maps of your fishing spots, providing unparalleled detail of bottom structure. To use Genesis Live, ensure you have a compatible memory card inserted and the feature enabled in the settings menu.

Figure 7: C-MAP chart view, displaying detailed navigational and topographical information.
5. Техникалык тейлөө
Regular maintenance ensures the longevity and optimal performance of your Lowrance Eagle Eye 9" Fishfinder.
- Тазалоо: Wipe the display screen and unit housing with a soft, damp кездеме. Экранга же пластикке зыян келтириши мүмкүн болгон абразивдүү тазалоочу каражаттардан же эриткичтерден алыс болуңуз.
- Өндүрүүчүгө кам көрүү: Periodically inspect the transducer for marine growth or damage. Clean the transducer face with fresh water after each use, especially in saltwater environments.
- Байланыштары: Ensure all cable connections, especially the twist-lock connectors, are clean, dry, and securely fastened to prevent water ingress.
- Сактагыч: When not in use for extended periods, store the unit in a dry, cool place, ideally removed from direct sunlight. Consider a screen cover to protect the IPS display.
6. Кыйынчылыктарды
This section addresses common issues you might encounter with your fishfinder.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Күч жок | Электр туташуусу бошоп калган, сактагыч күйүп кеткен, батареянын кубаттуулугу төмөнtage. | Электр кабелдеринин туташууларын текшериңиз, сактагычты текшериңиз, батарейканын зарядын текшериңиз. |
| No Sonar Display | Transducer not connected, transducer fouled or damaged, incorrect sonar settings. | Ensure transducer is securely connected, clean transducer face, reset sonar settings to default or adjust sensitivity. |
| Poor Sonar Image Quality | Air bubbles under transducer, electrical interference, incorrect sensitivity/range. | Check transducer placement for air bubbles, ensure power cables are routed away from other electronics, adjust sonar settings. |
| GPS/Mapping Issues | Poor GPS signal, outdated charts, memory card issues. | Тактыгын камсыз кылыңыз view of sky for GPS antenna, update C-MAP charts, check memory card for proper insertion and format. |
If you continue to experience issues, please contact Lowrance customer support.
7. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | Лоуренс |
| Модель аты | EAGLE EYE |
| Модель номери | 000-16232-001 |
| Screen Size | 9 дюйм |
| Дисплей түрү | LED (IPS) |
| Power Source | Батарея менен иштейт |
| Элемент Салмагы | 2 фунт (болжол менен 0.91 кг) |
| Продукциянын өлчөмдөрү (LxWxH) | 11.3" x 3.54" x 6.39" (болжол менен 28.7см x 8.99см x 16.23см) |
| Монтаж түрү | Panel Mount, Bracket Mount |
| Камтылган компоненттер | 9" Display, power cable, gimbal bracket, replacement twist locks, corner clips, live transducer pack |
| Материал | Пластик |
| Түс | Кара |
8. Кепилдик жана колдоо
8.1 Продукциянын кепилдиги
The Lowrance Eagle Eye 9" Fishfinder comes with a 1 жылдык кепилдик сатып алынган күндөн тартып. Бул кепилдик нормалдуу колдонуудагы материалдардагы жана жасалгадагы кемчиликтерди камтыйт. Кепилдик дооматтары үчүн сатып алганыңыздын далилин сактап коюңуз.
8.2 Кардарларды колдоо
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Lowrance customer support. Visit the official Lowrance webбайланыш маалыматы жана кошумча ресурстар үчүн сайт.
Manufacturer: Lowrance
Көбүрөөк маалымат алуу үчүн төмөнкүгө кириңиз: Lowrance Brand Store on Amazon
