1. Киришүү
This manual provides essential information for the safe and efficient use of your Karinear 4 Burner Electric Cooktop. Please read all instructions carefully before installation and operation, and retain this manual for future reference.
Сүрөт: жогорудан төмөнгө view of the Karinear 4 Burner Electric Cooktop, highlighting the four radiant heating elements and the central touch control panel.
2. Маанилүү коопсуздук нускамалары
Өрт, электр шок, күйүк же жаракат алуу коркунучун азайтуу үчүн электр шаймандарын колдонууда ар дайым негизги коопсуздук чараларын сактаңыз.
- Электр орнотуу: This cooktop operates on 220-240V and requires hardwiring. Installation must be performed by a qualified electrician in accordance with all local codes and ordinances. Do not attempt to install if you are not qualified.
- Ысык бет: The ceramic surface and surrounding areas will become hot during use. Allow sufficient time for the cooktop to cool before cleaning or touching. The residual heat indicator 'H' will illuminate when a burner is hot.
- Балдардын коопсуздук кулпусу: Utilize the child safety lock feature to prevent accidental activation or changes to settings, especially in households with children.
- Туура идиш: Use only flat-bottomed cookware that is appropriate for electric ceramic cooktops. Ensure cookware size matches the burner size to maximize efficiency and prevent spills.
- Вентиляция: Ensure adequate ventilation in the kitchen area during cooktop operation.
- Тазалоо: Disconnect power before cleaning. Use appropriate cleaning agents and tools for ceramic cooktops.
- Ашыкча ысып кетүүдөн коргоо: The cooktop is equipped with overheat protection. If the temperature becomes excessively high, the unit may automatically shut off.
3. Продукциянын өзгөчөлүктөрү
Your Karinear Electric Cooktop is designed with several features to enhance your cooking experience:
- Жогорку кубаттуулугу: 7100W total power for rapid heating and efficient cooking.
- Four Burners: Includes two 1200W burners, one 1000W/2200W expandable burner, and one 1250W/2500W expandable burner for versatile cooking options.
- Intuitive Slide Control: Easy-to-use slide controls for precise adjustment of 9 power levels.
- 99 мүнөттүк таймер: Integrated timer with automatic shut-off for precise cooking control.
- Балдардын коопсуздук кулпусу: Prevents unintended operation, ensuring a safer kitchen environment.
- Калдык жылуулук көрсөткүчү: 'H' indicator warns when the cooktop surface is still hot after use.
- Ашыкча ысып кетүүдөн коргоо: Automatic safety feature to prevent damage from excessive temperatures.
- Sleek Ceramic Glass Surface: Durable, stylish, and easy to clean.
- Кең идиштерге шайкештик: Works with various materials including glass, ceramic, stainless steel, cast iron, and more.
Image: A person cooking on the Karinear electric cooktop, demonstrating its use in a kitchen setting.
Image: Illustration of different cookware types compatible with the cooktop, such as iron, stainless steel, and ceramic.
4. Орнотуу жана орнотуу
This cooktop is designed for built-in, drop-in installation and requires a 220-240V hardwired electrical connection. It does not come with a plug. Professional installation by a qualified electrician is mandatory to ensure safety and compliance with electrical codes.
4.1. Орнотууга чейинки текшерүүлөр
- Verify that your electrical supply meets the 220-240V requirement.
- Ensure the countertop material can withstand heat.
- Confirm the cutout dimensions in your countertop match the cooktop's requirements.
4.2. Dimensions and Cutout
- Stovetop Size: 30.2 дюйм (узундугу) x 20.5 дюйм (туурасы)
- Кесүү өлчөмү: 29.5 inches (length) x 19.5 inches (width) x 2.13 inches (depth)
Image: Installation guide showing the cooktop's overall dimensions, the required countertop cutout size, and a basic wiring diagram for a 220-240V hardwired connection.
4.3. Электр байланышы
The cooktop must be hardwired to a dedicated 220-240V, 32A circuit. The wiring diagram is provided in the installation image. Ensure proper grounding (Earth wire) is connected. Consult a professional electrician for this step.
5. Иштөө нускамалары
Familiarize yourself with the touch control panel for optimal use of your cooktop.
5.1. Күйгүзүү/өчүрүү
- To turn on: Press the main power button (usually indicated by a circle with a vertical line).
- To turn off: Press and hold the main power button for a few seconds.
5.2. Adjusting Heat (Slide Control)
Each burner has an individual slide control for adjusting power levels from 1 to 9.
- Select the desired burner by touching its corresponding control area.
- Slide your finger along the control bar to increase or decrease the heat level.
Image: A hand interacting with the cooktop's slide control to adjust the heat setting for a burner.
5.3. Таймерди колдонуу
The integrated timer can be set for up to 99 minutes and will automatically shut off the selected burner(s) when the time expires.
- Select the burner you wish to set the timer for.
- Таймер баскычын басыңыз (көбүнчө сааттын сүрөтчөсү менен көрсөтүлөт).
- Каалаган бышыруу убактысын тууралоо үчүн '+' жана '-' баскычтарын колдонуңуз.
5.4. Балдардын коопсуздук кулпусу
To activate or deactivate the child safety lock:
- Press and hold both the '+' and '-' buttons simultaneously for a few seconds until the lock indicator appears or disappears.
- When activated, the cooktop controls will be unresponsive.
5.5. Residual Heat Indicator ('H')
After turning off a burner, the letter 'H' will flash on the display if the surface is still hot. This indicates residual heat and will turn off automatically once the temperature drops to a safe level.
5.6. Expandable Burners
The cooktop features expandable burners (1000W/2200W and 1250W/2500W) to accommodate larger cookware. To activate the expanded ring, select the burner and adjust the power level. The burner will cycle between inner and outer rings to maintain temperature, especially at higher settings.
Image: A composite image detailing the Child Safety Lock activation, the 99-minute timer function, the 'H' residual heat warning, and the visual representation of expandable burners.
6. Техникалык тейлөө жана тазалоо
Үзгүлтүксүз тазалоо жана тейлөө плитаңыздын узак жана оптималдуу иштешин камсыздайт.
6.1. Күнүмдүк тазалоо
- Тазалоодон мурун, плитанын муздак экенине ар дайым ынаныңыз.
- Керамикалык айнек бетин жарнама менен сүртүңүзamp ар бир колдонуудан кийин кездеме жана жумшак жуучу каражат.
- Dry thoroughly with a clean cloth to prevent water spots.
6.2. Өжөр тактарды кетирүү
- For burnt-on food or stubborn stains, use a ceramic cooktop cleaner and a non-abrasive pad or a specialized scraper.
- Apply the cleaner as directed by the product instructions, then gently scrape away residue.
- Avoid using abrasive cleaners, scouring pads, or harsh chemicals, as these can scratch or damage the glass surface.

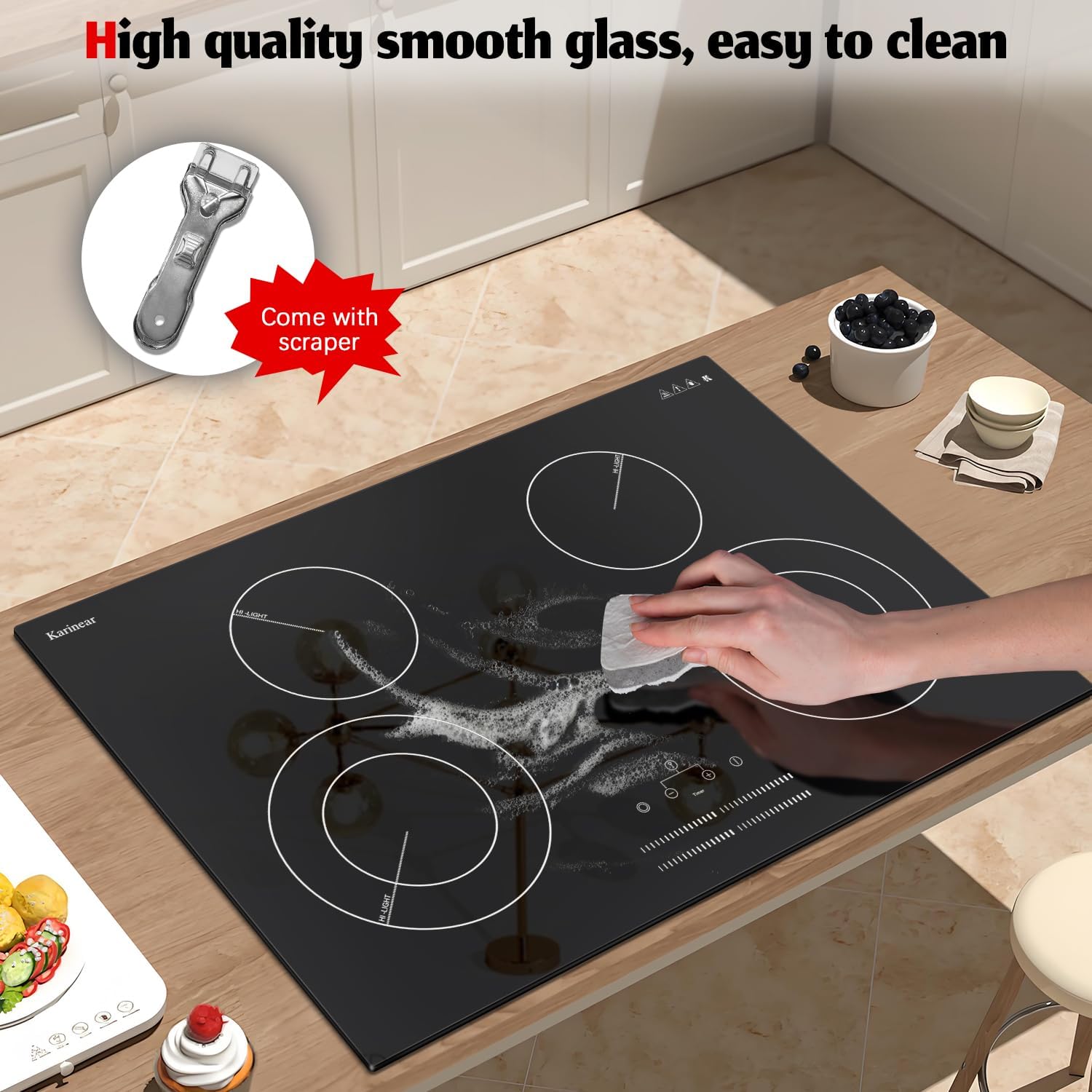

Image: A person cleaning the smooth glass surface of the cooktop with a scraper, demonstrating ease of maintenance.
7. Кыйынчылыктарды
Эгерде сиз плитаңызда көйгөйлөргө туш болсоңуз, төмөнкү кеңири таралган көйгөйлөрдү жана чечимдерди караңыз:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Ашкана күйбөйт. | No power supply; Child safety lock engaged. | Check circuit breaker. Deactivate child safety lock (press '+' and '-' simultaneously). |
| Отун ысыбайт. | Туура эмес кубаттуулук деңгээли тандалган; Идиш ылайыктуу эмес. | Increase power level. Ensure cookware has a flat bottom and is compatible with ceramic cooktops. |
| Колдонулгандан кийин дисплейде 'H' көрсөтүлөт. | Калган жылуулук. | This is normal. The 'H' indicates the surface is still hot. It will disappear when cool. |
| Ашкана күтүлбөгөн жерден өчүп калат. | Overheat protection activated; Timer expired. | Allow cooktop to cool. Check if a timer was set for the burner. |
If the problem persists after attempting these solutions, please contact Karinear customer support.
8. Техникалык шарттар
Key technical details for the Karinear 4 Burner Electric Cooktop:
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | KNC-D47163-BB |
| Продукциянын өлчөмдөрү | 20.47 x 30.31 x 1.73 inches (Stovetop) |
| Кесилген өлчөмдөр | 29.5 x 19.5 x 2.13 дюйм |
| Элемент Салмагы | 26.5 фунт |
| Тtage | 220-240V (Hardwired, No Plug) |
| Жалпы күч | 7100 Вт |
| Жылытуу элементтери | 4 (2x 1200W, 1x 1000W/2200W, 1x 1250W/2500W) |
| Башкаруу түрү | Slide Control, 9 Power Levels |
| Беттик материал | Айнек керамикалык |
| Өзгөчөлүктөр | Timer, Child Safety Lock, Residual Heat Indicator, Overheat Protection |
9. Кепилдик жана колдоо
For warranty information, product registration, or technical support, please refer to the documentation included with your purchase or visit the official Karinear website. Ensure you have your model number (KNC-D47163-BB) and purchase date available when contacting support.
Сиз да зыярат кылсаңыз болот Karinear Store on Amazon кошумча продукт маалымат жана колдоо ресурстар үчүн.
