1. Система бүттүview
This document provides essential information for the installation, operation, and maintenance of your Goodman 3 Ton 13.4 SEER2 Upflow R-32 AC System. This complete system includes the Goodman GLXS3BN3610 Air Conditioner condenser, the Goodman GM9S801005CN furnace, and the Goodman CAPFA4226C3 coil. The system is certified by AHRI under certificate number 215331459, ensuring its performance and efficiency.
Important Note: This system does not comply with Federal regulations for the following States and cannot be shipped to or installed in: AL, AR, AZ, CA, DE, FL, GA, KY, LA, MD, MS, NC, NM, NV, OK, SC, TN, TX, and VA.
Figure 1: ашыкview of the Goodman 3 Ton AC System, showing the outdoor condenser, indoor furnace, and evaporator coil.
2. Орнотуу жана орнотуу боюнча эске алынуучу жагдайлар
Proper installation is crucial for the optimal performance and longevity of your HVAC system. It is highly recommended that installation be performed by a qualified HVAC professional.
2.1 System Configuration (Upflow, Downflow, Horizontal)
Your system's internal components (coil and furnace) must be configured correctly based on your home's ductwork. This system is designed for Агым configuration, meaning air enters from the bottom and exits from the top. Other configurations (downflow or horizontal) require different system types.
Video 1: Informational video discussing the components of AC with furnace systems and various configurations.
Video 2: Guide on identifying the type of HVAC system installed in your home, focusing on air flow direction.
2.2 Fuel Type (Natural Gas or Liquid Propane)
The GM9S801005CN furnace is typically configured for natural gas. If your home uses liquid propane (LP), a separate LP conversion kit must be purchased and installed by a qualified technician. Furnaces sold in California may have specific low NOx requirements.
2.3 R-32 Refrigerant Compatibility
This system utilizes R-32 refrigerant, which is more efficient and has a lower global warming impact than previous refrigerants. However, R-32 is slightly flammable. If you are replacing only the condenser or the coil, it is critical to understand that R-410A (an older refrigerant) is not backwards compatible with R-32. Both the condenser and the coil must be compatible with R-32. If you are integrating R-32 components with an older furnace, a 'Dragonfly kit' may be required to ensure proper communication and safety, especially for leak detection and burner shutdown in case of a refrigerant leak.
Video 3: Detailed information regarding R-32 refrigerant regulations and compatibility requirements.
Video 4: Short informational video addressing common facts and fictions about R-32 refrigerant.
2.4 SEER2 Regulations
As of January 1st, 2023, new SEER2 (Seasonal Energy Efficiency Ratio 2) regulations are in effect. These updated standards provide a more accurate reflection of real-world energy efficiency. Your system's 13.4 SEER2 rating meets the minimum requirements for the Northern states. Southern states have higher minimum SEER2 requirements.
Video 5: Explanation of SEER2 regulations and their impact on HVAC systems.
Video 6: Further details on SEER2 regulations, including regional requirements across the United States.
3. Системаны иштетүү
Your Goodman HVAC system is designed for efficient cooling and heating. Once installed and properly charged with R-32 refrigerant, the system will operate based on your thermostat settings. The GLXS3BN3610 condenser provides 3 tons of cooling capacity with a 13.4 SEER2 rating. The GM9S801005CN furnace offers 100k BTU heating with 80% AFUE, utilizing a single-stage multi-speed ECM blower motor for efficient and quiet operation. The CAPFA4226C3 coil is designed for optimal heat transfer and airflow.
4. Техникалык тейлөө
Regular maintenance is essential to ensure the efficiency and longevity of your Goodman HVAC system. It is recommended to schedule annual professional inspections and tune-ups.
- Фильтрди алмаштыруу: Regularly check and replace your air filter according to manufacturer recommendations or more frequently if needed. A dirty filter restricts airflow and reduces efficiency.
- Катушканы тазалоо: Keep the outdoor condenser coil free of debris (leaves, dirt, etc.) to ensure proper heat dissipation. The indoor evaporator coil should be professionally cleaned periodically.
- Дренаж: Ensure the condensate drain line is clear and free of blockages to prevent water overflow.
- Кесиптик текшерүү: A qualified technician can check refrigerant levels, electrical connections, and overall system operation to prevent potential issues.
5. Кыйынчылыктарды
If your system is not operating correctly, consider the following basic troubleshooting steps before contacting a service professional:
- Кубат жок: Check your thermostat settings and ensure the system is set to the desired mode (Cool/Heat) and temperature. Verify that the circuit breaker for your HVAC system has not tripped.
- Жетишсиз муздатуу/жылытуу: Check if the air filter is clean. Ensure all vents are open and not blocked.
- адаттан тыш үндөр: Listen for any abnormal sounds. Some noises may indicate a need for professional service.
- Суу агып кетиши: Inspect the condensate drain pan and line for blockages or overflow.
For any persistent issues or complex problems, contact a qualified HVAC technician.
6. Техникалык шарттар
Detailed specifications for the components of your Goodman HVAC system:

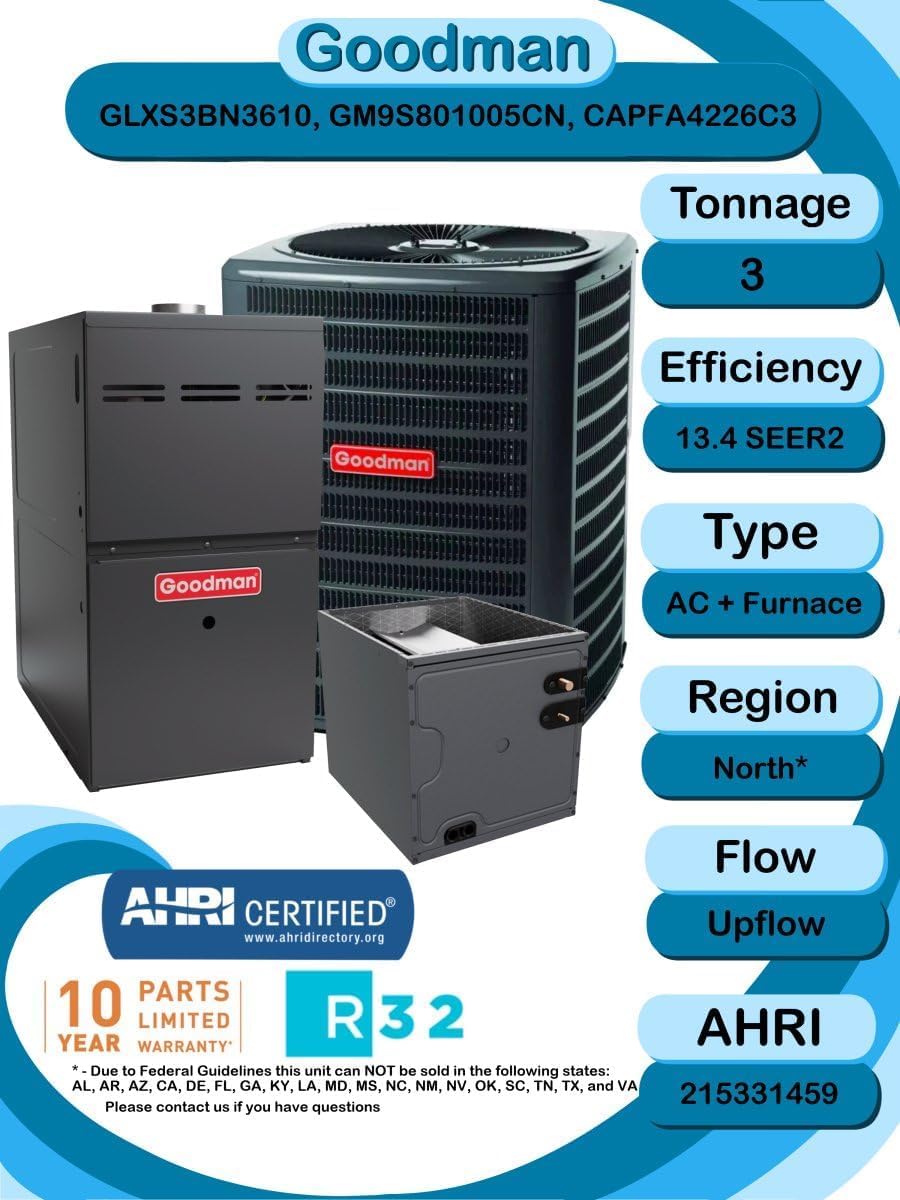

Figure 2: Visual representation of the Goodman AC system highlighting key specifications like tonnage, efficiency, and flow type.
6.1 GLXS3BN3610 Air Conditioner Condenser
Figure 3: Detailed specifications for the Goodman GLXS3BN3610 Air Conditioner Condenser.
- Тоннаж: 3 тонна
- Натыйжалуулугу: 13.4 SEER2
- Хладагент: R-32
- Өлчөмдөрү (W x D x H): 26 x 26 x 32.5 дюйм
- Салмагы: 136 фунт
- Line Set Connections: 3/8" x 7/8"
- Өзгөчөлүктөрү: Factory-installed filter drier, pre-charged for 15' of tubing, service valves, gauge ports, inspection points.

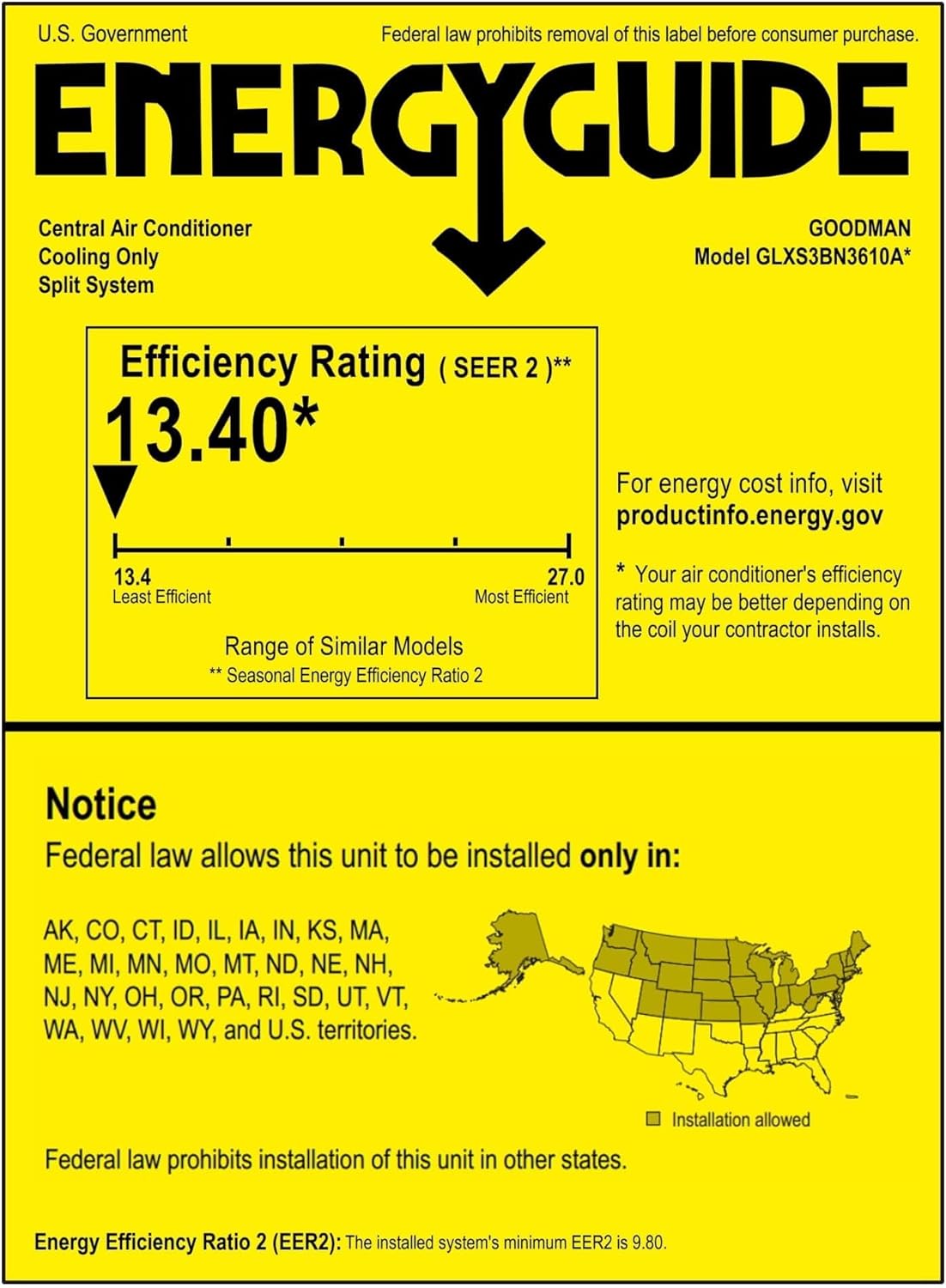

Figure 4: EnergyGuide label for the Goodman GLXS3BN3610 Central Air Conditioner, showing a 13.40 SEER2 rating.
6.2 GM9S801005CN Furnace
Figure 5: Detailed specifications for the Goodman GM9S801005CN Furnace.
- Натыйжалуулугу: 80% AFUE
- Heating BTU: 100,000 BTU
- Агым: Upflow/Multi-position
- Stages: Жалгыз С.tage
- Өлчөмдөрү (W x D x H): 21 x 28 x 33.5 дюйм
- Салмагы: 132 фунт
- Өзгөчөлүктөрү: Multi-speed ECM blower motor, stainless-steel heat exchanger, silicon nitride igniter.

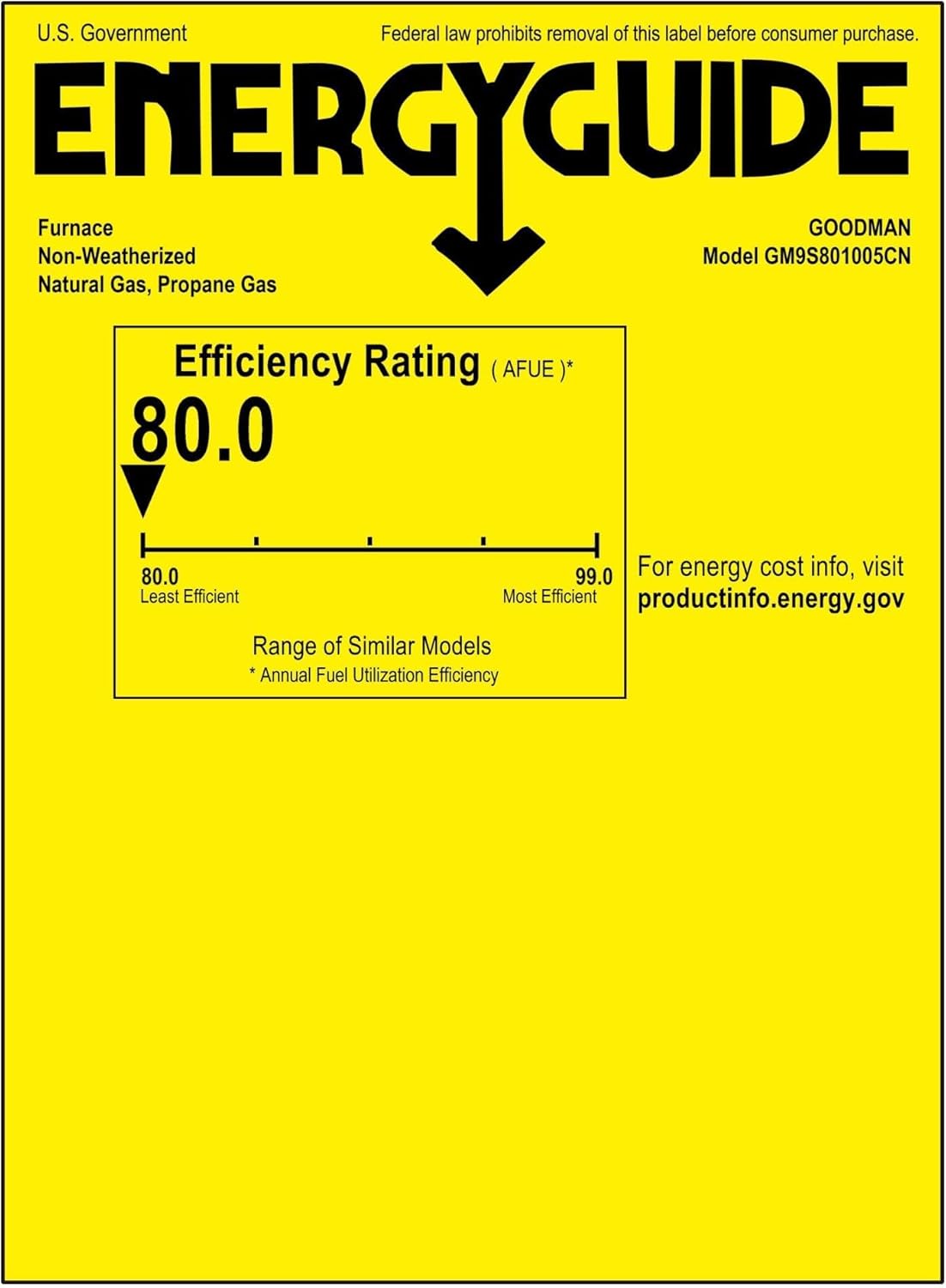

Figure 6: EnergyGuide label for the Goodman GM9S801005CN Furnace, showing an 80.0 AFUE rating.
6.3 CAPFA4226C3 Evaporator Coil
Figure 7: Detailed specifications for the Goodman CAPFA4226C3 Evaporator Coil.
- Tonnage Compatibility: 2.5 - 3.5 тонна
- Хладагент: R-32 only
- Байланыштары: 3/8" x 7/8"
- Өлчөмдөрү (W x D x H): 21 x 21 x 30 дюйм
- Салмагы: 66 фунт
- Багыты: Vertical (Upflow)
- Өзгөчөлүктөрү: Corrosion-resistant aluminum construction, grooved tubing for enhanced heat transfer, rigorous helium pressure tested.
7. Кепилдик жана колдоо
Your Goodman HVAC system components come with a 10 жылдык бөлүктөрү чектелген кепилдик. To activate this warranty, the system must be installed by a qualified installer and registered online within 60 days of installation. Online registration is not required in California.
Figure 8: Goodman 10-Year Limited Warranty shield, indicating coverage for parts.
For full warranty details, product support, or to address any questions regarding your system, please contact Superior Home Supplies or refer to the official Goodman webсайт.
