1. Продукт бүтүп калдыview

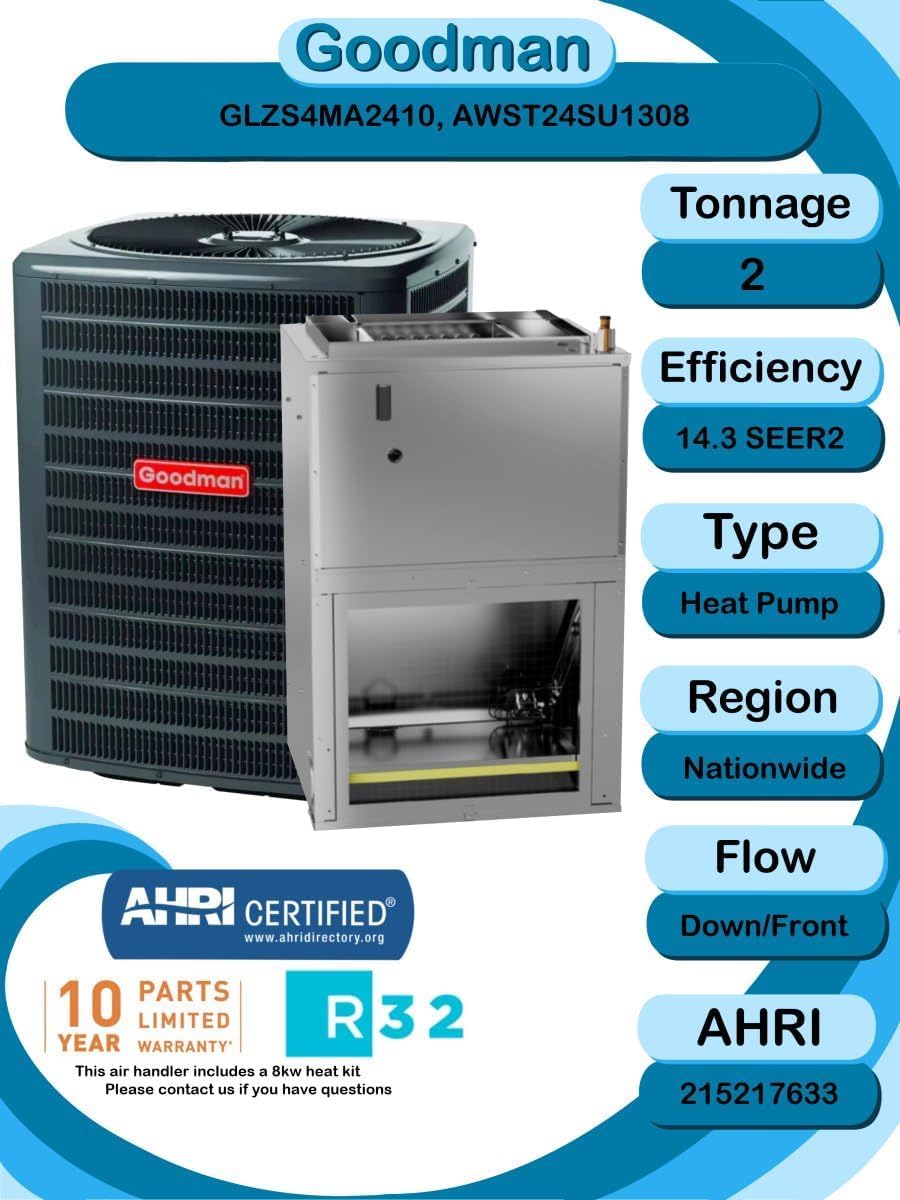

This manual provides essential information for the Goodman 2 Ton 14.3 SEER2 R-32 Heat Pump System, which includes the GLZS4MA2410 Heat Pump (condenser) and the AWST24SU1308 Wall Mounted Air Handler with an integrated 8kW heat kit. This system is designed to provide efficient heating and cooling for your home. It is certified by AHRI under certificate number 215217633, ensuring performance standards.
The Goodman Heat Pump System utilizes R-32 refrigerant, known for its energy efficiency and lower global warming potential compared to previous refrigerants. The system offers both cooling and heating capabilities, making it a year-round climate control solution.
Understanding Heat Pump Systems
Видео 1: Бүттүview of Heat Pump Systems, explaining their dual heating and cooling functionality and energy efficiency benefits.
2. Системанын компоненттери

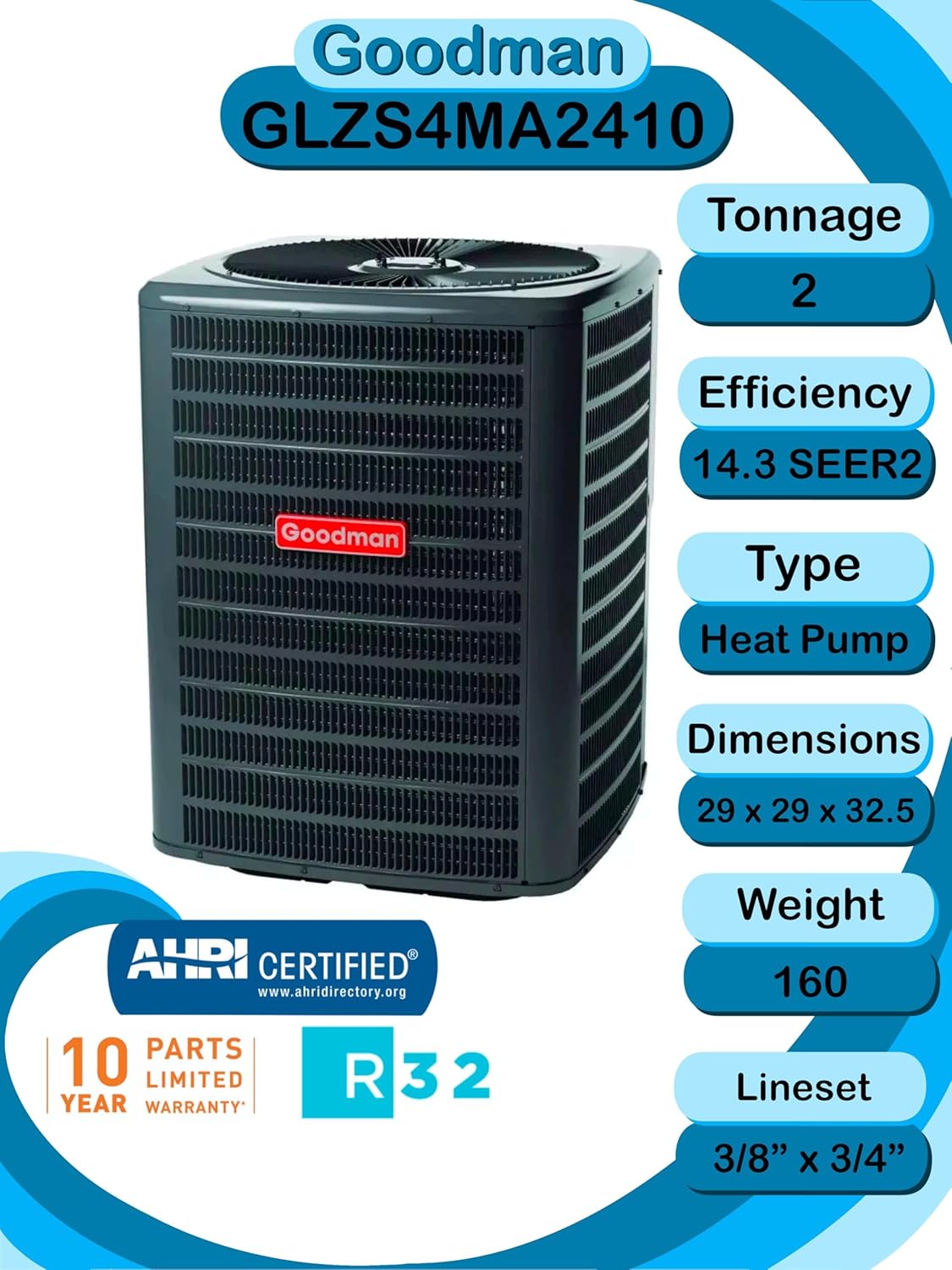

2.1 GLZS4MA2410 Heat Pump (Condenser)
The outdoor unit, or condenser, is responsible for transferring heat between your home and the outside air. In cooling mode, it expels heat from indoors to the outside. In heating mode, it extracts heat from the outside air and transfers it indoors.

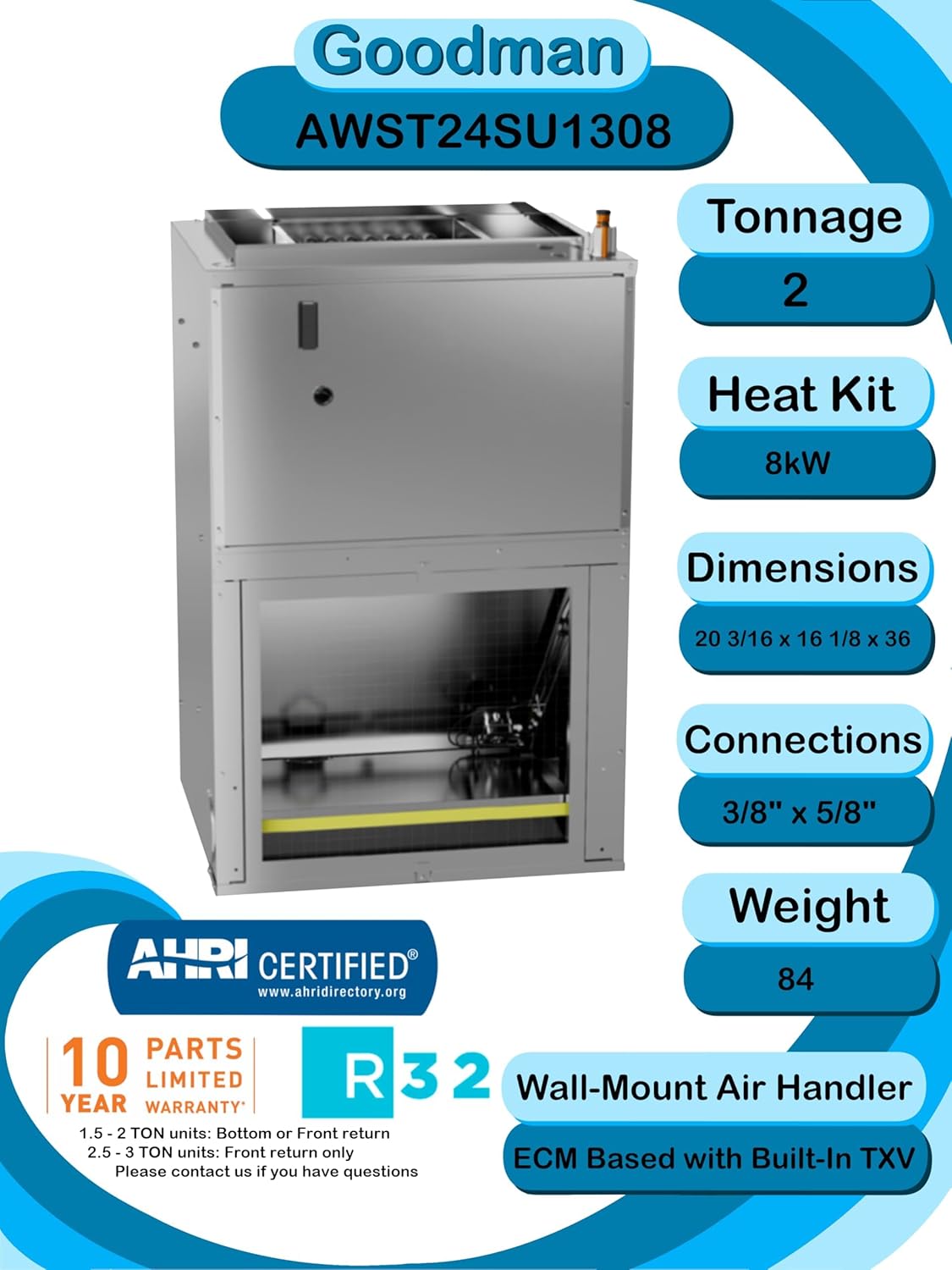

2.2 AWST24SU1308 Air Handler
The indoor unit, or air handler, circulates conditioned air throughout your home's ductwork. It houses the evaporator coil (for cooling) and the 8kW heat kit (for supplemental heating). This model supports both bottom and front return air configurations.
Understanding Air Handlers
Video 2: Detailed information about Air Handlers, their function, and various types.
2.3 8kW Heat Kit
The factory-installed 8kW heat kit provides supplemental electric heating. This is particularly useful in colder climates or during periods of extremely low temperatures when the heat pump alone may not be sufficient to maintain the desired indoor temperature.
3. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Бренд | Гудман |
| Конденсатор модели | GLZS4MA2410 |
| Аба иштеткич модели | AWST24SU1308 |
| Кубаттуулугу | 2 тонна |
| Муздатуу күчү | 24000 Британиянын жылуулук бирдиктери |
| SEER2 рейтинги | 14.3 |
| Муздаткыч түрү | R-32 |
| Жылуулук шайманы | 8kW (Factory Installed) |
| Condenser Weight | 160 фунт |
| Air Handler Weight | 84 фунт |
| AHRI тастыкталган | Yes (Certificate 215217633) |
Understanding SEER2 Regulations
Video 3: Explanation of SEER2 regulations and their impact on HVAC efficiency standards.
Information on R-32 Refrigerant
Video 4: Important information regarding R-32 refrigerant and its properties.
4. Орнотуу
Installation of this Goodman Heat Pump System must be performed by a qualified HVAC technician. Improper installation can lead to reduced efficiency, system damage, and void the warranty. Refer to the detailed installation instructions provided with the physical product for specific wiring diagrams, refrigerant line sizing, and ductwork connections.
Негизги орнотуу эске алуулар:
- Бирдиктин жайгашуусу: Ensure proper clearance around the outdoor condenser for adequate airflow. The air handler should be installed in a suitable indoor location (e.g., utility closet, attic, basement) with access to return and supply ductwork.
- Муздаткыч линиялары: Correct sizing and proper evacuation of refrigerant lines are critical for system performance.
- Электр байланыштары: Бардык электр зымдары жергиликтүү жана улуттук электр эрежелерине ылайык келиши керек.
- Түтүк: Ensure ductwork is properly sized, sealed, and insulated for optimal air distribution and efficiency.
- Конденсат дренажы: Proper drainage for the air handler's condensate pan is essential to prevent water damage and mold growth.
5. Иштөө нускамалары
Your Goodman Heat Pump System is controlled via a compatible thermostat. Familiarize yourself with your thermostat's specific operating instructions.
Негизги операция:
- Күйгүзүү/өчүрүү: Use the system switch on your thermostat to turn the unit on or off.
- Режим тандоо: Select 'Heat' for heating, 'Cool' for cooling, or 'Auto' for automatic switching between modes based on your set temperature.
- Температураны жөндөө: Adjust the desired temperature using the up/down arrows on your thermostat.
- Күйөрман орнотуулары: Choose 'Auto' for the fan to run only when heating or cooling, or 'On' for continuous fan operation.
6. Техникалык тейлөө
Regular maintenance is crucial for the efficient and long-lasting operation of your heat pump system. Always turn off the power to the unit before performing any maintenance.
6.1 Аба чыпкасын алмаштыруу
The air filter in your air handler should be checked monthly and replaced or cleaned as needed, typically every 1-3 months depending on usage and household conditions. A dirty filter restricts airflow, reduces efficiency, and can damage the system.
6.2 Катушкаларды тазалоо
The outdoor condenser coil and indoor evaporator coil should be kept clean. Dirt and debris on the coils can hinder heat transfer and reduce efficiency. This task is best performed by a qualified technician during an annual service check.
6.3 Жылдык кесиптик текшерүү
Schedule an annual inspection and tune-up with a qualified HVAC technician. This ensures your system operates at peak efficiency, identifies potential issues early, and helps extend the lifespan of your equipment.
7. Кыйынчылыктарды
Кызматка чакыруудан мурун, төмөнкү жалпы маселелерди текшериңиз:
- Кубат жок: Check the circuit breaker for the indoor and outdoor units. Ensure the thermostat is set to the correct mode and temperature.
- Муздатуу/жылытуу жок: Verify thermostat settings. Check if the air filter is clean. Ensure outdoor unit is not blocked by debris.
- адаттан тыш үндөр: Minor noises are normal, but loud or persistent sounds may indicate an issue. Turn off the unit and contact a technician.
- Начар аба агымы: Check for dirty air filter or blocked return/supply vents.
For any issues beyond basic troubleshooting, contact a qualified HVAC technician. Do not attempt complex repairs yourself.
8. Кепилдик жана колдоо
This Goodman Heat Pump System comes with a 10 жылдык бөлүктөрү чектелген кепилдик. To activate the full warranty, the system must be installed by a qualified installer and registered online within 60 days of installation. Online registration is not required in California.
For full warranty details or technical support, please refer to the documentation included with your product or contact Goodman customer service. Keep your proof of purchase and installation records handy.
