Introduction
Thank you for choosing the HONEY JOY 12V Unicorn Ride-On Toy. This manual provides essential information for the safe assembly, operation, and maintenance of your new ride-on toy. Please read all instructions carefully before use and retain this manual for future reference.
This 12V ride-on toy features a one-button start, foot pedal control, and a switch for two modes: smooth drive (forward/reverse) and dynamic horse riding (up/down motion). It includes built-in music, anti-slip handlebars, a wide seat, and detachable training wheels for enhanced stability. Designed for children aged 3 and up, with a maximum weight capacity of 55 lbs (25 kg).
Коопсуздук маалыматы
ЭСКЕРТҮҮ: Adult supervision is required at all times. This product is not suitable for children under 3 years due to small parts and potential hazards. Ensure the child's weight does not exceed 55 lbs (25 kg).
- Always ensure the child wears appropriate safety gear, including a helmet, when operating the toy.
- Do not operate the toy near stairs, steep inclines, swimming pools, or public roads.
- Only use on flat, dry surfaces. Avoid wet conditions, sand, or loose gravel.
- Колду, чачты жана кийимди кыймылдуу бөлүктөрдөн алыс кармаңыз.
- Regularly inspect the toy for damage, loose parts, or worn components before each use.
- Charging must be performed by an adult only.
Пакеттин мазмуну
Чогултуудан мурун бардык компоненттердин бар экендигин текшериңиз:
- 1 x Unicorn Ride-On Toy
- 1 х заряддагыч
- 1 x Колдонуучунун колдонмосу (бул колдонмо)
Ассамблея жана орнотуу
Assembly is required. Please follow the detailed instructions provided in this user guide for proper setup. Ensure all connections are secure before initial use.
- Пакеттен чыгаруу: Бардык компоненттерди таңгактан кылдаттык менен алып салыңыз.
- Дөңгөлөктү орнотуу: Attach the main wheels and detachable training wheels as per the diagrams. Ensure they are securely fastened.
- Рулду бекитүү: Secure the handlebars to the steering column.
- Орнотуу: Place the seat onto the toy, ensuring it clicks into place or is screwed down firmly.
- Батарея туташуу: Locate the battery compartment, typically under the seat. Connect the battery terminals according to the polarity markings (+ to + and - to -).
- Баштапкы төлөм: Before first use, fully charge the battery for 8-12 hours. Refer to the 'Charging Instructions' section for details.
Figure 1: Key Features for Comfort and Stability. This image highlights the anti-slip handlebars for secure grip, the wide seat for comfort, detachable training wheels for stability, and footrests for proper foot placement.
Иштөө нускамалары
Familiarize yourself with the controls before allowing a child to operate the toy.
- Күйгүзүү/өчүрүү: Press the 'One Button Start' to turn the toy on or off.
- Айдоо: Press the 'Foot Pedal' to move the toy forward. Release the pedal to stop.
- Режим тандоо: Use the 'Switch Button' to toggle between two modes:
- Айдоо режими: Provides forward and reverse motion.
- Horse Riding Mode: Activates an up and down motion, simulating a horse's trot.
- Музыка функциясы: The toy includes built-in musical features. Controls for music playback are located on the dashboard.
- Башкаруу: Turn the handlebars left or right to steer the toy.
Figure 2: Easy Operation Controls. This image illustrates the one-button start, foot pedal for acceleration, and the switch button to activate the up and down motion.
Figure 3: Fun Music Function. This image highlights the integrated music panel on the toy, providing entertainment during playtime.
Заряддоо нускамалары
Proper battery charging is crucial for performance and longevity. Always ensure charging is done by an adult.
- Батарея түрү: The toy is powered by two 6V 4.5AH batteries, providing a total of 12V.
- Заряддагыч: Use only the provided 12V 500mA charger. Using an incorrect charger may damage the battery or toy.
- Заряддоо порту: Locate the rear charging port on the toy.
- Заряддоо процесси: Plug the charger into a standard wall outlet, then connect the charger's plug to the toy's charging port.
- Заряддоо убактысы: For optimal performance, charge the battery for 8-12 hours. Do not overcharge.
- Батарея көрсөткүчү: The LED power display helps monitor the battery status to prevent unexpected power shortages.
Figure 4: Rechargeable Battery Information. This image provides details on the toy's speed, battery specifications (2x 6V 4.5AH), charger input (12V 500mA), and recommended charging time (8-12 hours).
Техникалык тейлөө
Үзгүлтүксүз тейлөө сиздин оюнчуктун узак жана коопсуз иштешин камсыздайт.
- Тазалоо: Wipe the toy with a soft, damp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз. Сууну түздөн-түз электрдик тетиктерге чачуудан алыс болуңуз.
- Батареяга кам көрүү: To prolong battery life, charge it fully after each use. If storing the toy for an extended period, charge the battery at least once a month. Disconnect the battery when not in use for long periods.
- Дөңгөлөктү текшерүү: Periodically check the wear-resistant wheels for damage or excessive wear. Ensure axles are free of debris and rotate smoothly.
- Жалпы текшерүү: Regularly check all screws, nuts, and fasteners to ensure they are tight. Inspect electrical connections for corrosion or damage.
- Сактагыч: Store the toy in a dry, cool place away from direct sunlight and moisture.

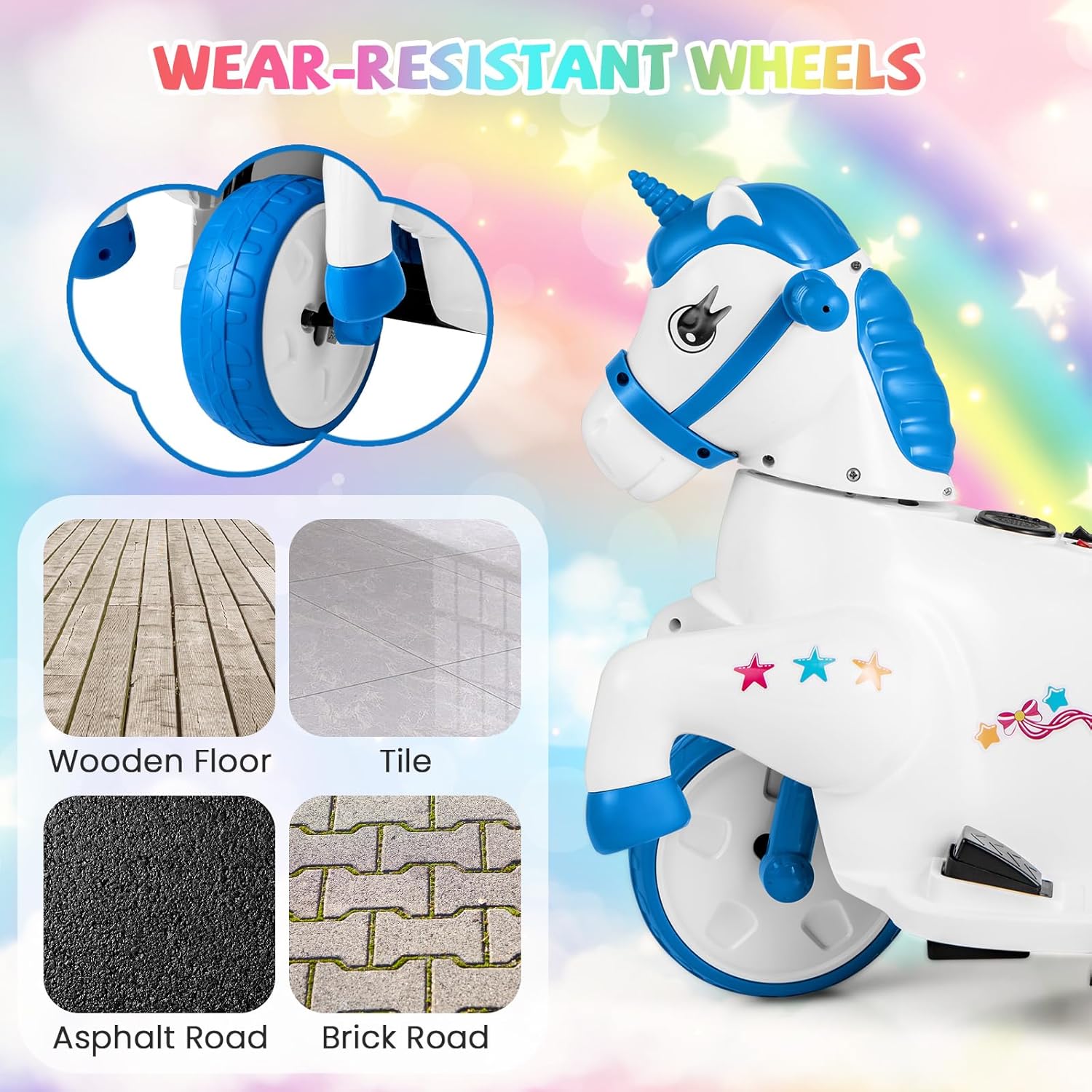

Figure 5: Wear-Resistant Wheels. This image illustrates the durable wheels designed for various surfaces including wooden floors, tiles, asphalt, and brick roads.
Проблемаларды чечүү
Эгер сиз ойноочу оюнчугуңузда көйгөйлөргө туш болсоңуз, төмөнкү жалпы көйгөйлөрдү жана чечимдерди караңыз:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Оюнчук кыймылдабайт | Battery is low or not connected; Loose wire connection; Foot pedal malfunction. | Charge the battery fully; Check all wire connections; Inspect foot pedal for obstructions. |
| Батареянын иштөө мөөнөтү кыска | Battery not fully charged; Old battery; Overloading the toy. | Ensure 8-12 hours charging time; Consider battery replacement if old; Ensure child's weight is within limits. |
| Оюнчук адаттан тыш үндөрдү чыгарат | Loose parts; Debris in wheels/motor. | Inspect for loose screws and tighten; Clean wheels and motor area. |
| Music/lights not working | Loose connection; Battery low. | Check connections to music panel/lights; Charge battery. |
Бул чечимдерди колдонуу аракетинен кийин көйгөй чечилбесе, кардарларды колдоо кызматына кайрылыңыз.
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Продукциянын өлчөмдөрү | 26.77" L x 14.96" В x 22.44" Ж (68 x 38 x 57 см) |
| Элемент Салмагы | 14 фунт (6.35 кг) |
| Максималдуу Салмагы | 55 фунт (25 кг) |
| Ылайыктуу Жаш | 3 - 8 жыл |
| Мотор | 12V (2 x 6V, 30W motors) |
| Батарея | 2 x 6V 4.5AH |
| Ылдамдык | Болжол менен 1.6 миль/саат (2.5 км/саат) |
| Заряддагыч киргизүү | AC120V, 0.2A, 60Hz (Output: 12V 500mA) |
| Заряддоо убактысы | 8-12 саат |
| Материал | PP, металл |
Figure 6: Product Size and Capacity. This image provides key dimensions of the toy, the suitable age range (over 3 years old), and the maximum load capacity of the seat (66 lbs, though product description states 55 lbs, using the more conservative 55 lbs from description).
Кепилдик жана колдоо
Specific warranty details are not provided in this manual. For warranty information, please refer to the product packaging or contact the retailer/manufacturer directly. Keep your purchase receipt as proof of purchase.
For technical assistance, missing parts, or any questions regarding the operation or maintenance of your HONEY JOY 12V Unicorn Ride-On Toy, please contact HONEY JOY customer support through their official webпродукт сатылып алынган сайт же сатуучу.
