VEVOR Heat Press 15x15 Instruction Manual

1. Киришүү

This manual provides essential information for the safe and effective operation of your VEVOR 15x15 Heat Press Machine. This device is designed for transferring various designs onto items such as T-shirts, bags, mouse pads, puzzles, and ceramic tiles. Please read all instructions carefully before use to ensure proper function and longevity of the product.

2. Коопсуздук нускамалары

• Always keep the machine out of reach of children.
• Ensure the power socket used meets the standard requirements and is not overloaded.
• Do not touch the heating plate when the machine is on or immediately after turning it off, as temperatures can remain high.
• Do not set the temperature above 480°F (250°C) or maintain high temperatures for extended periods (above 200 seconds frequently), as this may reduce machine lifespan.
• Keep the machine dry and store it properly when not in use to prevent moisture and rust.
• Turn off the machine for 15 minutes after 4 hours of continuous use to prevent overheating.
• Do not operate other high-power equipment on the same circuit.
• Do not use for food processing or any unintended applications.
• Do not disassemble or attempt to repair the heat press by yourself.
• Do not operate a damaged heat press.
• Машинаны сууга салбаңыз.

3. Продукт бүтүп калдыview

Figure 1: VEVOR 15x15 Heat Press Machine with various transfer items.

Негизги өзгөчөлүктөрү:

• Double-Tube Heating: Ensures rapid and even heat distribution across the entire 15x15 inch platen for consistent results.
• Slide-Out Design: Features smooth slide rails and a hidden bottom handle for easy access to items, protecting hands from burns.
• Чоң жылытуу плитасы: The 15x15 inch heat plate, made from durable thick steel and aluminum die-casting, offers strength and longevity.
• Санариптик контроллер: A user-friendly digital display allows precise control of temperature (32-480°F / 0-250°C) and time (0-999 seconds). Includes an integrated counter function.
• Жөнгө салынуучу басым: A pressure adjustment knob allows customization for different material thicknesses. Turn counterclockwise to decrease pressure, clockwise to increase.

4. Орнотуу жана компоненттер

Figure 2: Key components including adjustable pressure knob, digital display, and 2-layer insulation cotton.

Компоненттери:

• Heat Press Unit (Top Platen with handle and control box)
• Bottom Platen (Slide-out work table with silicone pad)
• Электр кабели
• User Manual

Баштапкы орнотуу:

1. Place the heat press on a stable, heat-resistant surface.
2. Кубат өчүргүч OFF абалында экенин текшериңиз.
3. Электр шнурын машинага, анан жерге туташтырылган электр розеткасына туташтырыңыз.

5. Иштөө нускамалары

Figure 3: Visual guide for the four-step operation process.

Этап-этабы менен операция:

1. Power On & Set Parameters: Turn on the machine using the power switch. Use the digital controller to set the desired temperature and time according to your transfer material. The machine will heat up to the set temperature.
2. басымды жөндөө: Use the pressure adjustment knob to set the appropriate pressure for your material. Turn clockwise for more pressure, counterclockwise for less.
3. Элементти даярдоо: Pull out the slide-out bottom platen. Place your item (e.g., T-shirt) and transfer design onto the platen, ensuring it is flat and correctly positioned.
4. Пресс: Slide the bottom platen back into position. Firmly press down the handle to engage the heat press. The timer will automatically start counting down.
5. Бүтүрүү: Once the timer reaches zero, the machine will beep. Lift the handle to release the pressure. Pull out the bottom platen and carefully remove your finished product.

Digital Controller Usage:

Figure 4: Digital display for temperature and time control.

• Use the 'SET' button to toggle between temperature and time settings.
• Use the up/down arrows to adjust the values.
• The integrated counter function tracks the number of presses.

Видео демонстрация:

6. Тиркемелер

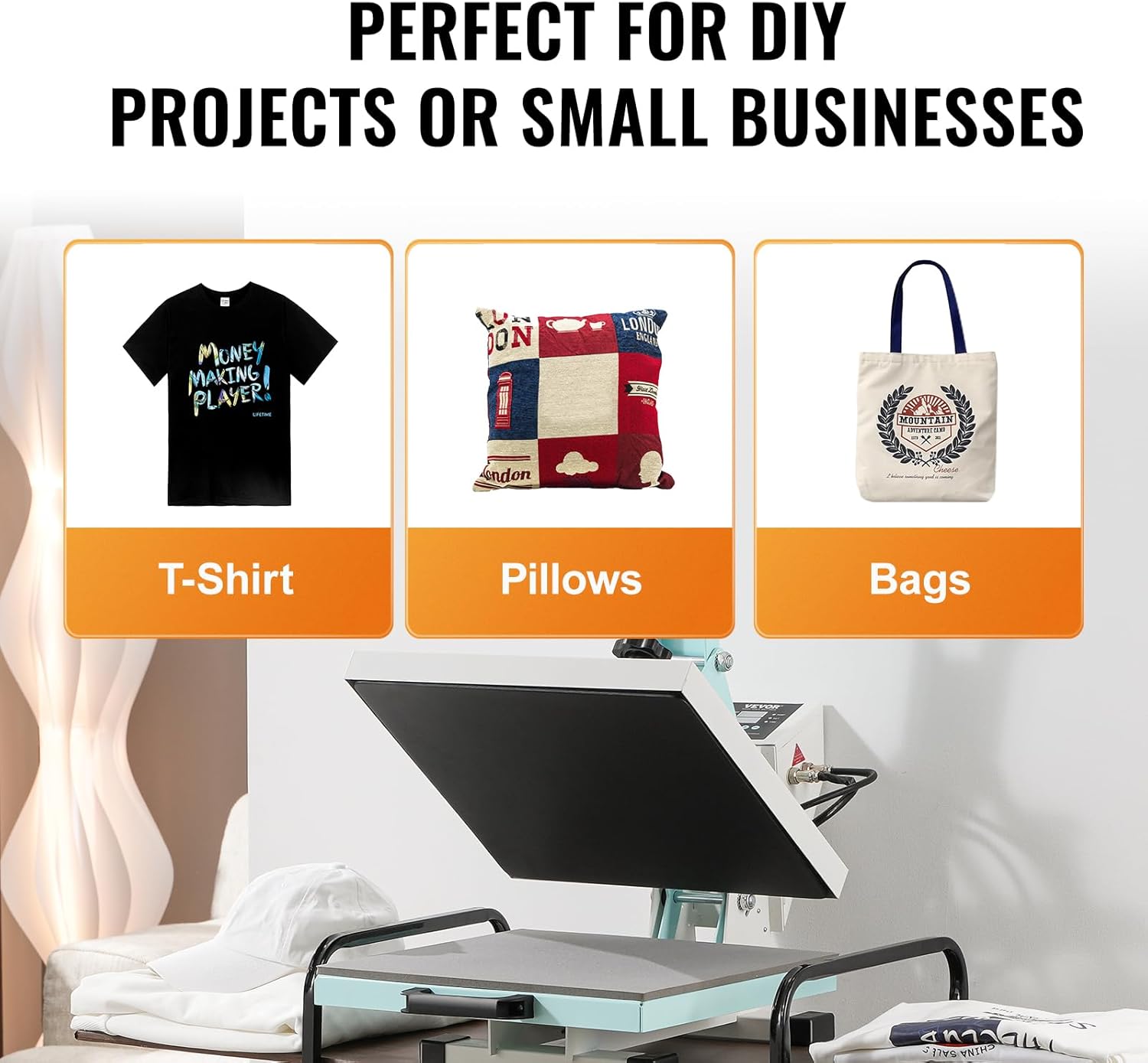

Figure 5: The VEVOR Heat Press is suitable for various DIY projects and small businesses, including T-shirts, pillows, and bags.

The VEVOR 15x15 Heat Press is versatile and can be used for a wide range of heat transfer applications. It is compatible with materials such as cotton, fiber, metal, ceramic, and glass. Common items for customization include:

• T-shirts and other apparel
• Тоте сумкалар
• Pillows and cushion covers
• Чычкан жаздыкчалары
• Пазлдар
• Керамикалык плиткалар

7. Техникалык тейлөө жана кам көрүү

• Regularly clean the machine and control panel with a damp жумшак кездеме.
• If there is ink on the heating plate, use a rag with iron cleaners or mineral alcohol to wipe it clean at 160°C (320°F).
• To maintain good heat transfer, lubricate all exposed rods once a year.
• If the silicone pad loses elasticity, replace it to ensure optimal pressure.

8. Кыйынчылыктарды

For common issues, refer to the troubleshooting section in the full user manual or contact VEVOR customer support.

9. Техникалык шарттар

10. Кепилдик жана колдоо

VEVOR products typically come with a manufacturer's warranty. Please refer to the product packaging or the official VEVOR website for specific warranty terms and conditions. For technical support, troubleshooting, or warranty claims, please contact VEVOR customer service directly.
