LIECTROUX X6 робот чаң соргуч жана швабра колдонуучусунун колдонмосу

Introduction

This manual provides essential information for the safe operation, maintenance, and troubleshooting of your LIECTROUX X6 Robotic Vacuum Cleaner and Mop. Please read this manual thoroughly before using the product and retain it for future reference. The LIECTROUX X6 is designed to provide efficient and comprehensive cleaning for various floor types, utilizing advanced navigation and smart features.

Продукт бүттүview

Негизги өзгөчөлүктөрү

• Deep Cleaning Power: 6500Pa suction for efficient cleaning of hard floors, pet hair, and carpets.
• LSD LIDAR Navigation: Precise navigation and mapping for systematic cleaning.
• Тактык картасы: Customizable cleaning routes and schedules for personalized cleaning.
• Wi-Fi туташуусу: Control and schedule cleanings remotely through the app or voice assistants.
• Үн менен башкаруу: Колсуз башкаруу үчүн үн жардамчылары менен шайкеш келет.
• Өркүндөтүлгөн чыпкалоо системасы: Captures 99.97% of dust, dirt, and allergens for cleaner air.
• Алыстан жана колдонмону башкаруу: Schedule cleanings, adjust settings, and monitor progress remotely.
• Pet Hair and Allergy Friendly: Effectively picks up pet hair, dust, and allergens for a cleaner environment.

Камтылган компоненттер

• 1 x Robotic Vacuum
• 1 x заряддоо док
• 1 x заряддоо адаптери
• 1 x 2-in-1 Dustbin and Water Tank
• 2 x Pairs of Side Brushes
• 2 x Re-usable Wet Mopping Cloth
• 1 x Швабра төшөгүч
• 1 x тазалоочу щетка
• 2 х HEPA чыпкасы
• 1 x User Manual

Продукт визуалдык көрүнүштөрү

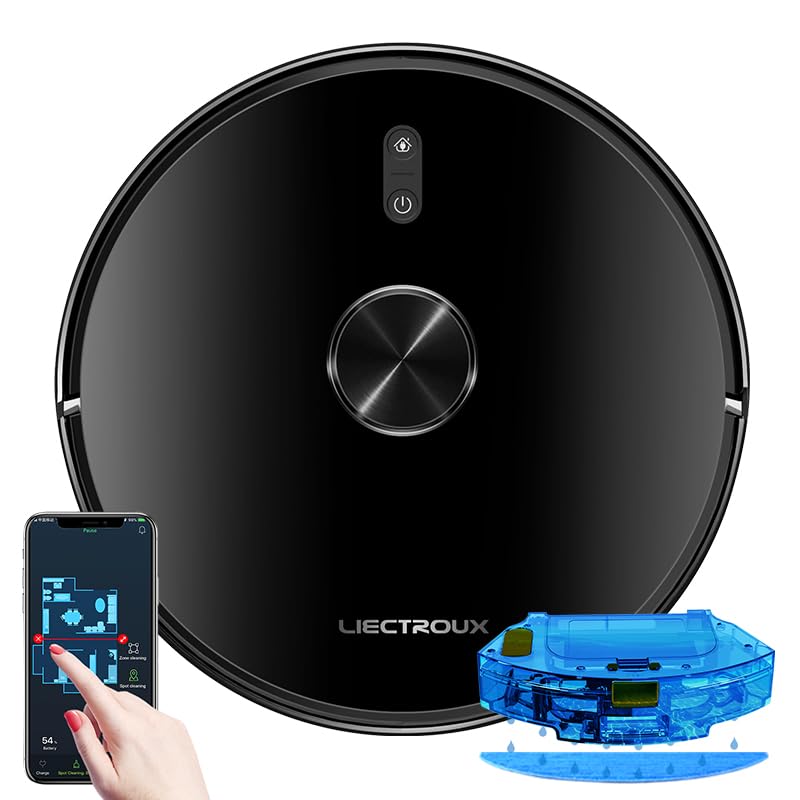

Figure 1: The LIECTROUX X6 Robotic Vacuum Cleaner and Mop, showcasing its sleek design, the accompanying mobile app interface for control, and the integrated water tank for mopping functionality.

Figure 2: Illustration of the integrated dust box and water tank system, highlighting the 400ml large dust box and 235ml large water tank, designed for effortless and worry-free cleaning. It also shows the sweeping, vacuuming, and mopping functions.

Figure 3: The LDS laser radar metering system in action, demonstrating its capabilities for LDS laser navigation, precision mapping, multi-layer map management, Y-routed floor mopping, and custom deep cleaning.

Figure 4: The mobile application interface displaying visual maps for whole house cleaning, including features like house-wide cleaning, routed cleaning, specified-area cleaning, scheduled cleaning tasks, and suction level adjustment.

Figure 5: Depiction of multiple custom cleaning modes for efficient and thorough cleaning, such as Selective Areas Cleaning, Cleaning Order, Restricted Zone Setting, Palm Virtual Blocker, and Areas Cleaning Frequency.

Figure 6: Illustration of the comprehensive breakthrough in Micro Electric Control and Air Pump Water Tank technology, showing different levels of wet mopping: Basic (Low), Normal (Medium), and Deep (High).

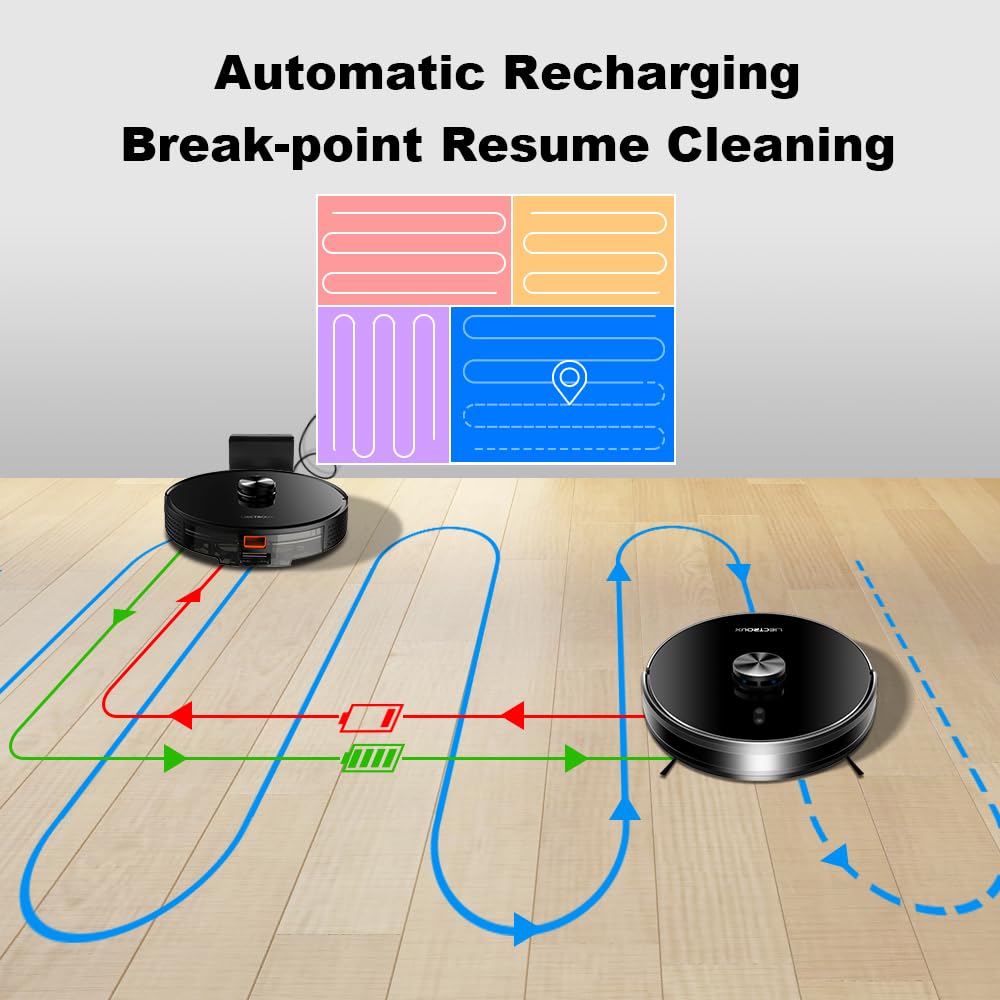

Figure 7: Diagram illustrating the automatic recharging feature and breakpoint resume cleaning, where the robot returns to its charging dock when battery is low and resumes cleaning from where it left off once sufficiently charged.

Figure 8: Visual representation of the Y-routed cleaning pattern, designed for repeated mopping and sweeping, imitating artificial kneeling-type cleaning for thorough stain removal.

Figure 9: Depiction of the multi-layer map management feature, allowing for areas segmentation, areas consolidation, recovering partition, and areas naming across multiple floors (1F to 6F shown).

Сүрөт 10: Жакын пландан view of key internal components, including the dustbin with double filters, the Japan-imported brushless motor, and the floating V-shaped roller brush, designed for efficient debris collection.

Жайгашуу

1. таңгактан чыгаруу

Carefully remove all components from the packaging. Ensure all included items listed in the "Included Components" section are present. Remove any protective films or packing materials from the robot and charging dock.

2. Заряддоо докунун жайгашуусу

• Кубаттоочу докту дубалга катуу, тегиз жерге коюңуз.
• Доктун эки тарабында кеминде 0.5 метр (1.6 фут) жана анын алдында 1.5 метр (4.9 фут) бош орун бар экенин текшериңиз.
• Keep the area free of obstacles, such as furniture or power cords, that could obstruct the robot's return to the dock.
• Кубат адаптерин кубаттоочу докко туташтырыңыз жана аны розеткага сайыңыз.

3. Баштапкы төлөм

Place the robot onto the charging dock, ensuring the charging contacts align. The robot will begin charging automatically. For optimal battery life, fully charge the robot before its first use. The indicator light on the robot will show charging status.

4. Колдонмону орнотуу жана туташуу

• Download the official LIECTROUX app from your mobile device's app store (iOS or Android).
• Open the app and follow the on-screen instructions to create an account and add your LIECTROUX X6 robot.
• Ensure your Wi-Fi network is 2.4GHz, as the robot may not support 5GHz networks.
• The app will guide you through connecting the robot to your home Wi-Fi network.

Иштөө нускамалары

1. Тазалоо циклин баштоо

• Роботтон: Автоматтык тазалоо циклин баштоо үчүн роботтогу кубат баскычын бир жолу басыңыз.
• Колдонмодон: Open the LIECTROUX app, select your robot, and tap "Start Cleaning" or choose a specific cleaning mode.
• Үн менен башкаруу: If connected to a voice assistant (e.g., Amazon Alexa, Google Assistant), use voice commands like "Alexa, tell [Robot Name] to start cleaning."

2. Тазалоо режимдери

• Автоматтык тазалоо: Робот акылдуу навигациялап, бардык жеткиликтүү аймакты тазалайт.
• Тазалоо: Directs the robot to clean a specific small area intensively. Ideal for spills or concentrated dirt.
• Аймакты тазалоо: Use the app to define specific zones on the map for the robot to clean.
• Пландаштырылган тазалоо: Set up recurring cleaning times and days through the app.
• Restricted Zones/Virtual Walls: Use the app to draw virtual boundaries or restricted zones on the map to prevent the robot from entering certain areas.

3. Чыпкалоо функциясы

• Fill the water tank with clean water. Do not use cleaning solutions that are not approved by LIECTROUX.
• Attach the mopping cloth to the water tank.
• Insert the 2-in-1 dustbin and water tank into the robot.
• Select a mopping mode or a combined vacuuming and mopping mode via the app. Adjust water flow levels (Low, Medium, High) as needed.

4. Pausing and Resuming

Press the power button on the robot or use the app to pause a cleaning cycle. Press again to resume. If the robot returns to the charging dock due to low battery, it will automatically resume cleaning from where it left off once sufficiently charged.

5. Returning to Charging Dock

The robot will automatically return to its charging dock when the battery is low or when a cleaning cycle is complete. You can also manually send it back via the app or by pressing and holding the power button on the robot.

Техникалык тейлөө

Regular maintenance ensures optimal performance and extends the lifespan of your LIECTROUX X6. Always power off the robot before performing any maintenance.

1. Таштанды кутусун бошотуу

• Таштанды урнасын чыгаруу баскычын басып, 2-де 1 чаң урнасын жана суу багын чыгарыңыз.
• Таштанды челектин капкагын ачып, анын ичиндегисин таштанды челекке төгүңүз.
• Frequency: After each use or when full.

2. Фильтрлерди тазалоо

• Remove the HEPA filter and sponge filter from the dustbin.
• Чаңды кетирүү үчүн чыпкаларды акырын басыңыз. HEPA чыпкаларын суу менен жуубаңыз.
• The sponge filter can be rinsed with water and air-dried completely before reinstallation.
• Frequency: Weekly, replace HEPA filter every 3-6 months.

3. Негизги щетканы тазалоо

• Роботту оодарып, негизги щетка капкагын алып салыңыз.
• Lift out the main brush. Use the provided cleaning tool to remove hair and debris tangled around the brush.
• Frequency: Weekly.

4. Каптал щеткаларды тазалоо

• Inspect side brushes for damage or tangled hair.
• If necessary, remove the side brushes (they usually snap on/off) and clean them. Replace if worn.
• Frequency: Monthly, replace every 3-6 months.

5. Сенсорлорду жана заряддоо контакттарын тазалоо

• Wipe the cliff sensors (located on the bottom of the robot), wall sensors, and charging contacts on both the robot and the charging dock with a clean, dry cloth.
• Frequency: Monthly.

6. Cleaning the Mopping Cloth

• Remove the mopping cloth after each mopping cycle.
• Rinse it thoroughly with water and allow it to air dry completely before storing or reattaching.
• Frequency: After each mopping use.

Проблемаларды чечүү

If your LIECTROUX X6 encounters an issue, refer to the following common problems and solutions:

For issues not listed here, please refer to the comprehensive troubleshooting section in the full user manual or contact customer support.

Техникалык шарттар

Кепилдик жана колдоо

Your LIECTROUX X6 Robotic Vacuum Cleaner and Mop comes with a standard manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including warranty period and coverage details.

For technical support, service, or warranty claims, please contact LIECTROUX customer service. Contact information can typically be found on the official LIECTROUX webсайтында же продуктунун таңгагында.

Жаңыртууларды жана колдоону алуу үчүн өнүмүңүздү онлайн каттоодон өткөрүү сунушталат.
