WOLFANG Mini Projector WP02 User Manual

1. Продукт бүтүп калдыview

The WOLFANG WP02 Mini Projector is a portable and versatile device designed for home theater, outdoor movie nights, and presentations. It features advanced LCD display technology, supporting Full HD 1080P input with a native resolution of 1280x720. Its compact size and lightweight design make it easy to carry, while built-in HIFI speakers provide clear audio. The projector offers multiple connectivity options for various smart devices.

Image: WOLFANG WP02 Mini Projector with included tripod.

2. Пакеттин мазмуну

Сураныч, төмөнкү нерселер үчүн кутучаны белгилеңиз:

• WOLFANG WP02 мини проектор
• Алыстан башкаруу (батареялар камтылган эмес)
• Электр кабели
• HDMI кабели
• User Manual
• 3-in-1 AV кабели
• Мини штатив

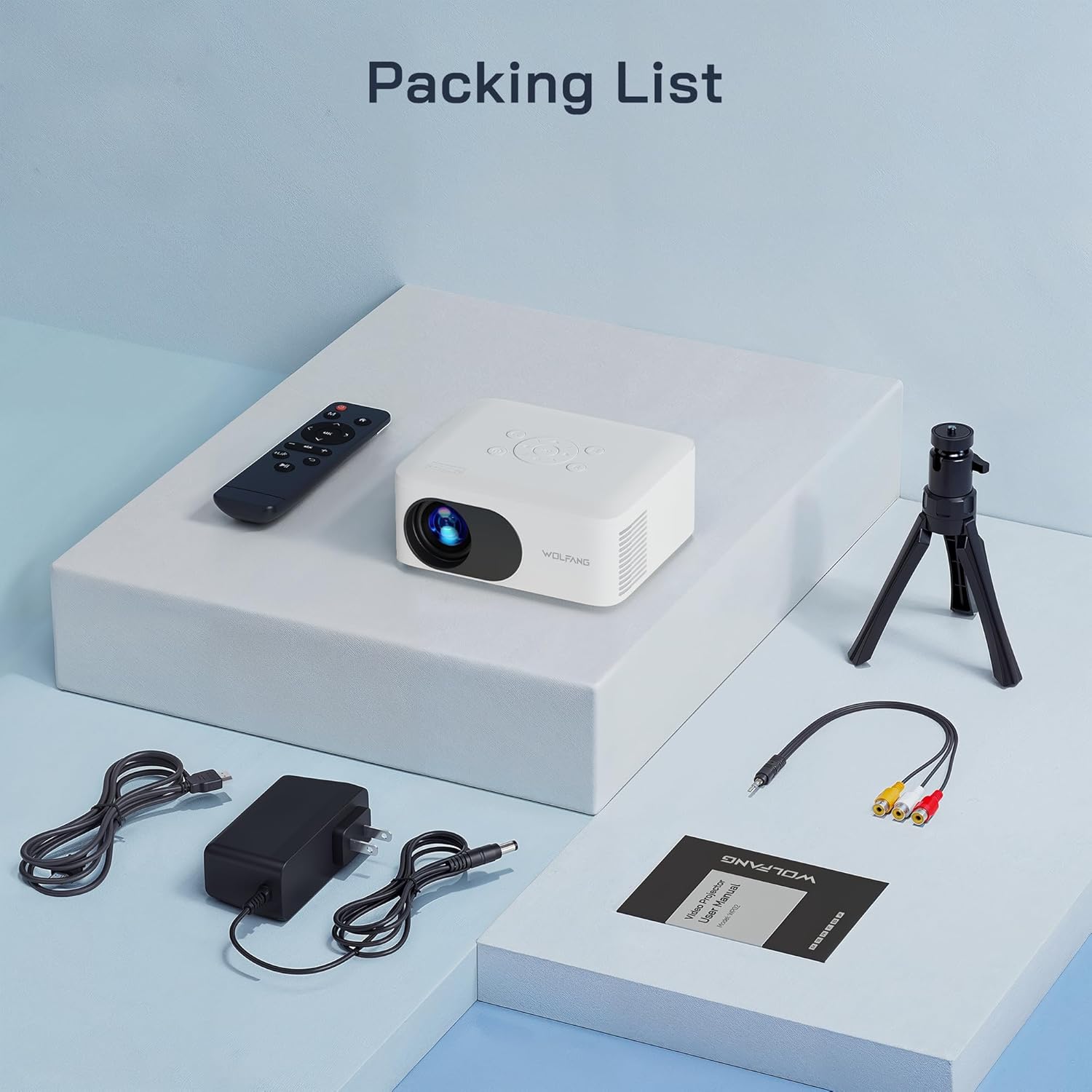

Image: All items included in the WOLFANG WP02 Mini Projector package.

3. Орнотуу колдонмосу

3.1 Кубат туташтыруу

Connect the provided power cable to the 'DC IN' port on the projector and then plug it into a power outlet. The projector will power on or enter standby mode.

3.2 Жайгаштыруу параметрлери

The WP02 projector offers flexible placement options:

• Столдун жайгашуусу: Проекторду тегиз, туруктуу бетке коюңуз.
• Tripod орнотуу: Use the included mini tripod by screwing it into the tripod mount on the bottom of the projector. This allows for easy height and angle adjustment.
• Шыпка орнотуу: The projector supports ceiling projection. Ensure proper mounting hardware (not included) is used and the projector is securely fastened.

Image: Multiple installation options for the WOLFANG WP02 Mini Projector.

3.3 Фокусту жана Keystone жөндөөсүн

To achieve a clear and rectangular image, adjust the focus and keystone correction:

• Фокус: Rotate the 'FOCUS' dial on the side of the projector until the image appears sharp and clear.
• Негизги ташты оңдоо: Rotate the 'KEYSTONE' dial to correct any trapezoidal distortion in the image, making it perfectly rectangular.

Image: The WOLFANG WP02 Mini Projector's focus and keystone adjustment dials for optimal viewing.

4. Түзмөктөрдү туташтыруу

4.1 Input Ports Overview

The WOLFANG WP02 Mini Projector features a variety of input ports:

• HDMI: For connecting devices like TV sticks, gaming consoles (e.g., PS5), and PCs.
• USB-A: For playing media directly from USB flash drives.
• Микро SD: For playing media directly from Micro SD cards.
• OF: Эски түзмөктөрдү туташтыруу үчүн комплекттеги 3-in-1 AV кабелин колдонуңуз.
• 3.5 мм гарнитура уячасы: Тышкы кулакчындарды же динамиктерди туташтыруу үчүн.

Image: Multimedia connection ports on the WOLFANG WP02 Mini Projector.

4.2 Connecting to Smartphones

To connect your smartphone (Android or iPhone) to the projector, an additional HDMI adapter is required (not included). For Android phones, you will need an HDMI to USB-C cable/adapter. For iPhones, you will need an HDMI to Apple Lightning cable/adapter. Once connected, select the HDMI input source on the projector.

4.3 Башка түзмөктөргө туташуу

For TV sticks, PCs, or gaming consoles, connect them directly to the HDMI port using an HDMI cable. For USB drives or Micro SD cards, insert them into the respective slots. Use the 3.5mm audio jack to connect external speakers or headphones for enhanced audio.

5. Операция

After connecting your desired device and powering on the projector, use the remote control or the buttons on top of the projector to navigate the menu. Select the correct input source (HDMI, USB, Micro SD, AV) corresponding to your connected device. You can adjust volume, picture mode, and other settings through the on-screen menu.

6. Техникалык тейлөө жана кам көрүү

To ensure the longevity and optimal performance of your WOLFANG WP02 Mini Projector, follow these maintenance guidelines:

• Линзаны тазалоо: Gently clean the projector lens with a soft, lint-free cloth or lens cleaning paper. Avoid using abrasive materials or harsh chemicals.
• Вентиляция: Ensure that the projector's ventilation holes are not blocked. Proper airflow is crucial to prevent overheating and maintain performance.
• Сактагыч: When not in use, store the projector in a cool, dry place, away from direct sunlight and excessive dust.

Image: The WOLFANG WP02 Mini Projector features advanced noise reduction technology for quiet operation, indicating efficient heat dissipation.

7. Кыйынчылыктарды

If you encounter any issues with your WOLFANG WP02 Mini Projector, please refer to the following common problems and solutions:

• Сүрөт жок: Ensure the power cable is securely connected and the projector is powered on. Verify that the correct input source is selected. Check all video cables for secure connections.
• Үн жок: Check the volume settings on both the projector and the connected device. Ensure external speakers or headphones are properly connected if used.
• бүдөмүк сүрөт: Adjust the 'FOCUS' dial until the image is clear. Ensure the projection distance is within the recommended range.
• Сүрөт трапеция формасында: Adjust the 'KEYSTONE' dial to correct the image shape.
• Алыстан башкаруу иштебейт: Check if the batteries are inserted correctly and are not depleted. Point the remote directly at the projector's IR receiver.

For further assistance, please contact WOLFANG customer service.

8. Продукттун спецификациялары

9. Кепилдик жана Кардарларды колдоо

WOLFANG камсыз кылат 12 айлык кепилдик for the WP02 Mini Projector, along with lifetime technical support. If you have any questions, require assistance, or need to inquire about upgrading accessories (such as a projection screen or dongle), please do not hesitate to contact our customer service team.

We are committed to resolving any issues to your satisfaction within 24 hours.

Расмий электрондук почта: support.vc@wolfang.co

You can also reach out via the QR code provided in the product packaging for WOLFANG WhatsApp support.
