HAKINAKU 4IN1 Plug-in Smoke & Carbon Monoxide Detector Combination (Model HD11) Instruction Manual

1. Продукт бүтүп калдыview

The HAKINAKU 4IN1 Plug-in Smoke & Carbon Monoxide Detector is a versatile safety device designed for comprehensive environmental monitoring. It integrates four essential sensors: carbon monoxide (CO), smoke, temperature, and humidity, providing real-time data for enhanced home safety.

• 4-бирде аныктоо: Monitors carbon monoxide, smoke, temperature, and humidity simultaneously.
• Плагиндин дизайны: Compatible with US 110V to 220V AC voltage, fitting standard outlets.
• Камдык батарея: Features a built-in 2000 mAh lithium-ion battery for up to 120 hours of operation during power outages, also enabling portable use.
• HD экран: A 2.1-inch high-definition screen displays real-time data with large, easy-to-read icons.
• Үн сигнализациясы: Equipped with an 85 dB alarm for immediate alerts.
• Жогорку тактыктагы сенсорлор: Utilizes independent smoke and CO sensors, including high precision electrochemical and photoelectric sensors for sensitive and stable detection.

Image: The HAKINAKU 4IN1 detector showing real-time readings for CO (PPM), Gas, Smoke, Temperature (Fahrenheit), and Humidity (%).

2. Орнотуу жана орнотуу

2.1 Алгачкы заряддоо

Before first use, it is recommended to fully charge the device. The built-in 2000 mAh lithium-ion backup battery provides extended operation, but a full charge ensures readiness.

2.2 Жайгаштыруу параметрлери

The detector offers flexible placement:

• Түздөн-түз плагин: Insert the device directly into any standard US 110V to 220V AC outlet. This is ideal for continuous monitoring in bedrooms, kitchens, living rooms, basements, or hotel rooms.
• Магниттик тиркеме: The device includes a removable plug that can be replaced with a magnetic attachment. This allows the detector to be mounted on metal surfaces, such as a refrigerator, for portable use or when an outlet is not desired.
• Lanyard колдонуу: A lanyard is included for easy portability, allowing the device to be hung or carried.

Image: The detector highlighting its plug-in design and the 2000mAh high battery capacity for long-lasting endurance.

3. Иштөө нускамалары

3.1 Күйгүзүү/өчүрүү

Press and hold the power button (usually the central button) to turn the device on or off. The HD screen will illuminate upon activation.

3.2 Дисплейди окуу

The 2.1-inch HD screen provides real-time environmental data:

• CO PPM: Displays carbon monoxide levels in parts per million.
• Түтүн: An indicating bar or icon shows smoke detection status.
• Газ: An icon indicates gas detection status.
• Температура: Shows the ambient temperature in Fahrenheit or Celsius (user selectable).
• Нымдуулук: Displays the relative humidity percentage.
• Батарея көрсөткүчү: Учурдагы батареянын деңгээлин көрсөтөт.
• Ойготкучтун абалы: Icons indicate if an alarm is active for CO, smoke, or gas.

Image: Close-up of the HD screen, emphasizing its wide perspective and 240x296 resolving power for clear data display.

3.3 Орнотууларды тууралоо

• Экран жарыктыгы: Use the dedicated button (often labeled with a lightbulb icon) to cycle through brightness levels or turn the screen off.
• Ойготкуч Үн: Use the dedicated button (often labeled with a speaker icon) to turn the audible alarm on or off.
• Өзүн-өзү сыноо: A quick press of the power button may initiate a self-test function, triggering the alarm briefly to confirm functionality.

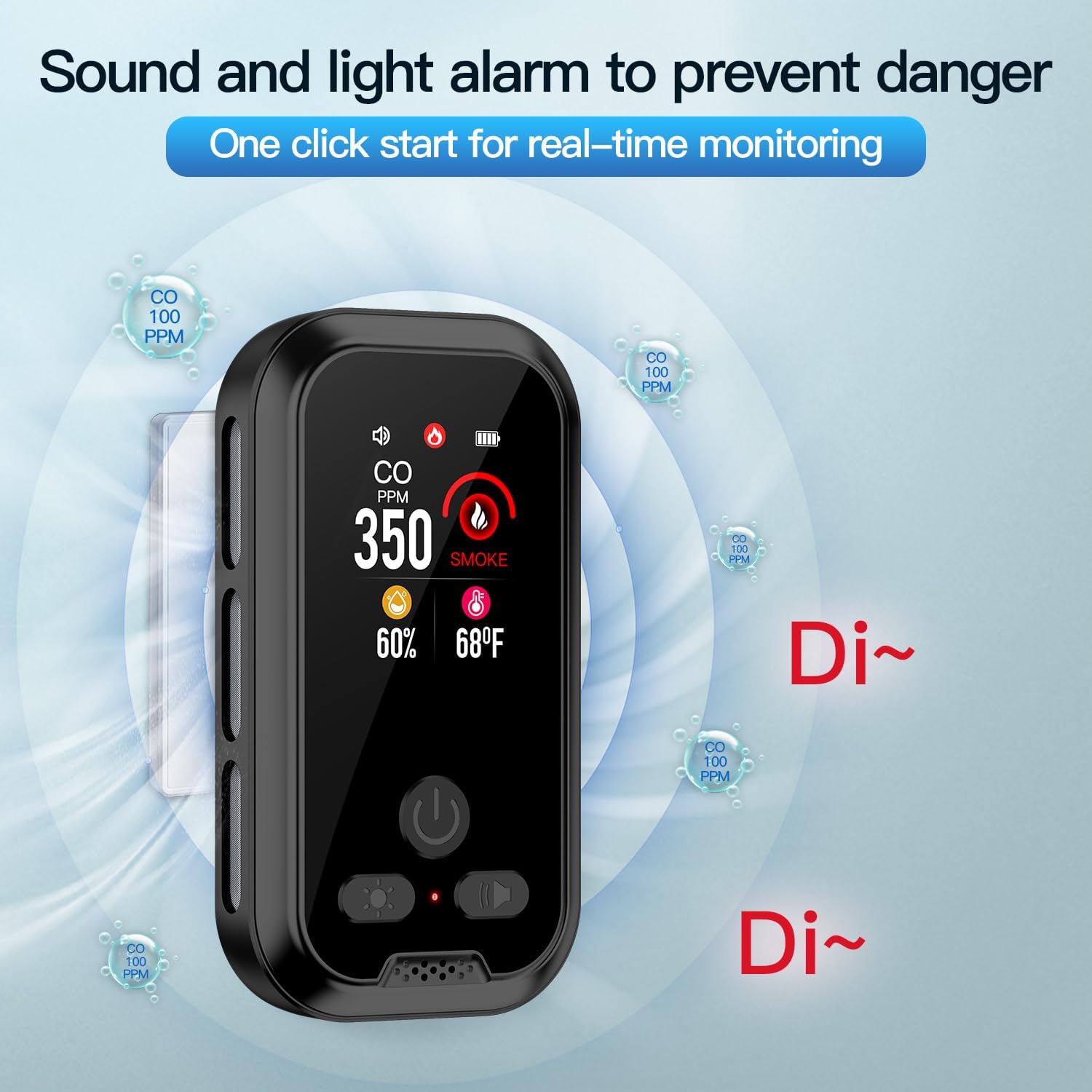

Image: The detector displaying an elevated CO level (350 PPM) and smoke, indicating an active sound and light alarm to prevent danger.

4. Техникалык тейлөө

4.1 Тазалоо

Regularly wipe the exterior of the detector with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners. Ensure the metal mesh air ducts are free from dust and debris to maintain accurate detection.

Image: Illustration of the detector's metal mesh air duct design, crucial for accurate gas and smoke detection.

4.2 Батареяга кам көрүү

The device contains a built-in rechargeable lithium-ion battery. For optimal performance, ensure the battery is charged regularly, especially if using the device in portable mode without continuous AC power. The battery indicator on the HD screen will show the current charge level.

5. Кыйынчылыктарды

• Түзмөк күйбөй жатат: Ensure the device is fully charged or plugged into a working AC outlet.
• Туура эмес окуулар: Check that the air ducts are clear of obstructions. Ensure the device is placed in an appropriate location, away from direct drafts or extreme temperatures.
• Сигнализациянын бузулушу: Perform a self-test to verify the alarm functionality. If the issue persists, contact customer support.
• Жалган ойготкучтар: Ensure the device is not exposed to sources of smoke, gas, or high humidity that could trigger a false alarm.

Көбүрөөк жардам алуу үчүн, Колдоо бөлүмүндөгү байланыш маалыматын караңыз.

6. Техникалык шарттар

7. Кепилдик маалыматы

This HAKINAKU product comes with a 5-Year Free Exchange warranty for any quality issues. Please retain your proof of purchase for warranty claims.

8. Кардарларды колдоо кызматы

For technical support, troubleshooting assistance, or warranty inquiries, please contact HAKINAKU customer service. Refer to the contact details provided in your product packaging or visit the official HAKINAKU store on Amazon.
