SYNCO XTalk XPro2 2.4GHz Wireless Intercom Headset System

1. Киришүү

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your SYNCO XTalk XPro2 2.4GHz Wireless Intercom Headset System. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.

Figure 1: SYNCO XTalk XPro2 Headset System and Accessories

2. Продукт бүтүп калдыview

The SYNCO XTalk XPro2 is a full-duplex wireless intercom headset system designed for professional team communication. Key features include:

• Жакшыртылган сигнал кабыл алуу: External antennas provide a reliable 500m (1640ft) connection range.
• Өркүндөтүлгөн ызы-чууну азайтуу: Features 2.0 AEC algorithm (150Hz to 7KHz) for clear voice recognition in noisy environments.
• Flexible Team Communication: Supports up to 13-unit connections with group expansion technology.
• Көбөйтүү режими: Enhances signal strength for stable communication through obstacles.
• Доминант режими: One-button remote muting function for the Master headset.
• Батареянын узак иштөө мөөнөтү: Over 24 hours of use with rechargeable and replaceable batteries.
• Реалдуу убакыттагы мониторинг: 3.5mm monitoring jack for simultaneous communication and device audio monitoring.

Figure 2: Enhanced Signal Reception

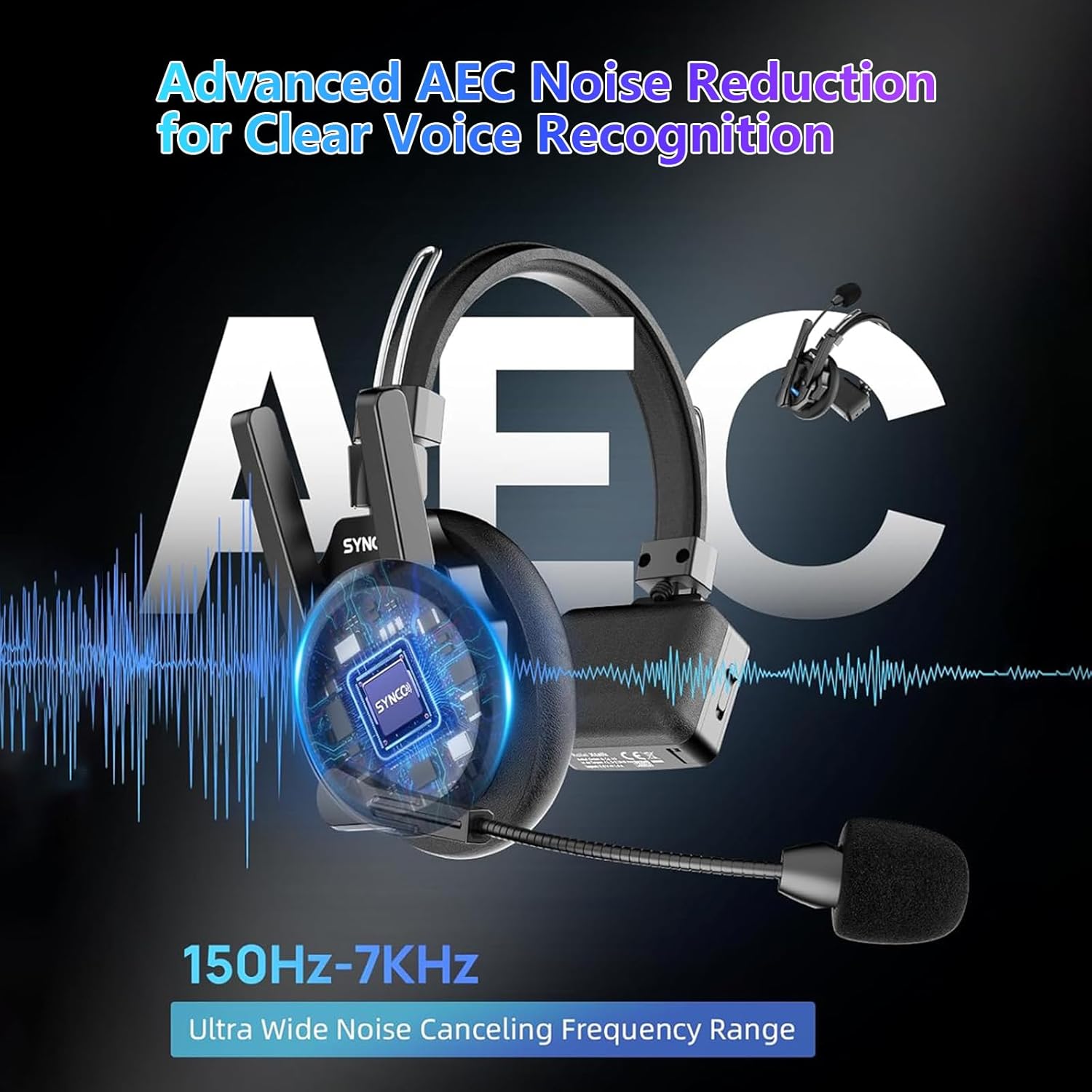

Figure 3: Advanced AEC Noise Reduction

3. Орнотуу

3.1 Manual Pairing

Follow these steps to manually pair your headsets:

1. Бардык гарнитураны күйгүзүңүз.
2. Set one headset as the Master and the others as Level 1.
3. Within 1 minute, long press all 'A' buttons. Release after the first beep. You will hear "Pairing Succeed".
4. Restart all headsets.

3.2 Using SYNCO EasyGo Software

For quick firmware upgrades, voice pack installations, and headset pairing, use the SYNCO EasyGo software. Refer to the user guide for software download and usage instructions from the SYNCO official site.

Figure 4: SYNCO EasyGo Software Interface

4. Иштөө нускамалары

4.1 Көлөмдүн жөндөөлөрү

Short press the volume '+' or '-' buttons on the headset to adjust the listening volume.

4.2 Mute/Unmute Microphone

To mute or unmute the microphone, rotate the boom arm up or down. Rotating it up mutes the microphone, and rotating it down unmutes it.

4.3 ызы-чууну жокко чыгаруу

Short press button 'B' to toggle noise cancellation on or off. You will hear a beep to confirm the change.

4.4 Dominant Mode

Press and hold button 'B' to enter Dominant Mode. This mode allows the Master headset to mute all remote headsets instantly. Release the button to exit Dominant Mode.

4.5 Boost Mode

Long press the volume '-' button to hear a "beep", then release to switch between Mode 1, Mode 2, and Mode 3. Mode 2 is the default. Boost Mode enhances signal strength for stable communication, especially through obstacles.

4.6 Реалдуу убакыттагы мониторинг

Connect the headset to a device (e.g., camera, recorder) via the 3.5mm TRS port for real-time audio monitoring. This port is for monitoring only and does not output audio.

Figure 5: Real-Time Monitoring Setup

5. Көрсөткүчтөр

The LED indicator on the microphone boom arm provides status information:

• Жашыл жарык туруктуу: Жупташтыруу ийгиликтүү
• Green Light Flashing Slow: Туташкан эмес
• Green/Yellow Lights Alternating: Ызы-чууну жокко чыгаруу өчүк
• Red Light Flashing Slow: Батарея аз
• Кызыл жарык туруктуу: Заряддоо

6. Техникалык тейлөө

To ensure the longevity and optimal performance of your SYNCO XTalk XPro2 headset system, follow these maintenance guidelines:

• Тазалоо: Гарнитураны тазалоо үчүн жумшак, кургак чүпүрөктү колдонуңуз. Катуу химиялык заттарды же абразивдүү материалдарды колдонуудан алыс болуңуз.
• Сактагыч: Гарнитураны күн нурунан жана экстремалдык температурадан алыс салкын, кургак жерде сактаңыз.
• Батареяга кам көрүү: The system uses rechargeable and replaceable Lithium-Ion batteries. Ensure batteries are fully charged before extended use and stored properly if not used for long periods.
• Микрофонду коргоо: Keep the microphone foam cover clean and replace if damaged to maintain audio quality.

Figure 6: 24-Hour Battery Life

7. Кыйынчылыктарды

If you encounter issues with your SYNCO XTalk XPro2 system, refer to the following common problems and solutions:

• No Audio/Intermittent Connection:
  • Ensure all headsets are powered on and fully charged.
  • Verify proper pairing between Master and Level 1 headsets (refer to Section 3.1).
  • Check the operating range; move closer to the Master headset.
  • Restart all headsets.
• Poor Audio Quality/Excessive Noise:
  • Ensure Noise Cancellation is activated (refer to Section 4.3).
  • Check microphone position and ensure it is not obstructed.
  • Verify that the microphone boom arm is fully down for unmuted operation.
• Гарнитура кубатталбай жатат:
  • Кубаттоочу кабелдин гарнитурага да, кубат булагына да бекем туташтырылганын текшериңиз.
  • Кубат булагынын иштешин текшериңиз.
  • Verify the charging indicator (Red Light Steady) as per Section 5.

8. Техникалык шарттар

9. Кепилдик жана колдоо

For warranty information, technical support, or service inquiries, please refer to the official SYNCO webсайтка же түздөн-түз кардарларды тейлөөгө кайрылыңыз. Сатып алуу квитанциясын кепилдик дооматтары үчүн сатып алуунун далили катары сактаңыз.
