QCOQ Air Tracker Tags (Model TX03) User Manual

1. Киришүү

The QCOQ Air Tracker Tags are Bluetooth item finders designed to help you locate your valuable belongings using the Apple Find My network. These tags are compatible exclusively with iOS devices and offer features such as nearby finding, far-away tracking, left-behind alerts, and a lost mode. Each tag is IP68 waterproof and powered by a replaceable CR2032 battery, providing over a year of battery life.

2. Эмнелер камтылган

Your QCOQ Air Tracker Tags package contains the following items:

• 3 x QCOQ Air Tracker Tags
• 3 x Protective Silicone Cases
• 3 x ачкыч шакекчелер
• 1 x User Manual

Image: Package contents including three tracker tags, three key rings, three protective cases, and a user manual.

3. Продукт бүтүп калдыview

The QCOQ Air Tracker Tag is a compact and versatile device designed for item tracking. Key features include:

• Apple Find My Compatibility: Seamlessly integrates with the Apple Find My network for precise location tracking.
• Loud Sound Alert: Emits a sound of up to 100 dB to help locate items nearby.
• Алмаштылуучу батарея: Powered by a standard CR2032 button battery, offering over 1 year of usage.
• IP68 Суу өткөрбөйт: Designed to withstand splashes and temporary immersion, ensuring stable performance in various environments.
• Купуялык жана коопсуздук: Location data is anonymous and encrypted, ensuring user privacy.
• Жеңил дизайн: Weighs approximately 7.2 grams, making it easy to attach to various items without added bulk.

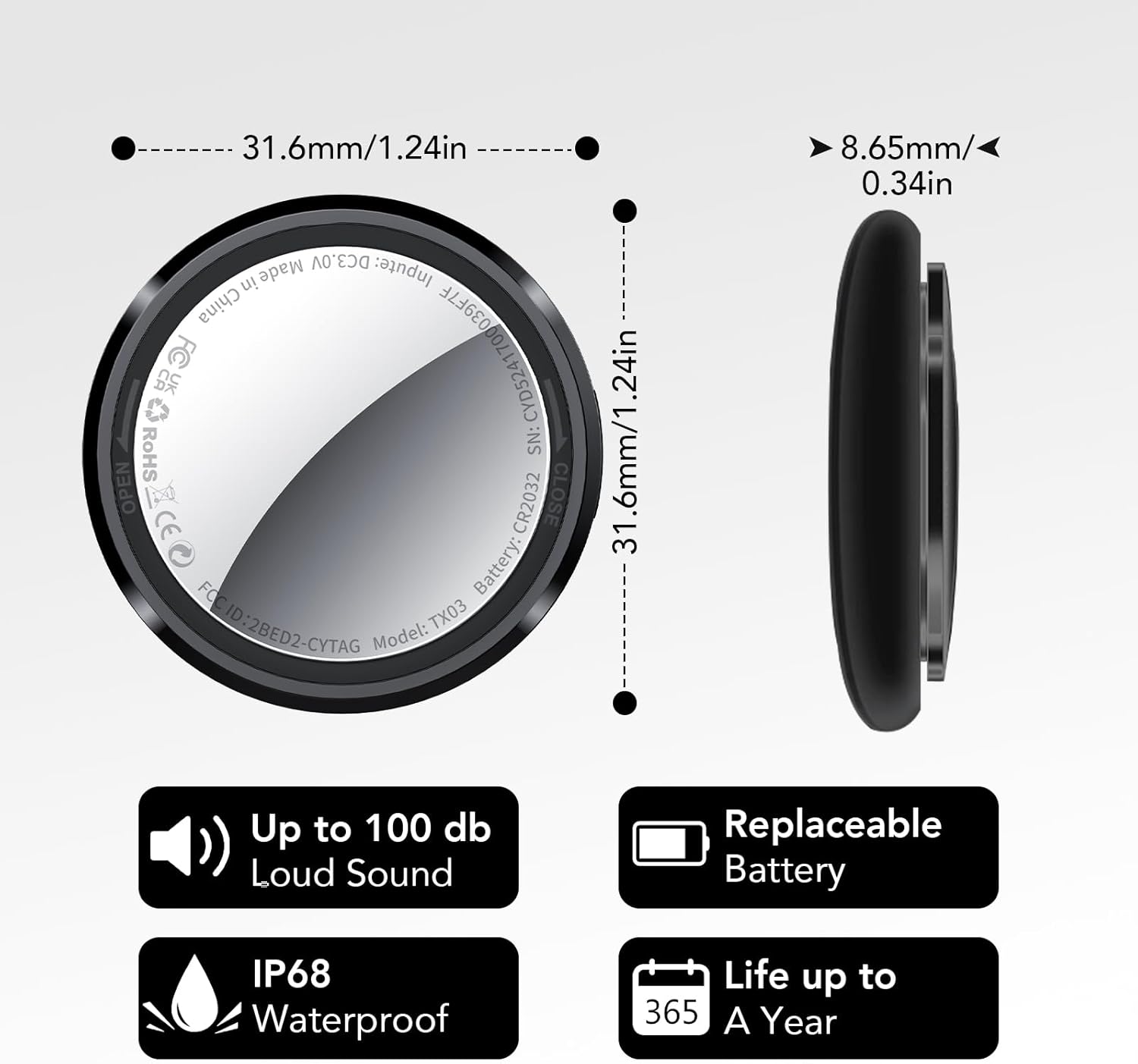

Image: Product specifications highlighting dimensions, 100dB sound, IP68 waterproof, and replaceable battery with 1-year life.

Image: Lightweight design of the tracker tag, weighing 7.2 grams.

4. Орнотуу нускамалары

Follow these steps to set up your QCOQ Air Tracker Tag iOS түзмөгүңүз менен:

1. Аппаратыңызды даярдаңыз: Ensure Bluetooth is enabled on your iOS device (iPhone, iPad, or iPod touch).
2. Менин колдонмомду табуу: Launch the Apple "Find My" application on your iOS device.
3. Жаңы нерсе кошуу: In the "Find My" app, navigate to the "Items" tab and tap "Add New Item" or the '+' icon. Then select "Other Supported Item".
4. Трекерди иштетүү: Press and hold the button on your QCOQ Air Tracker Tag for approximately 10 seconds until you hear a beep. This indicates the tracker is in pairing mode.
5. Туташуу: Your iOS device should detect the tracker, appearing as "ANNN Tag" or similar. Select it to connect. Follow any on-screen prompts to complete the pairing process.

Image: Visual guide for connecting the tracker tag Find My колдонмосуна.

5. Иштөө нускамалары

5.1 Finding Items Nearby

When your item is within Bluetooth range, you can use the Find My app to make the tracker emit a sound. Alternatively, you can ask Siri to locate your item.

• ачыңыз Find My колдонмо.
• барыңыз Items өтмөк.
• Select your QCOQ Air Tracker Tag.
• таптаңыз Үн ойнотуу to make the tracker ring.

Image: Using the Find My app to play a sound on the tracker tag.

Image: The tracker tag can emit a loud 100dB sound for nearby finding.

5.2 Far Away Tracking

Leverage the global Apple Find My network to locate your items even when they are out of your personal Bluetooth range. The Find My app will display the real-time location on a map and provide navigation to guide you to your item.

Image: Tracking an item over long distances using the Find My app map.

Image: The Find My app provides real-time location and navigation for far-away items.

5.3 Left-Behind Alert

Receive notifications on your iOS device if you leave an item with a QCOQ Air Tracker Tag behind. This feature helps prevent accidental loss.

• Enable "Notify When Left Behind" in the Find My app settings for your tracker.

Image: A smartphone displaying a 'left behind' notification for a tracker tag.

Сүрөт: Мисample of a 'Left-Behind Alarm' notification on an iPhone.

5.4 Жоголгон режим

If your QCOQ Air Tracker Tag is lost, activate "Lost Mode" in the Find My app. When another user within the Find My network comes into range of your lost device, you will automatically receive a location notification. You can also set up a message and contact information for anyone who finds your tag.

Image: Activating Lost Mode in the Find My app to locate a lost tracker tag.

Сүрөт: Мисample of contact information displayed when a tracker tag is found in Lost Mode.

5.5 Купуялык жана коопсуздук

The QCOQ Air Tracker Tags are designed with privacy in mind. Location data is anonymous, encrypted at every step, and neither location data nor history is stored on the tracker itself.

Image: Privacy protection features of the QCOQ Air Tracker Tag.

6. Техникалык тейлөө

6.1 Батареяны алмаштыруу

The QCOQ Air Tracker Tag uses a replaceable CR2032 button battery. When the battery level is low, the Find My app will notify you. To replace the battery:

1. Carefully open the tracker tag casing. Refer to the product's physical design for the opening mechanism (e.g., twisting the back cover).
2. Эски CR2032 батареясын алып салыңыз.
3. Жаңы CR2032 батареясын оң (+) тарабын өйдө каратып салыңыз.
4. в жабууasing securely, ensuring a tight seal to maintain its waterproof rating.

Эскертүү: If you experience difficulty opening the casing, apply gentle, firm pressure and twist. Avoid using excessive force or sharp objects that could damage the device.

6.2 Тазалоо жана кам көрүү

The QCOQ Air Tracker Tag has an IP68 waterproof rating, making it resistant to dust and water. To clean, wipe the device with a soft, damp кездеме. Катуу химиялык заттарды же абразивдүү материалдарды колдонуудан алыс болуңуз.

Image: The IP68 waterproof rating ensures durability against water exposure.

7. Кыйынчылыктарды

If you encounter issues with your QCOQ Air Tracker Tag, төмөнкүлөрдү карап көрөлү:

• Трекер туташпай жатат:
  • iOS түзмөгүңүздө Bluetooth иштетилгенин текшериңиз.
  • Make sure the tracker's battery is not depleted. Replace if necessary.
  • Try restarting your iOS device and the tracker (by removing and reinserting the battery).
  • Attempt to re-pair the tracker by following the setup instructions.
• Так эмес жайгашкан жер:
  • Location accuracy depends on the density of Apple devices in the Find My network. In areas with fewer devices, location updates may be less frequent or precise.
  • Картаны жаңыртуу үчүн iOS түзмөгүңүздө туруктуу интернет байланышы бар экенин текшериңиз.
• Sound Alert is Low:
  • Check for any obstructions covering the tracker's speaker.
  • The sound level may vary based on environmental noise.
• Батарея бат эле түгөнөт:
  • Жаңы, жогорку сапаттагы CR2032 батарейкасын колдонуп жатканыңызды текшериңиз.
  • Экстремалдуу температуралар батареянын иштешине таасир этиши мүмкүн.
  • If the issue persists with a new battery, contact customer support.

8. Техникалык шарттар

9. Кепилдик жана колдоо

QCOQ provides friendly customer service for its products. For any questions, technical assistance, or warranty inquiries, please contact QCOQ customer support through the retailer where you purchased the product or visit the official QCOQ webбайланыш маалыматы үчүн сайт.

Image: QCOQ customer service commitment, including 24-hour online support.
