1. Маанилүү коопсуздук нускамалары
Please read all instructions carefully before using the Genesis Designs GM1-B massage chair. Retain this manual for future reference.
- Электр коопсуздугу: Ensure the power cord is securely connected to a grounded outlet. Do not operate the chair with a damaged cord or plug. Keep the power cord away from heated surfaces.
- Медициналык шарттар: Consult a physician before use if you have medical conditions, are pregnant, have a pacemaker, or are undergoing medical treatment. Discontinue use if you experience discomfort.
- Балдар жана үй жаныбарлары: Keep children and pets away from the massage chair, especially during operation. This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities unless supervised.
- Туура колдонуу: Use the chair only for its intended purpose as described in this manual. Do not stand on or place heavy objects on the chair. Avoid prolonged use in one area to prevent over-stimulation.
- Курчап турган чөйрө: г-де отургучту колдонбоңузamp or wet environments. Keep it away from direct sunlight and heat sources.
2. Продукт бүтүп калдыview
The Genesis Designs GM1-B is a smart full-body massage chair designed for comprehensive relaxation and therapeutic massage. It features advanced 2D SL-Track rollers, zero gravity recline, voice activation, Bluetooth connectivity, and targeted heating.
Негизги өзгөчөлүктөрү:
- 2D SL-Track роликтери: Provides massage from the neck down to the glutes, following the natural curve of your spine.
- Нөлдүк тартылуу күчү функциясы: Reclines the chair to distribute body weight evenly, reducing pressure on the spine and enhancing relaxation.
- Үн жандыруу: Control various functions using simple voice commands.
- Bluetooth динамиктери: Connect your personal device to enjoy audio during your massage.
- Жылытуучу бел функциясы: Gentle heat therapy for the lower back to soothe muscles.
- Аба жаздыкчасы менен массаж: Compression massage for shoulders, arms, waist, legs, and feet.
- Бут роликтери: Targeted massage for the soles of your feet.
- Бир нече программалар: 12 auto pre-programmed modes and 6 manual massage techniques.
- Tablet Remote Control & Quick Start Buttons: Intuitive control options for ease of use.
- USB кубаттоо порту: Convenient charging for your mobile devices.
Компоненттери:
- Massage Chair Main Unit
- Handheld Tablet Remote Control
- Электр кабели

Сүрөт 2.1: Алдыңкы view of the Genesis Designs GM1-B Smart Full Body Massage Chair.

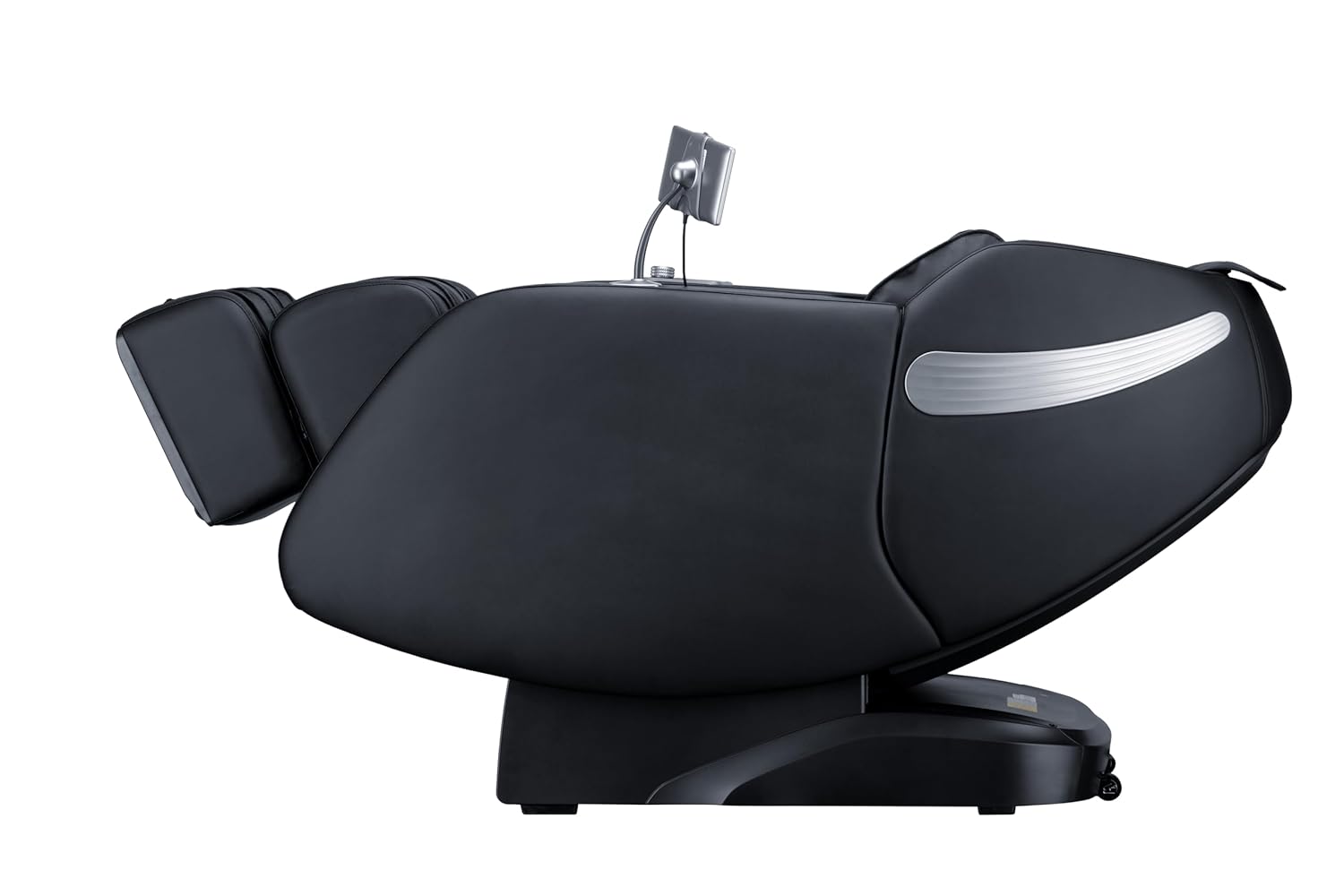

2.2-сүрөт: Каптал view of the Genesis Designs GM1-B Smart Full Body Massage Chair.

Figure 2.3: Key features of the GM1-B Massage Chair.
3. Орнотуу
The Genesis Designs GM1-B massage chair requires minimal assembly. Follow these steps to prepare your chair for use.
3.1 Пакеттен чыгаруу жана жайгаштыруу
- Отургучтан бардык таңгактоочу материалдарды этияттык менен алып салыңыз.
- Place the massage chair on a flat, stable surface. Ensure there is sufficient space around the chair for reclining, especially for the zero gravity function.
- Avoid placing the chair in direct sunlight or near heat sources.

3.1-сүрөт: Мисample of chair placement in a room.
3.2 Кубат туташтыруу
- Кубат киргизүү портун отургучтун арткы же астыңкы жагына жайгаштырыңыз.
- Connect the power cord securely to the chair and then plug it into a standard grounded electrical outlet.
- Кубат өчүргүчүн (эгер бар болсо) сайардан мурун "OFF" абалында экенин текшериңиз.
3.3 Tablet Remote Control Setup
- Connect the handheld tablet remote control to its designated port or stand on the chair.
- Ensure the tablet is charged or connected for power if it is not battery-operated.

Figure 3.2: Handheld tablet remote control.
4. Иштөө нускамалары
Familiarize yourself with the control methods to fully utilize your massage chair's features.
4.1 Күйгүзүү/өчүрүү
- Press the power button on the quick start panel (right armrest) or the tablet remote to turn the chair on.
- Press again to turn off the chair. The chair will return to its upright position.
4.2 Using the Tablet Remote Control
The tablet provides detailed control over all massage functions.
- Автоматтык программалар: Select from 12 pre-programmed massage modes tailored for different needs (e.g., relaxation, recovery, sleep).
- Кол менен жасалган ыкмалар: Choose from 6 massage techniques (e.g., Kneading, Tapping, Shiatsu) and adjust intensity, speed, and roller width.
- Максаттуу массаж: Select specific body areas for massage (e.g., neck, back, lumbar, feet).
- Коопсуздук жаздыкчасын башкаруу: Adjust the intensity of airbag compression for shoulders, arms, waist, legs, and feet.
- Жылуулук функциясы: Activate or deactivate the lumbar heating.
- Нөл тартылуу күчү: Adjust the recline angle to one of the zero gravity positions.
4.3 Quick Start Buttons
Located on the right armrest, these buttons offer quick access to essential functions:
- Күйгүзүү/өчүрүү
- Zero Gravity Recline
- Auto Program Start/Stop
- Legrest Up/Down
4.4 Voice Activation
To use voice control, ensure the feature is enabled via the tablet. Speak clearly and directly towards the chair's microphone.
- Activation Phrase: Say "Hello, Genesis" or a similar designated phrase to activate voice control.
- Буйруктар: Follow with commands such as "Start auto massage," "Recline to zero gravity," "Increase intensity," "Turn on heat," or "Stop massage."
4.5 Bluetooth байланышы
- Activate Bluetooth on your personal device (smartphone, tablet).
- On your device, search for available Bluetooth devices and select "Genesis Massage Chair" (or similar name).
- Once paired, audio from your device will play through the chair's built-in speakers.
4.6 Нөлдүк тартылуу күчү функциясы
The zero gravity feature elevates your legs above your heart, promoting circulation and deeper relaxation.
- Press the Zero Gravity button on the tablet or quick start panel.
- The chair will recline to a preset zero gravity position. You may have options to adjust to different levels of recline.

Figure 4.1: Zero Gravity recline progression.
4.7 Foot Massage
The footrest features rollers and airbags for comprehensive foot and calf massage.
- The legrest can extend up to 6.25 inches to accommodate different user heights. Adjust manually or via the tablet.
- Foot rollers will activate during foot massage programs or can be manually controlled.

Figure 4.2: Footrest with foot rollers.
5. Техникалык тейлөө
Proper care ensures the longevity and optimal performance of your massage chair.
5.1 Тазалоо
- Сырткы: Wipe clean the leather and plastic surfaces with a soft, damp кездеме. Абразивдүү тазалагычтарды, эриткичтерди же катуу химиялык заттарды колдонбоңуз.
- Ички иштер: Жылыктуу жерлердеги чаңды же таштандыларды мезгил-мезгили менен чаң соргуч менен сүртүп туруңуз.
- Тазалоодон мурун отургучтун электр кубатынан ажыратылганын текшериңиз.
5.2 Сактоо
- Эгерде отургучту көпкө колдонбосоңуз, аны розеткадан сууруп, салкын, кургак, күн нуру түз тийбеген жерде сактаңыз.
- Avoid placing heavy objects on the chair during storage.
6. Кыйынчылыктарды
If you encounter issues with your massage chair, refer to the following common problems and solutions.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Отургуч күйбөй жатат. | Power cord not connected; Power switch off; Outlet malfunction. | Ensure power cord is securely plugged in. Check if the main power switch is on. Test the outlet with another device. |
| Массаж роликтери кыймылдабайт. | Program not selected; Safety sensor activated. | Select an auto program or manual massage technique. Ensure no obstructions are blocking the rollers. |
| Үн менен башкаруу жооп бербей жатат. | Voice activation disabled; Microphone obstructed; Incorrect commands. | Check tablet settings to ensure voice activation is enabled. Speak clearly and ensure no objects are covering the microphone. Refer to the manual for correct commands. |
| Bluetooth жупташкан жок. | Түзмөктө Bluetooth иштетилген эмес; Отургуч жупташтыруу режиминде эмес; Тоскоолдук жаралууда. | Ensure Bluetooth is active on your device. Restart both the chair and your device. Move closer to the chair. |
| Отургуч адаттан тыш үндөрдү чыгарат. | Normal operational sounds; Loose component; Obstruction. | Some mechanical sounds are normal. Check for any loose parts or foreign objects. If the noise is persistent or loud, discontinue use and contact support. |
7. Техникалык шарттар
Detailed technical specifications for the Genesis Designs GM1-B massage chair.
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | GM1-B |
| Продукциянын өлчөмдөрү (тик) | 57.67 x 29.72 x 44.33 дюйм (L x W x H) |
| Product Dimensions (Zero Gravity) | 66.33 x 29.72 x 38.77 дюйм (L x W x H) |
| Элемент Салмагы | 165 фунт |
| Материалдын түрү | Leather (Upholstery), Foam (Fill), Metal (Frame) |
| Массаж жолу | 2D SL-Track |
| Массаж техникасы | 6 Manual Techniques, 12 Auto Programs |
| Бут тирөөчтү узартуу | 6.25 дюймга чейин |
| Электр камсыздоо | Standard AC (Voltage not specified, refer to product label) |
| Сертификаттар | ETL Certified |
| Керектүү Ассамблея | No (Minimal setup required) |

Figure 7.1: Chair dimensions in upright and zero gravity positions.
8. Кепилдик жана колдоо
For warranty information, product support, or service inquiries, please refer to the warranty card included with your purchase or contact Genesis Designs customer service directly. Contact details are typically available on the manufacturer's official webсайт же сатуучу аркылуу.
Please have your model number (GM1-B) and purchase date available when contacting support.
