1. Продукт бүтүп калдыview
The ENGWE P20 is an ultra-light and foldable electric bicycle designed for urban commuting. Weighing only 18.5 kg with a maximum load capacity of 120 kg, it offers exceptional portability and convenience. Equipped with a powerful 250W rear hub motor and a removable 36V 9.6Ah battery, the P20 provides a smooth and efficient ride for daily commutes and travel needs.
Figure 1: The ENGWE P20 Folding Electric Bicycle, showcasing анын саркеч дизайны жана компакт форма фактору.
2. Баштапкы орнотуу
2.1 Велосипедди жайып салуу
The ENGWE P20 features a convenient folding design, allowing it to be fully folded in approximately 10 seconds. Follow these steps to unfold your bicycle:
- Бүктөлүүчү cl ачыңызamp on the main frame.
- Carefully unfold the frame until it locks into place.
- Secure the magnetic support to ensure stability.
- Adjust the handlebars and seat post to your preferred riding position.

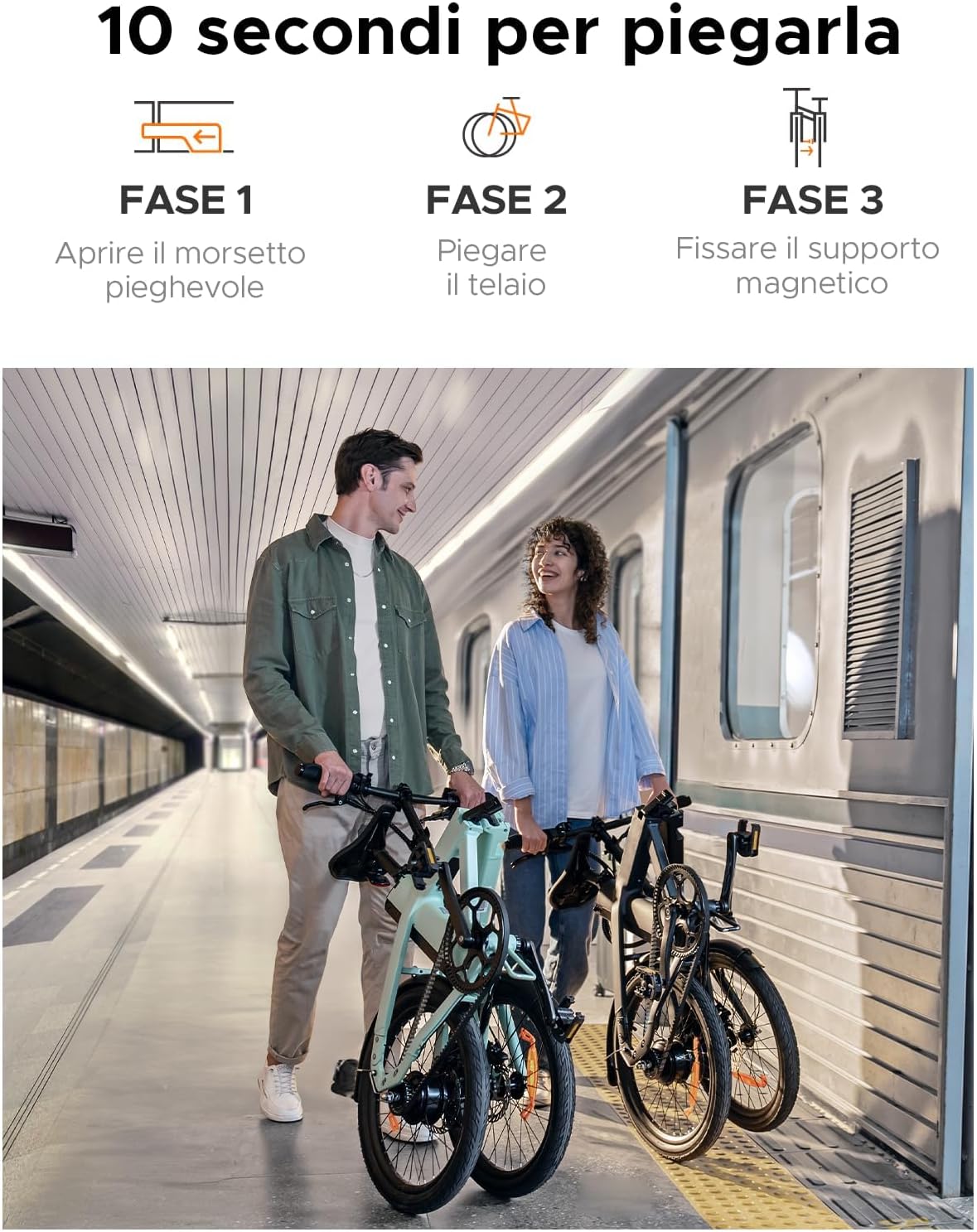

Figure 2: The three-step process for folding the ENGWE P20, highlighting its portability for transport.
2.2 Pre-Assembly Check
Your ENGWE P20 electric bike arrives 98% pre-assembled, minimizing the need for complex setup. Before your first ride, please perform the following checks:
- Ensure all quick-release levers and clampлар бекем бекитилет.
- Дөңгөлөктүн басымын текшериңиз жана керек болсо үйлөтүңүз.
- Verify that the brakes are functioning correctly.
- Confirm that the battery is properly seated and charged.
3. Иштетүү үчүн колдонмо
3.1 Күйгүзүү жана өчүрүү
To power on the bicycle, press and hold the power button on the OLED display. To power off, press and hold the same button until the display turns off.
3.2 Айдоо режимдери
The ENGWE P20 offers three assisted driving modes, providing a versatile riding experience. The integrated torque sensor ensures a more responsive and comfortable assistance, adapting perfectly to every pedal stroke for a smoother ride.
- Электр режими: Provides full motor power without pedaling, ideal for effortless cruising up to 30 km.
- Педаль-жардам режими: The motor provides assistance as you pedal, extending your range up to 100 km.
- Кол режими: Мотордун жардамысыз кадимки велосипед сыяктуу жүрүңүз.
Figure 3: The 250W silent motor and 42Nm torque sensor, ensuring a smooth and powerful ride.
3.3 Дисплей функциялары
The OLED display provides clear, real-time information about your ride, including speed, distance, battery level, and selected assist mode. Its energy-saving design ensures longer battery life.
Figure 4: Key operational components including the clear OLED display, integrated front light, and hydraulic disc brakes.
3.4 Батареянын колдонулушу
The ENGWE P20 is equipped with a removable 36V 9.6Ah battery, offering a range of up to 30 km in electric mode and up to 100 km in pedal-assist mode. The battery is easy to remove for convenient charging.
Figure 5: The removable 36V 9.6Ah battery, providing extended range for daily commutes.
4. Техникалык тейлөө жана кам көрүү
4.1 Жалпы тейлөө
Regular maintenance ensures the longevity and optimal performance of your ENGWE P20. Keep the bicycle clean and store it in a dry place when not in use.
4.2 Carbon Belt Drive
The ENGWE P20 features a high-strength carbon belt drive, which offers a quieter ride and significantly reduced maintenance compared to traditional chains. It is designed for up to 33,000 km without maintenance.

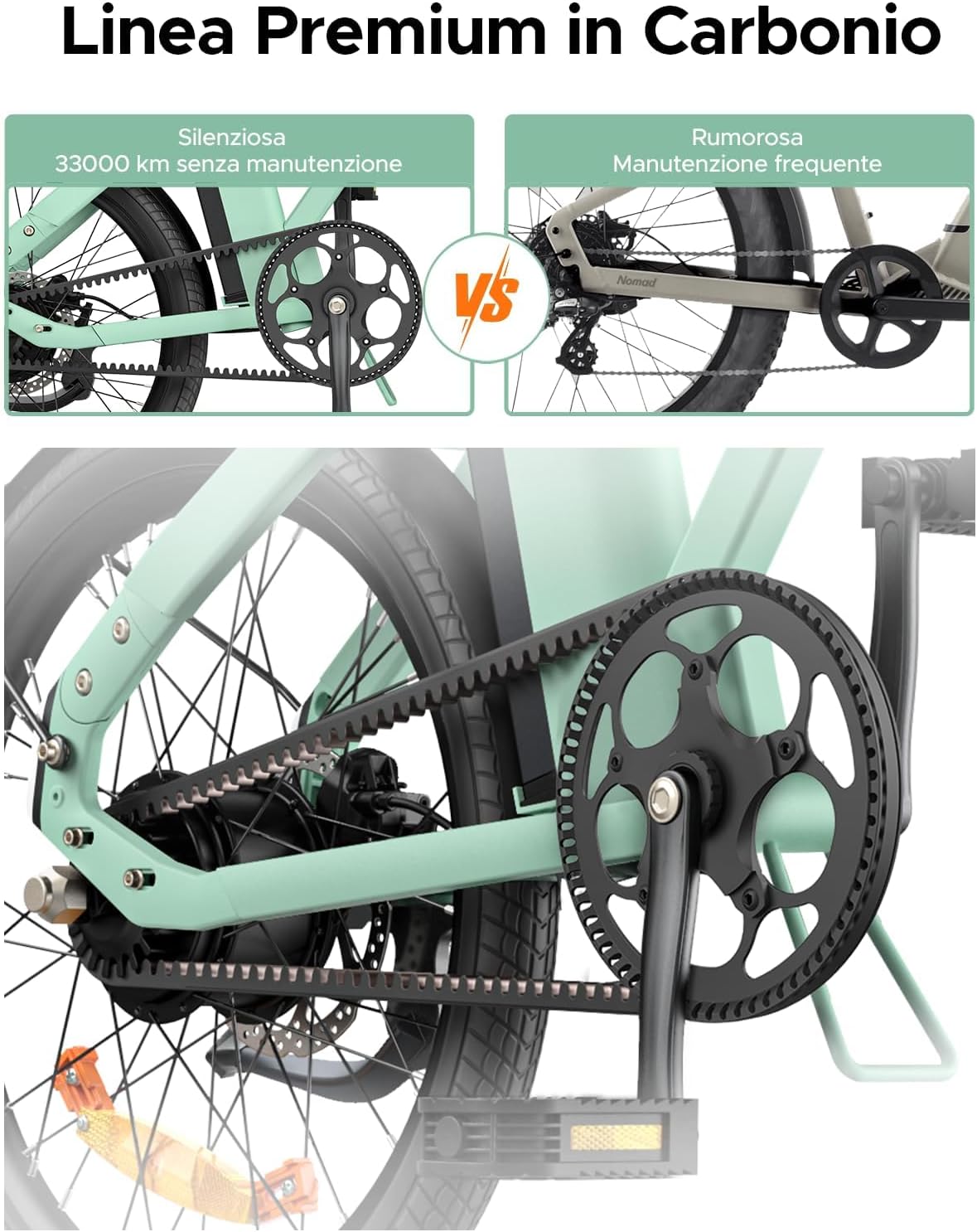

Figure 6: The carbon belt drive system, offering silent operation and extended maintenance-free use.
4.3 Tires and Brakes
The e-bike is equipped with 20*1.95-inch puncture-proof tires, designed to prevent punctures and cuts, enhancing durability. The oil pressure disc brakes provide superior stopping power and responsiveness for increased safety.
5. Кыйынчылыктарды
If you encounter any issues with your ENGWE P20, please refer to the following common troubleshooting tips:
- Кубат жок: Батарея толук заряддалганын жана туура орнотулганын текшериңиз. Бардык байланыштарды текшериңиз.
- Мотор жардам бербейт: Verify that pedal-assist mode is selected and the torque sensor is clean.
- Тормоз маселелери: Check brake fluid levels and ensure brake pads are not worn. Consult a professional if issues persist.
For more complex issues or if troubleshooting steps do not resolve the problem, please contact ENGWE customer support.
6. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Модел | P20 |
| Бренд | ENGWE |
| Велосипед түрү | Electric Bike, Folding |
| Frame Material | Алюминий |
| Мотор | 250W Rear Hub Motor, 42 N.m Torque |
| Максималдуу ылдамдык | 25 км/саат |
| Батарея | 36V 9.6Ah Removable |
| Electric Mode Range | 30 кмге чейин |
| Pedal-Assist Range | 100 кмге чейин |
| Салмагы | 18.5 кг |
| Максималдуу жүктөө сыйымдуулугу | 120 кг |
| Тормоз түрү | Oil Pressure Disc Brake |
| Шиналар | 20*1.95-inch Puncture-Proof |
| Дисплей | OLED |
| Камтылган компоненттер | Removable Battery, Oil Brake, Torque Sensor, Front and Rear Lights, OLED Display |
7. Кепилдик жана Кардарларды колдоо
ENGWE provides comprehensive warranty coverage for your P20 electric bicycle:
- кадр: 1 жылдык кепилдик
- Battery, Charger, Controller: 6 айлык кепилдик
- Other Electrical Parts: 3 айлык кепилдик
For any questions regarding repairs, spare parts, assembly assistance, or other inquiries, please do not hesitate to contact ENGWE customer support. You can find contact information on the official ENGWE webсайт же сатып алуу платформасы аркылуу.
