1. Киришүү
The Cecotec Cecofry&Grill Smokin'Prime 6500 is a versatile kitchen appliance designed for healthy cooking. It combines the functions of an air fryer, grill, and plancha, with an added smoking feature. This appliance utilizes dual heating elements and a powerful 2200W system to ensure uniform and efficient cooking results. With a generous 6.5-liter capacity, it is suitable for preparing a variety of meals.
Image 1: The Cecotec Cecofry&Grill Smokin'Prime 6500 Air Fryer, showcasing анын саркеч кара дизайн жана санарип дисплей.
2. Коопсуздук нускамалары
- Колдонуудан мурун бардык нускамаларды окуп чыгыңыз.
- Негизги блокту сууга же башка суюктукка салбаңыз.
- Ensure the appliance is placed on a stable, heat-resistant surface, away from walls or other appliances to allow for proper ventilation.
- Эч кандай желдетүүчү тешиктерди жаап албаңыз.
- Иштеп жаткан учурда балдарды жана үй жаныбарларын шаймандан алыс кармаңыз.
- Шайманды колдонбогондо жана тазалоодон мурун ар дайым розеткадан сууруп туруңуз.
- Allow the appliance to cool completely before handling or cleaning any parts.
- Электр зымы же сайгычы бузулуп калса, шайманды иштетпеңиз.
- Өндүрүүчүлөр сунуштаган аксессуарларды гана колдонуңуз.
3. Продукциянын компоненттери
The Cecofry&Grill Smokin'Prime 6500 includes the following main components:
- Негизги блок: Houses the heating elements, control panel, and fan.
- Бышыруу себет: Removable basket for air frying, grilling, and plancha cooking.
- Гриль табагы: Insert for achieving grill marks on food.
- Plancha Plate: Flat plate for pizza and other items.
- Smoking Box: Small container for wood chips/pellets to add smoke flavor.

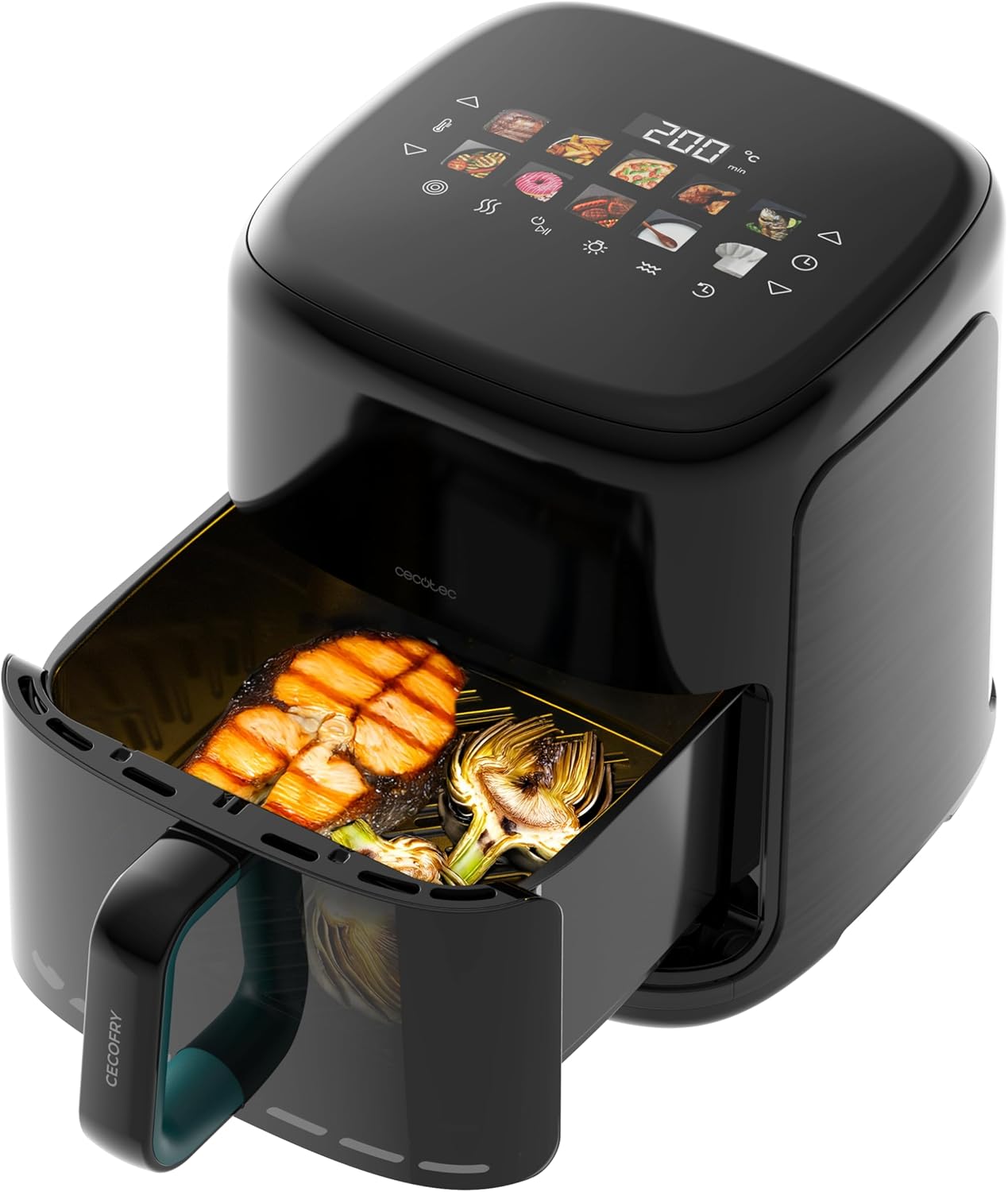

Image 2: The air fryer with its cooking basket partially removed, showing the interior space.
Сүрөт 3: деталдуу view of the smoking box, designed to hold wood chips or pellets for infusing food with smoky flavors.
4. Орнотуу
4.1 Таңгактан чыгаруу жана алгачкы тазалоо
- Шаймандан таңгактоочу материалдарды, чаптамаларды жана этикеткаларды алып салыңыз.
- Wash the cooking basket, grill plate, plancha plate, and smoking box in warm, soapy water. Rinse thoroughly and dry completely.
- Жарнама менен негизги блоктун ичин жана сыртын сүртүңүзamp кездеме.
4.2 Орнотуу
- Шайманды туруктуу, түз жана ысыкка чыдамдуу бетке коюңуз.
- Ensure there is at least 10 cm (4 inches) of free space around the back and sides of the appliance, and above it, for adequate air circulation.
4.3 Биринчи колдонуу (күйүп кетүү цикли)
- Before cooking food, perform a burn-off cycle to eliminate any manufacturing odors.
- Insert the empty cooking basket into the main unit.
- Plug in the appliance. Set the temperature to 200°C (390°F) and the timer to 10-15 minutes.
- A slight odor or smoke may be present during this initial use; this is normal.
5. Иштөө нускамалары
5.1 Негизги операция
- Күйгүзүү/өчүрүү: Санариптик башкаруу панелиндеги кубат баскычын басыңыз.
- Температураны жөндөө: Use the temperature control buttons (usually + and -) to set the desired cooking temperature. The range is typically between 80°C and 200°C.
- Убакытты тууралоо: Use the timer control buttons to set the cooking duration. The timer can usually be set from 1 to 60 minutes.
- Алдын ала ысытуу: While not always necessary due to rapid heating, some recipes may benefit from preheating. Simply run the appliance at the desired temperature for 3-5 minutes before adding food.
Image 4: The intuitive digital control panel with various preset functions and manual temperature/time adjustments.
5.2 Бышыруу режимдери
The Cecofry&Grill Smokin'Prime 6500 offers multiple cooking functions:
- Air Fry: Uses hot air circulation for crispy results with minimal oil. Ideal for fries, chicken wings, vegetables.
- Гриль: Utilize the Grillin' Style plate and dual heating elements for searing meats and achieving grill marks.
- Планча: Use the dedicated plate for cooking pizzas or other flat items, ensuring crispy bases.
- Smoker Function: Fill the smoking box with wood chips or pellets (not included) to infuse food with a smoky flavor. Ensure the smoking box is properly placed before starting.
Сүрөт 5: Ички view highlighting the dual heating elements, ensuring even heat distribution for consistent cooking.
Image 6: A user adding wood chips to the dedicated smoking box, demonstrating the preparation for the smoking function.
5.3 Бышыруу боюнча кеңештер
- For best results, ensure food is cut into uniform pieces.
- Lightly coat food with oil for extra crispiness, especially for air frying.
- Shake the basket halfway through cooking for even browning, or use the viewing window to monitor progress without opening.
- The viewing window allows you to check on your food without interrupting the cooking cycle.
Image 7: A user observing the cooking process through the transparent viewing window, a convenient feature for monitoring food.
5.4 Расмий продукт Video
Video 1: Demonstration of an air fryer with dual heating, showcasing its efficiency and cooking capabilities for various dishes.
6. Техникалык тейлөө жана тазалоо
- Тазалоодон мурун шайманды дайыма розеткадан сууруп, аны толугу менен муздаганга чейин күтүңүз.
- The cooking basket, grill plate, plancha plate, and smoking box are non-stick and can be washed with warm, soapy water. Avoid abrasive cleaning materials.
- Жарнама менен шаймандын сыртын сүртүңүзamp кездеме. Катуу химиялык заттарды же абразивдүү тазалагычтарды колдонбоңуз.
- Жарнама менен шаймандын ичин тазалаңызamp cloth after each use. For stubborn residue, use a non-abrasive sponge and warm soapy water.
- Шайманды кайра чогултуудан жана сактоодон мурда бардык бөлүктөрү толугу менен кургап калганын текшериңиз.
7. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Шайман күйбөйт | розеткага кошулбаган; электр розеткасынын маселеси; прибордун бузулушу. | Check power cord connection; test outlet with another device; contact customer support. |
| Тамак бирдей бышырылган эмес | Overcrowding; not shaking/turning food; incorrect temperature/time. | Cook in smaller batches; shake/turn food regularly; adjust temperature/time as needed. |
| Аппараттан ак түтүн чыгат | Grease residue; fatty food; smoking box issue. | Clean the appliance thoroughly; drain excess fat from food; ensure smoking box is correctly used. |
| Тамак кытырак эмес | Not enough oil; too much moisture; incorrect temperature. | Lightly coat food with oil; pat dry moist foods; increase temperature slightly. |
8. Техникалык шарттар
- Модель номери: A01_EU01_102086
- Сыйымдуулугу: 6.5 литр
- Күч: 2200 Ватт
- Тtage: 2200 Volts (Note: This seems to be a typo in the source data, usually voltage is around 220-240V for 2200W appliances in Europe. Please refer to the product label for accurate voltagд.)
- Материал: Пластик, металл
- Өлчөмдөрү: 39.5P x 29.5lx 32H сантиметр
- Салмагы: 5.3 килограмм
- Өзгөчөлүктөр: Automatic shut-off, Dual zone functionality, Programmable
9. Кепилдик жана колдоо
Cecotec offers a commitment to product longevity, with spare parts availability for 10 years. For any questions, technical assistance, or warranty claims, please refer to the contact information provided in your product packaging or visit the official Cecotec webсайт.
Note: Specific warranty terms and conditions may vary by region. Please retain your proof of purchase for warranty purposes.
