1. Киришүү
Thank you for choosing the chiphy 85-inch Full Spectrum LED Grow Light. This product is designed to provide optimal lighting conditions for your indoor plants, supporting all stages of growth from seedling to fruiting. Please read this manual thoroughly before assembly and operation to ensure safe and efficient use.

Image 1.1: The chiphy 85-inch Full Spectrum LED Grow Light in an indoor setting with various plants.
2. Маанилүү коопсуздук нускамалары
Жаракат алуунун же зыяндын алдын алуу үчүн, ар дайым төмөнкү негизги коопсуздук чараларын сактаңыз:
- Шайманды колдонуудан мурун бардык нускамаларды окуп чыгыңыз.
- Do not operate the light with a damaged cord or plug. If damaged, contact customer support.
- Do not expose the light to water or moisture. This product is for indoor use only.
- Ensure the light is placed on a stable, level surface to prevent tipping.
- Продукцияны бөлүктөргө бөлбөңүз же өзгөртпөңүз. Уруксатсыз өзгөртүүлөр кепилдикти жокко чыгарып, коопсуздукка коркунуч келтириши мүмкүн.
- Unplug the light from the power outlet before cleaning or performing any maintenance.
- Балдар жана үй жаныбарлары жетпеген жерде сактаңыз.
3. Пакеттин мазмуну
Пакетте бардык компоненттер бар экенин текшериңиз:
- 1x 40W Grow Lamp Баш
- Multiple Aluminum Poles (for height adjustment)
- 1x Grow Lamp База
- 1x Power адаптер
- 1x Колдонуучунун колдонмосу (бул документ)
4. Монтаждоо боюнча нускамалар
Follow these steps to assemble your chiphy Grow Light:
- Базаны тиркөө: Securely screw the lowest aluminum pole into the Grow Lamp Base. Ensure it is tightened to prevent wobbling.
- Connect Poles: Connect the remaining aluminum poles by screwing them together clockwise. You can use fewer poles to achieve a shorter height (22", 38", 54", 69", or 85").
- Орнотуу Л.amp башчысы: Screw the 40W Grow Lamp Head onto the top of the assembled pole.
- Туташуу кубаты: Plug the power adapter into the designated port on the lamp pole, then plug the adapter into a standard electrical outlet.

Сүрөт 4.1: Жарылып кеткен view of the grow light components and assembly points.

Image 4.2: Illustration of the grow light's adjustable height feature, accommodating different plant sizes.
5. Иштөө нускамалары
The chiphy Grow Light features intuitive touch controls and various settings to optimize plant growth.
5.1 Күйгүзүү/өчүрүү
Tap the power button on the touch control panel located on the pole to turn the light on or off.
5.2 Жарыктыкты жөндөө
The light offers 10 dimmable brightness settings (1% to 100%). Use the '+' and '-' buttons on the control panel to increase or decrease the light intensity. The 1% setting functions as a night light.
5.3 Full Spectrum Lighting
This grow light provides a full spectrum, sun-like 4000K color temperature, suitable for all plant growth stages including seedling, growing, flowering, and fruiting.

Image 5.1: Full spectrum light supporting all stages of plant development.
5.4 Таймер функциясы
The light includes a basic timer function. Refer to the control panel for specific timer options (e.g., 45 minutes). Note that this built-in timer is limited. For extended or custom timing, consider using a smart plug.
5.5 Акылдуу сайгычтын шайкештиги
The chiphy Grow Light is compatible with smart plugs (not included). Using a smart plug allows for app control and custom timer schedules, enabling you to automate the light cycle for your plants even when you are away.

Image 5.2: The grow light is compatible with smart plugs for enhanced control.
5.6 Эстутум функциясы
The light retains the last brightness setting used when turned off and on, providing convenience for consistent plant care.
6. Техникалык тейлөө
Туура тейлөө сиздин өстүрүүчү лампаңыздын узак мөөнөттүү иштешин жана оптималдуу иштешин камсыз кылат.
6.1 Тазалоо
- Always unplug the light before cleaning.
- Wipe the aluminum LED panel and pole with a soft, dry cloth.
- Абразивдүү тазалоочу каражаттарды, эриткичтерди же катуу химиялык заттарды колдонбоңуз, анткени алар капталга же электрондук компоненттерге зыян келтириши мүмкүн.
6.2 Жылуулук диссипациясы
The grow light features an all-aluminum integrated LED panel for excellent heat dissipation, extending its lifespan. Ensure the lamp head is not obstructed to allow for proper airflow.

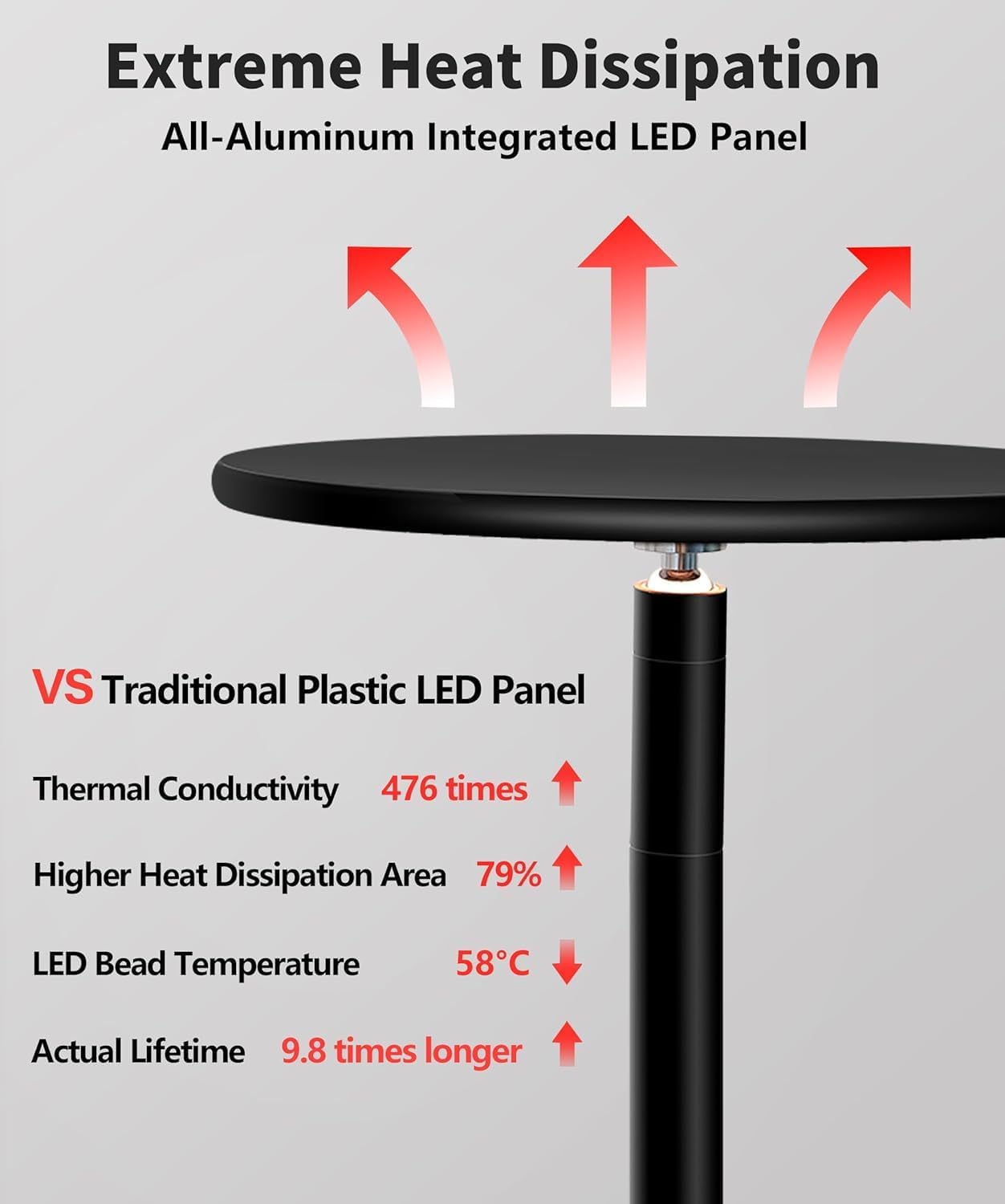

Image 6.1: The aluminum design ensures efficient heat dissipation for extended product life.
7. Кыйынчылыктарды
If you encounter issues with your grow light, refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Жарык күйбөйт. | Электр кубаты жок, туташуу бош, адаптер бузулган. | Электр розеткасын текшериңиз, бардык туташуулар коопсуз экендигин текшериңиз. Башка розеткадан аракет кылып көрүңүз. |
| Жарык күтүлбөгөн жерден бүлбүлдөп же өчүп калат. | Unstable power supply, loose connection. | Ensure stable power. Check connections. If using a smart plug, ensure it is functioning correctly. |
| Сенсордук башкаруу элементтери жооп бербейт. | Power issue, temporary malfunction. | Unplug the light for 30 seconds, then plug it back in. Ensure hands are clean and dry when using controls. |
| Light gets too hot. | Obstructed ventilation, prolonged use at maximum brightness. | l камсыз кылууamp head is not covered. While the aluminum design aids heat dissipation, prolonged use at maximum brightness can generate heat. This is normal, but avoid touching the lamp head directly. |
If the problem persists after trying these solutions, please contact chiphy customer support for assistance.
8. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | чипи |
| Модель аты | Өсүү Лamps |
| Power Source | Электр зымдары |
| Ватtage | 40 ватт |
| Жарык чыгаруунун максималдуу көлөмү | 4400 Lumens |
| Түс температурасы | 4000 Kelvin (Sun-Like Full Spectrum) |
| Жарыктык деңгээли | 10 (1% to 100% dimmable) |
| Бийиктиги жөнгө салынуучу | 22'', 38'', 54'', 69'', 85'' |
| Башкаруу ыкмасы | Touch Control |
| Материал | Aluminum, Cast Iron |
| Продукциянын өлчөмдөрү | 9.4" Т x 9.4" Т x 85" Бийиктик (Эң жогорку) |
| Элемент Салмагы | 8.69 фунт |
| Ички/тышкы колдонуу | Ичинде гана |
9. Кепилдик жана колдоо
chiphy products are manufactured with quality and care. For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official chiphy website. Please have your model number (Grow Lamps) and purchase date available when contacting support.
Кошумча маалымат жана өнүмдөр үчүн, баш багыңыз chiphy Store on Amazon.
