LEDVANCE Flash Car Emergency Light User Manual

1. Продукт бүтүп калдыview

The LEDVANCE Flash Car Emergency Light is a versatile mobile lighting device designed for outdoor use, particularly in emergency situations. It features a robust aluminum housing and integrates essential tools for roadside safety.

Key features include a glass hammer for breaking windows and a seat belt knife for cutting seat belts, enhancing its utility in critical moments. The light offers multiple operating modes for various lighting needs.

This product is classified as a surrounding product, meaning its included light source(s) can be disassembled for separate verification. The light source within this device is of energy efficiency class G.

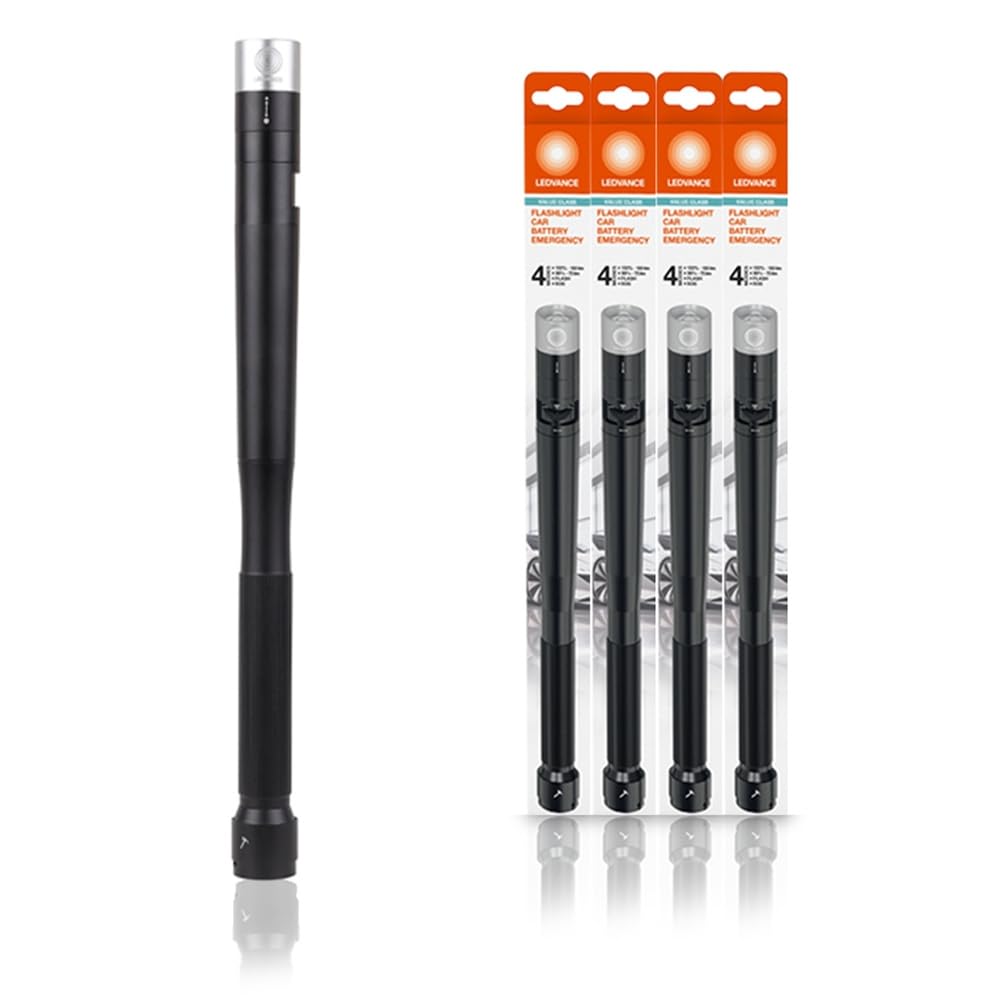

Image: The LEDVANCE Flash Car Emergency Light, a compact, black, cylindrical device with a light at one end and a textured grip, designed for emergency use.

2. Коопсуздук маалыматы

• Батареянын коопсуздугу: Use only the specified battery type (4 AAA batteries). Do not mix old and new batteries, or different types of batteries. Ensure correct polarity when inserting batteries. Remove batteries if the device will not be used for an extended period.
• Өзгөчө кырдаалдар куралдары: The glass hammer and seat belt knife are sharp and designed for emergency use only. Handle with extreme care to prevent injury. Keep out of reach of children.
• Жарык булагы: Жарык шооласына түз карабаңыз, анткени ал көрүүнү убактылуу начарлатышы мүмкүн.
• Экологиялык шарттар: This device is designed for outdoor use but should not be submerged in water. Avoid extreme temperatures.

3. Пакеттин мазмуну

Сураныч, пакетте төмөнкү нерселерди текшериңиз:

• 1 x LEDVANCE Flash Car Emergency Light (Model: FLASHL CAR BTRY EM FS1 LEDV)

4. Орнотуу

4.1 Батареяны орнотуу

1. Locate the battery compartment. This is typically found by twisting or unscrewing a section of the light's body.
2. Insert 4 AAA batteries (not included) into the compartment, ensuring correct polarity (+/-) as indicated inside the compartment.
3. Батарея бөлүкчөсүн коопсуз жабыңыз.

5. Иштөө нускамалары

5.1 Которуу режимдери

The LEDVANCE Flash Car Emergency Light features a convenient button for switching between its four operating modes:

• 1-басуу: Activates bright light mode (100 lumens).
• 2-басуу: Switches to soft light mode (70 lumens).
• 3-баскыч: Activates SOS mode (Morse code for SOS).
• 4-басма: Activates flashing mode.
• Subsequent presses will cycle through the modes or turn the light off, depending on the model's specific sequence.

5.2 Adjusting Light Beam Angle

The angle of the light beam can be adjusted by turning the lens of the device. Rotate the lens clockwise or counter-clockwise to achieve the desired focus or spread of light.

5.3 Батареянын иштөө мөөнөтү

The light provides approximately 1.5 hours of operation at full brightness (100 lumens) with fresh batteries.

6. Техникалык тейлөө

• Тазалоо: Аппаратты жумшак менен сүртүңүз, гamp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
• Батареяны алмаштыруу: Replace all 4 AAA batteries when the light output diminishes or the device stops functioning. Refer to Section 4.1 for battery installation.
• Сактагыч: Store the light in a cool, dry place when not in use. Remove batteries if storing for extended periods to prevent leakage.

7. Кыйынчылыктарды

• Жарык күйбөйт:
  • Батареялардын туура полярдуулукта жана туура салынганын текшериңиз.
  • Эски же түгөнүп калган батарейкаларды жаңысына алмаштырыңыз.
  • Батарея отсеги бекем жабылганын текшериңиз.
• Жарык күңүрт же бүлбүлдөп турат:
  • Батареялар аз болушу мүмкүн. Жаңы батарейкалар менен алмаштырыңыз.

8. Техникалык шарттар

9. Кепилдик жана колдоо

For warranty information or technical support, please refer to the documentation provided with your purchase or contact LEDVANCE customer service directly. Keep your proof of purchase for warranty claims.
