Introduction
The Volkano Splash Series Round Smartwatch, model VK-5096-PR, is designed to enhance your daily life with its advanced features and durable construction. This smartwatch offers connectivity, health monitoring, and communication capabilities directly from your wrist. It features a high-resolution full-touch screen and is built to be water and dust resistant, ensuring reliability in various environments.

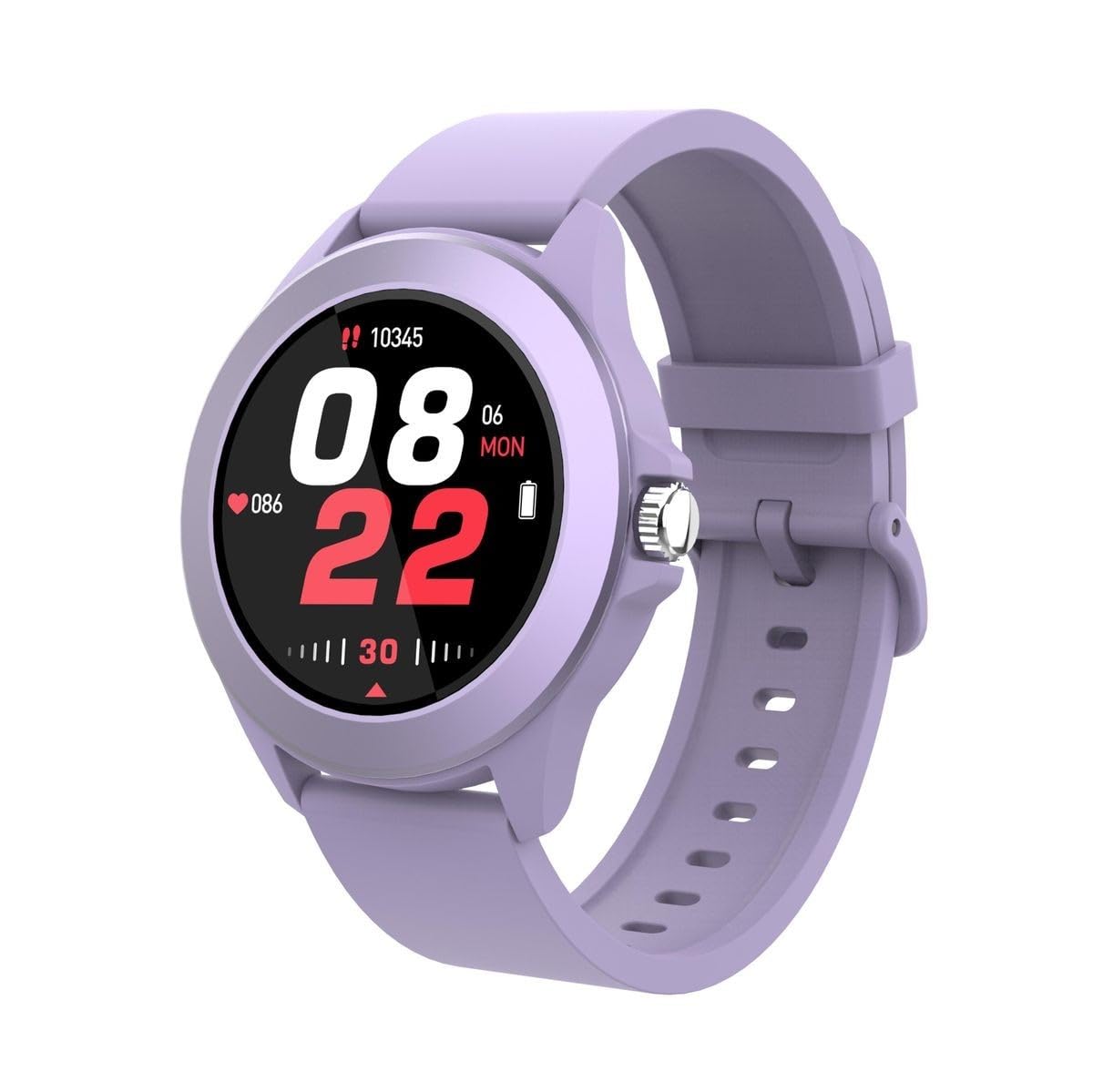

Figure 1: Volkano Splash Series Round Smartwatch (Purple)
Жайгашуу
1. Акылдуу саатты заряддоо
Before initial use, fully charge your Volkano Splash Series Smartwatch. Connect the provided USB charging cable to the charging port on the back of the smartwatch and to a standard USB power adapter (not included). A full charge typically takes approximately 2.5 hours. The watch will indicate charging status on its screen.
2. Күйгүзүү
Press and hold the side control button for a few seconds until the Volkano logo appears on the screen. The smartwatch will then boot up.
3. Смартфонуңуз менен жупташуу
- Смартфонуңузда Bluetooth иштетилгенин текшериңиз.
- Download and install the companion application for your Volkano smartwatch from your smartphone's app store (compatible with Apple iOS and Android smartphones).
- Open the application and follow the on-screen instructions to search for and connect to your smartwatch. The smartwatch uses Bluetooth Version 5.3 for a stable connection.
- Смартфонуңузда да, акылдуу саатыңызда да жупташтыруу өтүнүчүн ырастаңыз.
Figure 2: Smartwatch features overview
Иштөө нускамалары
1. Интерфейсте навигация
- Full Touch Screen Control: Swipe left, right, up, or down on the screen to access different menus, notifications, and features. Tap to select an option.
- Side Control Button: Press the side button to return to the home screen or to wake the device. A long press may access power options or specific functions depending on the context.
2. Чалууларды кабыл алуу жана кабыл алуу
Once paired with your smartphone, you can make and receive calls directly from your smartwatch. When a call comes in, the watch will display the caller ID. Tap the green icon to answer or the red icon to decline. To make a call, access the dialer or contacts list through the smartwatch interface.
3. Health and Activity Monitoring
The smartwatch includes a heart rate monitor and multi-sport monitoring capabilities. Access these features through the main menu. Swipe to find the relevant icons for heart rate, step counter, or specific sport modes. Ensure the watch is worn snugly on your wrist for accurate readings.
Figure 3: Smartwatch displaying time and heart rate
4. Батареянын иштөө мөөнөтү
The smartwatch offers up to 5 days of battery life with typical usage and up to 15 days on standby. Actual battery performance may vary based on usage patterns and settings.
Техникалык тейлөө
1. Акылдуу саатыңызды тазалоо
To clean your smartwatch, gently wipe the screen and body with a soft, lint-free cloth. For stubborn dirt, slightly dampкездемени суу менен сүртүңүз. Катуу химиялык заттарды же абразивдүү материалдарды колдонуудан алыс болуңуз, анткени алар түзмөккө зыян келтириши мүмкүн.
2. Суу жана чаңга туруктуулук
The Volkano Splash Series Smartwatch has an IP67 rating, meaning it is resistant to dust and can withstand immersion in water up to 1 meter for 30 minutes. It is suitable for everyday use, including hand washing and light rain. However, it is not recommended for swimming, diving, or exposure to high-pressure water.
3. Заряддоо мыкты тажрыйбалары
- Берилген заряддоо кабелин гана колдонуңуз.
- Ашыкча температурада заряддоодон алыс болуңуз.
- Саат толук кубатталгандан кийин аны көпкө кубаттап турбаңыз.
Figure 4: Back of the smartwatch with sensors
Проблемаларды чечүү
- Акылдуу саат күйбөй жатат: Аппараттын толук заряддалганын текшериңиз. Аны заряддагычка туташтырыңыз жана аны кайра күйгүзүүдөн мурун бир нече мүнөт күтүңүз.
- Смартфон менен жупташтыруу мүмкүн эмес:
- Check that Bluetooth is active on your phone and the smartwatch.
- Акылдуу саат телефонуңуздун жеткиликтүүлүгүнүн аралыгында экенин текшериңиз.
- Смартфонуңузду да, акылдуу саатыңызды да өчүрүп күйгүзүңүз.
- Try unpairing and re-pairing the devices through the companion app.
- Экран жооп бербейт: If the screen is frozen, try restarting the smartwatch by holding down the side control button until it powers off and then on again.
- Туура эмес ден соолук маалыматтары: Ensure the smartwatch is worn correctly, snugly on your wrist, and that the sensors on the back are clean.
Техникалык шарттар
- Модел: VK-5096-PR
- Bluetooth версиясы: 5.3
- Чипсет: JieLi7012F
- Экран: 1.3 inch TFT, Full Touch 320 x 320 resolution
- Батарея: 260 мАч Ли-Полимер
- Күтүү убактысы: 15 күнгө чейин
- Батареянын иштөө мөөнөтү: 5 күнгө чейин
- Заряддоо убактысы: 2.5 саат
- IP рейтинги: IP67 сууга туруктуу
- Операция системасы: Android Wear 1.0 (compatible with Apple iOS and Android smartphones)
- Байланыш: USB (for charging), Bluetooth
- Өзгөчө өзгөчөлүгү: Жеңил
- Форма: Тегерек
- Түсү: Кызгылт көк
- Камтылган компоненттер: 1 x Volkano Splash Series Round Smartwatch, Purple
Figure 5: Smartwatch displaying various information
Кепилдик жана колдоо
Кепилдик маалымат
This Volkano Splash Series Round Smartwatch comes with a 1 жылдык Өндүрүүчүнүн Кепилдиги from the date of purchase. This warranty covers manufacturing defects under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear. Please retain your proof of purchase for warranty claims.
Кардарларды колдоо
For technical assistance, warranty claims, or any questions regarding your Volkano Splash Series Smartwatch, please refer to the contact information provided with your product packaging or visit the official Volkano webколдоо булактары үчүн сайт.
