1. Киришүү
Thank you for choosing the Karinear Induction Cooktop. This 24-inch, 4-burner built-in induction stovetop features a powerful 7400W output, a flexible cooking zone, and intuitive slider controls. Designed for modern kitchens, it offers efficient and safe cooking. This manual provides essential information for installation, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your appliance.
2. Коопсуздук маалыматы
Your safety is paramount. Please read all safety instructions carefully before using the appliance. This cooktop is equipped with multiple safety features including a Child Safety Lock, Auto Shut-off, High Temperature Warning, and Overheat Protection to ensure a secure cooking environment. Always ensure proper ventilation and use appropriate cookware.
- ысык беттерге тийбеңиз. Туткаларды же туткаларды колдонуңуз.
- Шайман туура жерге туташтырылганын текшериңиз.
- Эч кандай шайманды зымы же сайы бузулган иштетпеңиз.
- Иштеп жатканда балдарды мештен алыс кармаңыз.
- Индукциялык бышырууга ылайыктуу идиштерди гана колдонуңуз.
3. Орнотуу жана орнотуу
The Karinear Induction Cooktop is designed for built-in installation. It operates on 220-240V and requires hard-wiring; it does not come with a plug. Professional installation is recommended to ensure correct wiring and compliance with local electrical codes. Ensure the cutout dimensions in your countertop match the product specifications for a secure fit.
3.1. Өлчөмдөр
- Product Dimensions: 19.7 x 22.45 x 2.36 inches (500mm x 570mm x 60mm)
- Cutout Dimensions: Refer to the installation diagram for precise measurements.
3.2. Электр байланышы
This appliance requires a dedicated 220-240V electrical circuit. The wiring diagram below illustrates the correct connection for the cooktop's power supply. Always disconnect power before performing any electrical work.
4. Иштөө нускамалары
The Karinear Induction Cooktop features intuitive controls for a seamless cooking experience. Familiarize yourself with the functions below.

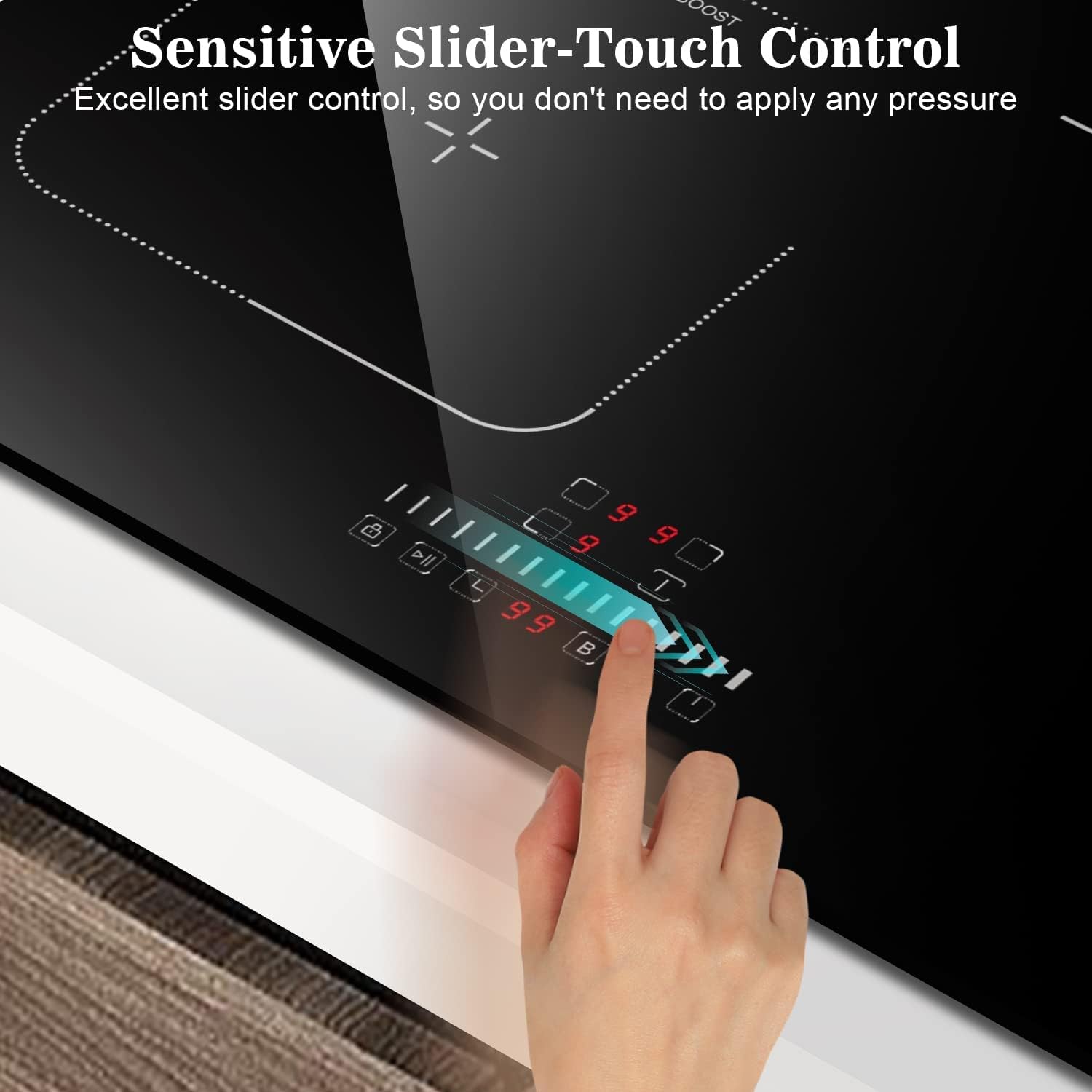

4.1. Slider Control
Adjust power levels and timer settings by sliding your finger along the control bar. This sensitive touch control allows for precise adjustments without applying pressure.
4.2. Flexible Zone Function
The left two heating zones can be combined to form a single large flexible zone, ideal for larger or longer cookware such as griddle pans. This allows for versatile cooking options, including BBQ-style meals. The flexible zone can also be used as two separate burners.
4.3. Boost Function
Activate the Boost function for a rapid increase in power to quickly heat up cookware or boil water. This feature temporarily provides maximum power to a selected cooking zone.
4.4. Таймер функциясы
The integrated timer can be set for up to 99 minutes, allowing for precise cooking times. The cooktop will automatically shut off the selected zone once the timer expires.

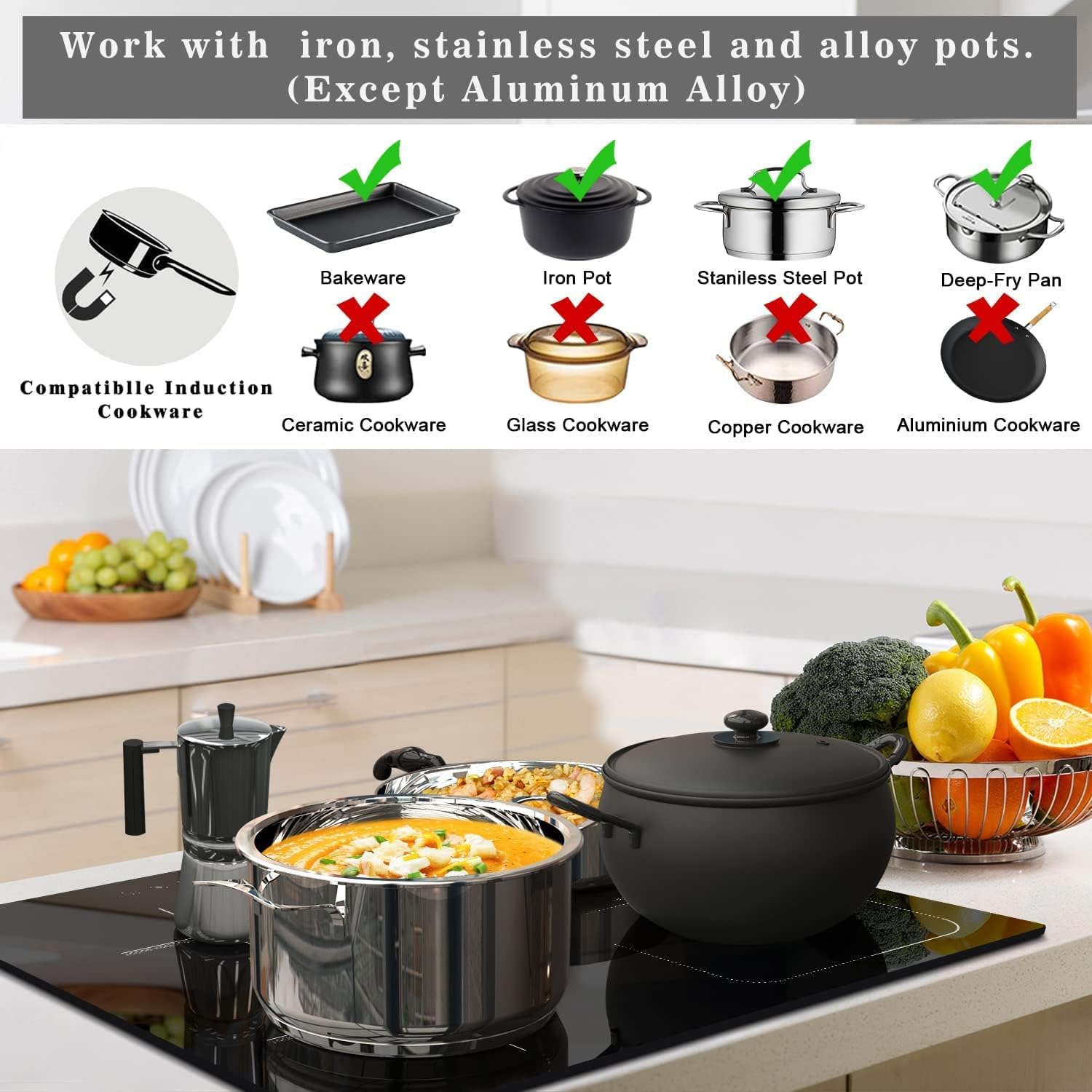

4.5. Шайкеш келген идиш-аяктар
Induction cooktops require cookware made of ferromagnetic materials. Use iron pots, stainless steel, or alloy pots. To test compatibility, place a magnet on the bottom of your pot; if it sticks, the pot is suitable for induction cooking. Avoid ceramic, glass, copper, and aluminum alloy cookware.
5. Техникалык тейлөө жана тазалоо
Regular cleaning and maintenance will keep your Karinear Induction Cooktop in excellent condition and ensure its longevity. The smooth glass surface is easy to clean.
5.1. Күнүмдүк тазалоо
After each use, allow the cooktop to cool down. Wipe the glass surface with a damp cloth and a mild detergent. For stubborn stains, use a specialized ceramic hob cleaner. Always dry the surface thoroughly to prevent water spots.
5.2. Removing Burnt-on Residue
For burnt-on food or spills, use the provided cleaning scraper. Hold the scraper at a shallow angle and gently push to remove residue. Avoid using abrasive cleaners, scouring pads, or harsh chemicals as they can scratch the glass surface.
6. Кыйынчылыктарды
If you encounter issues with your cooktop, refer to the following common problems and solutions before contacting customer support.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Ашкана күйбөйт. | No power supply; Child Safety Lock activated. | Check circuit breaker; Deactivate Child Safety Lock by pressing and holding the lock button. |
| Индукция зонасы жылытылбайт. | Incompatible cookware; Cookware not centered; Overheat protection activated. | Use induction-compatible cookware; Center the pot on the zone; Allow cooktop to cool down. |
| Display shows an error code (e.g., 'E0', 'E1'). | Ички ката; сенсордогу көйгөй. | Turn off the cooktop at the main power supply for a few minutes, then restart. If the error persists, contact customer support. |
| Иш учурунда адаттан тыш ызы-чуу. | Кадимки желдеткич иштеши; Идиштин титирөөсү. | A slight humming or buzzing sound is normal due to induction technology and cooling fan. Ensure cookware is flat-bottomed. |
7. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Бренд | Каринеар |
| Модель номери | KNI-603S1-JG |
| Орнотуу түрү | түшүү |
| Күйүүчү түрү | Индукция |
| Жылытуу элементтери | 4 |
| Ватtage | 7200 watts (7.4kW total) |
| Тtage | 220-240 Вольт |
| Control Console | Touch Controls (Slider) |
| Материалдын түрү | Айнек |
| Продукциянын өлчөмдөрү (L x W x Y) | 19.7 x 22.45 x 2.36 дюйм |
| Элемент Салмагы | 24.8 фунт |
| Өзгөчөлүктөр | Boost Function, Flex Zone, Safety Lock, Timer |
8. Кепилдик жана колдоо
Karinear products are manufactured to high-quality standards. For warranty information, please refer to the warranty card included with your product or visit the official Karinear website. If you require technical assistance or have questions not covered in this manual, please contact Karinear customer support.
Extended protection plans may be available for purchase. Please check with your retailer for details on 3-Year and 4-Year Protection Plans.
Байланыш маалыматы: Please refer to the Karinear official webэң акыркы кардарларды тейлөө байланыш маалыматтары үчүн сайтка же сатып алуу документтерине кайрылыңыз.
