1. Киришүү
This manual provides comprehensive instructions for the TODAAIR AC1200 Outdoor WiFi Extender, designed to expand your wireless network coverage in outdoor environments. It supports dual-band high-speed transmission and features an IP65 weatherproof design, ensuring reliable performance in various conditions.
Пакеттин мазмуну
Пакетиңизде бардык буюмдар бар экенин текшериңиз:
- Outdoor WiFi Extender *1
- Ыкчам орнотуу колдонмосу *1
- Power Adapter 12V/1A *1
- Plastic Cable Tie *1
- Stainless Steel Tie *1

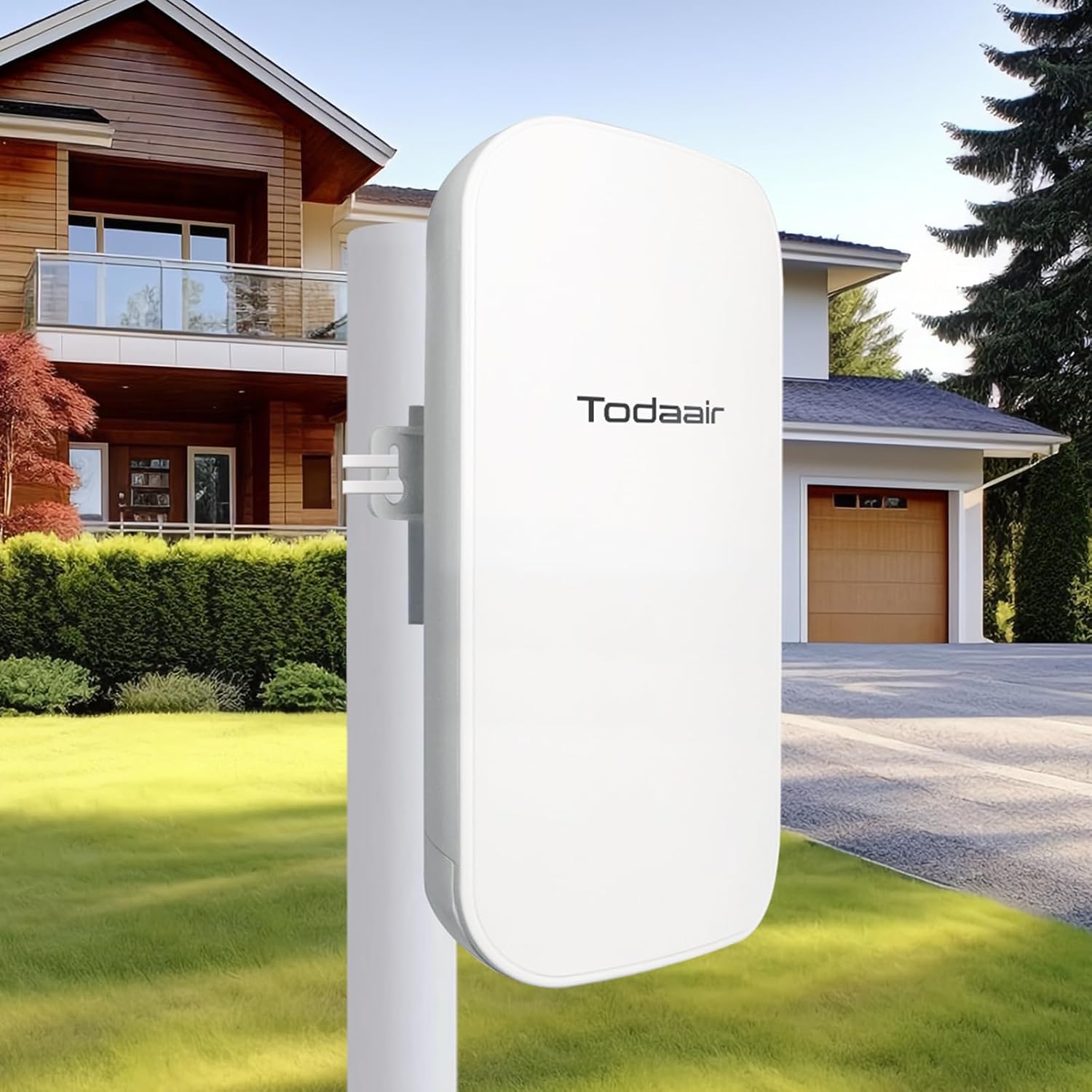

Image 1.1: TODAAIR AC1200 Outdoor WiFi Extender and its components.
2. Продукт бүтүп калдыview
The TODAAIR AC1200 Outdoor WiFi Extender is engineered to provide robust and extended wireless connectivity. Key features include:
- Dual-Frequency High-Speed Transmission: Supports 2.4GHz (up to 300Mbps) and 5GHz (up to 867Mbps) bands for stable network connections.
- Intelligent Reset (AI Watchdog): Automatically restarts and restores normal operation if faults or abnormalities occur, ensuring continuous network availability.
- Эки иштөө режими: Functions as both a Repeater and an Access Point (AP) to suit diverse network requirements.
- Кеңири шайкештик: Compatible with various mainstream WiFi devices and routers.
- Өркүндөтүлгөн коопсуздук: Supports WPA-PSK/WPA2-PSK and WPA/WPA2 wireless security protocols to protect your network.
- Outdoor IP65 Weatherproof: Features an IP65 waterproof, lightning-proof, dust-proof, anti-freezing, and high-temperature resistant shell for reliable outdoor operation.
Image 2.1: The TODAAIR AC1200 supports dual-band WiFi for various smart home applications.
Image 2.2: The extender provides strong signal coverage up to 1200Mbps for outdoor areas.
Видео 2.1: Бүттүview of the TODAAIR Outdoor WiFi Extender, including unboxing and key features.
Video 2.2: Demonstration of the TODAAIR SmartHome layout, illustrating WiFi coverage extension within a home environment.
3. Орнотуу жана орнотуу
Follow these steps to set up your TODAAIR AC1200 Outdoor WiFi Extender:
- Аппаратты таңгактан чыгаруу: Carefully remove the WiFi extender, power adapter, quick installation guide, and cable ties from the packaging.
- Портторду аныктоо: Locate the PWR (power), LAN, and RES (reset) ports on the device. The LAN port is an Ethernet port for wired connections.
- Күйгүзүү: Connect the 12V/1A power adapter to the PWR port on the extender and plug it into a power outlet.
- Монтаждоо (кошумча): Use the provided plastic or stainless steel cable ties to securely mount the extender in your desired outdoor location. Ensure it is positioned for optimal signal coverage and away from obstructions.
- Баштапкы конфигурация: Refer to the Quick Installation Guide for detailed steps on connecting to the extender's default WiFi network and accessing the web-based management interface for initial setup.
4. Иштөө режимдери
The TODAAIR AC1200 Outdoor WiFi Extender supports two primary operating modes:
4.1 Repeater Mode
In Repeater Mode, the extender wirelessly connects to your existing router and re-transmits the signal, extending your WiFi coverage to areas with weak or no signal. This mode is ideal for expanding your current wireless network without running additional cables.
4.2 AP (Кирүү чекити) режими
In AP Mode, the extender connects to your router via an Ethernet cable and creates a new wireless network. This mode is suitable for converting a wired internet connection into a wireless access point, providing a strong and stable WiFi signal in a specific area.
Image 4.1: Visual representation of Repeater Mode and AP Mode configurations.
5. Техникалык тейлөө
To ensure optimal performance and longevity of your TODAAIR AC1200 Outdoor WiFi Extender, consider the following maintenance aspects:
- IP65 аба ырайына туруктуу дизайн: The device is built with an IP65-rated shell, offering protection against rain, snow, lightning, dust, frost, and high temperatures. Regular visual inspection for any physical damage or debris accumulation is recommended.
- AI Watchdog Function: The intelligent reset mechanism automatically detects and recovers from operational faults, minimizing manual intervention. Ensure the device has stable power to allow this function to operate effectively.
- Программалык камсыздоонун жаңыртуулары: Мезгил-мезгили менен өндүрүүчүнүн текшерүү website for available firmware updates to enhance performance, security, and stability.
Image 5.1: The IP65 weatherproof rating ensures durability in various outdoor conditions.
6. Кыйынчылыктарды
If you encounter issues with your WiFi extender, try the following troubleshooting steps:
- Кубат жок: Ensure the power adapter is securely connected to both the extender and a working power outlet. Check if the power indicator light is on.
- Интернет байланышы жок: Verify that your main router has an active internet connection. In Repeater Mode, ensure the extender is within range of your main router's signal. In AP Mode, check the Ethernet cable connection to the router.
- Алсыз сигнал же өлүк зоналар: Reposition the extender to a location that provides better line-of-sight to your main router and the areas needing coverage. Avoid placing it near large metal objects or thick walls.
- Cannot Access Setup Page: Ensure your device is connected to the extender's WiFi network. Try clearing your browser's cache or using a different browser. Verify the correct IP address for the setup page (usually found in the Quick Installation Guide or on the device label).
- Тез-тез өчүрүүлөр: This could be due to interference or an unstable connection to the main router. Try changing the WiFi channel on your main router or the extender. Ensure the extender's firmware is up to date.
- Аппаратты баштапкы абалга келтирүү: If issues persist, use a pin to press and hold the RES (reset) button for approximately 5-10 seconds until the indicator lights flash. This will restore the extender to its factory default settings. You will need to reconfigure it after a reset.
7. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | БУГУН |
| Модель номери | TD-MRT20 (Outdoor AC1200) |
| Продукциянын өлчөмдөрү | 9 x 3 x 4 дюйм |
| Элемент Салмагы | 14.9 унция |
| Зымсыз байланыш стандарты | 802.11a/b/g/n/ac |
| Маалыматтарды өткөрүү ылдамдыгы | 1200 Megabytes Per Second (Mbps) |
| Жыштык тилкесинин классы | Кош тилкелүү (2.4 ГГц жана 5 ГГц) |
| Өзгөчөлүктөр | Outdoor IP65 Waterproof, Repeater & AP Mode, AI Watchdog |
| Ethernet интерфейси | 10/100 Мбит/сек |
| Coverage Area (Approx.) | 85m (as per video), up to 3440 Sq. ft |
| Supported Users (Approx.) | 65 Users (as per video), up to 30 Devices |
8. Кепилдик жана колдоо
TODAAIR is committed to providing quality products and customer satisfaction. If you encounter any problems during the installation or use of your WiFi Extender, please contact our professional technical support team. Our team is available to assist you with any questions or issues you may have.
For support, please refer to the contact information provided in your Quick Installation Guide or visit the official TODAAIR webсайт.
