1. Киришүү
This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your BOSGAME AG40 Mini PC. Please read this manual thoroughly before using the device to ensure proper functionality and safety.
The BOSGAME AG40 is a compact and efficient mini PC powered by an Intel Celeron N4020 processor, designed for various applications from office tasks to industrial control programs. Its fanless design ensures quiet operation, and its small footprint makes it highly portable.
2. Коопсуздук маалыматы
- Always use the provided power adapter. Using an incorrect adapter may damage the device and void the warranty.
- Аппаратты сууга, нымдуулукка же экстремалдык температурага тийгизбеңиз.
- Аппаратты түшүрүүдөн же катуу таасирлерден сактаныңыз.
- Түзмөктү өз алдынча ачууга же оңдоого аракет кылбаңыз. Оңдоо иштери үчүн квалификациялуу тейлөө кызматкерлерине кайрылыңыз.
- Ensure proper ventilation around the device, even with its fanless design, to prevent overheating.
3. Пакеттин мазмуну
Сураныч, төмөнкү нерселер үчүн кутучаны белгилеңиз:
- BOSGAME AG40 Mini PC
- Кубат адаптери (12V/2A)
- Колдонуучунун Колдонмосу (бул документ)
- HDMI кабели (аймакка/пакетке жараша өзгөрүшү мүмкүн)
- VESA Mount (may vary by region/package)
4. Продукт бүтүп калдыview
The BOSGAME AG40 Mini PC is designed for portability and efficiency. Its compact dimensions are approximately 120mm x 120mm x 25mm, weighing less than 250g.
Image 4.1: The BOSGAME AG40 Mini PC, demonstrating its compact form factor and front-facing ports including USB and an SD card slot.
4.1. Порттор жана туташтыргычтар
The AG40 Mini PC features a comprehensive set of ports for connectivity:
Сүрөт 4.2: Детальдуу view of the BOSGAME AG40 Mini PC's input/output ports, highlighting DC power, multiple USB 3.0 ports, HDMI, RJ45 LAN, audio jack, and VGA output.
- USB 3.2 1-муун: 3 ports for connecting peripherals like keyboards, mice, and external storage.
- HDMI: 1 port for video output, supporting up to 4K@60Hz.
- VGA: 1 port for video output, supporting dual display configurations.
- RJ45 LAN: 1 Gigabit Ethernet port for wired network connectivity.
- SD картаны окугуч: 1 slot for memory card expansion.
- Аудио туташтыргыч: Наушник же динамиктер үчүн.
- Туруктуу кубат киргизүү: Кубат адаптерин туташтыруу үчүн.
- Кубат баскычы: Аппаратты күйгүзүү/өчүрүү үчүн.
4.2. Internal Components
Image 4.3: Visual representation of the Intel Celeron N4020 processor, detailing its core count, clock speed, and thermal design power.
Image 4.4: Illustration of the internal memory and storage configuration, featuring 4GB DDR4 RAM and 64GB eMMC, which contribute to smooth system operation.
The AG40 is equipped with an Intel Celeron N4020 processor, 4GB DDR4 2133MHz onboard memory, and 64GB eMMC storage. It also supports expansion via an M.2 SATA 2242 SSD.
5. Орнотуу колдонмосу
5.1. Перифериялык түзүлүштөрдү туташтыруу
- Дисплейди туташтыруу: Connect your monitor or TV to the Mini PC using an HDMI or VGA cable. For optimal resolution, use HDMI.
- Киргизүү түзмөктөрүн туташтыруу: Plug your USB keyboard and mouse into the available USB 3.2 Gen1 ports.
- Тармакка туташуу (милдеттүү эмес): For a wired connection, plug an Ethernet cable into the RJ45 LAN port. For wireless, ensure your Wi-Fi network is available.
- Туташуу кубаты: Insert the power adapter into the DC power input port and then plug it into a power outlet.
5.2. Баштапкы күйгүзүү
- Mini PCтин алдыңкы бетинде жайгашкан кубат баскычын басыңыз. Кубат индикатору күйөт.
- The device will boot up, and the operating system (Windows 10 Pro or Linux, depending on your model) will start.
- Follow the on-screen instructions for the initial setup of your operating system, including language, region, and network settings.
6. Иштөө нускамалары
6.1. Негизги операция
Once the operating system is set up, you can use the Mini PC like any standard desktop computer. Navigate using your mouse and keyboard, launch applications, and browse the internet.
6.2. Кош дисплейди орнотуу
The AG40 supports dual display output via its HDMI and VGA ports. To set up dual monitors:
- Connect two monitors, one to the HDMI port and one to the VGA port.
- Power on the Mini PC and both monitors.
- In Windows, right-click on the desktop and select "Display settings."
- You can then detect, arrange, and extend or duplicate your displays as needed.

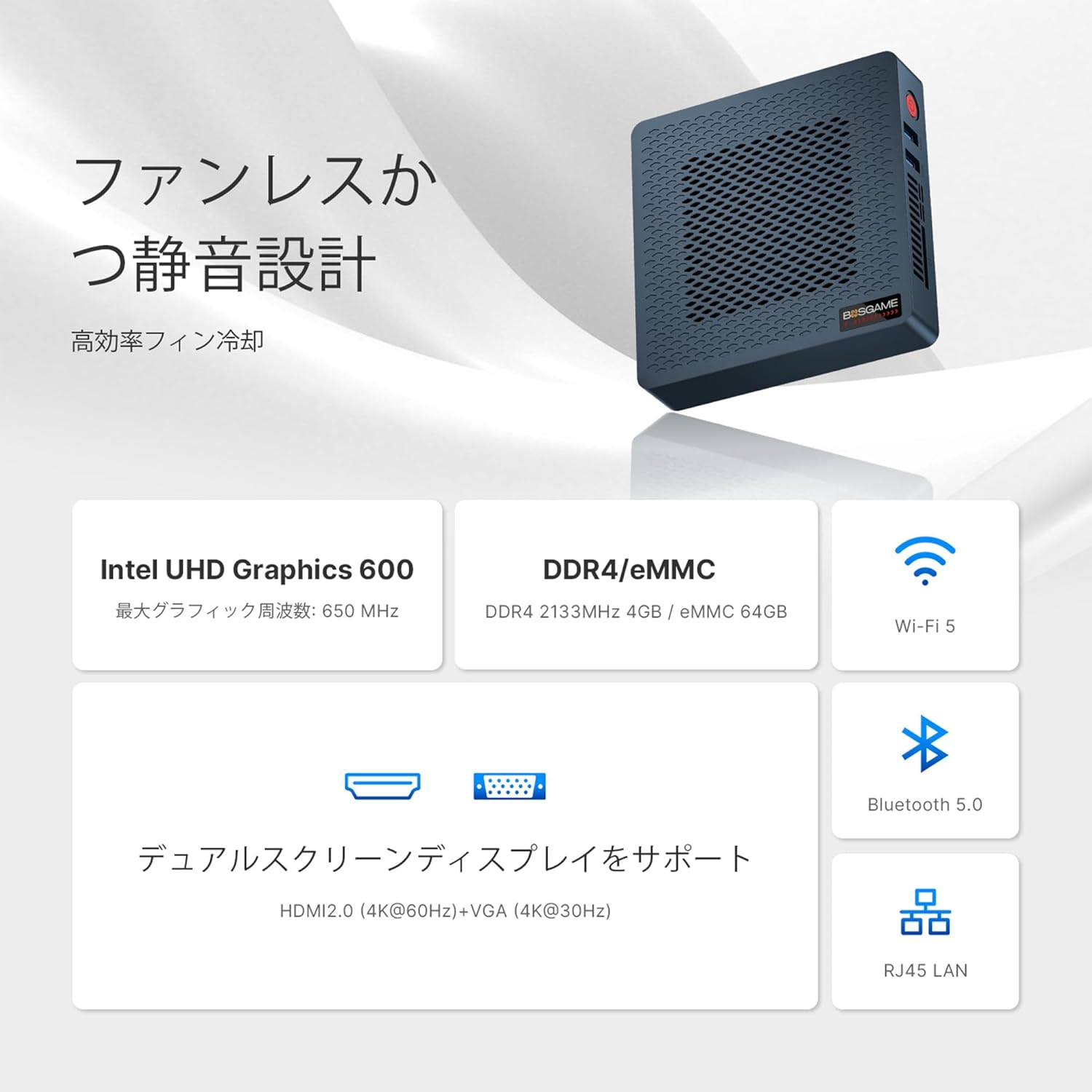

Сүрөт 6.1: Бүттүview of the AG40's fanless cooling and key features, emphasizing its support for dual displays and integrated wireless technologies.
6.3. Зымсыз байланыш
The Mini PC is equipped with an Intel 9560D2W wireless network card, supporting Wi-Fi 5 and Bluetooth 5.1.

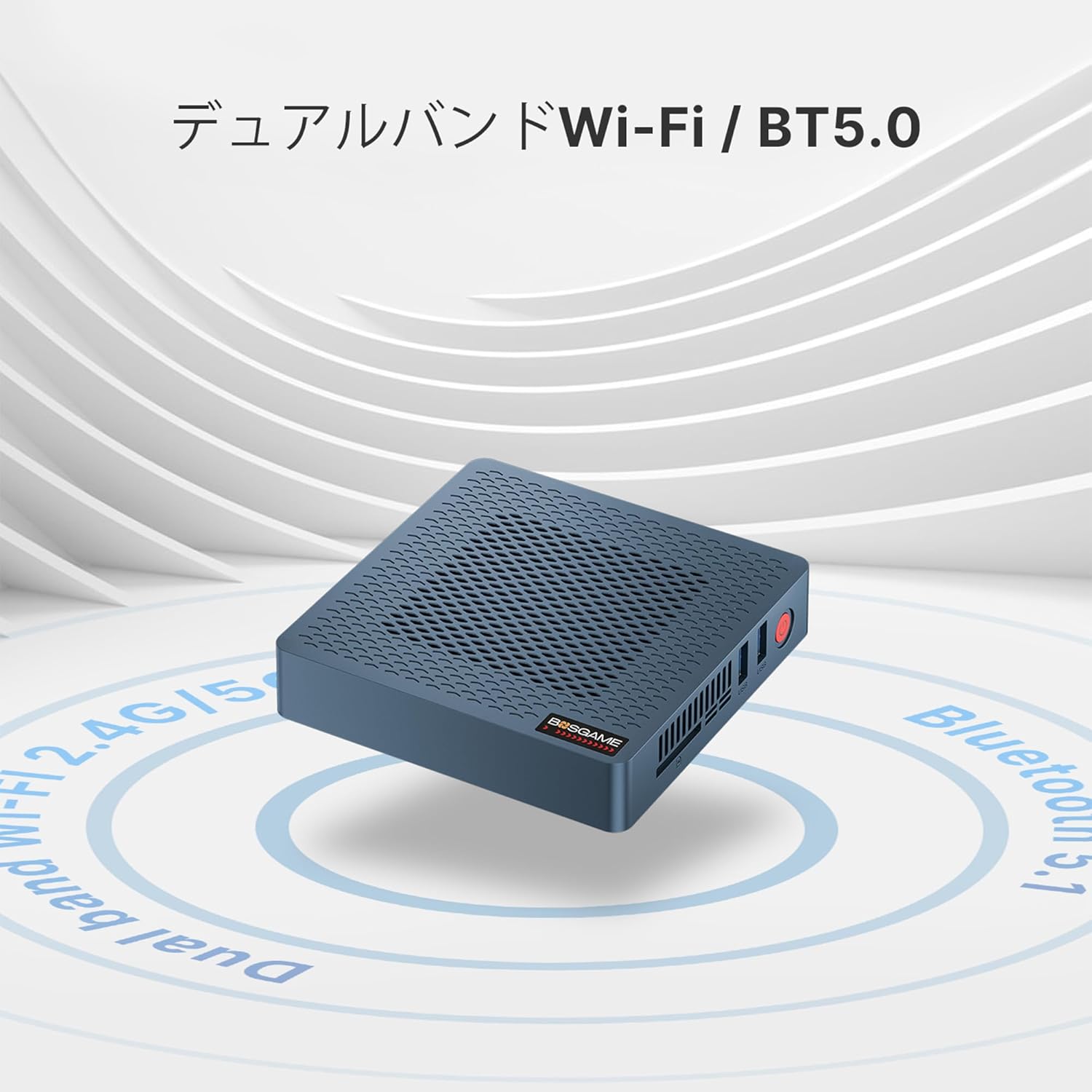

Image 6.2: The Mini PC's wireless capabilities, including dual-band Wi-Fi and Bluetooth 5.0, for seamless connection to networks and peripherals.
- Wi-Fi: To connect to a wireless network, click the Wi-Fi icon in the system tray, select your network, and enter the password.
- Bluetooth: To pair Bluetooth devices, go to your operating system's Bluetooth settings, enable Bluetooth, and search for devices.
6.4. Сактагычты кеңейтүү
The AG40 Mini PC's storage can be expanded:
- M.2 SATA 2242 SSD: An additional M.2 SATA 2242 SSD can be installed for increased storage capacity. Refer to the detailed installation guide (if provided separately) or consult professional assistance.
- SD карта: Insert an SD card into the front-facing SD card reader slot for portable storage.
6.5. 4K UHD Output
The Mini PC supports 4K@60Hz UHD resolution output via the HDMI port, providing a high-quality visual experience for compatible displays.
Image 6.3: The Mini PC demonstrating its ability to output stunning 4K UHD content at 60Hz to a compatible display.
7. Техникалык тейлөө
7.1. Тазалоо
Due to its fanless design, the AG40 Mini PC accumulates less dust internally compared to fan-cooled systems. However, regular external cleaning is recommended:
- Аппараттын сыртын сүртүү үчүн жумшак, кургак чүпүрөктү колдонуңуз.
- өжөр кир үчүн, бир аз гampчүпүрөктү суу же жумшак тазалоо эритмеси менен жууп, анан дароо кургатып сүртүңүз.
- Катуу химиялык заттарды же абразивдүү тазалоочу каражаттарды колдонбоңуз.
7.2. Программалык камсыздоону жаңыртуу
Regularly update your operating system and drivers to ensure optimal performance, security, and compatibility.
- Windows: Орнотуулар > Жаңыртуу жана Коопсуздук > Windows Жаңыртууларына өтүңүз.
- Айдоочулар: Check the BOSGAME official webсайт же Intel website for the latest driver updates for your Celeron N4020 processor and integrated graphics.
8. Кыйынчылыктарды
If you encounter issues with your BOSGAME AG40 Mini PC, refer to the following common troubleshooting steps:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Кубат жок / Түзмөк күйбөйт | Power adapter not connected or faulty; Power outlet issue. | Ensure the power adapter is securely connected to both the Mini PC and a working power outlet. Try a different outlet. |
| Монитордо дисплей жок | Monitor not connected or faulty; Incorrect input source selected on monitor. | Check HDMI/VGA cable connections. Ensure the monitor is powered on and set to the correct input source (HDMI/VGA). Try a different cable or monitor if possible. |
| Интернет байланышы жок (зымдуу) | Ethernet cable disconnected or faulty; Router/modem issue. | Check Ethernet cable connection. Restart your router/modem. Verify network settings in the operating system. |
| No internet connection (Wi-Fi) | Wi-Fi disabled; Incorrect password; Router too far. | Ensure Wi-Fi is enabled in OS settings. Re-enter Wi-Fi password. Move closer to the router or check router status. |
| Cannot access BIOS | Incorrect key pressed during boot. | кайра-кайра басыңыз Del key immediately after powering on the device. In some cases, F10 might also work. |
9. Техникалык шарттар
Below are the technical specifications for the BOSGAME AG40 Mini PC:
| Өзгөчөлүк | Спецификация |
|---|---|
| Бренд | BOSGAME |
| Модел | AG40 |
| Процессор | Intel Celeron N4020 (1.1 GHz base, up to 2.80 GHz boost) |
| Графика | Intel UHD Graphics 600 (Интеграцияланган) |
| Эстутум (RAM) | 4GB DDR4 LPDDR4 |
| Сактагыч | 64GB eMMC (Expandable with M.2 SATA 2242 SSD) |
| Операция системасы | Windows 10 Pro, Linux |
| Video Output | 1x HDMI (up to 3840x2160), 1x VGA (Dual Display Support) |
| USB порттору | 3x USB 3.2 Gen1 |
| Network | 1x RJ45 LAN (1000M), Wi-Fi 5 (Intel 9560D2W) |
| Bluetooth | Bluetooth 5.1 |
| Башка порттор | SD Card Reader, Audio Connector |
| Өлчөмдөр | 120 мм x 120 мм x 25 мм (болжол менен 4.72 x 4.72 x 0.98 дюйм) |
| Салмагы | Less than 250g (device only), 540g (packaged) |
| Электр камсыздоо | 12V/2A |

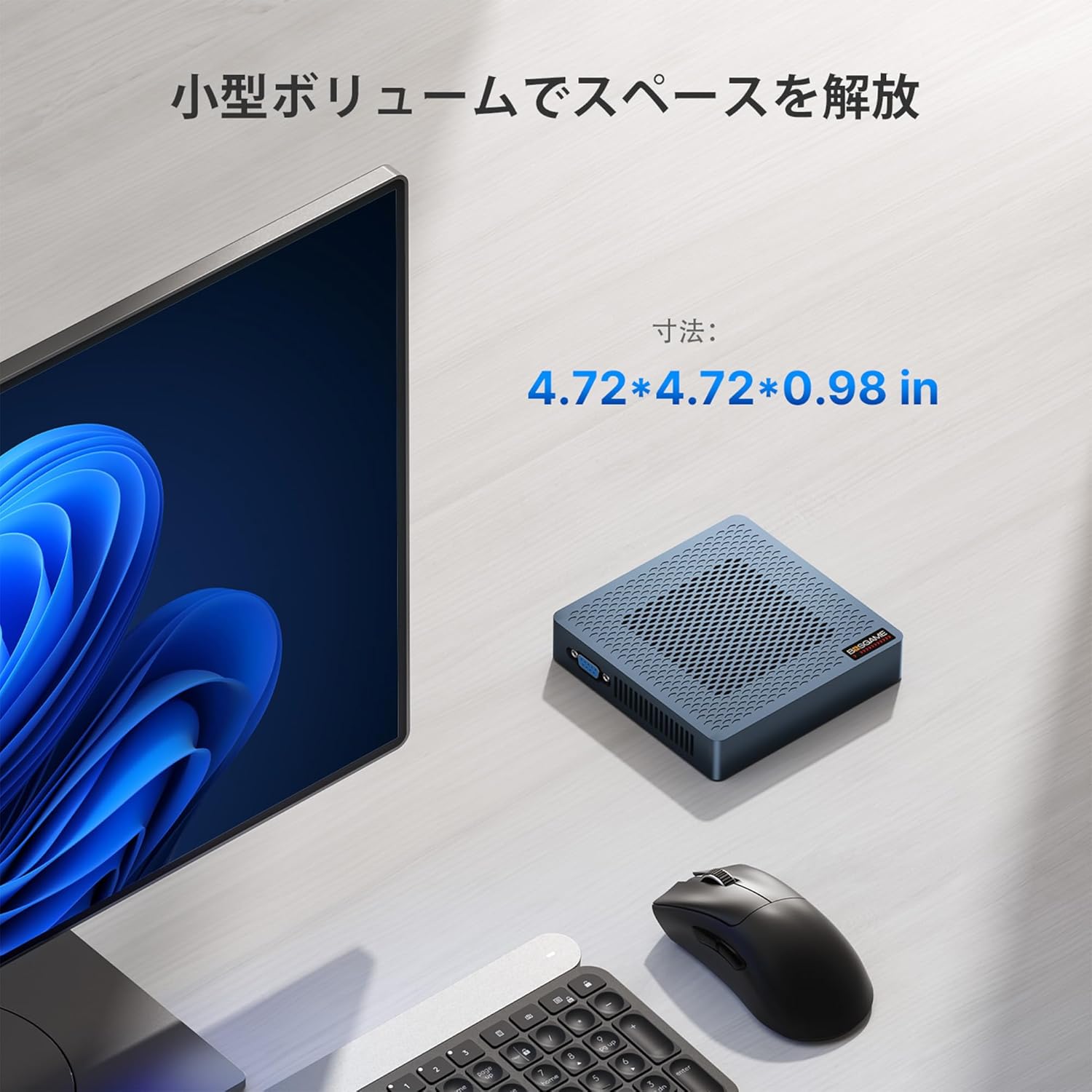

Image 9.1: The compact size of the Mini PC, designed to save space on your desk.
10. Кепилдик жана колдоо
All BOSGAME Mini PCs undergo rigorous testing before leaving the factory to ensure product stability and reliability. The AG40 complies with Japanese certifications such as PSE and TELEC.
- Кепилдик: Your BOSGAME AG40 Mini PC comes with a 2-year warranty from the date of purchase.
- Кардарларды колдоо: If you have any questions or require assistance, please contact our professional support staff. Refer to your purchase documentation or the BOSGAME official webбайланыш маалыматы үчүн сайт.
Image 10.1: Diverse applications of the BOSGAME AG40 Mini PC, showcasing its versatility in different professional and personal settings.
