Introduction
Thank you for choosing the WELLFOR NK Faucet Bathroom Waterfall Faucet. This manual provides essential information for the safe installation, operation, and maintenance of your new faucet. Please read these instructions thoroughly before installation and keep them for future reference.
Коопсуздук маалыматы
- Кранды орнотуудан же ага кандайдыр бир техникалык тейлөө жүргүзүүдөн мурун ар дайым негизги суу менен камсыздоону өчүрүңүз.
- Орнотуу учурунда коопсуздук көз айнек сыяктуу тиешелүү жеке коргоочу шаймандарды тагыныңыз.
- Суу агып кетпеши үчүн бардык туташуулардын коопсуз экенин текшериңиз.
- Орнотуу процессинин кандайдыр бир бөлүгүнө ишенбесеңиз, квалификациялуу сантехникке кайрылыңыз.
- This product is designed for bathroom sink use only.
Пакеттин мазмуну
Орнотууну баштоодон мурун бардык компоненттер бар экендигин текшериңиз:
- WELLFOR NK Faucet (Main Body)
- Single кармай
- Deck Plate
- Көчмө дренаждык чогултуу
- Монтаждоочу жабдык
- Ысык жана муздак суу менен камсыздоо линиялары
Орнотуу жана орнотуу
The WELLFOR NK Faucet is designed for easy deck-mount, vessel installation. Follow these general steps for installation. Specific details may vary based on your sink and plumbing setup.
- Раковинаны даярдаңыз: Ensure the sink hole is clean and appropriately sized for the faucet. If using a deck plate, place it over the sink hole.
- Кранды орнотуу: Insert the faucet body through the sink hole (and deck plate, if used). From underneath the sink, secure the faucet with the provided washer and mounting nut. Tighten firmly but do not overtighten.
- Суу менен камсыздоо линияларын туташтыруу: Attach the hot and cold water supply lines to the corresponding inlets on the faucet body. Connect the other ends to your hot and cold water supply valves. Ensure all connections are hand-tight, then use a wrench for a final quarter-turn.
- Көчмө дренажды орнотуу: Follow the instructions provided with the pop-up drain assembly to install it into your sink's drain opening. Connect the drain linkage (if applicable) to the faucet.
- Агышуу үчүн сыноо: Slowly turn on the main water supply. Check all connections for leaks. If leaks occur, tighten the connections further.

1-сүрөт: Technical diagram showing the dimensions of the WELLFOR NK Faucet, including spout height (10.03 inches), spout reach (4.92 inches), and base measurements. This diagram is essential for planning installation and ensuring compatibility with your sink.

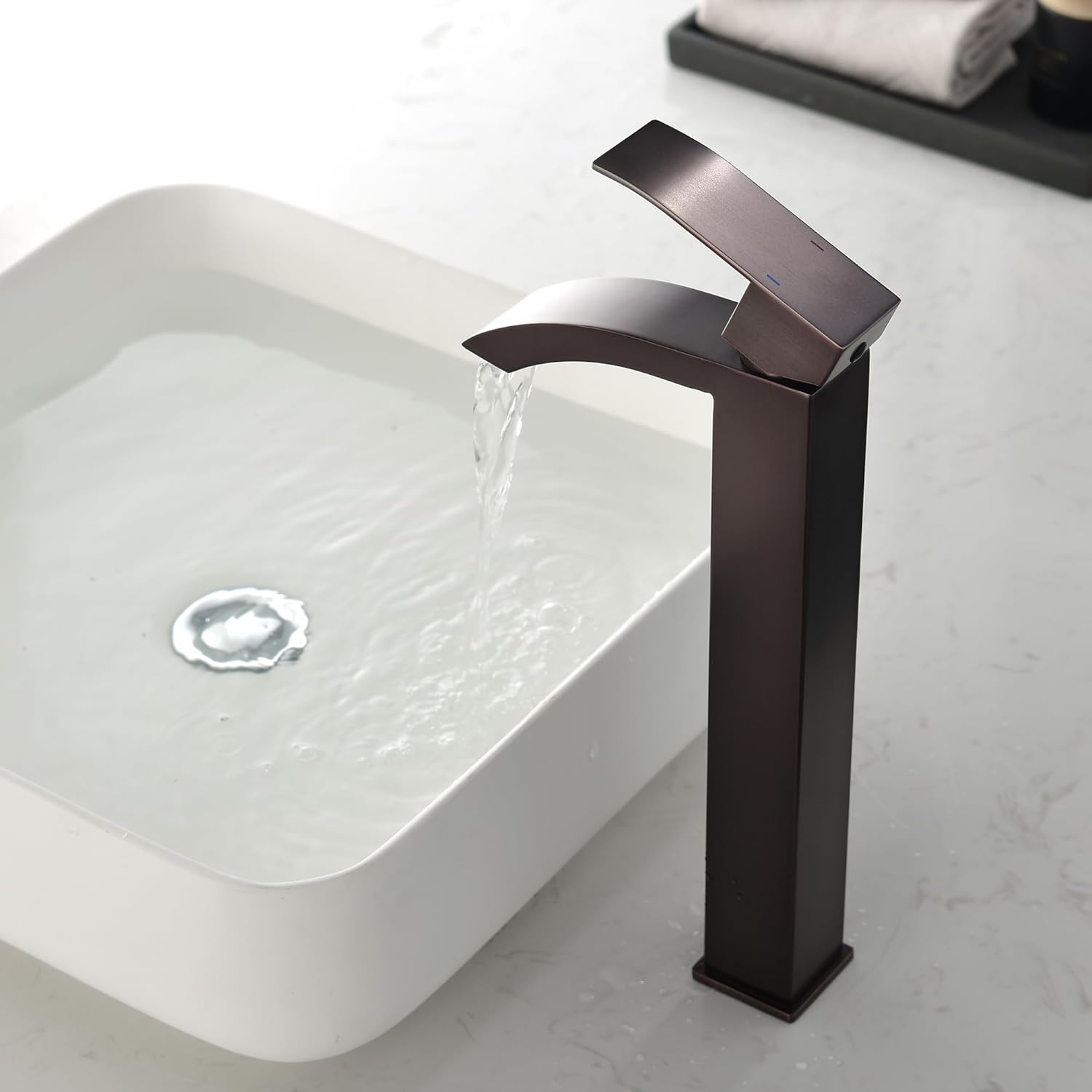

2-сүрөт: Image of the WELLFOR waterfall faucet installed on a bathroom sink, with water flowing into the basin. This illustrates the faucet's appearance and water delivery in a typical setup.
Иштөө нускамалары
The WELLFOR NK Faucet features a single handle for controlling both water temperature and flow.
- Суу агымы: Lift the handle upwards to turn on the water and increase flow. Push the handle downwards to decrease flow and turn off the water.
- Суунун температурасы: Ысык суу үчүн тутканы солго, муздак суу үчүн оңго жылдырыңыз. Каалаган суунун температурасына жетүү үчүн тутканын абалын солго жана оңго тууралаңыз.
- Шаркыратма түтүгү: The faucet delivers a clear and steady laminar waterfall stream, enhancing the aesthetic and user experience.

3-сүрөт: A hand adjusting the single handle of the WELLFOR faucet, demonstrating how to control water flow and temperature.

4-сүрөт: Hands placed under the flowing waterfall stream from the faucet, illustrating the water delivery pattern.
Техникалык тейлөө
Regular cleaning and maintenance will ensure the longevity and optimal performance of your WELLFOR faucet.
- Тазалоо: Clean the faucet regularly with a soft cloth and mild soap. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the oil rubbed bronze finish.
- Суу тактары: Суу тактарынын алдын алуу үчүн, ар бир колдонгондон кийин кранды кургатып сүртүңүз.
- Aerator (if applicable): Periodically check and clean the aerator (if present) to remove any mineral buildup that might affect water flow.
Проблемаларды чечүү
Эгерде сиз краныңыз менен көйгөйлөргө туш болсоңуз, төмөнкү кеңири таралган көйгөйлөрдү жана чечимдерди караңыз:
- Төмөн суунун агымы:
- Суу менен камсыз кылуучу клапандар толугу менен ачык экенин текшериңиз.
- Inspect the supply lines for kinks or obstructions.
- Clean the aerator (if applicable) for mineral buildup.
- Leaks from Faucet Base:
- Ensure the mounting nut under the sink is securely tightened.
- Check the O-rings and gaskets for proper seating and damage.
- Leaks from Handle:
- This may indicate an issue with the internal cartridge. Contact customer support for assistance.
- Ысык же муздак суу жок:
- Verify that the hot/cold water supply valves are open.
- Check if the hot/cold supply lines are correctly connected to the faucet.
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | WELLFOR |
| Модель аты | NK faucet |
| Монтаж түрү | Deck Mount |
| Орнотуу түрү | Кеме |
| Аяктоо түрү | Мунай сүртүлгөн коло |
| Материал | Brass, Ceramic (Handle) |
| Туткалардын саны | 1 |
| Максималдуу агым ылдамдыгы | Мүнөтүнө 1.2 галлон |
| сүйлөйсүз Бийиктиги | 10.03 дюйм |
| Spout Reach | 4.92 дюйм |
| Продукциянын өлчөмдөрү | 4.56"D x 4.56"W x 6.61"H |
| Элемент Салмагы | 2.6 фунт |
| Өзгөчөлүктөр | Lead Free, Lightweight, Pop Up Drain |
| UPC | 769047275092 |
Кепилдик жана колдоо
WELLFOR products are manufactured to high-quality standards and are backed by a manufacturer's warranty. For specific warranty details, claims, or technical support, please refer to the warranty card included with your product or visit the official WELLFOR website. Please have your model number (NK faucet) and purchase information ready when contacting support.
