Lehmann Universal 3-in-1 Kitchen Machine User Manual

Introduction

This manual provides essential instructions for the safe and efficient operation, maintenance, and care of your Lehmann Universal 3-in-1 Kitchen Machine. Please read this manual thoroughly before first use and retain it for future reference.

Image: The Lehmann Universal 3-in-1 Kitchen Machine displayed with its main unit, stainless steel bowl, blender, meat grinder, and various attachments including dough hook, whisk, beater, and meat grinder plates.

Коопсуздук нускамалары

Өрт, электр тогуна урунуу жана адамдардын жаракат алуу коркунучун азайтуу үчүн электр шаймандарын колдонууда ар дайым негизги коопсуздук чараларын сактаңыз.

• Монтаждоо, демонтаждоо же тазалоодон мурун шаймандын розеткадан ажыратылганын текшериңиз.
• Мотор блогун сууга же башка суюктуктарга батырбаңыз.
• Колду жана идиштерди иштөө учурунда кыймылдуу бөлүктөрдөн алыс кармаңыз.
• Шайманды эч качан бузулган шнур же сайгыч менен иштетпеңиз.
• Шайман колдонулуп жатканда балдарды кылдаттык менен көзөмөлдөңүз.
• Түзмөктү туруктуу, тегиз жана кургак бетке коюңуз.
• Өндүрүүчү тарабынан сунушталбаган же сатылбаган тиркемелерди колдонбоңуз.
• кыймылдуу бөлүктөргө тийбегиле.
• Шайманды ашыкча жүктөбөңүз.

Компоненттер бүттүview

Familiarize yourself with the main components of your Lehmann Kitchen Machine:

• Негизги блок: Houses the motor and speed control.
• Stainless Steel Bowl (5L): For mixing, kneading, and whisking.
• Transparent Splash Guard: Prevents splashing during operation.
• Камыр илгич: For heavy doughs like bread or pizza.
• Уруучу: For medium-heavy mixtures like cakes, cookies, or mashed potatoes.
• Камчы: For light mixtures like egg whites, cream, or light batters.
• Эт майдалагычтын тиркемеси: For grinding various meats. Includes fine, medium, and coarse plates.
• Blender Attachment (1.5L): Суюктуктарды, смузилерди жана соустарды аралаштыруу үчүн.
• Ылдамдыкты башкаруу терүү: Adjusts the operating speed (0-6 settings).
• Tilting Head Release Button: Allows the head to be lifted for attachment changes and bowl access.

Image: The three primary mixing attachments: a sturdy dough hook for heavy mixtures, a flat beater for general mixing, and a wire whisk for aerating ingredients.

Орнотуу жана баштапкы колдонуу

1. Пакеттен чыгаруу: Бардык компоненттерди таңгактан кылдаттык менен алып салыңыз. Келечекте сактоо же ташуу үчүн таңгактарды сактаңыз.
2. Алгачкы тазалоо: Before first use, wash the stainless steel bowl, splash guard, dough hook, beater, whisk, and all parts of the meat grinder and blender attachments in warm soapy water. Rinse thoroughly and dry completely. Wipe the main unit with a damp кездеме.
3. Жайгашкан жери: Place the main unit on a clean, dry, and stable surface. Ensure adequate ventilation around the appliance.
4. Табакты бекитүү: Place the stainless steel bowl into its base on the main unit and turn it clockwise until it locks securely into place.
5. Аралаштыруу куралдарын бекитүү:
   • Press the tilting head release button and lift the motor head.
   • Insert the desired attachment (dough hook, beater, or whisk) into the shaft, pushing upwards and turning slightly until it locks.
   • Мотордун башын чыкылдатмайынча ылдый түшүрүңүз.
6. Attaching Meat Grinder:
   • Негизги блоктун розеткадан суурулганын текшериңиз.
   • Remove the front cover from the attachment port on the front of the machine.
   • Insert the meat grinder assembly, aligning the drive shaft with the port, and turn clockwise to secure.
   • Attach the desired grinding plate and securing ring.
7. Attaching Blender:
   • Негизги блоктун розеткадан суурулганын текшериңиз.
   • Place the blender jug onto the top attachment port, aligning the base with the drive mechanism, and turn clockwise to secure.

Image: The kitchen machine with its head raised, demonstrating the installation of both the meat grinder and blender attachments, highlighting its multi-functional design.

Иштөө нускамалары

Жалпы операция

1. Ensure the appliance is correctly assembled and plugged into a suitable power outlet.
2. Add ingredients to the bowl or attachment.
3. Select the desired speed using the speed control dial (settings 1-6). Start with lower speeds and gradually increase as needed.
4. After use, turn the speed dial to "0" and unplug the appliance.

Mixing, Kneading, and Whisking

Use the stainless steel bowl with the appropriate attachment:

• Камыр илгич: For heavy doughs (e.g., bread, pizza). Use speeds 1-3.
• Уруучу: For medium-heavy mixtures (e.g., cakes, cookies, frostings). Use speeds 2-4.
• Камчы: For light mixtures (e.g., egg whites, cream, light batters). Use speeds 4-6.

Always ensure the splash guard is in place to prevent ingredients from escaping the bowl during operation.

Image: Visual guide demonstrating the application of each mixing attachment: the whisk for light, airy mixtures, the beater for creamy batters, and the dough hook for dense doughs.

Meat Grinder Operation

1. Ensure the meat grinder is securely attached with the desired grinding plate.
2. Cut meat into small pieces that fit into the feeding tube.
3. Майдаланган этти чогултуу үчүн майдалагычтын астына идиш коюңуз.
4. Turn the appliance on to a low to medium speed (e.g., speed 2-3).
5. Feed meat into the tube using the food pusher. Never use your fingers or other utensils.
6. After grinding, turn off the appliance and unplug it before disassembling.

Image: The meat grinder attachment actively processing meat, demonstrating its function and the output of ground meat.

Блендердин иштеши

1. Блендер кумурасы үстүнкү портко бекем бекитилгенин текшериңиз.
2. Блендер идишке ингредиенттерди кошуңуз. Максималдуу толтуруу сызыгынан ашпаңыз.
3. Капкагын бекем бекитиңиз.
4. Turn the appliance on to a desired speed (e.g., speed 3-6) for blending.
5. For best results, start with lower speeds and gradually increase.
6. After blending, turn off the appliance and unplug it before removing the jug.

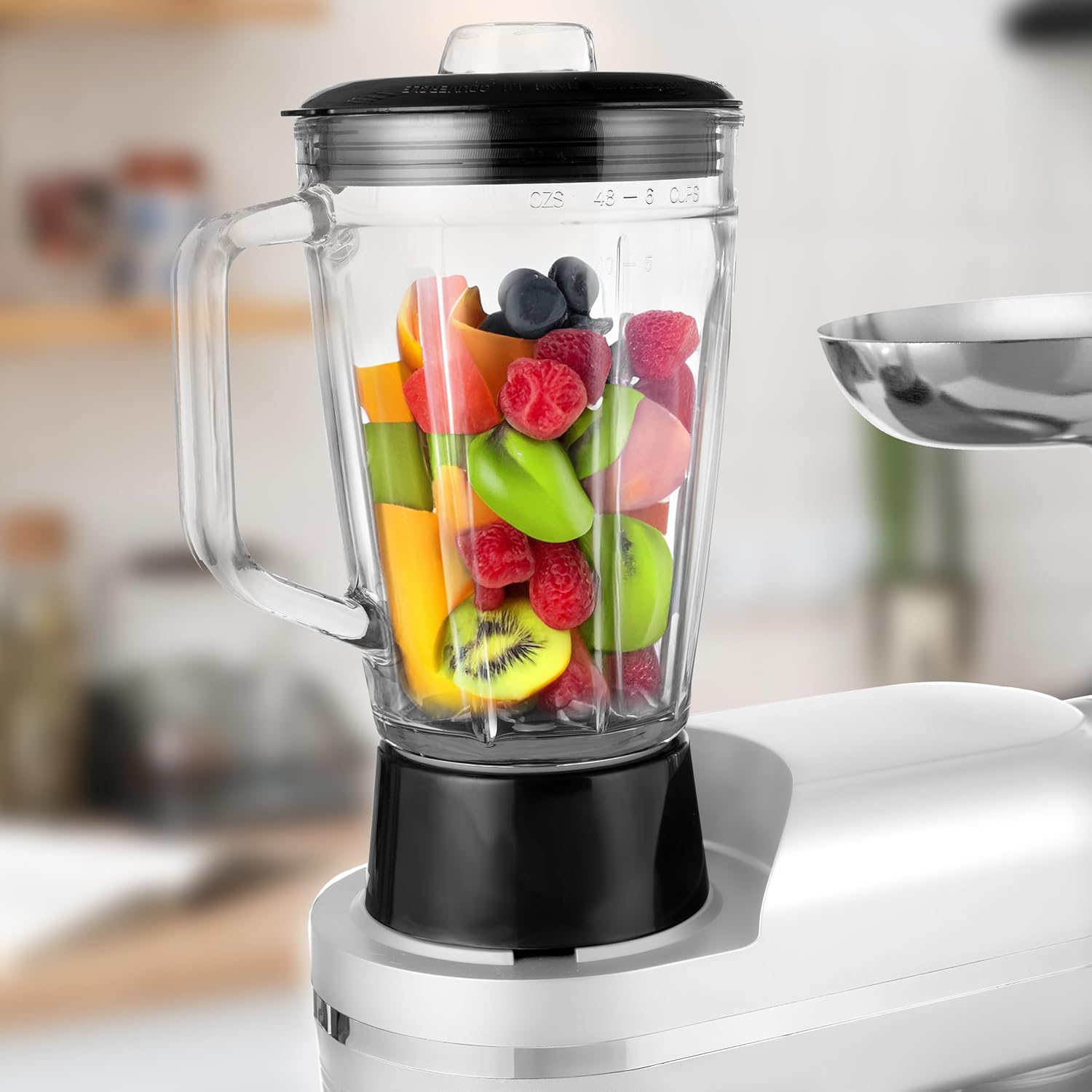

Image: The blender jug filled with a colorful assortment of fresh fruits and berries, illustrating its readiness for preparing smoothies or juices.

Тейлөө жана тазалоо

Үзгүлтүксүз тазалоо ашкана машинаңыздын узак иштөөсүн жана оптималдуу иштешин камсыз кылат.

1. Шайманды дайыма розеткадан чыгарыңыз тазалоо алдында.
2. Мотор бирдиги: Негизги блокту жумшак менен сүртүңүз, damp кездеме. Абразивдүү тазалагычтарды колдонбоңуз же сууга чөмтүрбөңүз.
3. Stainless Steel Bowl, Splash Guard, Mixing Tools (Dough Hook, Beater, Whisk): These parts can be washed in warm soapy water, rinsed, and dried thoroughly. They are not dishwasher safe.
4. Meat Grinder Parts: Disassemble the meat grinder completely. Wash all parts (housing, screw, blade, plates, ring) in warm soapy water. Use a brush to remove any food residue. Rinse and dry immediately to prevent rust.
5. Блендер идиш: The blender jug can be washed in warm soapy water. For stubborn residue, fill with warm water and a drop of dish soap, then run on a low speed for a few seconds before rinsing. Not dishwasher safe.
6. Сактагыч: Store the appliance and its accessories in a dry, clean place.

Проблемаларды чечүү

Техникалык шарттар

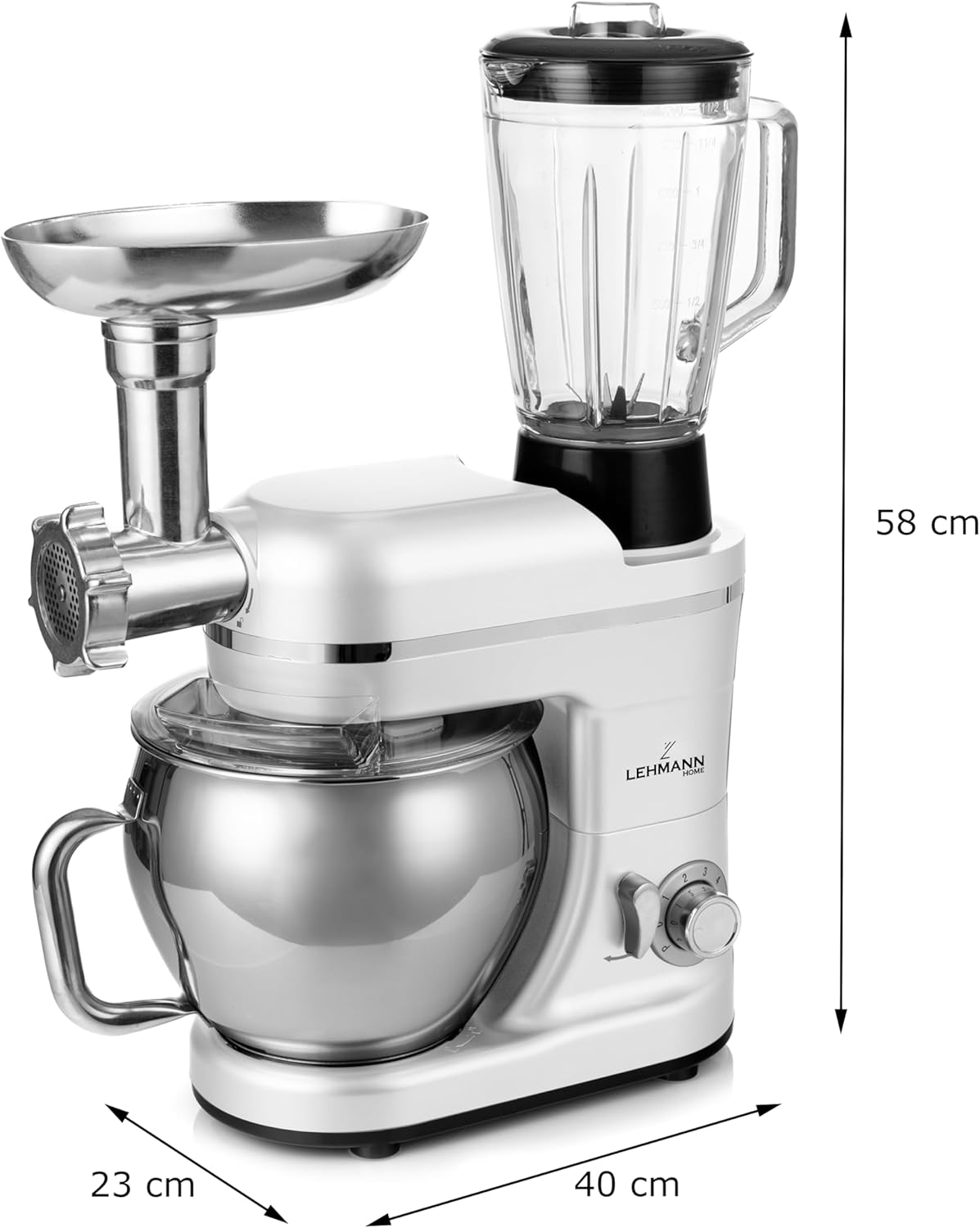

Сүрөт: бир тарап view of the kitchen machine with clear labels indicating its approximate dimensions: 58 cm in height, 40 cm in width, and 23 cm in depth.

Кепилдик жана колдоо

LEHMANN products are manufactured to high-quality standards. For warranty information, please refer to the warranty card included with your product or visit the official LEHMANN website. For technical support or service inquiries, please contact LEHMANN customer service through their official channels.

Өндүрүүчү: Леманн

Модель номери: LHOPM-1305A-W

ASIN: B0DHLJQBKH

UPC: 5905999063638
