DROK суу өткөрбөй турган батарея монитору (8-100V) колдонуучунун колдонмосу

1. Киришүү

This manual provides instructions for the DROK Waterproof Battery Monitor, a versatile device designed to measure and display battery voltage, capacity, and remaining percentage. It is suitable for various battery types including lithium and lead-acid batteries, operating within an 8-100V range. This monitor is ideal for applications in motorcycles, golf carts, cars, marine vessels, RVs, boats, and solar generators.

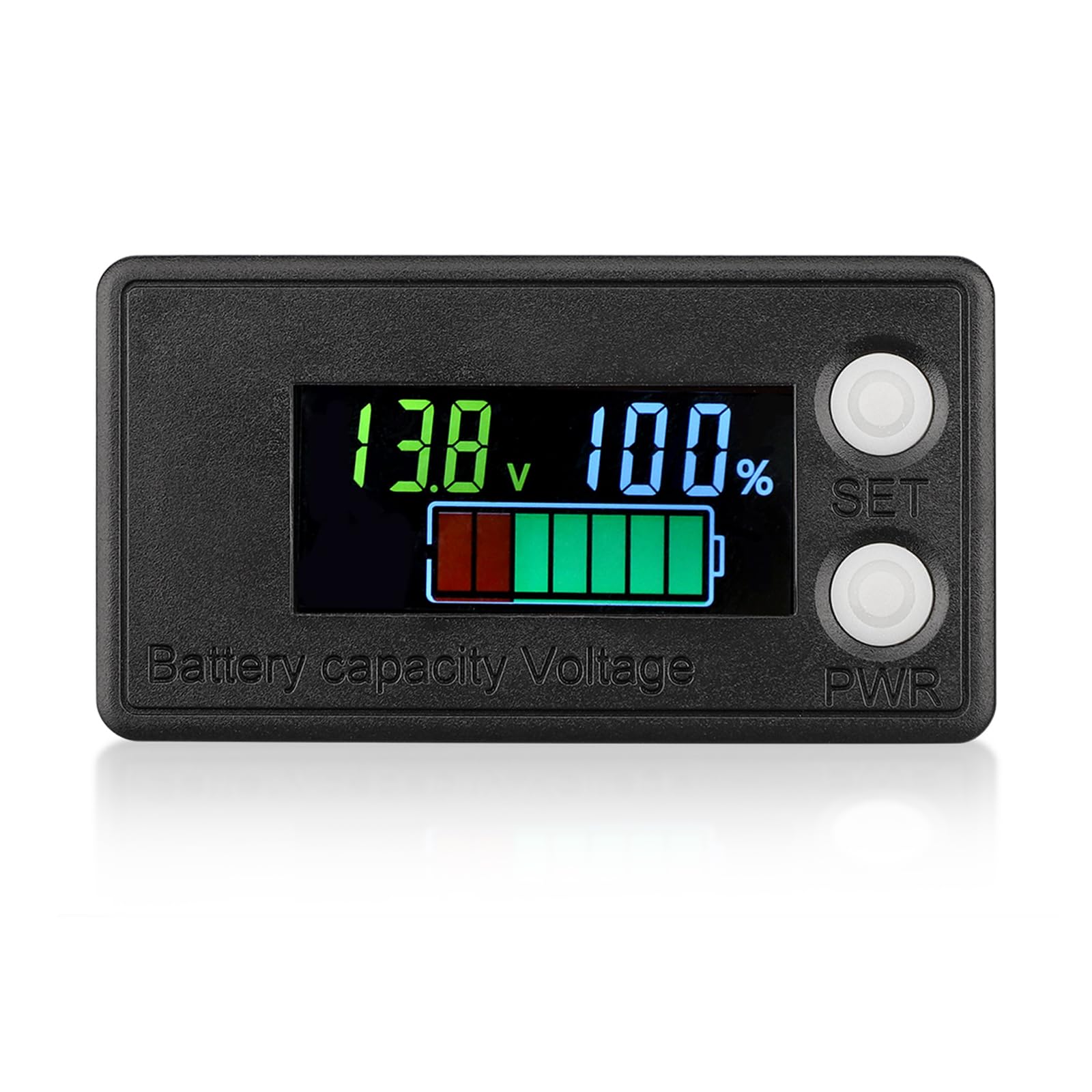

Figure 1: DROK Waterproof Battery Monitor displaying 13.8V and 100% capacity.

2. Продукциянын өзгөчөлүктөрү

• All-in-One Display: Simultaneously displays battery voltage, capacity, and remaining percentage on an upgraded LCD screen, eliminating the need to switch interfaces.
• Wide Voltage Шайкештик: Supports 8-100V systems, compatible with 12V, 24V, 36V, 48V, 72V, and 84V battery configurations.
• Кеңири Батарея Түрүн Колдоо: Suitable for lithium batteries (ternary lithium, polymer lithium-ion), and lead-acid batteries.
• Суу өткөрбөйт дизайн: The panel is designed to protect internal components from moisture and corrosion, enhancing durability.
• Полярдуулукту кайтаруу: Safeguards the device and battery from damage due to incorrect wiring.
• Automatic Save on Power Outage: Retains settings and data even after power loss.
• Төмөн энергия керектөө: Efficient operation minimizes drain on the battery.
• Low Voltage Ойготкуч: Provides an alert when battery voltage drops below a set threshold.
• Тtage Калибрлөө: Features a potentiometer on the back for precise voltage тууралоо.

Figure 2: Key features of the DROK Battery Monitor, including LCD display and various protections.

3. Орнотуу нускамалары

3.1. Орнотуу

1. Монтаждоо ордун даярдоо: Choose a suitable location for the monitor. The installation dimension is 58.5x28.5mm. Ensure adequate space behind the panel for wiring.
2. Кесип ачуу: Carefully cut an opening of 58.5mm x 28.5mm in the chosen panel using appropriate tools.
3. Insert Monitor: Insert the DROK Battery Monitor into the cut opening.
4. Коопсуз монитор: Secure the monitor in place using the provided mounting mechanism or clips (if applicable).

3.2. Электр зымдары

The monitor typically uses a two-wire connection for power and voltagэ сезүү.

• Кызыл зым: Connect the red wire to the positive (+) terminal of the battery or power source.
• Кара зым: Connect the black wire to the negative (-) terminal of the battery or power source.

Ensure connections are secure and observe reverse polarity protection. Incorrect wiring can damage the device, although the monitor has built-in protection.

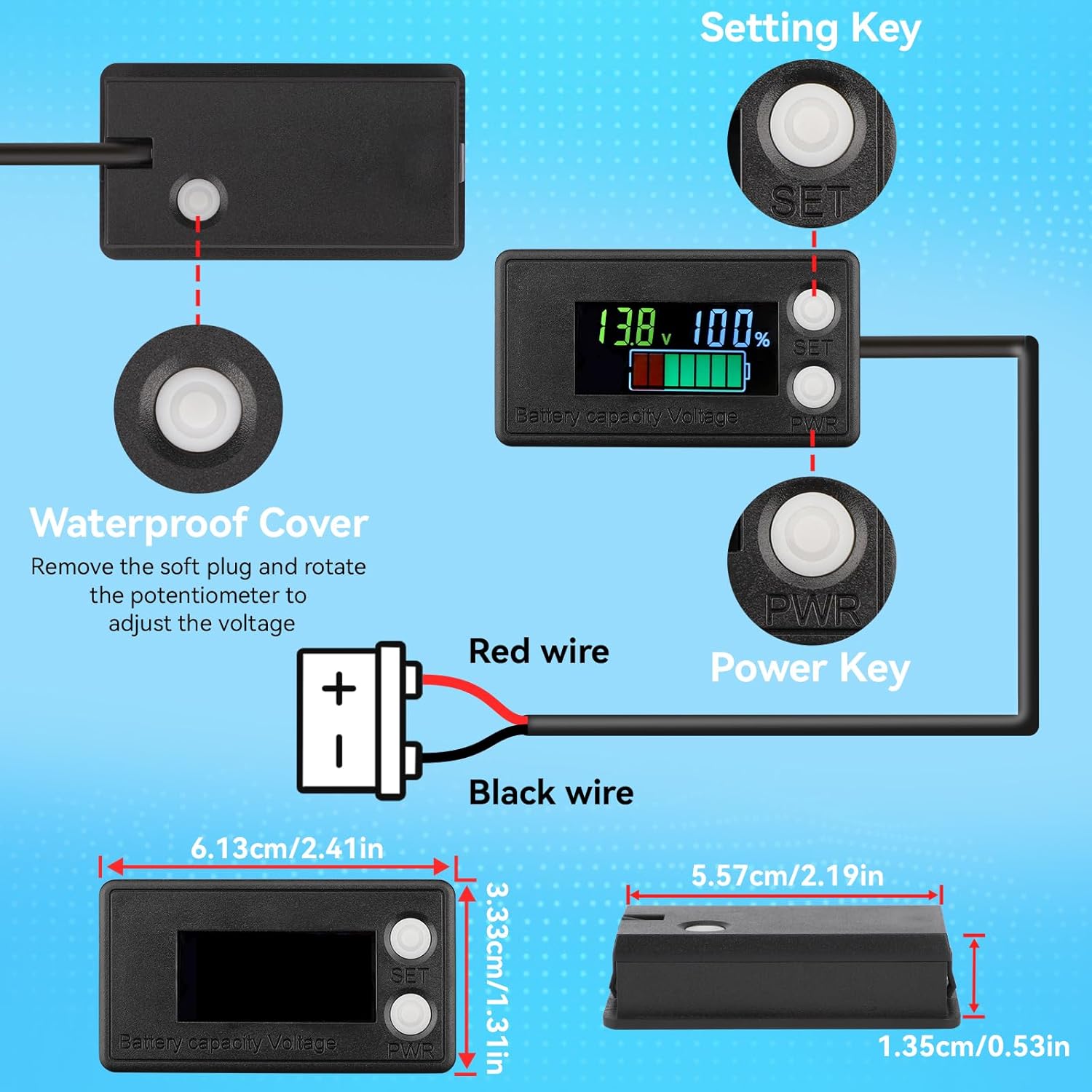

Figure 3: Wiring diagram and physical dimensions of the DROK Battery Monitor.

3.3. Томtage Калибрлөө

For optimal accuracy, the monitor features a voltage calibration potentiometer.

1. Locate Potentiometer: Remove the soft plug from the back of the monitor to access the voltage calibration potentiometer.
2. Voltage: Using a small screwdriver, gently rotate the potentiometer to adjust the displayed voltage to match a known accurate voltage reading from a multimeter.
3. Шайманды алмаштыруу: Once calibrated, replace the soft plug to maintain the waterproof seal.

Figure 4: Location of the voltage calibration potentiometer on the back of the monitor.

4. Иштөө нускамалары

4.1. Күйгүзүү / Өчүрүү

• Күйгүзүү: Once correctly wired, the monitor will power on automatically and display the battery status.
• Өчүрүү: Disconnect the power supply to turn off the monitor. The device has low power consumption when idle.

4.2. Display Interpretation

The LCD screen simultaneously displays three key parameters:

• Тtage (V): Учурдагы батареянын кубатын көрсөтөтtage.
• Capacity Bar: A graphical representation of the remaining battery capacity.
• Персенtage (%): Displays the remaining battery capacity as a percentage.

Figure 5: The monitor's "All in 1 Interface" displaying voltage, capacity bar, and percentage.

4.3. Setting Key (SET)

The "SET" button is used for configuration. Specific functions may vary based on firmware version. Refer to the detailed programming instructions for advanced settings, such as battery type selection or low voltage alarm thresholds. (Note: Detailed programming instructions are not provided in the product description and may require consulting the manufacturer's website or a separate guide.)

5. Техникалык тейлөө

• Тазалоо: Дисплейди сүртүңүз жана вasing жумшак менен, гamp кездеме. Абразивдүү тазалагычтардан же эриткичтерден качыңыз.
• Суу өткөрбөйт коргоо: The monitor is waterproof. However, ensure the back soft plug for calibration is securely in place to maintain its waterproof integrity, especially in marine or outdoor environments.
• Туташуу текшерүү: Periodically inspect wiring connections for corrosion or looseness to ensure stable transmission and accurate readings.
• Сактагыч: If storing the device for an extended period, disconnect it from the battery.

Figure 6: The waterproof design protects internal components from moisture and corrosion.

6. Кыйынчылыктарды

7. Техникалык шарттар

Figure 7: Wide application of the DROK Battery Monitor across different battery types and vehicles.

8. Кепилдик жана колдоо

8.1. Кепилдик маалыматы

Specific warranty details for the DROK Waterproof Battery Monitor are typically provided at the point of purchase or on the manufacturer's official webсайт. Кепилдик дооматтары үчүн сатып алганыңызды тастыктаган документти сактап коюңуз. Кепилдик, адатта, кадимки колдонуу шарттарындагы өндүрүштүк кемчиликтерди камтыйт.

8.2. Кардарларды колдоо кызматы

For technical assistance, troubleshooting not covered in this manual, or warranty inquiries, please contact DROK customer support. Refer to the packaging or the official DROK webакыркы байланыш маалыматы үчүн сайт.

Онлайн ресурстар: Visit the official DROK webпродукт жаңыртуулары, көп берилүүчү суроолор жана кошумча колдоо документтери үчүн сайт.
