VIKIO HOME 30-Inch Range Hood Insert User Manual

1. Киришүү

This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your VIKIO HOME 30-inch Built-in Range Hood Insert, Model VK-RB11-30. Please read this manual thoroughly before installation and use to ensure proper function and safety. Keep this manual for future reference.

2. Маанилүү коопсуздук нускамалары

Өрт, электр тогуна урунуу же жаракат алуу коркунучун азайтуу үчүн төмөнкүлөрдү сактаңыз:

• Орнотуу бардык жергиликтүү коддорго жана стандарттарга ылайык келиши керек.
• Электр менен жабдуунун туура жерге туташтырылганын текшериңиз.
• Do not leave surface units unattended at high settings. Boil-overs can cause smoking and greasy spill-overs that may ignite.
• Always turn the hood OFF when not in use.
• Желдетүүчү желдеткичтерди бат-баттан тазалап туруңуз. Майдын желдеткичке же фильтрге топтолушуна жол бербеш керек.
• Use only with approved ductwork.
• Do not use plastic ducting.
• Тейлөөдөн же тазалоодон мурун ар дайым кубаттан ажыратыңыз.

3. Продукт бүтүп калдыview & Өзгөчөлүктөрү

The VIKIO HOME 30-inch Range Hood Insert is designed to provide efficient ventilation for your kitchen, removing smoke, grease, and odors. It features a powerful motor, intuitive controls, and durable construction.

Негизги өзгөчөлүктөрү:

• Powerful 900 CFM Airflow: Equipped with a dual suction motor for strong smoke and odor removal.
• Канализацияланган/каналсыз кабриолет: Suitable for both ducted and ductless kitchen setups. Includes activated carbon filters for ductless use.
• Жаңсоолорду сезүү жана тийүү менен башкаруу: Advanced control panel allows for hands-free operation and precise adjustments.
• 3-тез желдеткич: Adjustable fan speeds (Low, Medium, High) to suit various cooking needs.
• Жогорку натыйжалуу фильтрация: Two 5-layer aluminum mesh filters effectively trap grease. Filters are dishwasher safe for easy cleaning.
• Туруктуу курулуш: Made with 1mm thick stainless steel and tempered glass for a modern aesthetic and longevity.
• LED жарыктандыруу: Two 3W LED lights provide bright, natural illumination for the cooking area.
• Тынч иштөө: Engineered for low noise levels, with a low speed noise of 35 dB and high speed noise of 60 dB.
• Delayed Shut-off Function: Automatically turns off after 3 minutes to clear residual smoke.

Image: The VIKIO HOME range hood insert efficiently removes smoke from a stovetop, maintaining a clean kitchen environment.

Image: The range hood operates quietly, allowing for a peaceful cooking experience.

Image: Diagram illustrating the powerful extraction and convertible ducted/ductless options, including carbon filters for ductless use.

4. Орнотуу боюнча колдонмо

This section provides general guidance for installing your range hood. For detailed diagrams and specific measurements, refer to the included installation user manual.

4.1 Required Tools & Parts:

Ensure you have all necessary tools and the following components:

• VIKIO HOME Range Hood Insert (Model VK-RB11-30)
• 2 x 5-layer aluminum mesh filters
• 2 x 3W LED lights
• 2 x Activated carbon filters (for ductless installation)
• All included installation hardware (screws, anchors, etc.)
• Standard installation tools (drill, screwdriver, tape measure, level, etc.)

4.2 Орнотууга чейинки кадамдар:

1. Unpack the range hood and inspect for any damage.
2. Бардык коргоочу пленкаларды жана таңгактоочу материалдарды алып салыңыз.
3. Ensure the installation area (cabinet opening) meets the product dimensions.
4. Verify electrical requirements (120V / 60Hz) and proper grounding.
5. Determine if you will be installing as ducted (vented to outside) or ductless (recirculating with carbon filters).

4.3 Mounting & Ducting:

The range hood is designed for insert mounting into a cabinet. Ensure adequate support structure is in place. The exhaust port is located at the top and is 6-inch rectangular. For ducted installations, connect appropriate ductwork. For ductless installations, ensure activated carbon filters are installed.

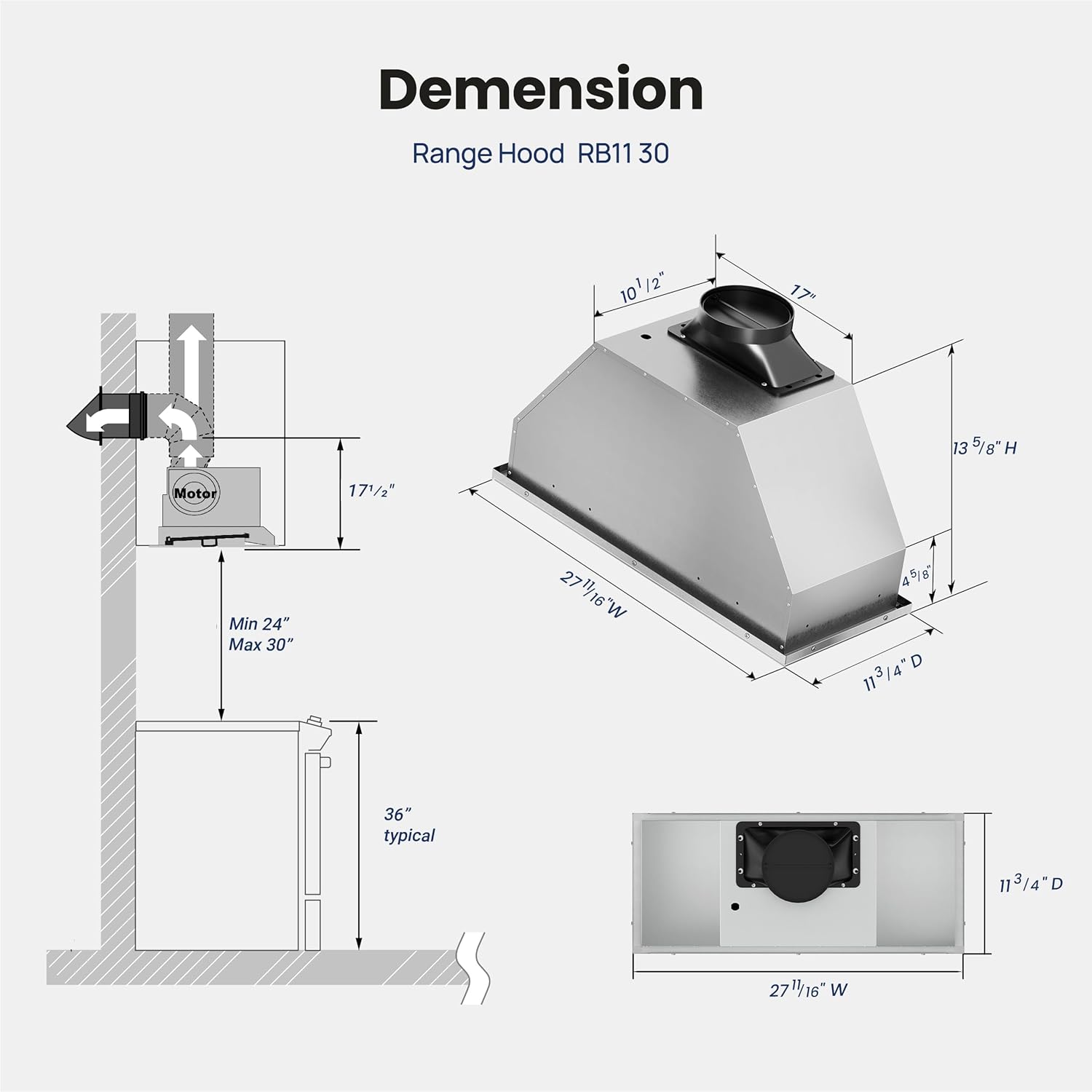

Image: Detailed dimensions (11.81"D x 27.75"W x 13.7"H) and a diagram illustrating the installation process, including minimum and maximum height above the cooking surface (Min 24", Max 30").

5. Иштөө нускамалары

Your VIKIO HOME range hood features both touch controls and gesture sensing for convenient operation.

5.1 Башкаруу панелинин функциялары:

• Күйгүзүү/өчүрүү баскычы: Капотту күйгүзүү же өчүрүү үчүн басыңыз.
• Жарык баскычы: LED чырактарын күйгүзүү же өчүрүү үчүн басыңыз.
• Вентилятордун ылдамдыгынын баскычтары (төмөн, орто, жогорку): Каалаган желдеткич ылдамдыгын тандаңыз.
• On/Off/Delay Button: Activates the delayed shut-off function.

5.2 Gesture Sensing:

The gesture sensing feature allows you to control the hood with a simple hand wave. Ensure your hand moves horizontally over the sensing points, maintaining a distance no closer than 5.9 inches from the panel.

• Күйгүзүү/өчүрүү: Wave your hand across the sensing points to activate or deactivate the hood.
• Желдетүүчү ылдамдыгын жөндөө: Continue waving your hand to cycle through Low, Medium, and High fan speeds.

Image: Diagram illustrating the gesture sensing functionality, allowing hands-free control of the range hood.

5.3 Delayed Shut-off:

After cooking, press the 'On/Off/Delay' button. The hood will continue to operate for 3 minutes to clear any remaining smoke or odors, then automatically shut off.

6. Техникалык тейлөө

Үзгүлтүксүз тейлөө сиздин капотуңуздун оптималдуу иштешин жана узак иштөөсүн камсыздайт.

6.1 Cleaning Filters:

The 5-layer aluminum mesh filters should be cleaned regularly, depending on cooking frequency. They are dishwasher safe.

1. Соргучтун өчүрүлгөнүн жана розеткадан суурулганын текшериңиз.
2. Carefully unlatch and remove the filters.
3. Фильтрлерди идиш жуугуч машинага салыңыз же жылуу, самындуу суу менен кол менен жууңуз.
4. Кайра орнотуудан мурун чыпкаларды толугу менен кургатууга уруксат бериңиз.
5. Re-install the filters by aligning them and pushing them into place until they click securely.

Image: Diagram illustrating the 2-layer precision filtration system, designed for effortless cleaning and effective grease separation.

6.2 Cleaning Surfaces:

Wipe the stainless steel and tempered glass surfaces with a soft cloth and a mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive pads that could scratch the finish.

6.3 Replacing LED Lights:

The LED lights are designed for easy replacement. Refer to the detailed instructions in the included manual for specific steps.

7. Кыйынчылыктарды

Капотуңузда көйгөйлөргө туш болсоңуз, төмөнкү жалпы көйгөйлөрдү жана чечимдерди караңыз:

If the problem persists after attempting these solutions, please contact VIKIO HOME customer support.

8. Техникалык шарттар

9. Кепилдик жана колдоо

VIKIO HOME is committed to providing high-quality products and excellent customer service.

9.1 Продукциянын кепилдиги:

• 5 жылдык кепилдик: Applies to the motor.
• 5 жылдык кепилдик: Applies to the switch control and LED lights.

Бул кепилдик нормалдуу колдонуудагы материалдардагы жана жасалгадагы кемчиликтерди камтыйт. Кепилдик дооматтары үчүн сатып алганыңыздын далилин сактап коюңуз.

9.2 Кардарларды колдоо:

For any questions, assistance, or to request free replacement accessories (such as filters and lights) if needed, please contact our professional customer service team.

Электрондук почта: info@vikiohome.com

Our team is dedicated to providing prompt and helpful support.
