Zyxel XGS1935-52HP 48-порттук гигабиттик Ethernet акылдуу башкарылуучу PoE+ коммутатору колдонуучусунун колдонмосу

1. Киришүү

This manual provides detailed instructions for the installation, operation, and maintenance of your Zyxel XGS1935-52HP 48-Port Gigabit Ethernet Smart Managed PoE+ Switch. This device is designed to provide reliable and high-performance network connectivity for various environments, supporting advanced features such as Power over Ethernet Plus (PoE+), 10 Gigabit SFP+ uplinks, and flexible management options including Zyxel Nebula Cloud.

Негизги өзгөчөлүктөрү:

• 48 Gigabit Ethernet ports with PoE+ support.
• 375W total PoE+ power budget.
• 4 10 Gigabit SFP+ uplink slots for high-bandwidth applications.
• Smart management capabilities with an intuitive web интерфейс.
• Hybrid Cloud mode for unified network experience via Zyxel Nebula.
• Compact and quiet design suitable for various work environments.

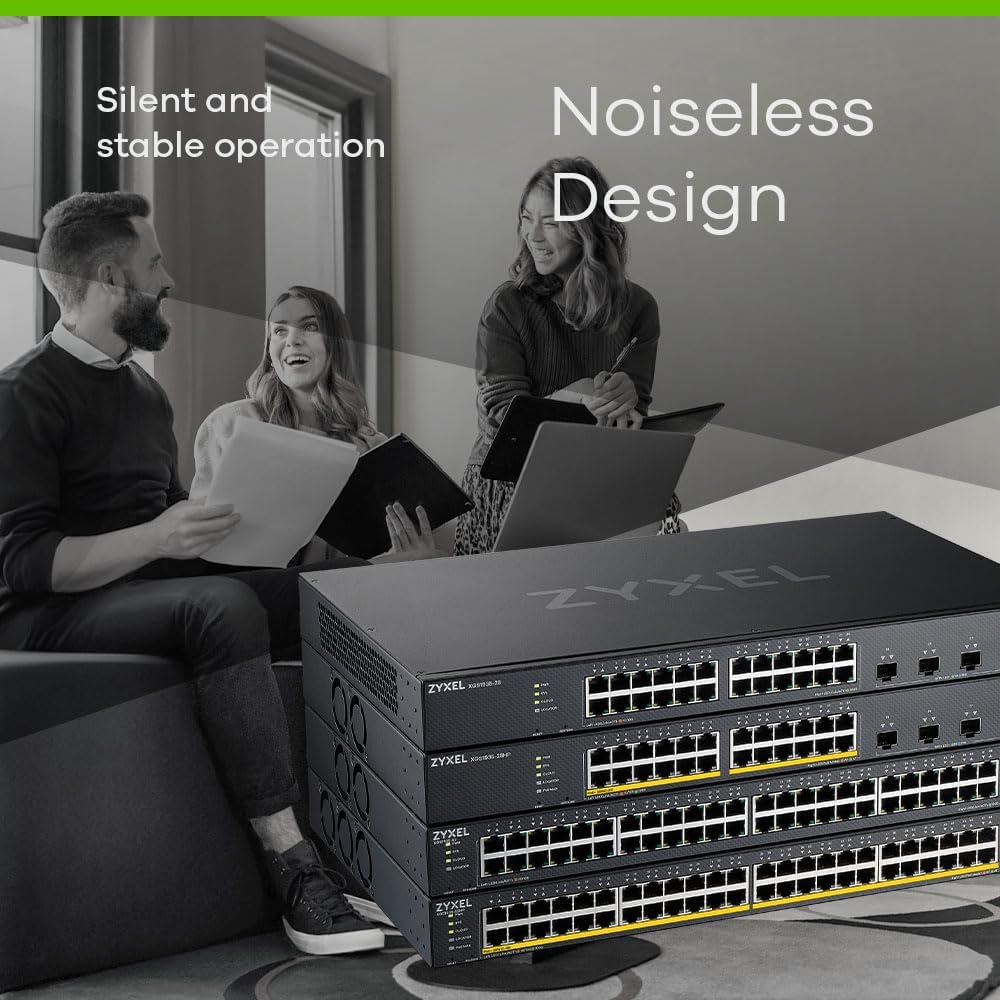

Image: Multiple Zyxel XGS1935-52HP switches stacked, highlighting the silent and stable operation design.

2. Физикалык мүнөздөмө

2.1 алдыңкы панели

The front panel of the XGS1935-52HP switch features 48 Gigabit Ethernet ports, each with LED indicators for link/activity and PoE status. Additionally, there are four 10 Gigabit SFP+ uplink ports for high-speed connections to other network devices or servers. System status LEDs provide information on power, system health, and cloud connectivity.

Сүрөт: алдыңкы view of the Zyxel XGS1935-52HP switch, displaying all 48 Gigabit Ethernet ports and 4 SFP+ uplink ports, along with status LEDs.

2.2 Арткы панель

The rear panel includes the AC power input connector, a grounding screw, and a Kensington lock slot for security. Ensure proper grounding for stable operation.

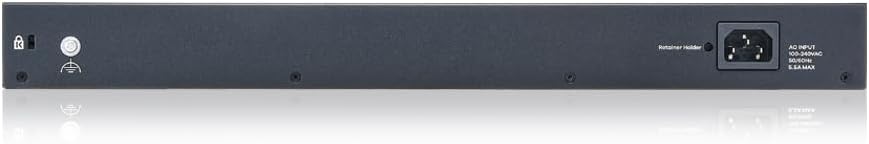

Сүрөт: Арткы view of the Zyxel XGS1935-52HP switch, highlighting the AC power input, retainer holder, and grounding point.

3. Орнотуу

3.1 Таңгактан чыгаруу жана текшерүү

Carefully unpack the switch and all accessories. Verify that all items listed in the package contents are present and undamaged. If any item is missing or damaged, contact your vendor immediately.

3.2 Орнотуу

The XGS1935-52HP switch can be installed on a desktop or mounted in a standard 19-inch equipment rack. Ensure adequate ventilation around the device to prevent overheating.

• Иш такта орнотуу: Place the switch on a flat, stable surface. Attach the rubber feet (if provided) to the bottom of the switch.
• Стойкага орнотуу: Use the provided rack-mount brackets and screws to secure the switch into a standard 19-inch equipment rack.

3.3 Кубат туташтыруу

1. Connect the AC power cord to the power input on the rear panel of the switch.
2. Электр шнурунун экинчи учун ылайыктуу розеткага сайыңыз.
3. Кубат булагы т.бtage requirements (100-240VAC, 50/60Hz).

3.4 Тармактык туташуу

1. Connect network devices (computers, servers, access points) to the Gigabit Ethernet ports using standard RJ-45 cables.
2. For high-speed uplinks, insert compatible SFP+ transceivers into the 10G SFP+ slots and connect fiber optic cables to other 10G devices.

3.5 Баштапкы конфигурация

The switch can be configured via its web-based management interface or through the Zyxel Nebula Cloud platform. The intuitive setup wizard simplifies initial configuration tasks.

Image: A laptop and tablet displaying the Zyxel switch's intuitive web-based setup wizard, showing VLAN configuration steps.

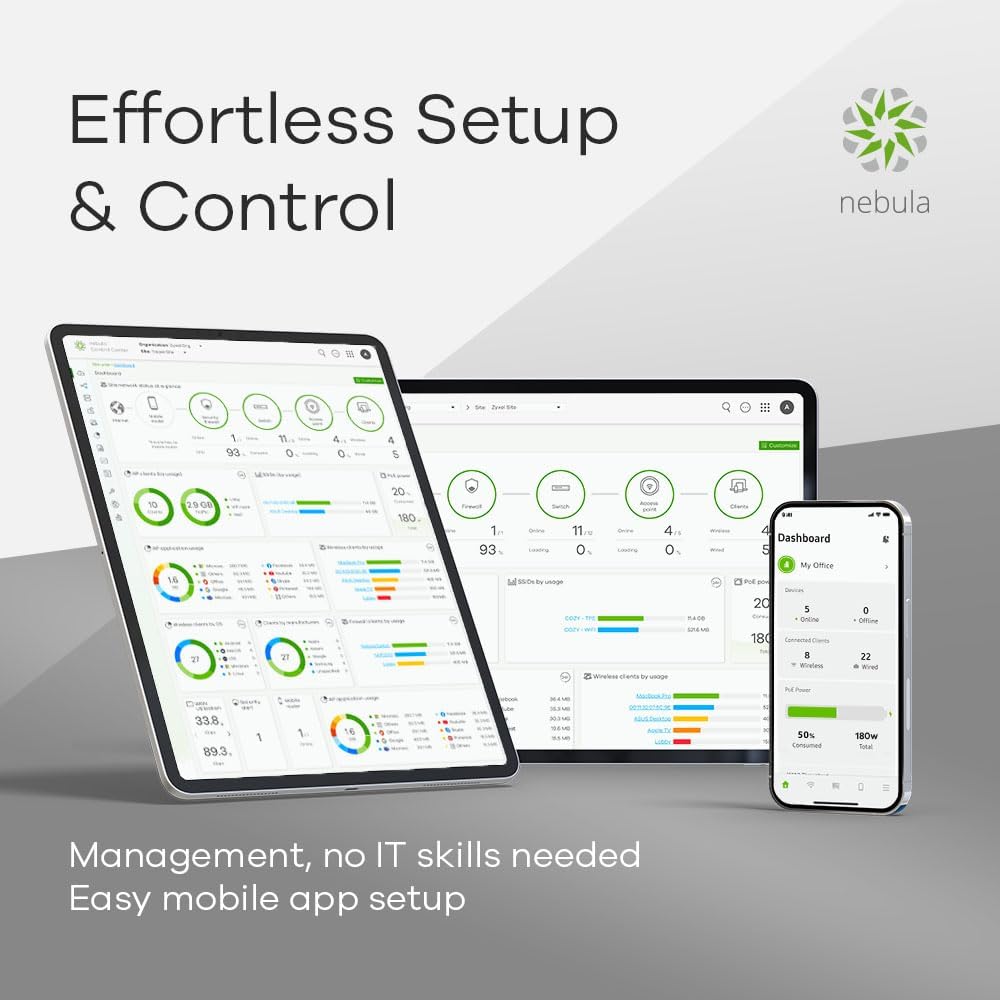

Image: Various devices (tablet, laptop, smartphone) displaying the Zyxel Nebula dashboard, illustrating effortless setup and control through the cloud.

4. Которгучту иштетүү

4.1 Management Modes

The XGS1935-52HP supports two primary management modes:

• Өз алдынча режим: Manage the switch directly via its local web interface. This mode provides full control over all switch features.
• Hybrid Cloud Mode (Zyxel Nebula): Integrate the switch into the Zyxel Nebula cloud platform for centralized management of wired, wireless, and security devices. This offers remote management and simplified deployment.

4.2 Негизги тармак конфигурациясы

колдонуу web interface or Nebula dashboard to configure essential network settings:

• VLAN (Virtual Local Area Network): Жакшыртылган коопсуздук жана майнаптуулук үчүн тармагыңызды сегменттерге бөлүңүз.
• QoS (Кызматтын сапаты): Prioritize critical network traffic (e.g., voice, video) to ensure smooth operation.
• Шилтемелерди бириктирүү: Өткөрүү жөндөмдүүлүгүн жана ашыкчаны көбөйтүү үчүн бир нече физикалык шилтемелерди бир логикалык шилтемеге бириктириңиз.

4.3 Power over Ethernet Plus (PoE+)

The switch provides PoE+ (802.3at) on its Gigabit Ethernet ports, delivering up to 30W per port with a total power budget of 375W. This allows you to power compatible devices such as IP cameras, wireless access points, and VoIP phones directly through the network cable.

Image: The Zyxel XGS1935-52HP switch positioned in a modern office setting, emphasizing its 375W PoE+ power budget and 802.3at support.

4.4 10 Gigabit SFP+ Uplinks

The four 10 Gigabit SFP+ slots enable high-speed connectivity for demanding applications, providing a robust backbone for your network. These uplinks are essential for connecting to servers, network storage, or other core network devices where high throughput is critical.

Image: A stack of Zyxel switches, demonstrating flexible 10 Gigabit Ethernet support through the integrated SFP+ uplink ports.

5. Техникалык тейлөө

5.1 Микропрограмма жаңыртуулары

Zyxel колдоосун үзгүлтүксүз текшерип туруңуз website for the latest firmware versions. Updating the firmware ensures optimal performance, security, and access to new features. Follow the instructions provided with the firmware update package carefully.

5.2 Тазалоо

Keep the switch clean and free from dust. Use a soft, dry cloth to wipe the exterior. Do not use liquid or aerosol cleaners. Ensure ventilation openings are clear of obstructions.

5.3 Айлана-чөйрөнү коргоо

Operate the switch within the specified temperature and humidity ranges. Avoid exposing the device to direct sunlight, excessive heat, or moisture. Ensure proper airflow around the unit.

6. Кыйынчылыктарды

6.1 Электр энергиясы маселелери

• Кубат жок: Verify the power cord is securely connected to both the switch and the power outlet. Check the power outlet with another device.
• Системанын LED жарыгы өчүк: If the system LED is off, ensure the power supply is functioning correctly.

6.2 Тармакка туташуу маселелери

• Шилтеме жок/Аракет: Check the Ethernet cable connections. Ensure the connected device is powered on and functioning. Verify the link/activity LED on the switch port.
• Жай аткаруу: Check for network congestion. Verify duplex settings on connected devices. Ensure cable quality.

6.3 PoE маселелери

• PoE түзмөгү күйбөй жатат: Ensure the connected device is PoE compatible (802.3af/at). Check the PoE status LED for the port. Verify the total PoE budget is not exceeded.

6.4 Кирүү Web Интерфейс

• Cannot Access: Ensure your computer is on the same subnet as the switch. Verify the switch's IP address. Check firewall settings on your computer.

7. Техникалык шарттар

8. Кепилдик жана колдоо

Zyxel products are backed by a manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Zyxel website. For technical support, firmware downloads, and additional resources, please visit the Zyxel support portal:

https://www.zyxel.com/us/en/support

When contacting support, please have your product model number (XGS1935-52HP) and serial number ready.
