1. Киришүү
This manual provides detailed instructions for the installation, operation, and maintenance of your ieGeek S3 2K Wireless Outdoor Security Camera. Please read this manual thoroughly before using the product to ensure proper function and safety. Keep this manual for future reference.
2. Продукт бүтүп калдыview
The ieGeek S3 is a 2K battery-powered wireless security camera designed for both indoor and outdoor use. It features 180° pan rotation, smart motion detection, color night vision, and two-way audio communication.

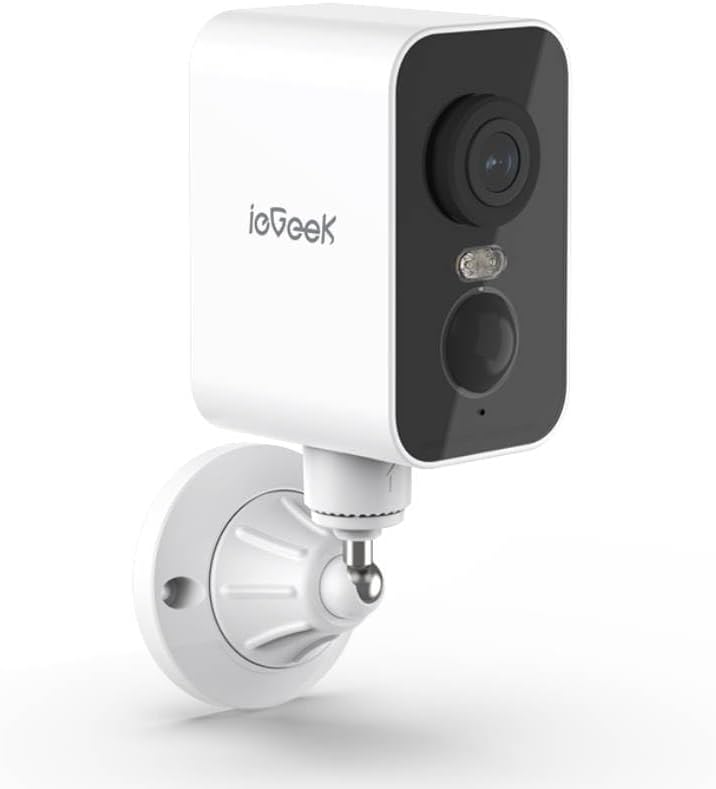

2.1-сүрөт: ieGeek S3 2K Wireless Outdoor Security Camera. This image displays the white rectangular camera body with a black front panel housing the lens, an LED light, and a motion sensor. The camera is attached to a white wall-mount bracket.
2.1 Кутуда эмне бар
- ieGeek S3 Battery Security Camera
- Bracket Screw Pack (for wall mounting)
- Орнотуу Чапкасы
- Заряддоо кабели
- Көрсөтмө (бул документ)
3. Орнотуу
3.1 Камераны заряддоо
Before initial use, fully charge the camera's built-in 5200 mAh lithium-ion battery using the provided charging cable. Connect the cable to the camera's charging port and a standard USB power adapter (not included). The charging indicator light will provide status.
3.2 Колдонмону жүктөп алуу жана каттоо эсебин түзүү
- Download the 'CloudEdge' or 'ieGeek Cam' app from your smartphone's app store (iOS or Android).
- Колдонмону ачып, жаңы каттоо эсебин түзүү үчүн экрандагы нускамаларды аткарыңыз же сизде мурунтан эле бар болсо кириңиз.
3.3 Physical Installation (Wall Mount)
The ieGeek S3 camera is designed for wall mounting and has an IP65 waterproof rating, making it suitable for outdoor environments.
- Choose a suitable location for installation. Ensure the camera has a clear field of view жана Wi-Fi сигналынын күчү жакшы.
- Use the provided installation sticker to mark the drill holes on the wall.
- Тешиктерди бургула жана дубалдын анкерлерин салгыла.
- Attach the mounting bracket to the wall using the screws from the bracket screw pack.
- Secure the camera to the mounting bracket. Adjust the camera angle as needed.
3.4 Түзмөктү колдонмо менен жупташтыруу
- Смартфонуңуз 2.4 ГГц Wi-Fi тармагына туташкандыгын текшериңиз. Камера 2.4 ГГц Wi-Fi гана колдойт.
- Open the 'CloudEdge' or 'ieGeek Cam' app and tap the '+' icon to add a new device.
- Тизмеден камераңыздын моделин тандаңыз.
- Follow the in-app instructions to power on the camera and reset it if necessary (usually by pressing a reset button until an indicator light flashes).
- Scan the QR code displayed on your phone screen with the camera lens. Hold the phone approximately 4-8 inches (10-20 cm) from the camera.
- Once the camera confirms successful scanning (e.g., with an audible prompt), proceed in the app to complete the connection.
- Name your camera and set its location.
4. Камераны иштетүү
4.1 Live View and Pan Rotation
From the app's main screen, tap on your camera to access the live view. You can use the on-screen controls to pan the camera 180° horizontally to adjust the viewбурч.
4.2 Кыймылды аныктоо жана эскертүүлөр
The camera features AI motion detection. When motion is detected, the camera will record a video clip and send an alert to your smartphone. You can customize motion detection sensitivity and alert settings within the app.
4.3 Эки тараптуу аудио
Utilize the built-in microphone and speaker for two-way communication. Tap the microphone icon in the live view камера аркылуу сүйлөшүү жана камера жайгашкан жерден аудио угуу.
4.4 Түнкү көрүнүш
The camera automatically switches to color night vision in low-light conditions, providing clear surveillance up to 33 feet (10 meters) using its infrared LEDs.
4.5 Видео сактагыч
Жазылган видео footage эки жол менен сакталышы мүмкүн:
- TF картасы (MicroSD): Insert a TF card (up to 128GB, not included) into the camera's designated slot for local storage.
- Булуттагы сактагыч: Optional cloud storage services may be available through the app for remote access and backup of recordings.
4.6 Alexa интеграциясы
The ieGeek S3 camera is compatible with Amazon Alexa. Follow the instructions in the 'CloudEdge' or 'ieGeek Cam' app to link your camera with your Alexa account for voice control and viewing live feeds on compatible Alexa devices.
5. Техникалык тейлөө
5.1 Батареяны заряддоо
The camera is battery-powered. When the battery level is low, you will receive an alert via the app. Recharge the camera using the provided charging cable. Battery life varies based on usage and environmental factors.
5.2 Тазалоо
To maintain optimal performance, periodically clean the camera lens and housing with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials that could damage the camera's surface or lens.
6. Кыйынчылыктарды
- Камера Wi-Fi'га туташпай жатат: Ensure your Wi-Fi network is 2.4GHz. Check Wi-Fi signal strength at the camera's location. Try resetting the camera and repeating the pairing process.
- Сүрөттүн сапаты начар: Камера линзасын тазалаңыз. Камеранын линзасынын айланасында эч кандай тоскоолдуктар жок экенин текшериңиз. viewИнтернет байланышыңыздын ылдамдыгын текшериңиз.
- Кыймылды аныктоо иштебей жатат: Verify motion detection is enabled in the app settings. Adjust sensitivity levels. Ensure the camera is positioned correctly to capture motion in the desired area.
- Батареянын бат түгөнүп калышы: Кыймылды тез-тез аныктоо окуялары, жандуу view access, and two-way audio use can consume battery faster. Reduce motion detection sensitivity or frequency if possible. Ensure the camera is fully charged.
- Колдонмо көйгөйлөрү: Ensure the app is updated to the latest version. Try restarting the app or your smartphone.
7. Техникалык шарттар
| Модель аты | ieGeek Battery Cam S3 |
| Видео тартуунун резолюциясы | 2K (3 МП эффективдүү токтом) |
| Ички/тышкы колдонуу | Ички, сырткы |
| Power Source | Батарея менен иштейт (5200 мАч литий-ион) |
| Байланыш технологиясы | 2.4GHz Wi-Fi (Wi-Fi 6 Technology) |
| Controller Type | CloudEdge, Amazon Alexa, ieGeek Cam App |
| Монтаж түрү | Дубалга орнотуу |
| Өзгөчөлүктөр | Pan Rotating 180°, AI Motion Detection, Color Night Vision, 2-Way Audio |
| Viewбурч | 180 градус (пан менен бышыруу) |
| Түнкү көрүү диапазону | 33 Фут (10 метр) |
| Frame Rate | секундасына 15 кадр |
| Сууга туруктуулук деңгээли | Суу өткөрбөйт (IP65) |
| Сактагыч параметрлери | TF Card (MicroSD) up to 128 GB, Cloud Storage (optional) |
| Өлчөмдөрү (L x W x Y) | 3.9 x 1 x 3.9 дюйм |
| Элемент Салмагы | 11.2 унция |
| Шайкеш түзмөктөр | Alexa, Smartphone, Smartwatch, Tablet |
8. Кепилдик жана колдоо
For warranty information, please refer to the specific terms provided at the time of purchase or contact ieGeek customer support directly. If you encounter any issues or have questions regarding your ieGeek S3 camera, please visit the official ieGeek website or contact their customer service team for assistance.
Онлайн колдоо: Visit the ieGeek Store on Amazon
