Displays2go Advertising Multimedia Kiosk (DF043TLB2) User Manual

1. Киришүү

This manual provides comprehensive instructions for the setup, operation, and maintenance of your Displays2go Advertising Multimedia Kiosk, model DF043TLB2. This 43-inch multi-touch kiosk is designed for displaying interactive digital content in various public and commercial environments. Please read this manual thoroughly before use to ensure proper functionality and safety.

2. Коопсуздук маалыматы

• Ensure the kiosk is placed on a stable, level surface to prevent tipping.
• Түзмөктү нымдуулукка, жамгырга же өтө жогорку температурага дуушар кылбаңыз.
• Берилген кубат адаптерин гана колдонуңуз.
• Ашыкча ысып кетүүнүн алдын алуу үчүн желдетүү тешиктерин ачык кармаңыз.
• Түзмөктү өз алдынча ачууга же оңдоого аракет кылбаңыз. Бардык тейлөө иштерин квалификациялуу адистерге тапшырыңыз.
• Түзмөктү тазалоодон же жылдыруудан мурун электр кубатынан ажыратыңыз.

3. Пакеттин мазмуну

Пакетте бардык буюмдар бар экенин текшериңиз:

• Displays2go Advertising Multimedia Kiosk (DF043TLB2)
• Электр кабели
• Four Locking Casters (pre-installed or to be installed)
• Колдонуучунун Колдонмосу (бул документ)

4. Орнотуу нускамалары

4.1. Пакеттен чыгаруу жана жайгаштыруу

Carefully remove the kiosk from its packaging. Place the unit on a flat, stable surface. Ensure adequate space around the kiosk for ventilation and access.

Сүрөт 1: Алдыңкы view of the Displays2go Advertising Multimedia Kiosk.

2-сүрөт: Каптал view of the kiosk displaying content.

3-сүрөт: Арткы view of the kiosk, showing ventilation and access panel.

4.2. Caster Installation (if not pre-installed)

If the four locking casters are not pre-installed, carefully tilt the kiosk and attach each caster to the designated mounting points on the base. Ensure they are securely fastened. Lock the casters once the kiosk is in its final position to prevent unintended movement.

4.3. Power Connection

1. Locate the power input port on the back of the kiosk.
2. Connect the provided power cable to the kiosk and then to a standard electrical outlet.
3. Flip the power switch to the "ON" position. The kiosk will begin to boot up.

4-сүрөт: Детальдуу view of the kiosk's connectivity ports and power switch.

5. Иштөө нускамалары

5.1. Initial Boot-Up and Android 11 OS

Upon powering on, the kiosk will boot into the Android 11 operating system. The initial setup may require you to configure basic settings such as language, Wi-Fi connection, and time zone. Follow the on-screen prompts.

5.2. Using the Multi-Touch Screen

The kiosk features a 10-point IR touchscreen, allowing for interactive gestures such as tapping, swiping, and multi-finger operations. Navigate the Android interface and interactive applications by touching the screen directly.

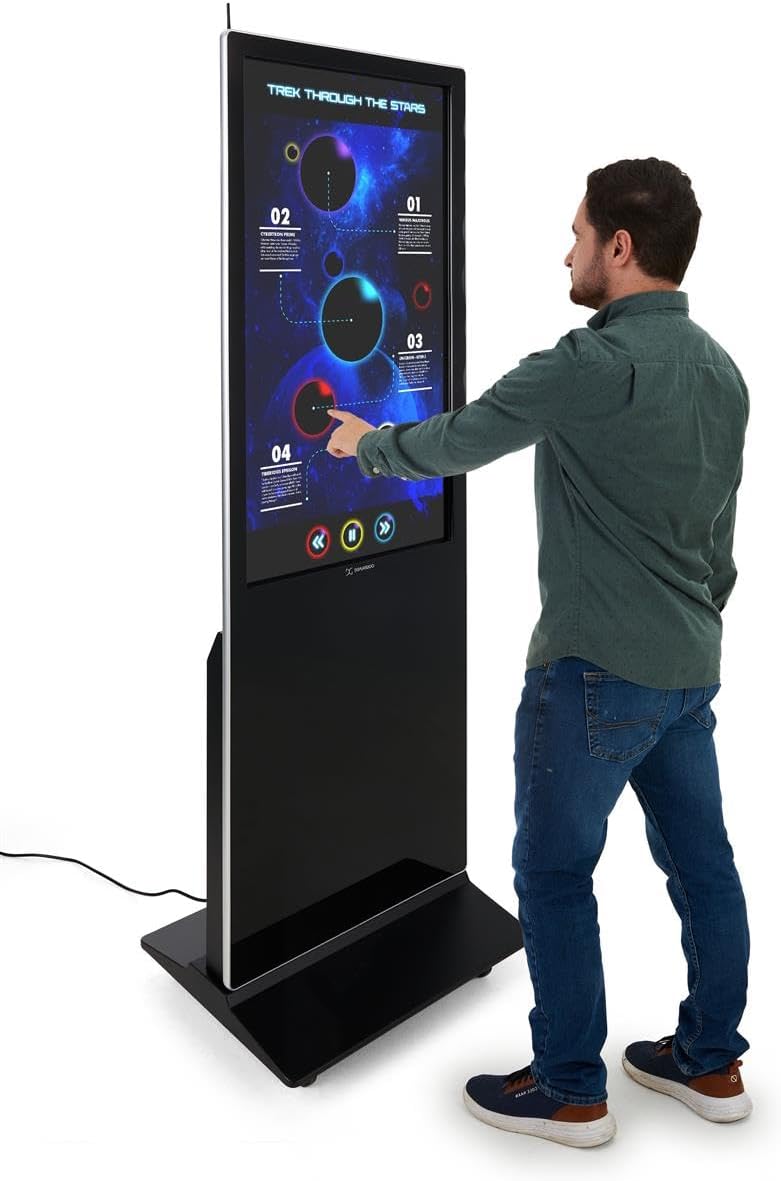

Figure 5: A user interacting with the multi-touch screen of the kiosk.

5.3. Content Upload and Management

There are several methods to upload and manage content on your kiosk:

• USB Plug-and-Play: Connect a USB drive to one of the three available USB ports. The kiosk will detect the drive, allowing you to transfer media files (images, videos, documents) directly to the internal storage.
• Cloud Storage/CMS: Connect the kiosk to your network via Wi-Fi or Ethernet (LAN port). You can then access your personal cloud storage accounts or integrate with a connected content management system (CMS) for remote content updates.

5.4. Using the DiViEX Slideshow App

The kiosk comes with the DiViEX slideshow app pre-installed. This application allows you to create and manage captivating slideshows with various borders, aspect ratios, and theme sharing capabilities. Refer to the in-app help or the DiViEX documentation for detailed usage instructions.

5.5. Аудио чыгаруу

The kiosk is equipped with dual 8W speakers for audio output. Adjust the volume through the Android operating system settings or within the media playback application.

6. Техникалык тейлөө

6.1. Cleaning the Screen and Casing

• Тазалоодон мурун ар дайым электр кабелин сууруп алыңыз.
• Бир аз жумшак, түксүз кездемени колдонуңуз dampэкранды сүртүү үчүн суу же абразивдүү эмес экран тазалагыч менен тазалаңыз.
• в үчүнasing, use a soft, dry cloth. Avoid harsh chemicals or abrasive materials.

6.2. Программалык камсыздоону жаңыртуу

Periodically check for system updates through the Android settings menu to ensure optimal performance and security. Ensure the kiosk is connected to the internet during updates.

7. Кыйынчылыктарды

8. Техникалык шарттар

9. Кепилдик жана колдоо

For warranty information and technical support, please refer to the Displays2go official webсайтка же кардарларды тейлөөгө кайрылыңыз. Кепилдик дооматтар үчүн сатып алуу дүмүрчөгүңүздү сактаңыз.

Displays2go Contact Information:

• Webсайт: www.displays2go.com
• Телефон: 1-844-221-3393
