Instruction Manual

Introduction

This manual provides essential information for the proper installation, operation, maintenance, and troubleshooting of your new C·T·S replacement carburetor. This carburetor is designed to be a direct replacement for Kawasaki FG230 engines, corresponding to OEM part numbers 15003-2475 and 15003-2441. Please read this manual thoroughly before attempting any installation or service to ensure safe and effective use.

Маанилүү коопсуздук маалыматы: Always wear appropriate personal protective equipment (PPE) such as safety glasses and gloves when working with fuel systems. Ensure the engine is cool and disconnected from its power source (e.g., spark plug wire removed) before beginning any work. Work in a well-ventilated area and keep fire extinguishers nearby when handling fuel.

Продукт бүттүview жана Шайкештик

The C·T·S Carburetor (Model: CB-345) is a high-quality replacement component for the fuel system of Kawasaki FG230 engines. It is engineered to meet or exceed the specifications of the original equipment manufacturer (OEM) parts 15003-2475 and 15003-2441, ensuring proper fit and function.

1-сүрөт: Фронт view of the carburetor, showing the main body, fuel inlet, and the red-tipped choke/throttle lever.

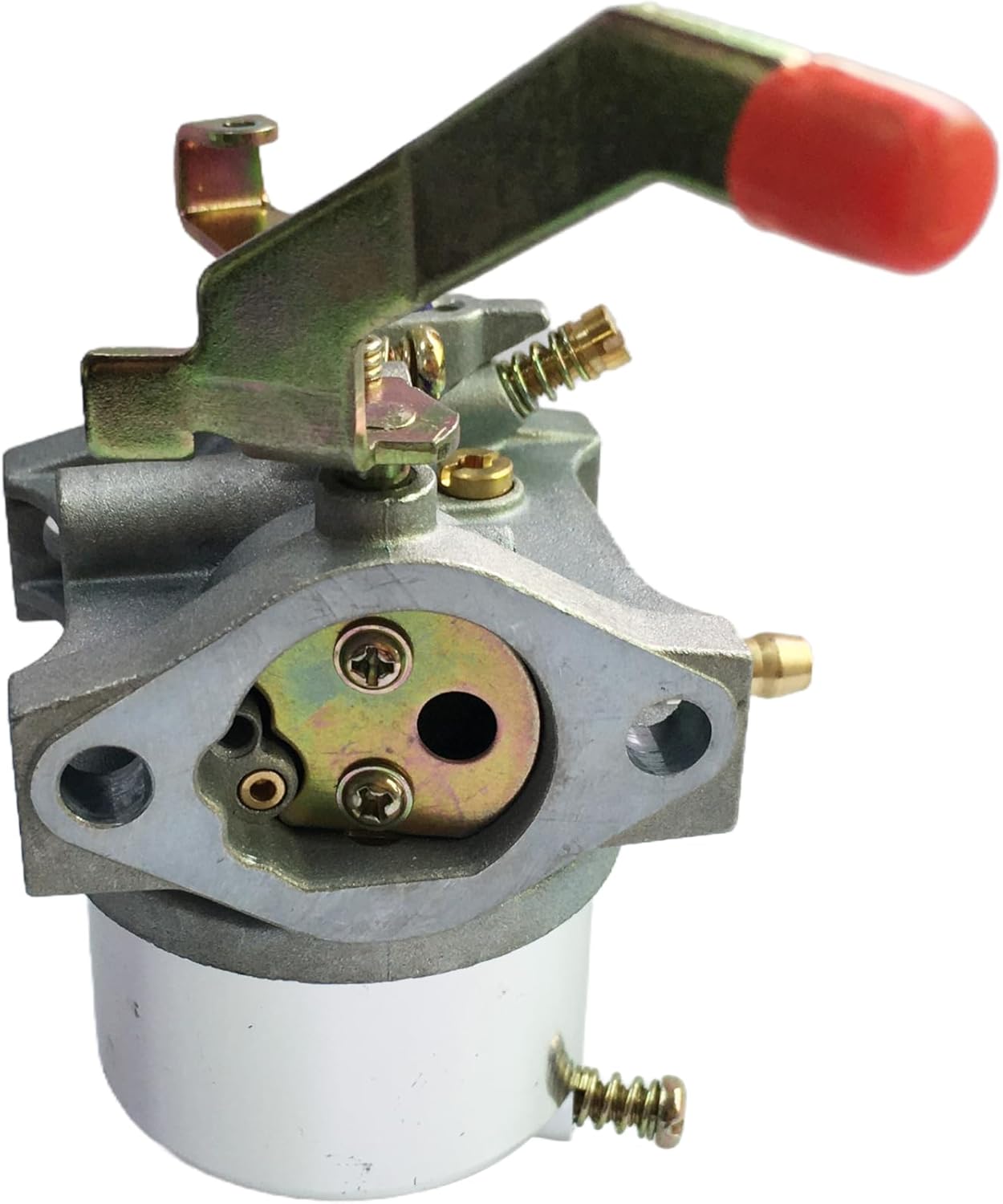

2-сүрөт: Side view of the carburetor, highlighting the air intake port and mounting holes.

3-сүрөт: Бурчтуу view of the carburetor, showing the fuel bowl and adjustment screws.

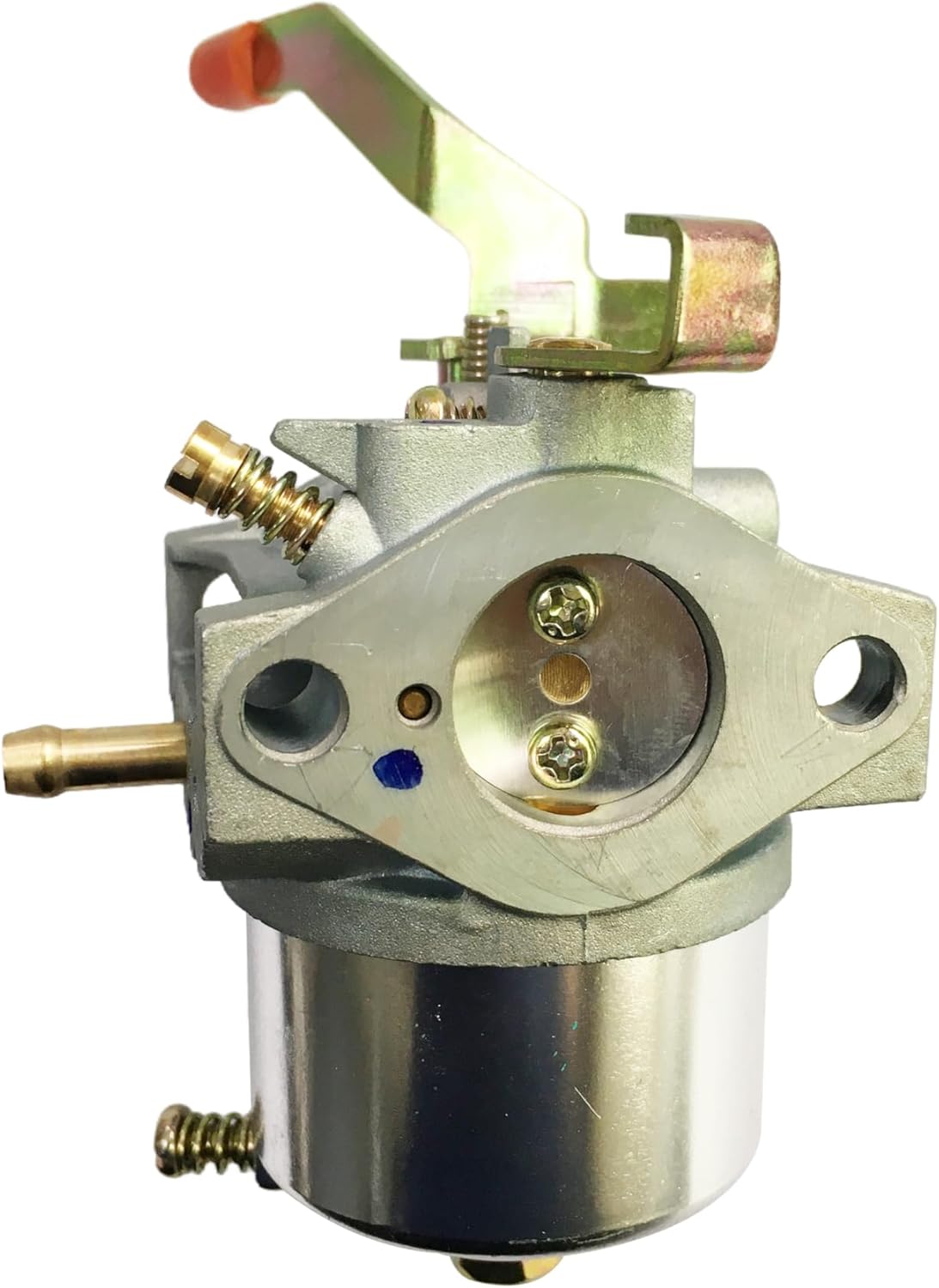

4-сүрөт: Жогорку view of the carburetor, illustrating the linkage and spring mechanisms.

5-сүрөт: Alternate top view, providing a different perspective on the carburetor's upper components.

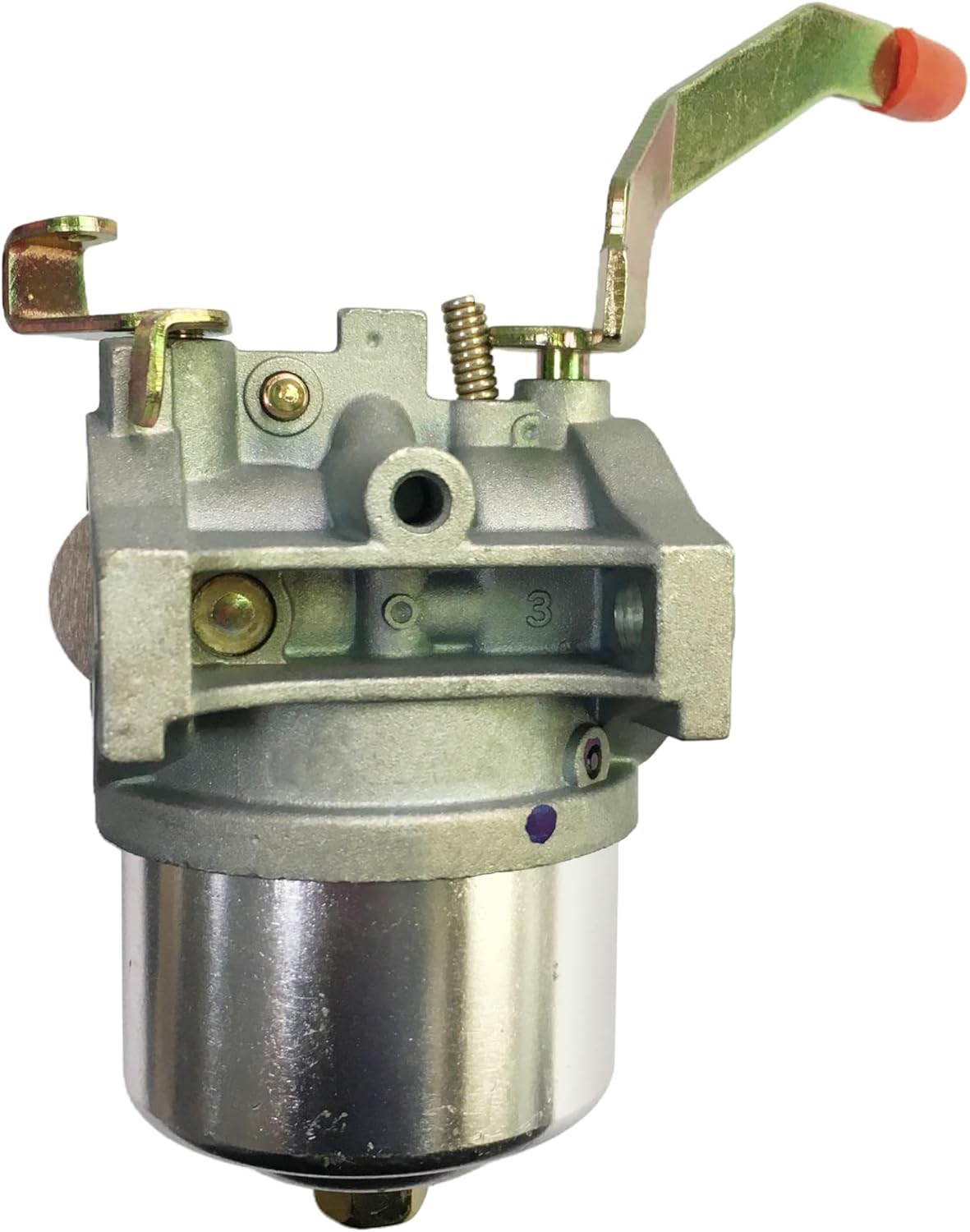

6-сүрөт: Төмөнкү view of the carburetor, showing the fuel bowl and its drain screw.

7-сүрөт: Close-up of the fuel bowl, highlighting the bolt with an '8.8' marking, indicating a specific grade or torque specification.

Орнотуу жана орнотуу

Proper installation is crucial for the carburetor's performance and longevity. If you are unsure about any step, it is recommended to consult a qualified technician or refer to your engine's specific service manual.

Куралдар жана материалдар (Типтүү):

• Socket/Wrench set
• Бурагыч топтому
• Кычкач
• Күйүүчү май линиясы clamps
• New gaskets (if not included with carburetor)
• Таза чүпүрөктөр
• Fuel-safe container for draining old fuel
• Коргоочу көз айнек жана кол каптар

Орнотуу кадамдары:

1. Даярдоо: Ensure the engine is off and cool. Disconnect the spark plug wire to prevent accidental starting. Place a fuel-safe container under the carburetor to catch any spilled fuel.
2. Fuel Line Disconnection: Locate the fuel line connected to the old carburetor. Use pliers or a clamp to pinch the fuel line to prevent fuel flow, then carefully disconnect it from the carburetor. Drain any remaining fuel from the carburetor into the container.
3. Linkage Disconnection: Carefully disconnect any throttle and choke linkages or springs attached to the old carburetor. Note their positions for reassembly.
4. Removal of Old Carburetor: Эски карбюраторду кыймылдаткычтын коллекторуна кармап турган монтаждоо болтторун же гайкаларды бурап алыңыз. Эски карбюраторду жана бардык эски прокладкаларды алып салыңыз.
5. Бетти даярдоо: Clean the mounting surface on the engine manifold to ensure a good seal. Remove any old gasket material.
6. Прокладканы жайгаштыруу: Place new gaskets (if applicable) onto the mounting studs or surface.
7. New Carburetor Installation: Carefully position the new C·T·S carburetor onto the mounting studs, ensuring the gaskets are properly aligned. Secure it with the mounting bolts/nuts, tightening them evenly to prevent warping.
8. Linkage Reconnection: Reconnect all throttle and choke linkages and springs to the new carburetor. Ensure they move freely and operate correctly.
9. Fuel Line Reconnection: Reconnect the fuel line to the new carburetor's fuel inlet. Remove any clamps from the fuel line.
10. Акыркы текшерүүлөр: Double-check all connections, ensuring they are secure. Inspect for any potential fuel leaks. Reconnect the spark plug wire.

Иштөө нускамалары

After installation, the engine should be ready to start. Minor adjustments may be necessary for optimal performance.

Моторду ишке киргизүү:

1. Күйүүчү май менен камсыздоо: Ensure the fuel tank has fresh, clean fuel and the fuel valve (if present) is open.
2. Priming (if applicable): If your engine has a primer bulb, press it several times until fuel is visible in the fuel line or bulb.
3. Муунгучтар: Move the choke lever to the "FULL CHOKE" position (usually indicated by a symbol or "START").
4. Муунткуч: Set the throttle to the "FAST" or "START" position.
5. Баштоо: Pull the recoil starter cord firmly or engage the electric starter.
6. Муунткучту тууралоо: Once the engine starts and runs for a few seconds, gradually move the choke lever to the "HALF CHOKE" position, then to the "RUN" position as the engine warms up and runs smoothly.

Carburetor Adjustments (if necessary):

Your new carburetor is pre-set from the factory for general use. However, environmental factors (altitude, temperature) or specific engine conditions may require fine-tuning. Most modern carburetors have limited adjustment screws. Refer to your engine's service manual for specific adjustment procedures.

• Idle Speed Screw: Adjusts the engine's RPM at idle. Turn clockwise to increase idle speed, counter-clockwise to decrease.
• Mixture Screws (if present): These control the fuel-air mixture. Adjust in small increments (e.g., 1/8 turn) and observe engine response. Turning clockwise typically leans the mixture, counter-clockwise enriches it. Always return to factory recommended settings if unsure.

Техникалык тейлөө

Regular maintenance ensures the longevity and optimal performance of your carburetor and engine.

• Күйүүчү майдын сапаты: Always use fresh, clean, and appropriate fuel for your engine. Stale or contaminated fuel is a primary cause of carburetor issues. Consider using a fuel stabilizer if storing the engine for extended periods.
• Күйүүчү май чыпкасы: Regularly inspect and replace the in-line fuel filter (if equipped) to prevent debris from reaching the carburetor.
• Аба чыпкасы: A clogged air filter can cause the engine to run rich and affect carburetor performance. Clean or replace the air filter according to your engine's maintenance schedule.
• Карбюратор тазалоо: If performance issues arise due to fuel contamination, the carburetor may need cleaning. This typically involves disassembling the fuel bowl and jets, cleaning them with carburetor cleaner, and reassembling. This procedure should only be performed by individuals familiar with carburetor mechanics.
• Сактагыч: Before long-term storage, either run the engine until it runs out of fuel or drain the fuel system completely to prevent gum and varnish buildup in the carburetor.

Проблемаларды чечүү

Below are common issues and potential solutions related to carburetor performance. Always ensure basic engine components (spark plug, ignition, compression) are in good working order before troubleshooting the carburetor.

Техникалык шарттар

Key specifications for the C·T·S Carburetor, Model CB-345:

• Бренд: C·T·S
• Өндүрүүчү: C·T·S
• Модель номери: CB-345
• OEM бөлүктүн номерлери: 15003-2475, 15003-2441
• Шайкештик: Kawasaki FG230 engines
• Элемент Салмагы: 8.8 унция
• Пакеттин өлчөмдөрү: 5.91 x 5.12 x 1.97 дюйм
• UPC: 781108148688
• ASIN: B0DM1B4NW3

Кепилдик жана колдоо

For information regarding warranty coverage, returns, or technical support, please refer to the seller's policy on the platform where the product was purchased. You may also contact the manufacturer, C·T·S, directly for assistance with product-specific inquiries.

For general inquiries or to visit the C·T·S store, please use the following link: C·T·S Store on Amazon
