Introduction
This user manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Protmex 2-in-1 Cordless Pole Saw. Please read this manual thoroughly before initial use and retain it for future reference.
The Protmex 2-in-1 Electric Pole Saw is a versatile tool designed for both high-reach branch trimming and ground-level cutting tasks. It features a powerful motor, dual battery system, and an adjustable pole for various applications.
Продукт компоненттери
Пакет төмөнкү компоненттерди камтыйт:
- 8-inch Mini Chainsaw unit
- Кеңейтүү түркүгү
- 2 x 4.0Ah литий-иондук батарейкалар
- Батарея заряддагыч
- Коопсуздук көз айнек
- Колкаптар
- Погон
- User Manual
Жайгашуу
1. Батареяны кубаттоо
Before first use, fully charge both 4.0Ah Lithium-Ion batteries using the provided charger. A full charge typically takes 2 hours. Ensure the charger is connected to a standard power outlet and the battery is correctly inserted into the charger.
2. Assembly (Pole Saw Configuration)
- Attach the 8-inch mini chainsaw unit to the extension pole. Ensure it clicks securely into place. The pole is designed for no-assembly retraction and extension.
- Adjust the length of the extension pole to your desired working height. The maximum total working length can reach up to 15 feet (based on a 6ft person holding the pole at shoulder level, 60 degrees from the ground).
- Attach the shoulder strap for improved balance and reduced strain during extended use.
3. Initial Chain Tension Check
After inserting the battery, perform a test run without load. Check the chain tension. If the chain appears loose, adjust it before proceeding with any cutting tasks. Refer to the "Maintenance" section for detailed chain tension adjustment instructions.
Иштөө нускамалары
1. Коопсуздук чаралары
- Always wear the provided safety glasses and gloves during operation.
- Ensure a stable footing and clear working area.
- Жаныңыздагыларды жана үй жаныбарларын коопсуз аралыкта кармаңыз.
- Арааны нымдуу шарттарда же тез күйүүчү суюктуктардын/газдардын жанында иштетпеңиз.
- Disconnect the battery before performing any adjustments or maintenance.
2. Баштоо жана токтотуу
To start the saw, press the safety lock button and then squeeze the trigger. Release the trigger to stop the saw. The stepless speed control allows for precise cutting by varying trigger pressure.
3. Кесүү техникасы
- Pole Saw Use: For high branches, extend the pole to the appropriate length. Use the shoulder strap for support. Position the saw blade against the branch and apply steady pressure. The 180° rotating handle allows for optimal cutting angles.
- Mini Chainsaw Use: Detach the chainsaw unit from the pole for ground-level tasks or smaller cuts. Hold the unit firmly with both hands, ensuring a secure grip on the rubber-coated handles.
Техникалык тейлөө
1. Чынжырды майлоо

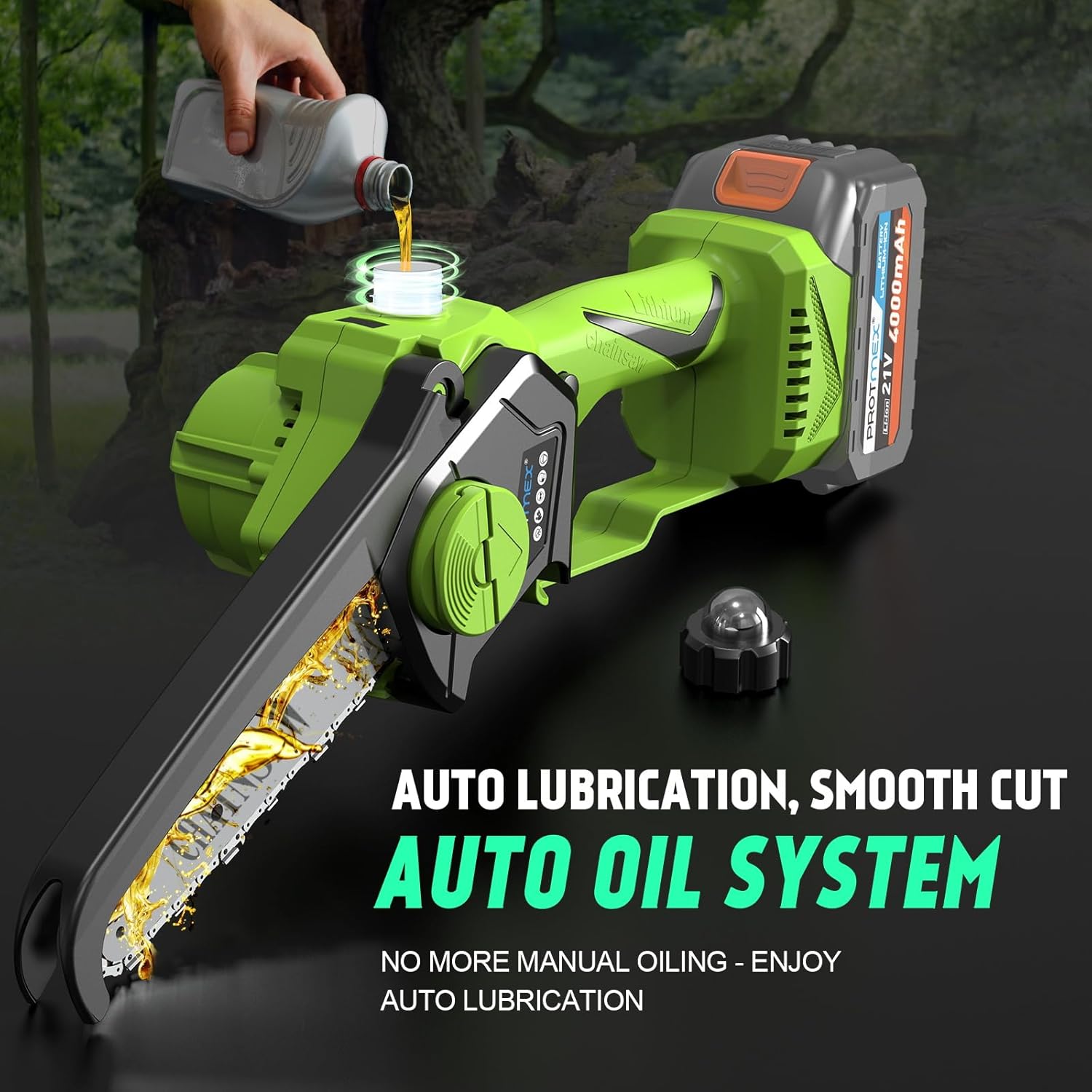

The Protmex pole saw features an automatic oil lubrication system. Ensure the oil reservoir is filled with appropriate chainsaw bar and chain oil before each use. This system ensures smooth operation and extends the life of the chain and bar.
2. Чынжырдын чыңалуусун жөндөө
The saw is equipped with a tool-free chain tensioning system. To adjust the chain tension:
- Ensure the saw is turned off and the battery is removed.
- Locate the adjustment knob on the side of the saw.
- Turn the knob to adjust the chain tightness.
- After adjustment, turn the knob clockwise to secure it firmly. Verify that the chain is tightly fastened to prevent loosening during operation.
3. Chain and Guide Plate Replacement
Replacing the chain and guide plate is designed to be a breeze. Consult the detailed instructions in the full user manual for specific steps on how to safely replace these components to ensure optimal performance.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Сау башталбайт | Battery not charged or improperly inserted; Safety lock not engaged before trigger. | Ensure battery is fully charged and correctly inserted. Press safety lock button before squeezing trigger. |
| Chain loosens frequently | Insufficient chain tension; Adjustment knob not secured. | Adjust chain tension using the tool-free knob and ensure it is tightened clockwise after adjustment. Check tension before each use. |
| Төмөндөтүлгөн кесүү натыйжалуулугу | Dull chain; Insufficient lubrication. | Sharpen or replace the chain. Ensure the auto oil system reservoir is filled. |
Техникалык шарттар
- Модел: PTX-DUA-C
- Бышактын узундугу: 8 дюйм
- Мотор күчү: 900W щеткасыз мотор
- Чынжыр ылдамдыгы: 0-10 m/s (approx. 33 ft/s)
- Батарея түрү: 21V литий-ион
- Батарея сыйымдуулугу: 2 x 4.0Ah
- Заряддоо убактысы: Болжол менен 2 саат
- Minimum Telescopic Length: 126 см (4.1 фут)
- Maximum Telescopic Length: 275 см (9.0 фут)
- Maximum Total Working Length: Up to 15 ft (with user)
- Product Dimensions (packed): 130 x 13 x 8 см
- Элемент Салмагы: 5.31 кг (11.7 фунт)
- Турак материалы: Metal PA6
Кепилдик жана колдоо
Protmex offers a 12-month quality guarantee for this product. Additionally, you can enjoy 3 years of after-sales support and 24/7 customer service.
If you have any questions, inquiries, or are not satisfied with the product, please do not hesitate to contact the Protmex support team. They are available within 24 hours to provide assistance.
For support, please visit the official Protmex store or contact customer service through the platform where you purchased the product.
