1. Продукт бүтүп калдыview
The ICEMAG 2 MagSafe Power Bank is a portable charging solution designed for iPhone 16/15/14 series and other compatible devices. It features 15W Qi2 magnetic wireless charging, 30W two-way wired fast charging, and an active cooling system to maintain optimal performance. The integrated foldable stand allows for convenient hands-free use during charging.

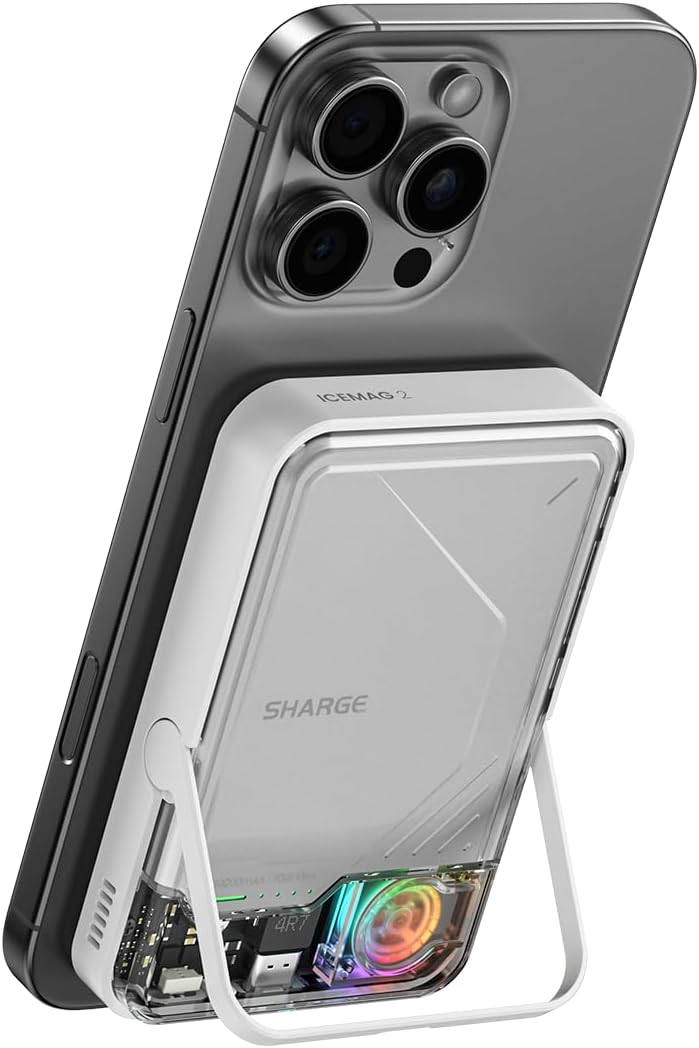

Figure 1: ICEMAG 2 MagSafe Power Bank attached to an iPhone, demonstrating its compact design and integrated stand.
2. Негизги өзгөчөлүктөрү
- 15W Qi2 Magnetic Fast Charging: Provides up to 15W wireless charging, compatible with iPhone 16/15/14 series, offering faster charging speeds compared to standard Qi.

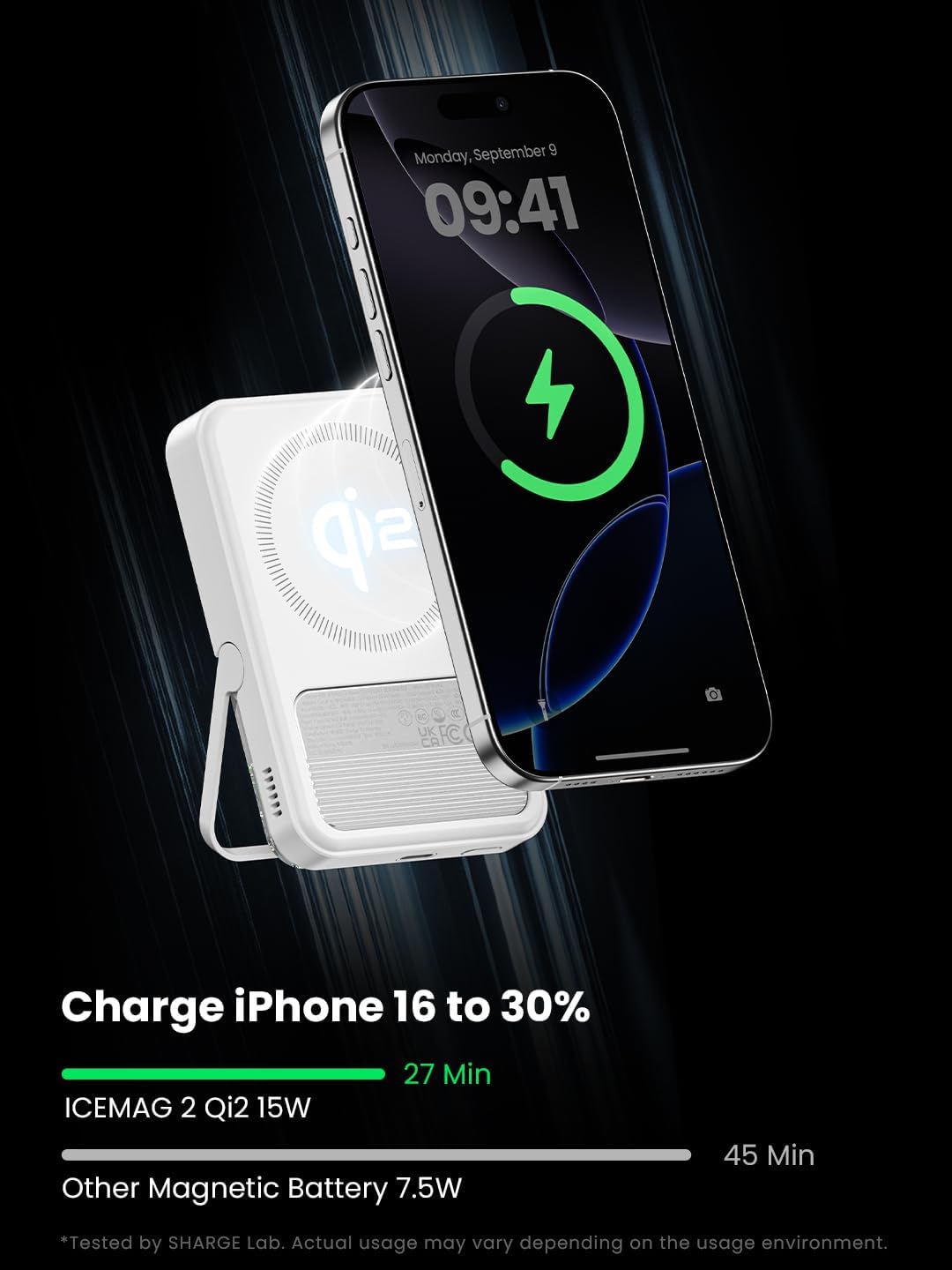

Figure 2: Illustration of 15W Qi2 wireless charging speed, showing the power bank magnetically attached to an iPhone.
- Active Cooling 2.0 System: Features an upgraded cooling fan and aluminum backplate designed to dissipate heat generated by the power bank during operation, enhancing efficiency and longevity. Note: This system cools the power bank itself, not the connected smartphone.
3-сүрөт: Детальдуу view of the ICEMAG 2's active cooling system, showing the internal fan and transparent design.
- Strong Magnetic Suction: Engineered with 2.24 pounds of magnetic suction force to ensure a secure and stable attachment to compatible devices, preventing accidental detachment during use.
Figure 4: Demonstration of the strong magnetic connection between the power bank and a smartphone.
- 30W Two-Way Wired Fast Charging: Supports up to 30W input and output via USB-C, allowing for rapid recharging of the power bank and fast charging of devices like MacBook Air.

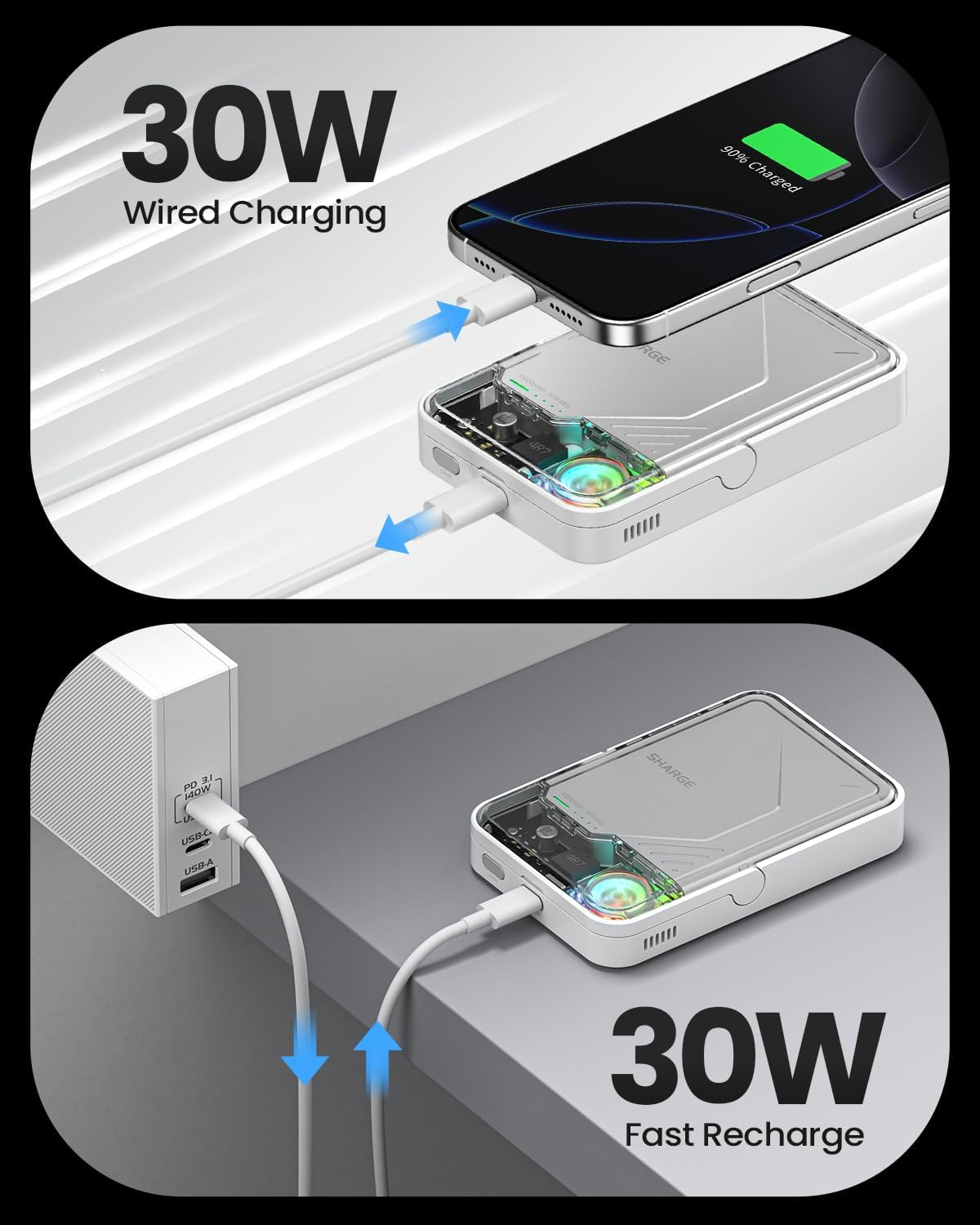

Figure 5: Visual representation of 30W wired charging capabilities for both device charging and power bank recharging.
- StandBy Charging with Foldable Stand: Features a built-in foldable stand for hands-free viewing while charging, ideal for watching videos, making calls, or browsing in various settings.
Figure 6: The ICEMAG 2 in StandBy mode, supporting an iPhone for hands-free viewing.
- Low-Power Mode: Specifically designed for charging wearable devices such as smartwatches and earbuds, providing optimized power delivery for smaller batteries.
Figure 7: The power bank charging smaller devices like earbuds and a smartwatch, demonstrating low-power mode functionality.
- Заряддоо: Allows you to charge your smartphone while simultaneously recharging the ICEMAG 2 power bank.
Figure 8: Illustration of pass-through charging, where the power bank charges a phone while being recharged itself.
- Superior Safety Protections: Incorporates multiple safety features including undervoltage, short-circuit, over-voltage, overload, over-temperature, and over-current protection to ensure safe and reliable operation.
Figure 9: Visual representation of the comprehensive safety features built into the ICEMAG 2.
3. Орнотуу колдонмосу
3.1 Алгачкы заряддоо
Before first use, it is recommended to fully charge your ICEMAG 2 power bank. Connect the included USB-C cable to the power bank's USB-C port and the other end to a compatible USB power adapter (not included). The indicator lights on the power bank will show the charging progress. A full charge typically takes approximately 1.5 hours with a 30W power adapter.
3.2 Attaching to Device
For magnetic wireless charging, ensure your iPhone is a 16/15/14 series model or is equipped with a MagSafe-compatible case. Align the ICEMAG 2 with the back of your iPhone; the magnets will automatically snap it into place, initiating wireless charging.
4. Иштөө нускамалары
4.1 Зымсыз заряддоо
- Ensure the ICEMAG 2 is sufficiently charged.
- Align the power bank with the MagSafe area on the back of your compatible iPhone. The magnetic connection will secure it.
- Wireless charging will begin automatically. The active cooling fan may activate to manage heat during charging.
4.2 Зымдуу заряддоо
- Connect one end of a USB-C cable to the USB-C port on the ICEMAG 2.
- Connect the other end of the USB-C cable to your device's charging port.
- Wired charging will commence. The power bank supports up to 30W output for fast charging compatible devices.
4.3 Using the Foldable Stand
Gently pull out the integrated stand from the bottom of the ICEMAG 2. Once extended, you can place the power bank and attached iPhone on a flat surface for hands-free viewing in portrait or landscape orientation. Push the stand back into its slot when not in use.
5. Техникалык тейлөө жана кам көрүү
- Тазалоо: Power bankтин бетин тазалоо үчүн жумшак, кургак чүпүрөктү колдонуңуз. Катуу химиялык заттарды же абразивдүү материалдарды колдонуудан алыс болуңуз.
- Сактагыч: Power банкты күн тийбеген жана экстремалдык температурадан алыс, салкын, кургак жерде сактаңыз.
- Батареяга кам көрүү: Батареянын иштөө мөөнөтүн узартуу үчүн, кубат банкын тез-тез толук зарядсыздандырбаңыз. Аны дайыма колдонбосоңуз да, үзгүлтүксүз заряддап туруңуз.
- Тамчылардан качуу: While durable, avoid dropping the device, as internal components can be damaged.
6. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Power bank not charging device wirelessly. | Device not MagSafe compatible; improper alignment; power bank battery low. | Ensure device is MagSafe compatible or has a MagSafe case. Realign the power bank. Recharge the power bank. |
| Power банк заряддалбай жатат. | Faulty cable or adapter; power outlet issue. | Try a different USB-C cable and power adapter. Test the power outlet with another device. |
| Active cooling fan is noisy or not working. | Obstruction in fan vent; fan malfunction. | Ensure fan vents are clear of debris. If issue persists, contact customer support. |
| Магниттик байланыш начар. | Non-MagSafe case; foreign objects between power bank and phone. | Use a MagSafe-compatible case or remove the case. Ensure no objects are obstructing the magnetic surface. |
7. Продукттун спецификациялары
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | M2 |
| Бренд | sharge |
| Батарея сыйымдуулугу | 10000 миллионamp Саат (мАч) |
| Зымсыз кубаттоо чыгышы | 15W Max (Qi2) |
| Зымдуу заряддоо чыгышы | 30W Max (USB Type C) |
| Киргизүү | 30W Max (USB Type C) |
| Продукциянын өлчөмдөрү | 4.25 x 2.78 x 0.78 дюйм |
| Элемент Салмагы | 7.8 унция |
| Өзгөчөлүктөр | 15W Max Wireless Charging, Active Cooling System, Dynamic RGB Light, Foldable Stand, Sleek Transparent Design |
| Өндүрүүчү | Sharge Technology (Shenzhen) Co., Ltd. |
| Дата биринчи жеткиликтүү | 7-ноябрь, 2024-жыл |
Figure 10: Official specifications sheet for the ICEMAG 2 power bank.
8. Кепилдик жана колдоо
8.1 Кепилдик маалыматы
The ICEMAG 2 MagSafe Power Bank comes with a 12 айлык кепилдик сатып алынган күндөн тартып. Бул кепилдик өндүрүштүк кемчиликтерди жана кадимки колдонуудан келип чыккан көйгөйлөрдү камтыйт. Ал туура эмес колдонуудан, кырсыктардан, уруксатсыз өзгөртүүлөрдөн же табигый кырсыктардан келип чыккан зыянды камтыбайт.
8.2 Кардарларды колдоо
For technical assistance, warranty claims, or any other inquiries, please contact Sharge customer support. Refer to the product packaging or the official Sharge webакыркы байланыш маалыматы үчүн сайт.
Please have your product model number (M2) and proof of purchase ready when contacting support.
