1. Киришүү
Thank you for choosing the Dr Trust USA Zurich 908 Portable Room Air Purifier. This device is designed to improve your indoor air quality by effectively removing airborne pollutants. Please read this manual thoroughly before use to ensure proper operation and maintenance.
Негизги өзгөчөлүктөрү:
- 360° Clean Airflow: Cylindrical design pulls air from all directions, covering up to 270 square feet with a Clean Air Delivery Rate (CADR) of 200 m³/h.
- 4-Layer Filtration + Filter Change Alert: Captures up to 99.97% of airborne particles as small as 0.3 microns, including dust, pollen, smoke, and pet dander. Features a pre-filter, True HEPA filter, activated carbon filter, and photocatalytic technology.
- Real-Time Air Quality Monitoring: PM2.5 air quality indicator with color-coded LED display (green, yellow, orange, red) and automatic fan speed adjustment in AUTO mode.
- Whisper-Quiet with Sleep Mode: Operates at just 50 dB, with a dedicated sleep mode for ultra-quiet operation.
- User-Friendly Design + UV-B Protection: Intuitive touch control panel for fan speeds, timers, and modes. Includes UV-B light technology to neutralize bacteria and viruses.
Сүрөт: алдыңкы view of the Dr Trust USA Zurich 908 Air Purifier.
2. Баштапкы орнотуу
- Агрегатты таңгактан чыгаруу: Аба тазалагычты таңгагынан кылдаттык менен чыгарып алыңыз.
- Фильтр таңгагын алып салуу: Before first use, open the bottom cover of the air purifier and remove the plastic packaging from the 4-layer filter.
- Чыпканы орнотуу: Place the filter back into the unit and secure the bottom cover.
- Тазалагычты жайгаштырыңыз: Place the air purifier on a flat, stable surface in the desired room. Ensure there is adequate space around the unit for optimal airflow.
- Туташуу кубаты: Электр шнурын ылайыктуу электр розеткасына сайыңыз.
Image: Dr Trust Zurich 908 Air Purifier highlighting its features and design.
3. Иштөө нускамалары
Башкаруу панелиview:
The Dr Trust Zurich 908 features an intuitive touch control panel located on the top of the unit. This panel allows you to manage all functions of the air purifier.

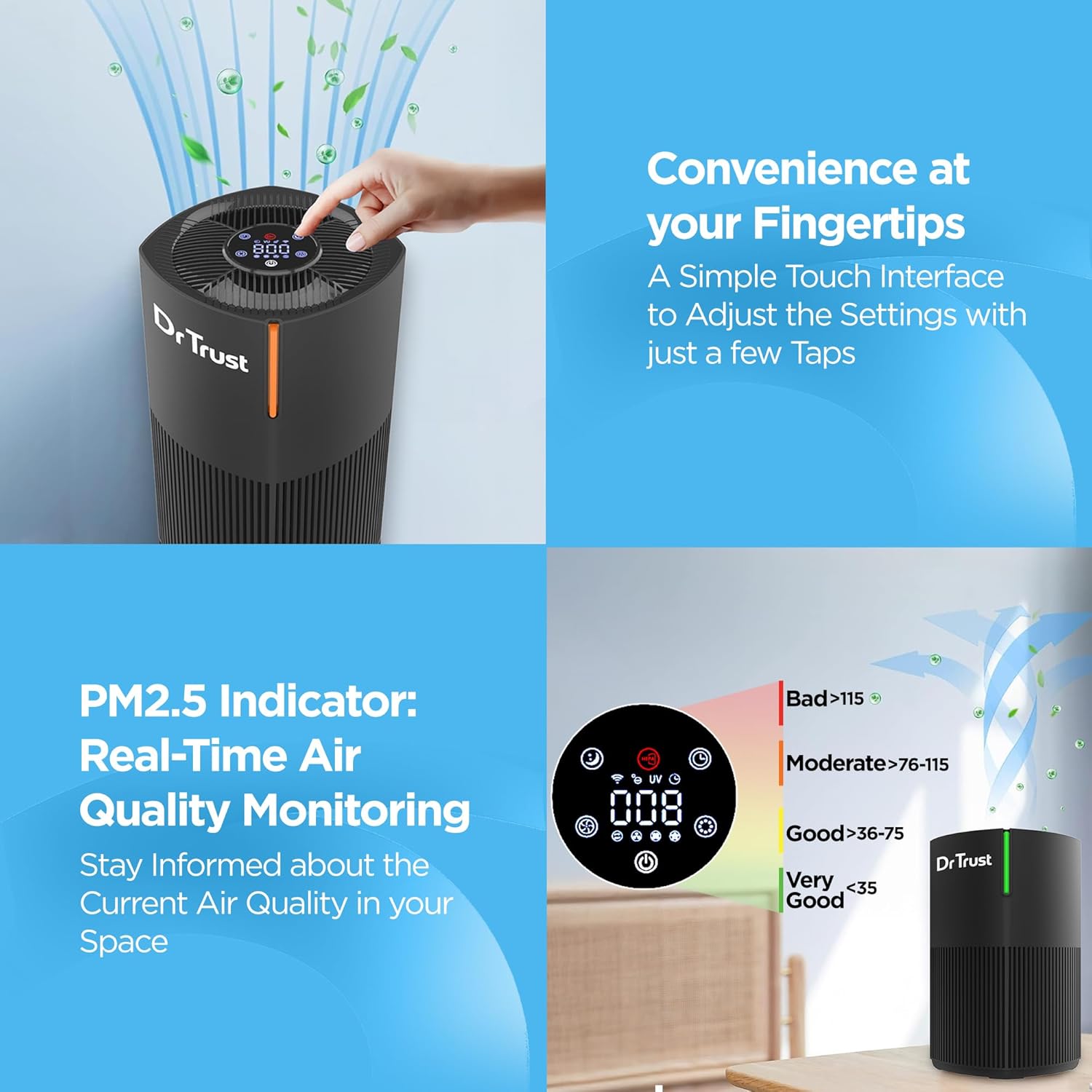

Image: Close-up of the air purifier's touch control panel.
Modes and Settings:
- Күйгүзүү/өчүрүү: Touch the power icon to turn the unit on or off.
- желдеткич ылдамдыгы: Select from 3 fan speeds to adjust the purification intensity.
- Уйку режими: Activate sleep mode for quiet operation, ideal for nighttime use. The display lights will dim or turn off.
- Таймер: Set the operational timer for up to 12 hours. The unit will automatically turn off after the set time.
- AUTO режими: In AUTO mode, the purifier automatically adjusts fan speed based on the detected air quality.
- UV-B Light: Activate the UV-B light function for enhanced sterilization.
Абанын сапатын көзөмөлдөө:
The integrated PM2.5 indicator provides real-time air quality readings. The color-coded LED display on the unit indicates the current air quality:
- Жашыл: Абанын сапаты абдан жакшы
- Сары: Абанын сапаты жакшы
- Ачык күрөң: Абанын сапаты орточо
- Кызыл: Bad Air Quality
Image: PM2.5 air quality indicator with corresponding color codes.
4. Техникалык тейлөө
Фильтрди алмаштыруу:
The Dr Trust Zurich 908 features a 4-layer filtration system that requires periodic replacement to maintain optimal performance. A convenient filter change alert will notify you when it's time to replace the filter.
- Өчүрүү: Аба тазалагычтын өчүрүлгөнүн жана розеткадан суурулганын текшериңиз.
- Remove Bottom Cover: Gently twist and remove the bottom cover of the unit.
- Эски чыпканы алып салуу: Carefully pull out the used 4-layer filter.
- Жаңы чыпканы орнотуу: Insert a new Dr Trust Zurich 908 replacement filter, ensuring it is seated correctly.
- Капкакты алмаштыруу: Securely reattach the bottom cover.
- Reset Filter Alert: Refer to the control panel instructions for resetting the filter change alert after replacement.
Image: Breakdown of the 4-layer filtration system.
Агрегатты тазалоо:
- Аба тазалагычтын сыртын жумшак, кургак чүпүрөк менен сүртүңүз.
- Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
- Ensure no water enters the unit.
5. Кыйынчылыктарды
If you encounter any issues with your Dr Trust Zurich 908 Air Purifier, please refer to the following common troubleshooting steps:
- Түзмөк күйбөй жатат: Check if the power cord is securely plugged into the outlet and the unit. Ensure the filter is correctly installed and the bottom cover is closed.
- Reduced Airflow or Purification: The filter may be clogged. Check the filter change alert and replace the filter if necessary. Ensure the air inlet and outlet are not obstructed.
- адаттан тыш ызы-чуу: Check if the unit is placed on a stable surface. Ensure no foreign objects are obstructing the fan.
- Абанын сапатынын көрсөткүчү өзгөрбөйт: Ensure the sensor is clean and not obstructed. If the issue persists, contact customer support.
6. Продукттун спецификациялары
| Спецификация | Деталь |
|---|---|
| Бренд | Доктор Траст |
| Модель номери | 908 Аба тазалагыч |
| Түс | Кара |
| Продукциянын өлчөмдөрү | 22.9D x 22.9W x 34.4H Сантиметр |
| Полдун аянты | 270 чарчы фут |
| Ызы-чуу деңгээли | 50 децибел |
| Ватtage | 22 Ватт |
| Камтылган компоненттер | 1 Piece Air Purifier |
| Сертификаттар | CE Certified, ETL Certified, RoHS Certified, UL Certified |
| Келип чыккан өлкө | Кытай |
7. Кепилдик жана Кардарларды колдоо
The Dr Trust USA Zurich 908 Portable Room Air Purifier comes with a 3 жылдык кепилдик, сатып алууда жан дүйнө тынчтыгын камсыз кылуу.
For any product-related queries, technical assistance, or warranty claims, please contact Dr Trust customer support. Contact details can typically be found on the product packaging or the official Dr Trust webсайт.
Өндүрүүчү: Nureca Limited, Office No. 101, 1st Floor, Udyog Bhavan Sonawala Lane, Goregaon East, Mumbai, Maharashtra - 400063
