1. Продукт бүтүп калдыview
The BOBLOV KJ23Pro is a high-performance 2K body camera designed for various applications, including law enforcement, security, and outdoor activities. It features a 2K video resolution, 38MP photo clarity, and a robust 4000mAh battery providing up to 15 hours of continuous recording. Equipped with five IR lights, it offers superior night vision capabilities. The camera is also IP66 waterproof, ensuring durability in diverse environments. This manual provides detailed instructions for setting up, operating, and maintaining your KJ23Pro body camera.

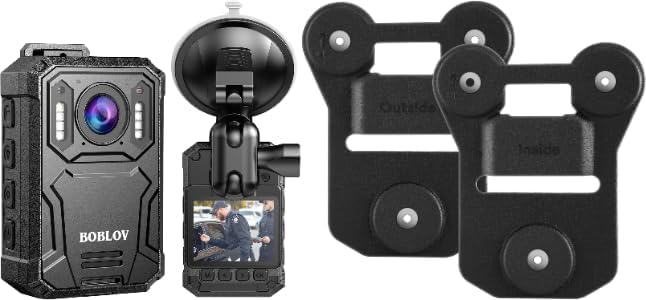

The BOBLOV KJ23Pro 2K Body Camera shown alongside its magnetic mount accessories, including the camera unit, a suction cup mount, and the two-piece magnetic clip system.
2. Кутуда эмне бар
Пакетте бардык компоненттер бар экенин текшериңиз:
- Камера корпусу
- Батарея
- USB кабели
- User Manual
- Ийилген чаптама тоо
- Magnets (for magnetic mount)
3. Орнотуу
3.1 Батареяны заряддоо
Before first use, fully charge the camera's 4000mAh battery. Connect the camera to a power source using the provided USB cable. The charging indicator light will show the charging status. A full charge provides up to 15 hours of continuous recording at 1080P resolution.

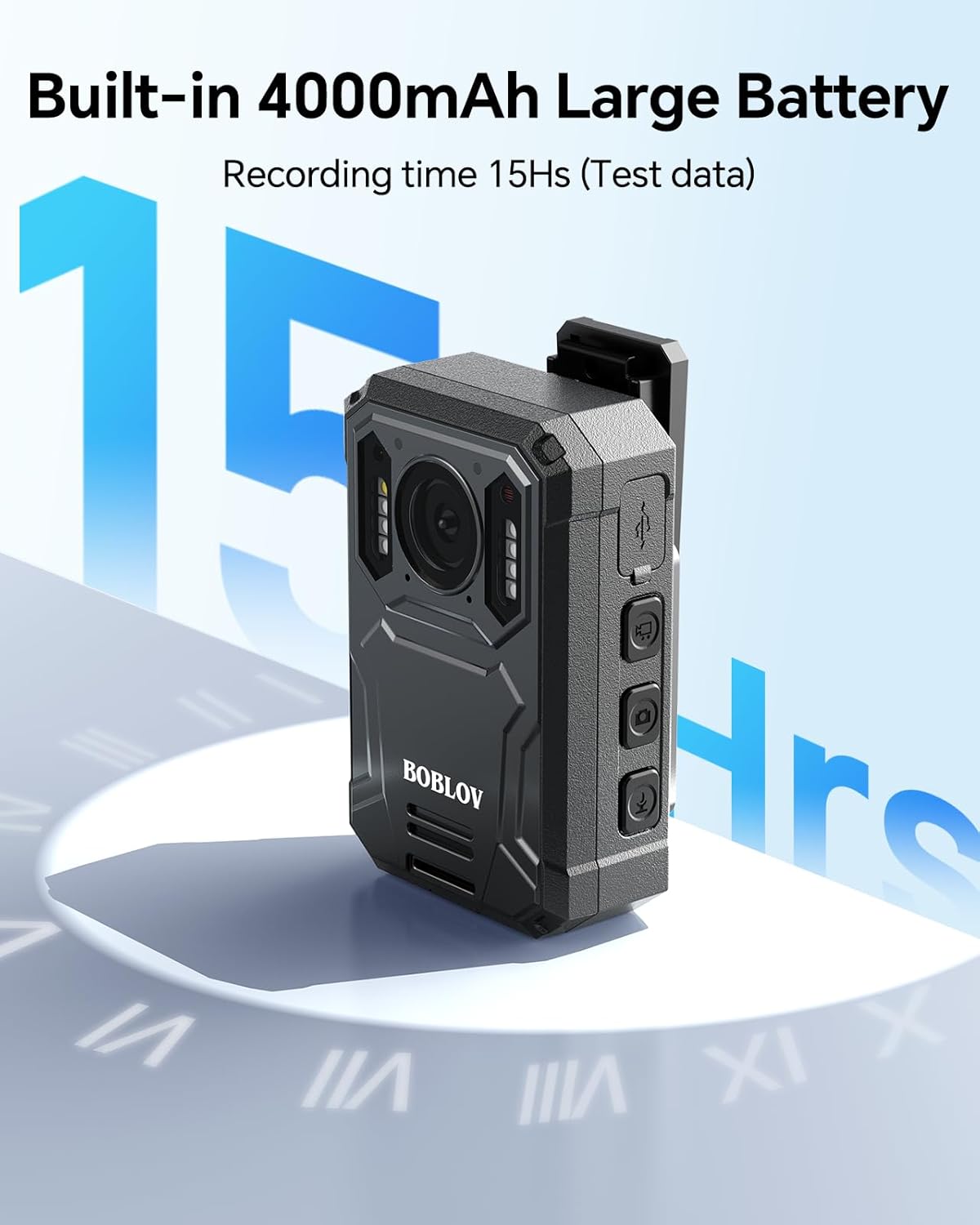

Жакын план view of the BOBLOV KJ23Pro body camera, illustrating its built-in 4000mAh battery capacity, which provides up to 15 hours of continuous recording.
3.2 Installing the Magnetic Mount
The BOBLOV KJ23Pro comes with a universal magnetic suction back clip for secure attachment to clothing. This mount consists of two pieces: an "Inside" clip and an "Outside" clip.
- Separate the Clips: Gently pull apart the two magnetic clips.
- Attach Camera to Outside Clip: Slide the body camera's clip into the designated slot on the "Outside" clip.
- Position Inside Clip: Place the "Inside" clip underneath your clothing (e.g., shirt, jacket, vest) at the desired mounting location.
- Align and Magnetize: Align the "Outside" clip (with the camera attached) over the "Inside" clip on the exterior of your clothing. The strong magnets will attract, securing the camera in place. Ensure correct orientation for maximum magnetic force.
An illustration detailing the two distinct parts of the magnetic mount: the 'Inside' piece that goes under clothing and the 'Outside' piece that attaches to the camera.
A step-by-step visual guide demonstrating how to install the BOBLOV magnetic body camera mount, from separating the clips to attaching the camera to clothing.
A visual representation highlighting the strong magnetic attraction between the BOBLOV body camera and its magnetic mount, powered by six internal magnets.
4. Камераны иштетүү
4.1 Күйгүзүү/өчүрүү
- Күйгүзүү: Press and hold the Power button for a few seconds until the camera powers on.
- Өчүрүү: Камера өчкөнгө чейин Күйгүзүү баскычын басып, кармап туруңуз.
4.2 Видео жаздыруу
To start recording video, press the Video Record button. Press it again to stop recording. The camera supports 2K video resolution for clear and detailed footage.
An image depicting a police officer wearing the BOBLOV KJ23Pro body camera, emphasizing its capability to capture video in 2K resolution for high-definition viewing.
4.3 Сүрөт тартуу
To capture a still image, press the Photo button. The camera captures photos at 38MP resolution.
4.4 Түнкү көрүнүш
The KJ23Pro is equipped with five high-intensity IR lights for enhanced night vision. The camera automatically activates night vision in low-light conditions or can be manually toggled. This feature ensures clear recordings even in complete darkness.
The BOBLOV KJ23Pro body camera with its five IR lights activated, showcasing its night vision capability for clear footagаз жарык шарттарында e.
4.5 Цикл жаздыруу
The camera supports loop recording, which allows continuous recording by overwriting the oldest files when the storage is full. You can set the video fragment length to 5, 10, 15, or 30 minutes (maximum). The default setting is 10 minutes.
A visual representation of the loop recording feature on the BOBLOV KJ23Pro, showing selectable video segment lengths of 5, 10, 15, and 30 minutes.
4.6 Ойнотуу жана File Transfer
үчүн view жазылган files directly on the camera, navigate through the menu using the control buttons. To transfer files to a computer, connect the camera via the provided USB cable. The camera will appear as a removable disk, allowing you to access and copy your video and photo files.
5. Техникалык тейлөө
- Тазалоо: Камеранын корпусун жана линзасын тазалоо үчүн жумшак, кургак чүпүрөктү колдонуңуз. Абразивдүү материалдардан же катуу химиялык заттардан алыс болуңуз.
- Сактагыч: Камераны салкын, кургак жерде күндүн тике тийген нурунан жана экстремалдык температурадан алыс сактаңыз.
- Батареяга кам көрүү: Батареянын иштөө мөөнөтүн оптималдаштыруу үчүн, батареяны тез-тез толук зарядсыздандырбаңыз. Батареянын иштөө мөөнөтүн сактоо үчүн, колдонулбаса да, камераны үзгүлтүксүз кубаттап туруңуз.
- Суу каршылык: The camera has an IP66 waterproof rating, meaning it is protected against powerful water jets. While durable, avoid submerging the camera in water.
6. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Камера күйбөйт. | Low battery; camera frozen. | Charge the battery fully. If frozen, perform a soft reset (refer to specific button combination in full manual if available, otherwise, hold power button for extended period). |
| Жаздыруу күтүлбөгөн жерден токтойт. | Storage full; low battery. | Transfer files to a computer to free up space. Recharge the battery. |
| Видео/сүрөттүн сапаты начар. | Dirty lens; low light conditions (without night vision). | Clean the camera lens. Ensure night vision is active in dark environments. |
| Magnetic mount feels weak. | Incorrect orientation of magnetic clips. | Ensure the "Inside" and "Outside" clips are oriented correctly as shown in the setup section. The magnetic force is strongest when aligned properly. |
7. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | БОБЛОВ |
| Модель аты | KJ23Pro |
| Видео тартуунун резолюциясы | 2K |
| Фото сенсор технологиясы | BSI CMOS |
| Батарея сыйымдуулугу | 4000mAh |
| Үзгүлтүксүз жаздыруу убактысы | Up to 15 hours (at 1080P) |
| Өзгөчө өзгөчөлүк | Night Vision (Five IR Lights) |
| Байланыш технологиясы | USB |
| Видео тартуу форматы | MP4 |
| Суу өткөрбөйт рейтинги | IP66 |
| Видеокамера түрү | Аракет Камера |
| Линзанын түрү | Wide Angle |
8. Кепилдик жана колдоо
For warranty information, technical support, or any inquiries regarding your BOBLOV KJ23Pro body camera, please refer to the official BOBLOV website or contact their customer service directly. You can visit the Amazon'догу BOBLOV дүкөнү көбүрөөк маалымат жана байланыш маалыматы үчүн.
