Philips OneBlade Pro 360 QP6552-15 Beard and Body Trimmer Instruction Manual

Introduction

Welcome to the Philips OneBlade Pro 360 QP6552-15 instruction manual. This versatile grooming tool is designed for trimming, edging, and shaving any length of hair on both your face and body. Its unique OneBlade technology and 360-degree blade ensure a comfortable and efficient experience. Please read this manual carefully before first use to ensure safe and optimal performance of your device.

Негизги өзгөчөлүктөрү

• Exclusive OneBlade Technology: Designed for trimming, edging, and shaving any length of hair.
• Innovative 360-Degree Blade: Pivots in all directions to maintain constant contact with skin, ensuring comfort and control even in difficult areas.
• Кош коргоо системасы: Features a glide coating and rounded tips for a comfortable shave that protects your skin.
• 20 Length Settings Adjustable Comb: Easily select and lock in your preferred trim length from 0.4mm to 10mm.
• Кайра заряддалуучу литий-иондук батарейка: Provides 120 minutes of constant power after a 1-hour charge.
• Дат баспас болоттон жасалган бычак: Designed to last up to 4 months for optimal performance.
• Blade Wear Indicator: An icon on the blade alerts you when it's time for a replacement.
• Skin Guard for Body Grooming: Provides an extra layer of protection for sensitive areas.

Кутуда эмне бар

Your Philips OneBlade Pro 360 QP6552-15 package includes the following items:

• Philips OneBlade Pro 360 Handle (Model QP6552/15)
• OneBlade 360 Blade (pre-attached or separate)
• Adjustable Precision Comb (with 20 length settings)
• Skin Guard for Body
• Кубаттоочу кабель (USB-A)
• Саякат капкагы
• User Manual
• Travel Pouch/Case

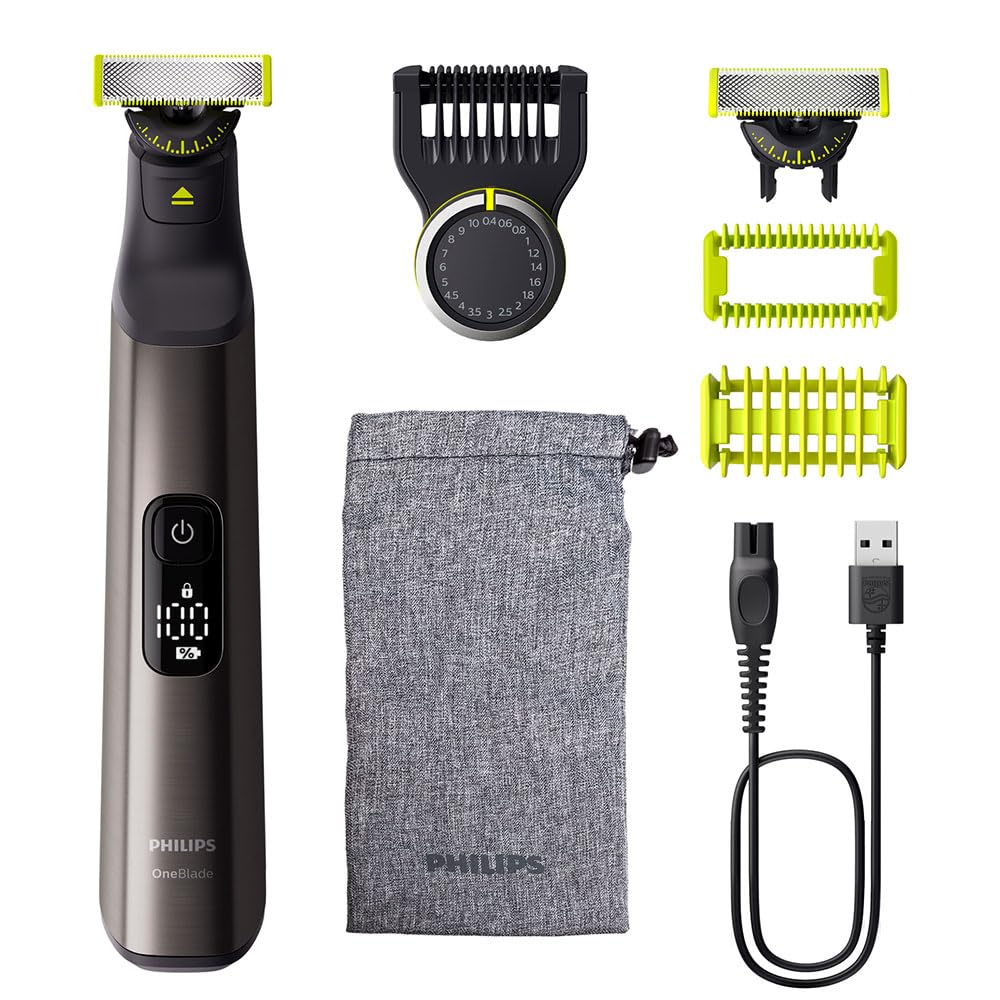

Image: Philips OneBlade Pro 360 QP6552-15 with its various attachments and charging cable.

Жайгашуу

1. Баштапкы төлөм: Before first use, fully charge your OneBlade Pro 360. Connect the charging cable to the device and a USB power adapter (not included). The LED display will show the charging progress. A full charge takes approximately 1 hour and provides 120 minutes of use.
2. Attaching the Blade: Align the blade with the handle and push it until you hear a click. To remove, press the release button and slide the blade off.
3. Attaching the Adjustable Comb: For beard trimming, slide the adjustable comb onto the blade until it clicks into place. Rotate the dial to select your desired hair length.
4. Attaching the Skin Guard: For body grooming, slide the skin guard onto the blade until it clicks into place. This provides an extra layer of protection for sensitive areas.

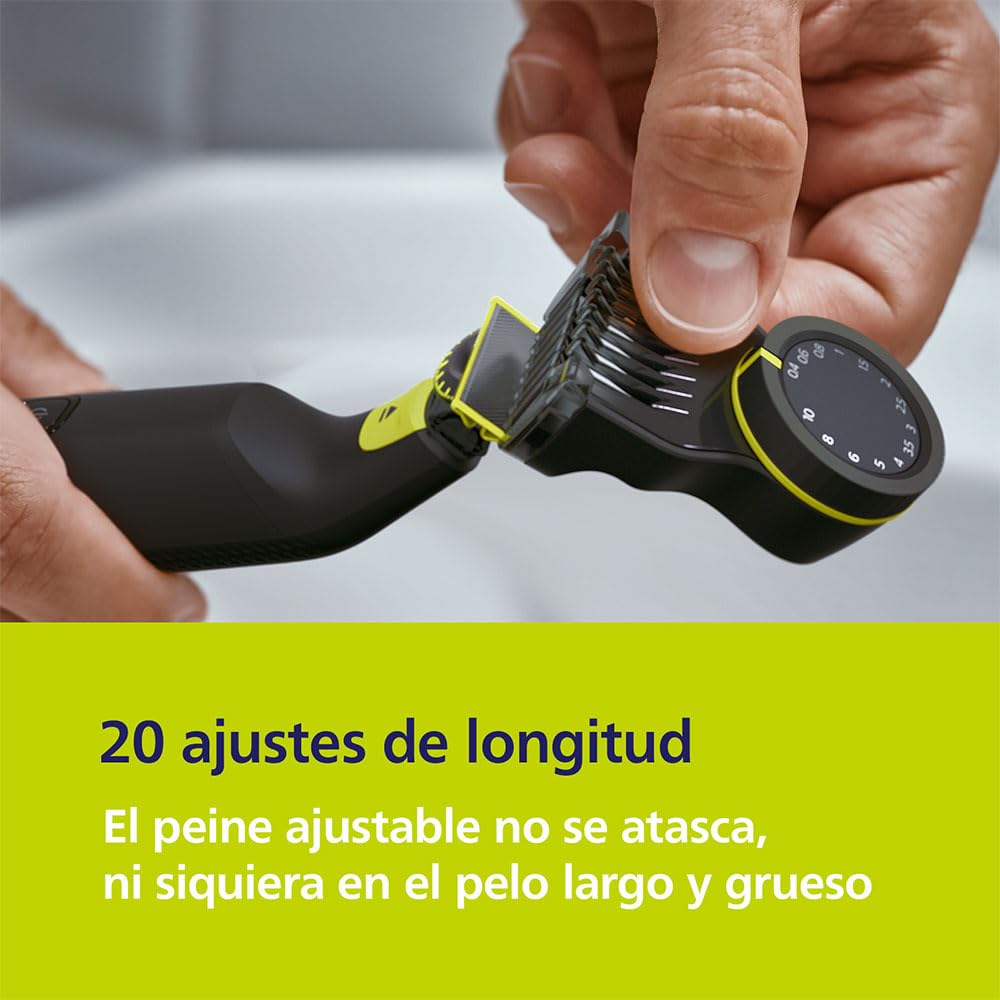

Image: Attaching the adjustable precision comb to the OneBlade Pro 360.

Image: The Philips OneBlade Pro 360 charging via its USB cable.

Иштөө нускамалары

Жалпы колдонуу

• Аппаратты күйгүзүү же өчүрүү үчүн кубат баскычын басыңыз.
• The OneBlade can be used wet or dry, with or without foam.
• For best results, move the blade against the grain of your hair.

Сакалыңызды кыркыңыз

1. Attach the adjustable precision comb.
2. Select your desired trim length using the dial (0.4mm to 10mm).
3. Hold the OneBlade flat against your skin and move it against the direction of hair growth.

Image: The Philips OneBlade Pro 360 used for trimming, shaving, and profiling facial hair.

Edging and Shaping

• Тарактын кошумча тиркемелерин алып салыңыз.
• Hold the blade flat against your skin and use the tip to create sharp lines and edges.
• The dual-sided blade allows for precise edging in both directions.

Сакал алуу

• Тарактын кошумча тиркемелерин алып салыңыз.
• Hold the blade flat against your skin and move it in long strokes against the grain of your hair.
• The OneBlade does not shave as close as a traditional blade, ensuring comfort and preventing skin irritation.

Денеге кам көрүү

1. Attach the skin guard for sensitive areas.
2. Move the OneBlade against the direction of hair growth.
3. The skin guard helps prevent nicks and cuts on delicate skin.

Image: Body grooming with the Philips OneBlade Pro 360, highlighting the skin protector.

Adjustable Comb Settings

The precision comb offers 20 different length settings, allowing you to achieve your desired stubble or beard style. Rotate the dial on the comb to select a length from 0.4mm to 10mm. The settings are clearly marked for easy selection.

Image: The adjustable comb with 20 length settings, preventing snagging even on long, thick hair.

Бычакты алмаштыруу

The Philips OneBlade Pro 360 blade is designed for long-lasting performance, typically up to 4 months with average use (based on 2 full shaves per week). To ensure optimal performance and hygiene, replace the blade when the wear indicator appears.

Бычакты алмаштыруу:

1. Аппаратты өчүрүңүз.
2. Press the release button on the back of the blade and slide it forward to detach it from the handle.
3. Align the new blade with the handle and push it until you hear a click.

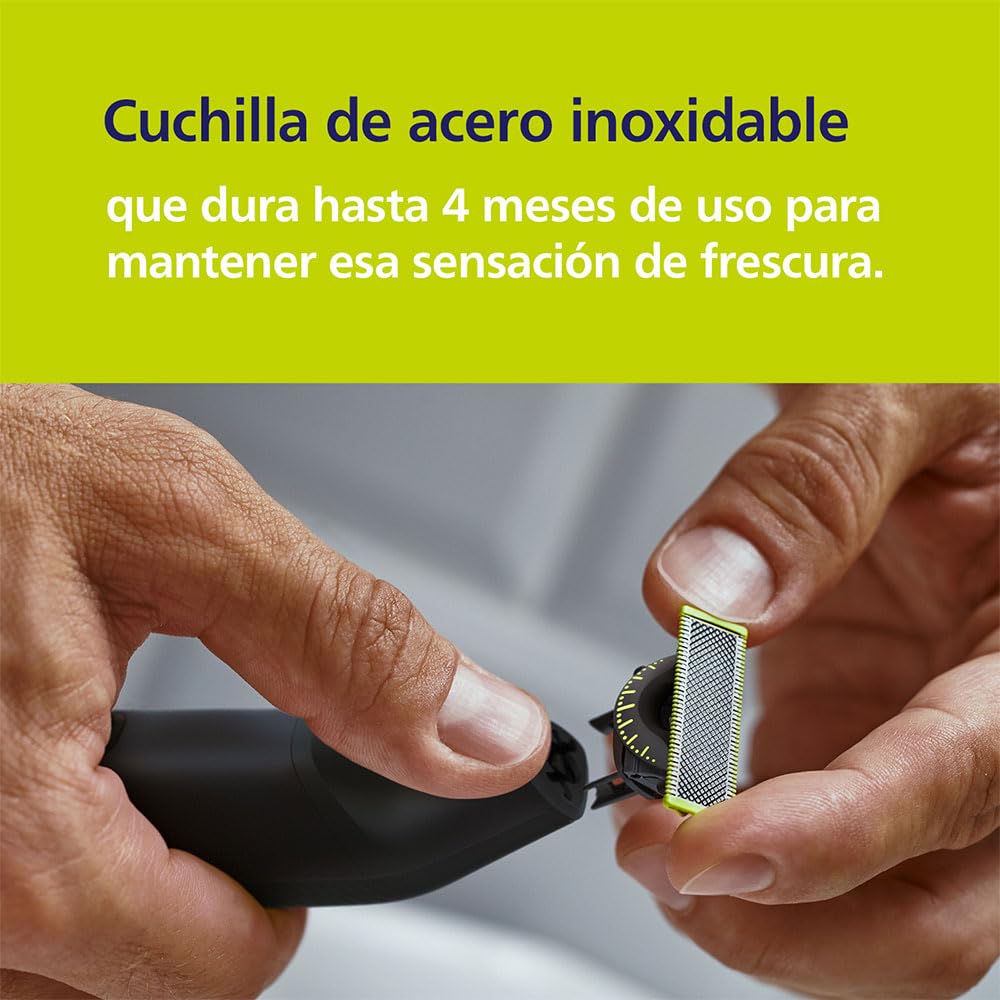

Image: Replacing the stainless steel blade, which lasts up to 4 months.

Image: The blade wear indicator, showing an icon that signals when it's time to change the blade.

Smart Features: Philips GroomTribe App

Enhance your grooming experience by connecting your Philips OneBlade Pro 360 to the Philips GroomTribe app (available for compatible models). The app offers personalized guidance and styling tips.

• Style Mirror: Preview different beard styles in real-time using your phone's camera.
• Symmetry Check: Get guidance to ensure your beard or mustache style is symmetrical.
• Speed Guidance: Receive feedback on your shaving motion speed for optimal results.
• Body Grooming Tips: Access tips for trimming below the neck.
• Face Grooming Tips: Discover advice for various face styles.

Заряддоо жана Батарея

The Philips OneBlade Pro 360 is equipped with a powerful rechargeable Lithium-Ion battery. A full charge takes approximately 1 hour and provides up to 120 minutes of cordless grooming. The LED display on the handle indicates the battery percentage, allowing you to monitor the charge level.

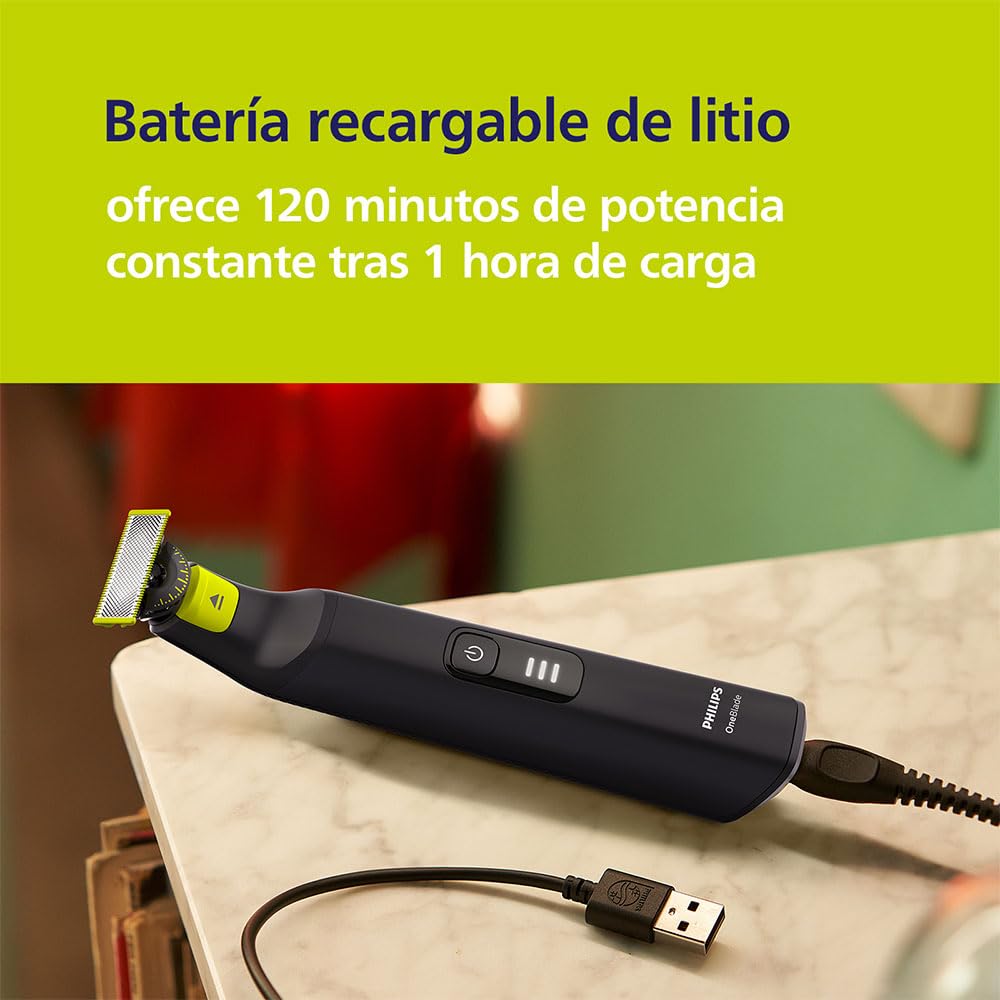

Image: The rechargeable lithium battery provides 120 minutes of power after a 1-hour charge.

Тейлөө жана тазалоо

• Ар бир колдонуудан кийин: Rinse the blade and any attachments under warm running water.
• Колду тазалоо: Тутканы жарнама менен сүртүңүзamp кездеме. Абразивдүү тазалоочу каражаттарды же катуу химиялык заттарды колдонбоңуз.
• Кургатуу: Бардык бөлүктөрүн кайра чогултуудан же сактоодон мурда толугу менен кургатууга уруксат бериңиз.
• Сактагыч: Store the OneBlade Pro 360 in its travel pouch or a dry, safe place.

Проблемаларды чечүү

• Түзмөк күйбөй жатат: Түзмөктүн толук заряддалганын текшериңиз. Эгерде батареянын заряды аз болсо, аны заряддагычка туташтырыңыз.
• Poor Trimming/Shaving Performance: Check if the blade is worn out (refer to the wear indicator) and replace it if necessary. Ensure the blade is clean and free of hair buildup.
• Теринин кыжырдануусу: Always use the OneBlade against the grain of your hair. For sensitive areas, use the skin guard attachment. Ensure your skin is clean before use.
• кубаттоо маселелери: Verify that the charging cable is properly connected to both the device and a working USB power source.

Техникалык шарттар

Коопсуздук маалыматы

• Шайманды кургак кармаңыз.
• Эгерде шайман бузулса, аны колдонбоңуз.
• Балдар жетпеген жерде сактаңыз.
• Кыжырданган же сынган териге колдонбоңуз.
• Always check the blade before use. Do not use a damaged or broken blade.
• For hygienic reasons, do not share your OneBlade with others.

Юридикалык Жоопкерчилик: Диеталык кошулмаларга байланыштуу билдирүүлөр FDA тарабынан бааланган эмес жана кандайдыр бир ооруну же ден-соолукту аныктоо, дарылоо, айыктыруу же алдын алуу үчүн арналган эмес.

Кепилдик жана колдоо

Your Philips OneBlade Pro 360 QP6552-15 comes with a manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions. For product support, troubleshooting, or to purchase replacement parts, please visit the official Philips webсайтка же кардарларды тейлөөгө кайрылыңыз.

• Коргоо пландары: Additional protection plans (2-Year, 3-Year) may be available for purchase.
• Онлайн колдоо: зыярат кылыңыз Amazonдагы Philips дүкөнү көбүрөөк маалымат жана колдоо булактары үчүн.
