BH Fitness RX7 чуркоо жолунун колдонуучу колдонмосу

1. Киришүү

This manual provides essential information for the safe and effective operation, assembly, and maintenance of your BH Fitness RX7 Treadmill. Please read this manual thoroughly before using the equipment to ensure proper setup and to maximize your workout experience.

The RX7 treadmill is designed for intensive home use, featuring a powerful 3.5 HP motor, a spacious running surface, adjustable speed and incline, and advanced connectivity options including Bluetooth FTMS and wireless charging.

1.1-сүрөт: The BH Fitness RX7 Treadmill. This image displays the full treadmill from a front-side angle, highlighting its robust design, console, and running deck with green LED lighting.

2. Коопсуздук боюнча маанилүү маалымат

Before using the treadmill, review the following safety precautions to prevent injury and ensure proper equipment function:

• Кандайдыр бир көнүгүү программасын баштоодон мурун дарыгер менен кеңешиңиз.
• Иш учурунда балдарды жана үй жаныбарларын чуркоо жолунан алыс кармаңыз.
• Чуркоо жолун тегиз, туруктуу бетке коюп, айланасында жетиштүү боштук бар экенин текшериңиз.
• Эгер чуркоо жолу бузулса же иштебей калса, аны иштетпеңиз.
• Ар дайым ылайыктуу спорттук бут кийим кийиңиз.
• Бул чуркоо үчүн максималдуу колдонуучунун салмагы 130 кг.
• The treadmill features an LED safety system: a green light indicates the machine is stopped, and a red light indicates it is in operation. Observe this indicator for safety.
• Always use the safety key during operation.

3. Пакеттин мазмуну

Монтаждоону баштоодон мурун бардык компоненттердин бар экендигин текшериңиз:

• Main Treadmill Frame
• Консол бирдиги
• Электр кабели
• Монтаждоочу жабдуулар (болт, шайба, гайкалар)
• Tools (wrenches, Allen keys)
• User Manual
• Смартфон/планшет кармагыч

4. Монтаждоо боюнча нускамалар

Assembly is required for the BH Fitness RX7 Treadmill. It is recommended that two people perform the assembly. Follow these general steps:

1. Компоненттерди таңгактан чыгаруу: Carefully remove all parts from the packaging and lay them out in an open area.
2. Treadmillди ачуу: The RX7 features a SoftDrop System (SDS) for safe and gradual unfolding. Gently release the locking mechanism and allow the running deck to lower slowly.
3. Тик мамыларды бекитүү: Secure the upright posts to the main frame using the provided hardware.
4. Install Console: Mount the console unit onto the upright posts. Connect all necessary cables from the console to the main frame.
5. Attach Handlebars and Accessories: Secure the handlebars and any other accessories, such as the smartphone/tablet holder.
6. Акыркы текшерүүлөр: Ensure all bolts are tightened and connections are secure.

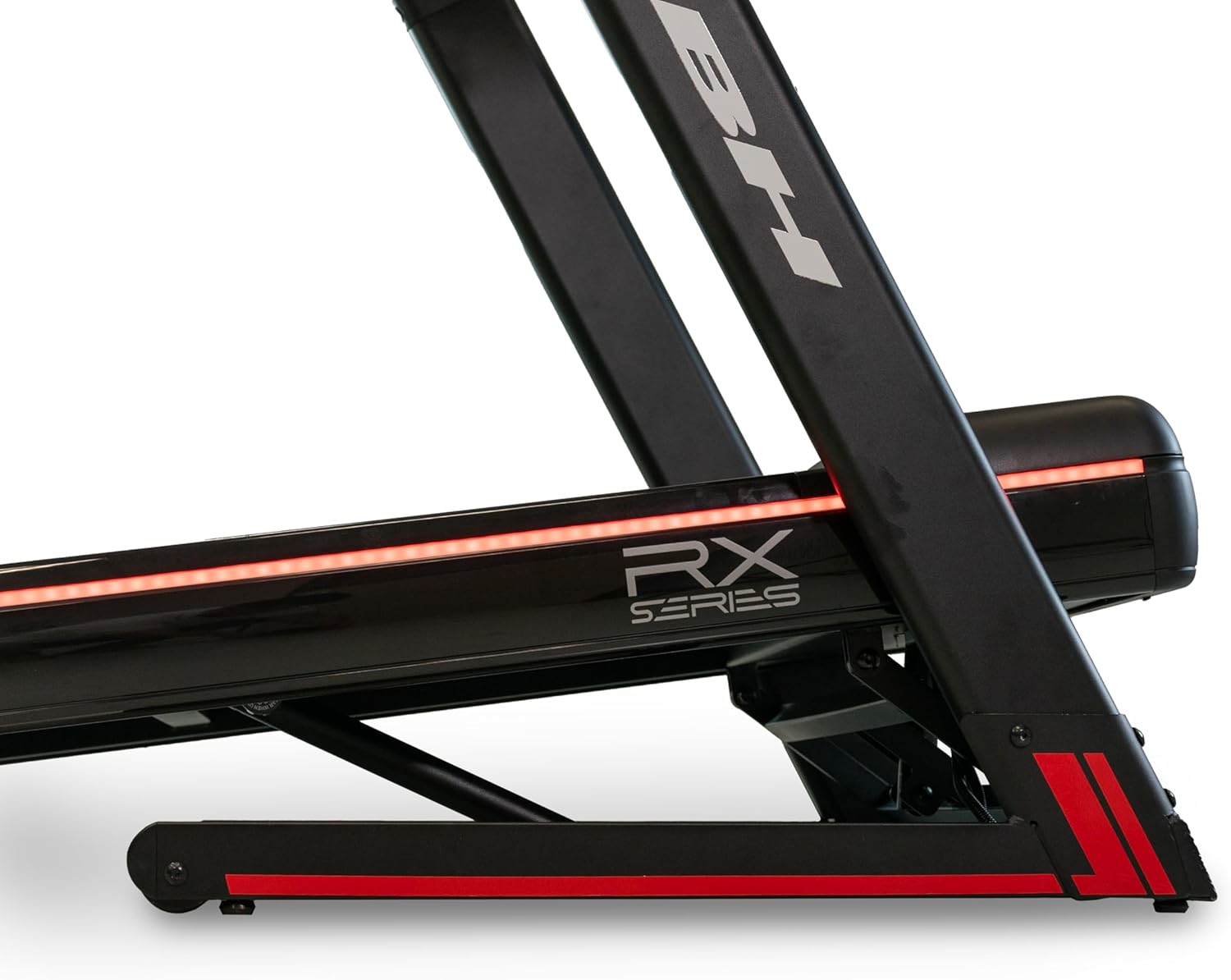

4.1-сүрөт: Side view of the BH Fitness RX7 Treadmill, illustrating the folding mechanism and red LED lighting along the base. This image shows the treadmill in a partially folded or unfolded state, highlighting its compact design.

5. Баштапкы орнотуу

1. Жайгашкан жери: Position the treadmill on a firm, level surface. Ensure there is at least 2 meters (6.5 feet) of clear space behind the treadmill and 0.5 meters (1.6 feet) on each side.
2. Кубат туташуу: Электр кабелин жерге туташтырылган электр розеткасына сайыңыз.
3. Коопсуздук ачкычы: Attach the safety key clip to your clothing before starting any workout.

6. Иштөө нускамалары

6.1 Console Overview

6.1-сүрөт: Жакын план view of the BH Fitness RX7 Treadmill's LED console and control panel. The display shows metrics like calories, speed, time, distance, incline, and pulse, with control buttons below.

The LED monitor displays key workout metrics including Time, Incline, Speed, Distance, Calories, and Pulse. Control buttons allow for easy adjustment of speed, incline, and program selection.

6.2 Машыгууну баштоо

1. Ensure the safety key is in place and clipped to your clothing.
2. Press the START button on the console. The treadmill belt will begin to move at a low speed.
3. Adjust the speed using the '+' and '-' buttons. The speed range is 1 to 20 km/h.
4. Adjust the incline using the incline buttons. The incline can be set up to 15%.
5. Observe the LED safety system: a green light indicates the treadmill is stopped, and a red light indicates it is in operation.

6.2-сүрөт: Close-up of the BH Fitness RX7 Treadmill's running deck, showing the green LED lighting along the side. This light indicates the treadmill is currently stopped, enhancing user safety.

6.3 Машыгуу программалары

The RX7 treadmill offers 32 pre-defined workout programs to vary your training intensity. Select a program using the program selection buttons on the console. Additionally, a body fat test function is available.

6.4 Пульсту өлчөө

Measure your pulse by gripping the contact sensors on the handlebars. For continuous and more accurate monitoring, an optional chest strap can be connected.

6.5 Bluetooth FTMS Connectivity

The treadmill features Bluetooth FTMS connectivity, allowing synchronization with popular fitness applications such as Zwift, Kinomap, and Bkool. This enhances your workout experience with interactive training environments. Refer to your chosen app's instructions for pairing.

6.6 Зымсыз заряддоо

A wireless charging pad is integrated into the console. Place your compatible mobile device on the pad to charge it during your workout, eliminating the need for cables.

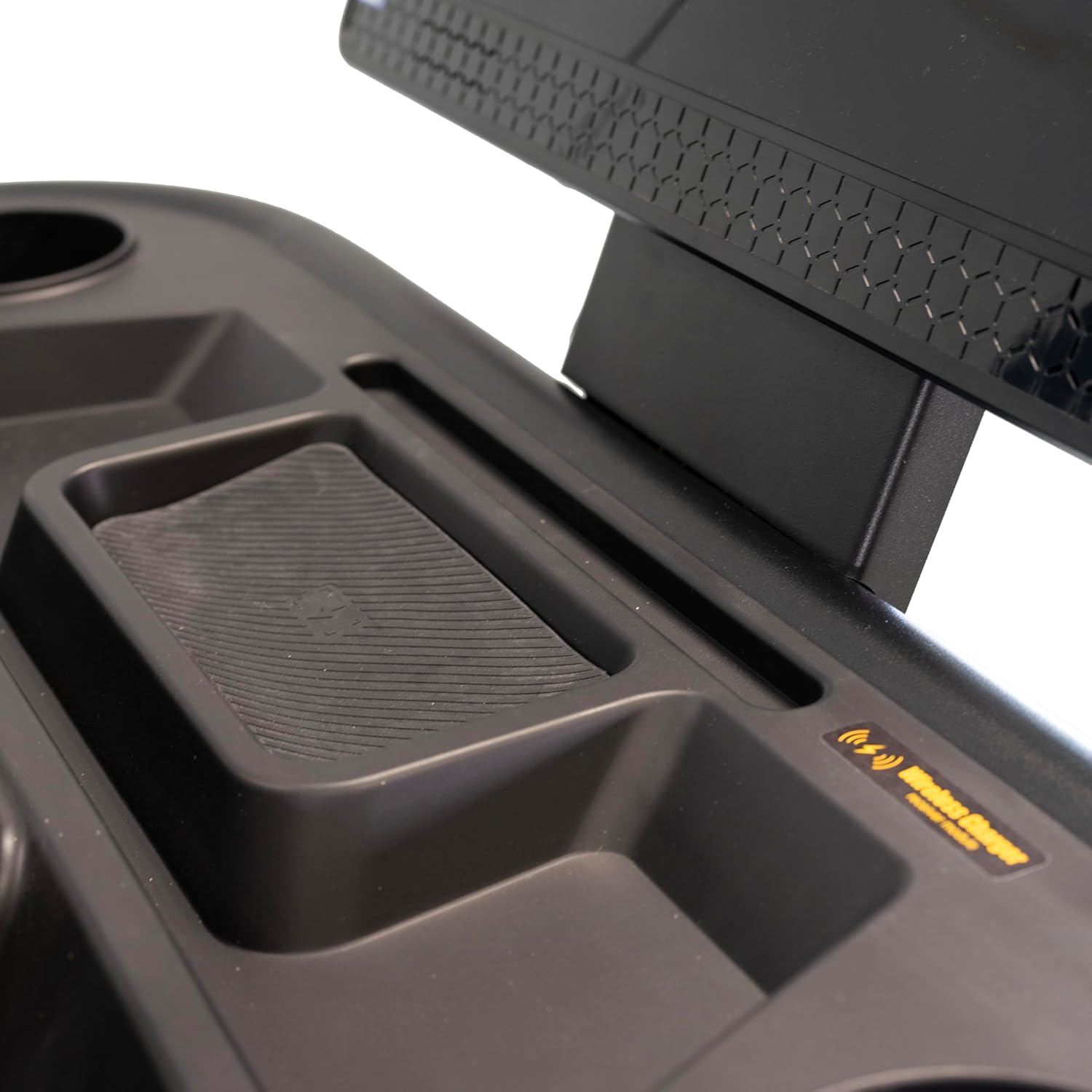

6.3-сүрөт: Жакын план view of the wireless charging pad located on the console of the BH Fitness RX7 Treadmill. The pad is clearly marked with a wireless charging symbol.

6.7 Integrated Speakers and Device Holder

Connect your smartphone or tablet to the treadmill's integrated speakers via Bluetooth to enjoy your favorite music. The universal holder provides a secure place for your device during your workout.

6.4-сүрөт: Жакын план view of a cup holder on the BH Fitness RX7 Treadmill console. This provides a convenient spot for hydration during workouts.

7. Техникалык тейлөө

Үзгүлтүксүз тейлөө сиздин чуркоо жолуңуздун узак мөөнөттүү жана оптималдуу иштешин камсыз кылат.

• Тазалоо: Жарнак менен ар бир колдонуудан кийин чуркоо тилкесин сүртүңүзamp кездеме. Абразивдүү тазалагычтардан алыс болуңуз.
• Майлоо: Periodically check and lubricate the running belt according to the instructions provided with your lubricant (not included).
• Кур чыңдоо жана тегиздөө: Inspect the running belt for proper tension and alignment. Adjust as necessary following the detailed instructions in the full technical manual (if applicable).
• Жалпы текшерүү: Regularly check all bolts and connections for tightness.

8. Кыйынчылыктарды

Эгерде сиз чуркоо жолунда көйгөйлөргө туш болсоңуз, төмөнкү кеңири таралган көйгөйлөрдү жана чечимдерди караңыз:

For issues not listed here, please contact BH Fitness customer support.

9. Техникалык шарттар

10. Кепилдик жана колдоо

Your BH Fitness RX7 Treadmill is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions.

For technical assistance, spare parts, or warranty claims, please contact BH Fitness customer support:

• Webсайт: www.bhfitness.com (Эскертүү: Бул толтургуч URL. Please refer to your product documentation for the official support webсайт.)
• Электрондук почта: support@bhfitness.com (Note: This is a placeholder email.)
• Телефон: Consult your regional BH Fitness webжергиликтүү байланыш номерлери үчүн сайт.
