1. Киришүү
This manual provides essential information for the safe and efficient operation, setup, and maintenance of your CATLINK SE Lite Automatic Self-Cleaning Litter Box. Please read this manual thoroughly before using the product to ensure proper function and safety for your pet.

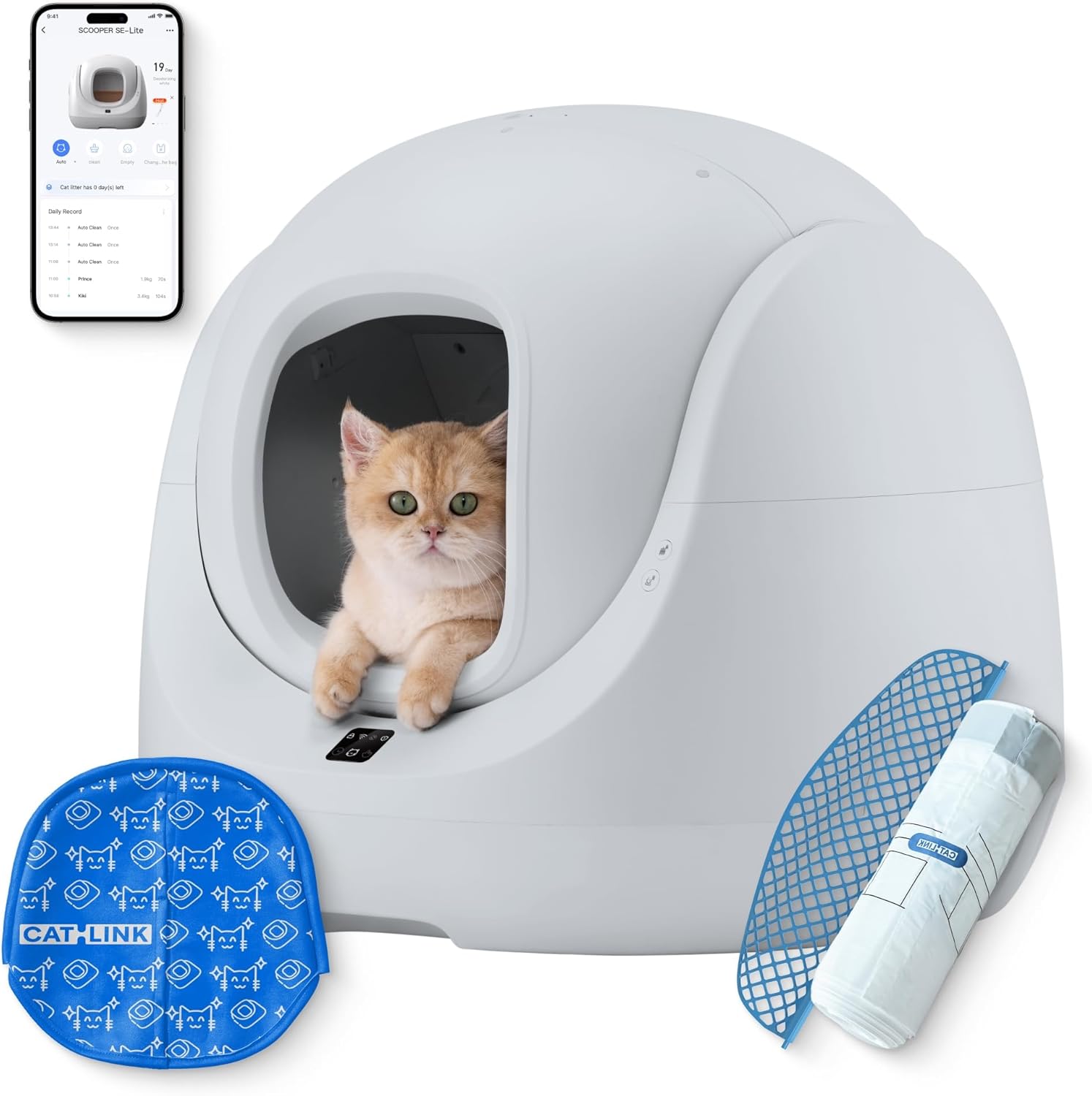

Image 1.1: CATLINK SE Lite Automatic Self-Cleaning Litter Box overview.
2. Коопсуздук маалыматы
Your cat's safety is paramount. The CATLINK SE Lite is equipped with multiple safety features to prevent accidents.
- 8-Level Safety Features: Includes 4 gravity sensors, 2 anti-pinch protections, 1 infrared sensor, and a safety motor.
- Автоматтык токтотуу: The unit automatically stops operation if your cat is detected nearby during a cleaning cycle.
- Pinch-Free Design: Features a partially geared globe with reserved living space to prevent pinching. For cats under 1.5 kg, manual mode is recommended.
Image 2.1: Eightfold Safety Protection System.
Image 2.2: Infrared Sensor detection.
3. Продукт бүтүп калдыview
The CATLINK SE Lite is an automatic self-cleaning litter box designed for convenience and pet well-being.
3.1 Негизги өзгөчөлүктөрү
- Compact and Spacious: Occupies 0.3 square meters with a 70L capacity, suitable for cats from 3.5 to 22 lbs.
- Low Entry: 7.8-inch entry height for easy access by senior or mobility-challenged cats.
- Ден соолук мониторинги: Smart gravity-sensing technology tracks usage and provides real-time health updates via the CATLINK app.
- Эң кыйынчылыксыз тазалоо: Non-stick inner liner, built-in drainage, and washable globe.
- 4 тазалоо режими: Automatic, Scheduled, Manual, and Emptying modes.
- Ультра тынч иштөө: Designed to run quietly at approximately 60dB.
3.1-сүрөт: Продукциянын өлчөмдөрү жана кубаттуулугу.
4. Орнотуу
4.1 Орнотуу
Proper placement ensures optimal performance and safety.
- Аппаратты туруктуу, тегиз бетке коюңуз.
- Ensure it is positioned 5-10 cm away from any walls.
- Avoid placing rugs or mats underneath, as this may interfere with the sensor's detection accuracy.
Image 4.1: Placement suggestions.
4.2 Adding Litter
Add litter from the top of the unit. The design allows for easy, upright litter addition.
Image 4.2: Effortless Litter Disposal and Addition.
4.3 App Connection (Wi-Fi)
To utilize smart features, connect your CATLINK SE Lite to the CATLINK app.
- Download the CATLINK app.
- Register and log in to the app. Enable location and GPS for Android devices.
- If the SCOOPER SE is not found, tap to add manually at the bottom of the screen. Hold the Clean Button for 10 seconds until the indicator flashes after four beeps.
- Follow the CATLINK app prompts to connect the SCOOPER SE to Wi-Fi.
Эскертүү:
- The device must be near your router with power on.
- Wi-Fi name should contain only letters and numbers.
- Connect using a 2.4GHz Wi-Fi network; 5GHz and certain public Wi-Fi are not supported.
Image 4.3: Wi-Fi Connection Guide.
5. Иштөө нускамалары
The CATLINK SE Lite offers various modes for managing your cat's litter needs.
5.1 Тазалоо режимдери
Choose from four cleaning modes:
- Автоматтык режим: The litter box automatically cleans after your cat exits.
- Пландаштырылган режим: Тазалоо циклдери үчүн атайын убакыттарды белгилеңиз.
- Кол режими: Initiate a cleaning cycle manually via the app or device button.
- Emptying Mode: Lowers the board for complete litter removal, facilitating deep cleaning or litter changes.
5.2 Ден соолуктун мониторинги
The CATLINK app provides real-time health updates and tracks your cat's usage patterns.
- Tracks each cat's usage with smart gravity-sensing technology.
- Sends personalized health updates and alerts for abnormalities.
- Monitors cat weight and litter usage.
Image 5.1: Health Monitoring via CATLINK App.
5.3 Тынч иштөө
The unit operates at approximately 60dB, designed to minimize disturbance.
Image 5.2: Ultra Quiet Operation.
6. Техникалык тейлөө
Regular maintenance ensures the longevity and hygiene of your litter box.
6.1 Cleaning the Globe
The inner globe is designed for easy cleaning.
- The non-stick inner liner and walls prevent clumps from sticking.
- The globe is washable. After washing, remove the plug to allow water to drain.
- Two-step disassembly for the ball bin makes rinsing easy.
Image 6.1: Washable Ball Bin.
Image 6.2: One-Click Cleaning and Disassembly.
6.2 Litter Disposal and Odor Control
The unit is designed for hygienic waste management.
- Effortless Disposal: Open the cover, pull to gather the trash bag, and lift to dispose.
- Sealed Waste Compartment: Traps odors, preventing them from escaping.
- Optional Deodorization: A 24-hour gel deodorization formula (sold separately) can be used for enhanced odor control.
Image 6.3: Double Odor Elimination.
7. Кыйынчылыктарды
Бул бөлүм сиз кабылышы мүмкүн болгон жалпы көйгөйлөрдү карайт.
7.1 Wi-Fi туташуу маселелери
- Incorrect Wi-Fi Band: Ensure your router is broadcasting a 2.4GHz network and your phone is connected to it during setup. The device does not support 5GHz networks.
- Тармактын аталышы: Confirm your Wi-Fi network name (SSID) contains only letters and numbers. Special characters may cause connection failures.
- Сигнал күчү: Place the litter box within a reasonable range of your Wi-Fi router for a stable connection.
- Колдонмо уруксаттары: For Android users, ensure location and GPS permissions are enabled for the CATLINK app.
- Байланышты кайра орнотуу: If issues persist, try resetting the device's Wi-Fi connection by holding the Clean Button for 10 seconds until the indicator flashes, then re-attempt the setup process in the app.
7.2 Cleaning Cycle Malfunctions
- Тоскоолдуктар: Check for any foreign objects or excessive litter clumps that might be obstructing the globe's rotation.
- Сенсордун кийлигишүүсү: Ensure the device is on a flat, stable surface and no rugs or mats are interfering with the gravity sensors.
- Cat Detection: If the cycle stops unexpectedly, verify no cat is near or inside the unit, triggering the safety sensors.
- Таштанды түрү: Ensure you are using clumping cat litter suitable for automatic litter boxes. Non-clumping litter may not be effectively processed.
7.3 Odor Issues
- Waste Bag Full: Check if the waste bag needs to be replaced.
- Мөөрлөө: Ensure the waste compartment is properly sealed after changing the bag.
- дезодоризатор: Consider using the optional CATLINK deodorization gel for enhanced odor control.
- Тазалоо жыштыгы: Adjust automatic cleaning frequency or perform manual cleaning more often if needed.
8. Техникалык шарттар
| Спецификация | Деталь |
|---|---|
| Бренд | CATLINK |
| Модель аты | SE Lite |
| Элемент моделинин номери | CL-CA-02 |
| Продукциянын өлчөмдөрү (LxWxH) | 21 x 21.46 x 23.62 дюйм (53.34 x 54.51 x 60 см) |
| Элемент Салмагы | 22 фунт (10 кг) |
| Материал | Акрилонитрил бутадиен стирол (ABS) |
| Түс | Боз |
| Таштанды кутучасынын түрү | Автоматташтырылган өзүн-өзү тазалоочу таштанды кутусу |
| Максаттуу аудитория | Cats, house-cats (3.5 to 22 lbs) |
| Өзгөчө колдонуулар | Indoor |
9. Кепилдик жана колдоо
9.1 Кепилдик маалыматы
The CATLINK SE Lite Automatic Self-Cleaning Litter Box comes with a 1 жылдык кепилдик сатып алынган күндөн тартып. Бул кепилдик нормалдуу колдонуудагы өндүрүш кемчиликтерин камтыйт. Кепилдик дооматтары үчүн сатып алганыңыздын далилин сактап коюңуз.
9.2 Кардарларды колдоо
For technical assistance, troubleshooting not covered in this manual, or warranty inquiries, please contact CATLINK customer support. Refer to the contact information provided with your product packaging or visit the official CATLINK webколдоо чоо-жайы үчүн сайт.
