1. Киришүү
The Anderic RRTR214D (TR214D) Ceiling Fan Remote Control is engineered as a direct replacement for various Harbor Breeze remote models. This manual provides essential information for setting up, operating, and maintaining your new remote control, ensuring seamless integration and optimal performance with your compatible ceiling fan.
2. Шайкештик
The Anderic RRTR214D remote control is designed to seamlessly replace the following Harbor Breeze remote models:
- A25-FA0138
- KUJCE10311
- TR214B
- KUJCE10712
- TR214A
- KUJCE10610
This remote is specifically designed for these models and cannot be paired with other ceiling fan receivers not originally supplied with these models. Please verify your existing remote's model number for compatibility.
Image: The Anderic RRTR214D remote control shown alongside a list of compatible Harbor Breeze ceiling fan models, emphasizing seamless integration.
3. Негизги өзгөчөлүктөрү
- Түздөн-түз алмаштыруу: Seamlessly replaces specified Harbor Breeze remote models.
- Эң кыйынчылыксыз жупташтыруу: Designed for easy setup with your existing receiver.
- Комплекстүү көзөмөл: Offers full control over fan speeds (high, medium, low, off) and light functions (on/off and dimming).
- Батарея менен иштейт: Operates on a single 23A 12-volt battery (not included).
- Convenient Wall Mount: Includes a wall mount for easy storage and accessibility.

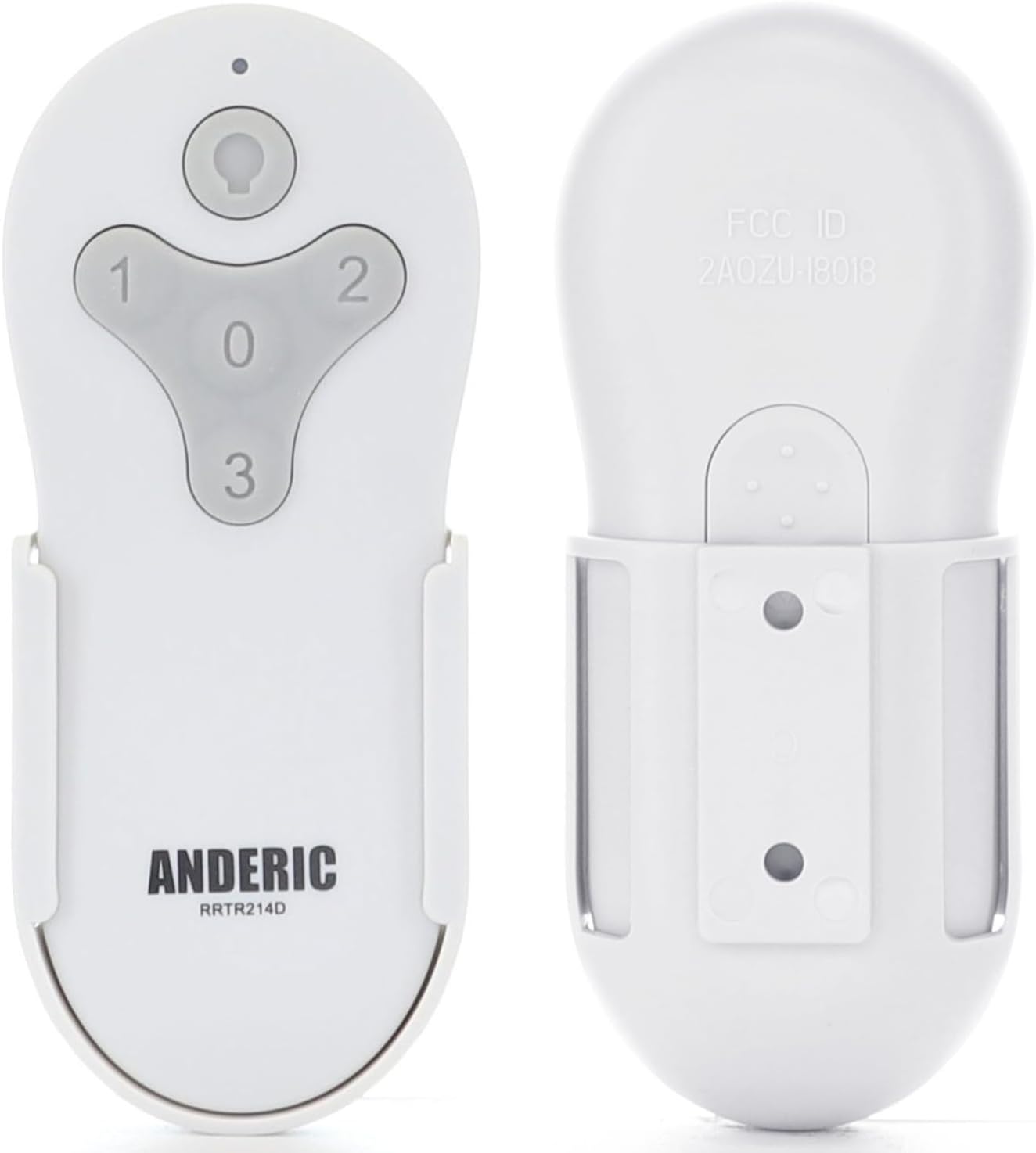

Сүрөт: ачык view of the Anderic RRTR214D remote control, showing both its front with control buttons and its back, along with the included wall mount for convenient storage.
4. Орнотуу нускамалары
4.1. Батареяны орнотуу
The Anderic RRTR214D remote requires one 23A 12-volt battery (not included).
- Пульттун артындагы батарея отсегин табыңыз.
- Батареянын капкагын жылдырыңыз.
- Insert one 23A 12-volt battery, ensuring the correct polarity (+ and -) as indicated inside the compartment.
- Батареянын капкагын бекем жабыңыз.
4.2. Effortless Pairing
Follow these simple steps to pair your Anderic RRTR214D remote with your ceiling fan receiver:
- Cycle Power to the Fan: Turn off the power to your ceiling fan at the wall switch or circuit breaker, then turn it back on. This resets the receiver for pairing.
- Install Battery in the Remote: Ensure the 23A 12-volt battery is correctly installed in the remote control.
- Press and Hold the "0" Key: Within 30 seconds of restoring power to the fan, press and hold the "0" (fan off) button on the remote control for approximately five seconds. The fan light should blink or the fan should respond, indicating successful pairing.
If pairing is unsuccessful, repeat the steps. Ensure you are within close proximity to the fan during the pairing process.
Image: A visual guide illustrating how to install the 23A 12-volt battery into the remote and the three-step process for effortless pairing with a ceiling fan.
4.3. Дубалга монтаждоо
The included wall mount allows for convenient storage and quick access to your remote.
- Дубалга күн нуру тийбеген же жылуулук булактарынан алыс, ылайыктуу жерди тандаңыз.
- Use screws (not included) to secure the wall mount to the desired surface.
- Slide the remote control into the wall mount for secure storage.
Image: The Anderic RRTR214D remote's wall mount is highlighted, demonstrating how it can be installed on a wall for easy access and to prevent misplacement.
5. Иштөө нускамалары
The Anderic RRTR214D remote provides comprehensive control over your ceiling fan's functions:
- Жарык баскычы: Press to turn the light ON or OFF. Hold to dim or brighten the light (if your fan supports dimming).
- Желдетүүчү ылдамдык баскычтары:
- 1: Fan speed LOW
- 2: желдеткич ылдамдыгы ORTA
- 3: желдеткич ылдамдыгы ЖОГОРКУ
- 0 (Fan Off) Button: Press to turn the fan OFF.
Image: A visual representation of the Anderic RRTR214D remote's buttons, detailing their functions for adjusting fan speeds (low, medium, high, off) and controlling light (on/off/dimming).
6. Техникалык тейлөө
Алыстан башкаруу пультуңуздун узак мөөнөттүү жана оптималдуу иштешин камсыз кылуу үчүн, төмөнкү техникалык тейлөө көрсөтмөлөрүн аткарыңыз:
- Батареяны алмаштыруу: Replace the 23A 12-volt battery when the remote's range decreases or it becomes unresponsive. Always use a fresh battery of the specified type.
- Тазалоо: Wipe the remote with a soft, dry cloth. Do not use abrasive cleaners or immerse the remote in water.
- Сактагыч: Store the remote in a cool, dry place when not in use for extended periods. Remove the battery if storing for several months to prevent leakage.
7. Кыйынчылыктарды
If you encounter issues with your Anderic RRTR214D remote control, refer to the following common problems and solutions:
- Алыстан жооп бербейт:
- Батареяны текшериңиз. Анын туура орнотулганын жана жетиштүү заряды бар экенин текшериңиз. Керек болсо алмаштырыңыз.
- Ensure you are within the operating range of the ceiling fan receiver.
- Жупташтыруу маселелери:
- Confirm that your ceiling fan receiver is one of the compatible models listed in Section 2.
- Repeat the pairing steps carefully (Section 4.2), ensuring you cycle power to the fan and press the "0" button within the specified timeframe.
- Ensure no other remote controls are interfering with the pairing process.
- Fan or Light Functions Not Working:
- Verify that the remote is successfully paired.
- Check the fan's pull chains (if applicable) to ensure the fan speed or light is set to the 'on' position for remote operation.
If problems persist after attempting these solutions, please contact Anderic customer support for further assistance.
8. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | RRTR214D |
| Продукциянын өлчөмдөрү | 1.7 x 3.9 x 0.9 дюйм |
| Элемент Салмагы | 1.12 унция |
| Батарея түрү | 1 x 23A 12-volt (not included) |
| Түс | Ак |
| Өзгөчө өзгөчөлүк | Алдын ала программаланган |
| Колдоого алынган түзмөктөрдүн максималдуу саны | 1 |
| Шайкеш түзмөктөр | Күйөрман |
Image: The Anderic RRTR214D remote control is displayed with its compact dimensions (5.5 inches length, 2 inches width, 0.9 inches thickness), highlighting its comfortable and easy-to-use design.
9. Кепилдик жана колдоо
For warranty information or technical support regarding your Anderic RRTR214D remote control, please refer to the product packaging or visit the official Anderic website. You may also contact Anderic customer service directly for assistance with troubleshooting, replacement parts, or any other inquiries.
Өндүрүүчү: Dan's Electronics Etc., Inc.
