Rraycom S-W1B-SP 2K Solar Wireless Outdoor Security Camera User Manual

1. Продукт бүтүп калдыview

The Rraycom S-W1B-SP is a 2K solar-powered wireless outdoor security camera designed for comprehensive outdoor surveillance. It features dual-band Wi-Fi connectivity (2.4G and 5G), a built-in solar panel for continuous power, advanced human detection, color night vision, two-way audio, and compatibility with Amazon Alexa.

Image: Rraycom S-W1B-SP Solar Security Camera with smartphone app interface.

2. Кутуда эмне бар

• Rraycom S-W1B-SP Security Camera with integrated Solar Panel
• Кайра заряддалуучу батарея (алдын ала орнотулган)
• Mount & Screws Set
• USB Cable (for initial charging)
• User Manual

Image: Contents of the Rraycom S-W1B-SP security camera package, including camera, solar panel, and accessories.

3. Орнотуу колдонмосу

3.1 Алгачкы заряддоо

Before installation, fully charge the camera using the provided USB cable. Connect the USB-C end to the camera's charging port (located under the rubber cover at the bottom) and the USB-A end to a standard USB power adapter (not included).

3.2 Колдонмону орнотуу жана жупташтыруу

1. Download the O-Kam Pro app from your smartphone's app store.
2. Каттоо эсебин түзүп, кириңиз.
3. Follow the in-app instructions to add a new device. The camera supports Bluetooth pairing for easy one-touch setup.
4. Select your 2.4G or 5G Wi-Fi network and enter the password.

Image: Screenshots showing the O-Kam Pro app interface for easy Bluetooth setup.

3.3 Камераны орнотуу

Кабыл ала турган жерди тандаңыз ampкүн панели үчүн күн нурун берет жана керектүү байкоо жүргүзүүнү камсыз кылат view. Use the provided mounting bracket and screws to securely attach the camera to a wall or other suitable surface. The camera is IP65 waterproof, ensuring reliable performance in various weather conditions.

Image: Rraycom S-W1B-SP camera mounted outdoors, demonstrating its IP65 waterproof rating.

4. Иштөө нускамалары

4.1 Live View жана Жаздыруу

Access the live feed through the O-Kam Pro app. The camera captures video in 2K QHD resolution. You can manually record or set up motion-triggered recordings.

Image: Comparison of 2K QHD resolution versus 720P resolution from the security camera.

4.2 Кыймылды аныктоо жана эскертүүлөр

The camera features advanced human detection and PIR motion detection. Configure activity zones within the app to minimize false alarms. Receive instant notifications on your smartphone when motion is detected.

Image: AI human detection feature of the Rraycom security camera.

4.3 Түнкү көрүнүш

The camera offers full-color night vision, providing clear and detailed footage even in low-light conditions. It also supports traditional infrared night vision.

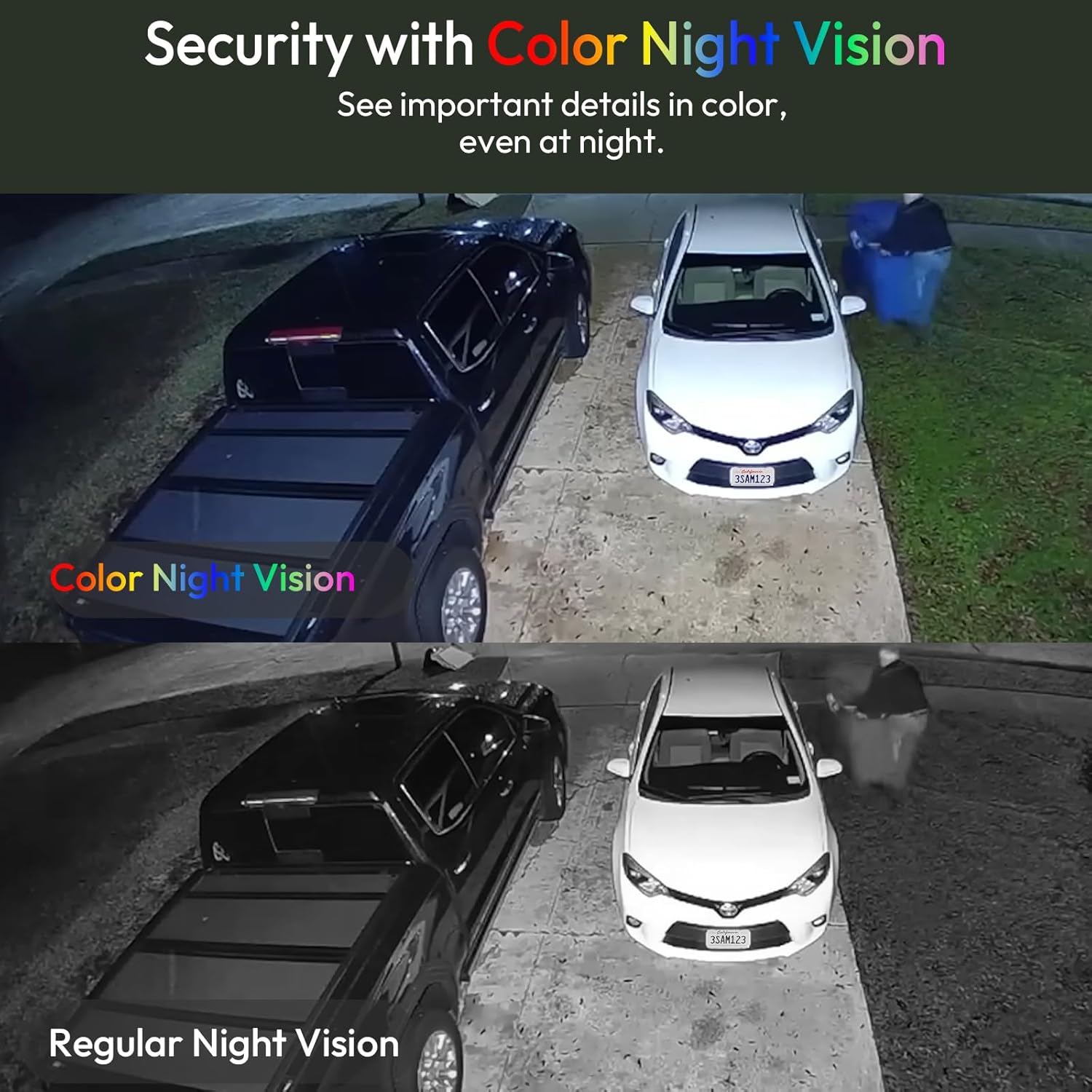

Image: Comparison of color night vision versus regular night vision from the security camera.

4.4 Эки тараптуу аудио жана сирена

Utilize the built-in microphone and speaker for two-way communication. You can speak to visitors or deter intruders. The camera also features a siren alarm that can be activated manually or automatically upon detection.

Image: Rraycom S-W1B-SP camera demonstrating two-way talk functionality.

4.5 Сактоо параметрлери

The camera supports both cloud storage and local SD card storage (up to 256GB, SD card not included). Enjoy free 1-day loop cloud storage for motion-triggered events (6-second clips, retained for 7 days).

Image: Diagram illustrating cloud and SD card storage options for the camera.

4.6 Alexa интеграциясы

The camera is compatible with Amazon Alexa. You can use voice commands to view the live feed on compatible Alexa devices (e.g., "Alexa, show me the backyard").

Image: Amazon Alexa device displaying the live feed from the Rraycom security camera.

5. Техникалык тейлөө

• Күн панели: Regularly clean the solar panel surface to ensure maximum charging efficiency. Dust, dirt, or debris can reduce its effectiveness.
• Объектив: Keep the camera lens clean for optimal image clarity. Use a soft, lint-free cloth to gently wipe away any smudges or dirt.
• Программалык камсыздоонун жаңыртуулары: Check the O-Kam Pro app periodically for firmware updates to ensure your camera has the latest features and security enhancements.
• Батареянын ден соолугу: While solar-powered, monitor battery levels in the app, especially during prolonged periods of low sunlight. Recharge via USB if necessary.

6. Кыйынчылыктарды

• Камера Wi-Fiга туташпай жатат:
  • Ensure your Wi-Fi network is 2.4GHz or 5GHz and the password is correct.
  • Орнотуу учурунда камераны Wi-Fi роутериңизге жакыныраак коюңуз.
  • Reset the camera using the reset button (under the rubber cover) and try pairing again.
• Видеонун сапаты начар:
  • Check your Wi-Fi signal strength in the camera's location.
  • Камера объективинин таза жана тоскоолдуктар жок экенин текшериңиз.
  • Adjust video resolution settings in the app if your network bandwidth is limited.
• Батарея заряддалбай жатат:
  • Күн панелинин күн нуру күндүн нуру астында бир нече саат бою турганын текшериңиз.
  • Күн панелинин бетин тазалаңыз.
  • If the issue persists, charge the camera directly using the USB cable.
• Жалган кыймыл эскертүүлөрү:
  • Колдонмодо кыймылды аныктоо сезгичтигин тууралаңыз.
  • Configure specific activity zones to exclude areas with frequent irrelevant motion (e.g., swaying trees).

7. Техникалык шарттар

8. Кепилдик жана колдоо

Your Rraycom S-W1B-SP camera comes with a warranty as detailed on the included warranty card. For technical support, troubleshooting assistance, or warranty claims, please refer to the contact information provided in your user manual or visit the official Rraycom webсайт.
