Introduction
Welcome to the user manual for your TotalHome Room STAT Wired Digital Thermostat, model TTHWD. This guide provides essential information for the safe and efficient installation, operation, and maintenance of your new thermostat. Please read this manual thoroughly before installation and use, and retain it for future reference.
Продукт бүттүview
The TotalHome Room STAT Wired Digital Thermostat is designed to provide precise temperature control for your heating and cooling systems. Its clear digital display and intuitive controls ensure comfortable indoor environments.

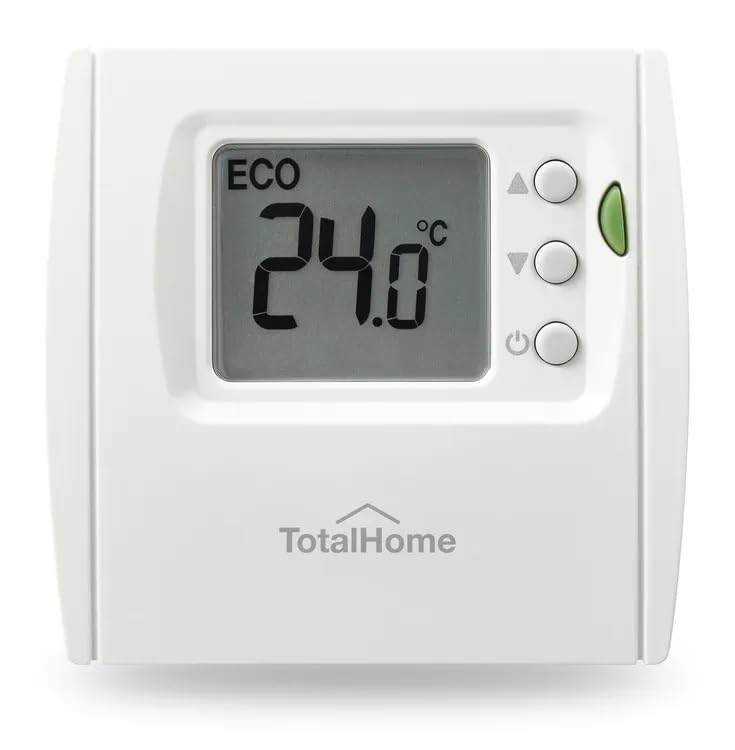

1-сүрөт: Фронт view of the TotalHome Room STAT Wired Digital Thermostat. This image shows the white, rectangular digital thermostat with a large LCD display indicating 'ECO' mode and a temperature of '24.0 °C'. To the right of the display, there are three circular buttons: an up arrow for increasing temperature, a down arrow for decreasing temperature, and a power symbol for turning the unit on or off. A small green indicator light is visible on the right side of the device.
Негизги компоненттер:
- LCD дисплей: Shows current temperature, set temperature, and operational modes (e.g., ECO).
- Өйдө/ылдый баскычтары: Белгиленген температураны тууралоо үчүн колдонулат.
- Кубат баскычы: Toggles the thermostat on or off.
- ЭКО көрсөткүчү: Энергияны үнөмдөө режими иштеп турганын көрсөтөт.
Орнотуу жана орнотуу
Installation of the TotalHome Room STAT Wired Digital Thermostat involves electrical wiring. For safety and proper functionality, it is highly recommended that installation be performed by a qualified electrician or HVAC professional.
Жалпы орнотуу көрсөтмөлөрү:
- Өчүрүү: Before beginning any wiring, ensure that the power to your HVAC system is completely turned off at the circuit breaker.
- Монтаждоо жери: Choose an interior wall, away from direct sunlight, drafts, or heat sources that could affect temperature readings.
- Зымдар: Follow the wiring diagram provided with your specific HVAC system and the thermostat's internal wiring terminals. Ensure all connections are secure.
- Монтаждоо: Secure the thermostat base to the wall using appropriate screws. Attach the thermostat faceplate to the base.
- Күйгүзүү: HVAC тутумуңузду өчүргүчтөн электр кубатын калыбына келтириңиз.
- Баштапкы сыноо: Verify that the thermostat powers on and the display is active.
This thermostat does not require batteries for operation as it is a wired unit.
Иштөө нускамалары
Күйгүзүү/өчүрүү:
- басыңыз Кубат баскычы (symbolized by ⏻) once to turn the thermostat on or off.
- When off, the display may show a minimal indicator or be blank, depending on the model.
Температураны жөндөө:
- басыңыз Өйдө жебе баскычы (▲) to increase the desired temperature setting.
- басыңыз Төмөн жебе баскычы (▼) to decrease the desired temperature setting.
- The display will show the new set temperature briefly before returning to the current room temperature.
ЭКО режими:
- When "ECO" is displayed, the thermostat is operating in an energy-saving mode, typically maintaining a wider temperature range to reduce energy consumption. Refer to your HVAC system's documentation for specific ECO mode behavior.
Audible Alert Feature:
- This thermostat is equipped with an audible alert feature. This may sound to indicate system errors, temperature deviations, or other important notifications. Consult the troubleshooting section for common alert meanings.
Amazon Alexa шайкештиги:
While the TotalHome Room STAT Wired Digital Thermostat is a wired unit, it may offer compatibility with Amazon Alexa through a compatible smart home hub or gateway. This allows for voice control of your thermostat settings. Please refer to your smart home hub's instructions for integration details.
Техникалык тейлөө
The TotalHome Room STAT Wired Digital Thermostat requires minimal maintenance to ensure optimal performance.
- Тазалоо: Термостаттын сыртын акырын жумшак менен сүртүңүз, damp кездеме. Абразивдүү тазалагычтарды, эриткичтерди же химиялык спрейлерди колдонбоңуз, алар дисплейге зыян келтириши мүмкүн же вasing.
- Тоскоолдуктарды болтурбоо: Ensure that the thermostat is not obstructed by furniture, curtains, or other objects that could block airflow to its internal temperature sensor, leading to inaccurate readings.
- Үзгүлтүксүз текшерүүлөр: Periodically check that the thermostat is securely mounted and that all connections are intact (if accessible and safe to do so).
Проблемаларды чечүү
If you encounter issues with your TotalHome Room STAT Wired Digital Thermostat, please refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Дисплей бош же жооп бербей жатат. | Термостатка кубат жок. | Check the circuit breaker for your HVAC system. Ensure all wiring connections are secure (consult a professional if unsure). |
| Thermostat not controlling HVAC system. | Incorrect wiring or system settings. | Verify wiring connections. Ensure the thermostat is set to the correct mode (heating/cooling, if applicable). Consult a professional for wiring verification. |
| Температураны туура эмес көрсөткүчтөр. | Термостаттын жайгашкан жерине шамалдын, түз күн нурунун же жылуулук булактарынын таасири тиет. | Relocate the thermostat if possible, or remove any obstructions. Ensure the sensor is clean. |
| Audible alert sounding. | System error or specific condition met. | Check the display for any error codes or messages. Consult your HVAC system manual or contact a professional if the alert persists. |
If these solutions do not resolve the issue, please contact TotalHome customer support or a qualified HVAC technician.
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | TotalHome |
| Модель номери | TTHWD |
| Controller Type | Amazon Alexa (Compatibility) |
| Өзгөчө өзгөчөлүк | Уккан эскертүү |
| Түс | Ак |
| Продукт үчүн атайын колдонуу | Air Conditioner (and likely heating systems) |
| Элемент Салмагы | 0.49 килограмм (1.08 фунт) |
| Пакеттин өлчөмдөрү | 9.37 x 7.01 x 3.27 дюйм |
| Батареялар талап кылынат | Жок |
| ASIN | B0DNBJTCRN |
Кепилдик жана колдоо
For information regarding the product warranty, please refer to the warranty card included with your purchase or visit the official TotalHome website. If you require technical assistance, troubleshooting beyond this manual, or have questions about your TotalHome Room STAT Wired Digital Thermostat, please contact TotalHome customer support.
TotalHome Customer Support: Сураныч, келиңиз www.totalhome.com/support (мисample link, replace with actual if available) or refer to your product packaging for contact details.
