1. Киришүү
Thank you for choosing the HOMCOM 24-inch Electric Fireplace Stove. This freestanding infrared heater is designed to provide warmth and a realistic flame ambiance to your living space. Please read this manual thoroughly before assembly, installation, or operation to ensure safe and efficient use of your new electric fireplace stove. Keep these instructions for future reference.

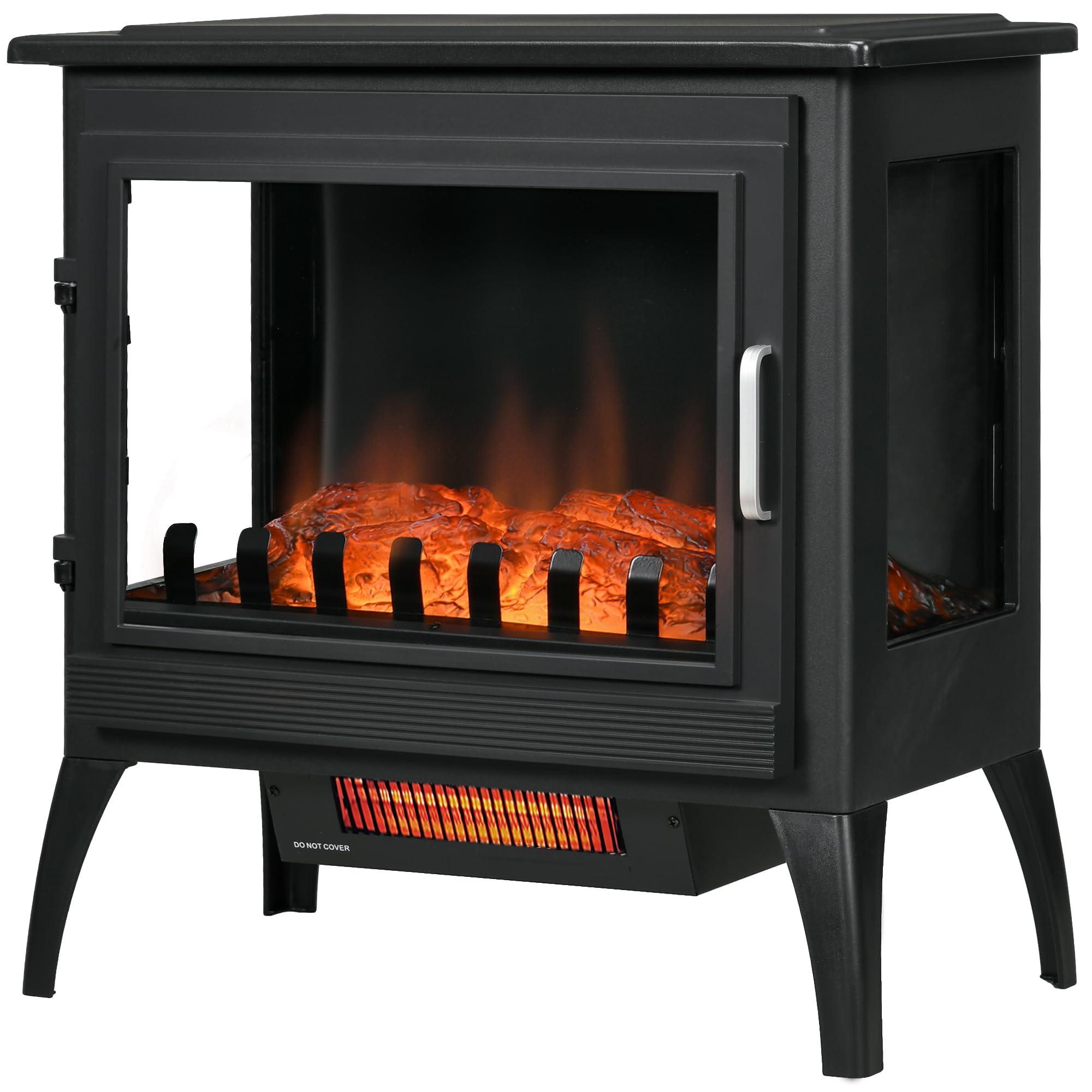

Figure 1: The HOMCOM 24-inch Electric Fireplace Stove providing warmth and ambiance in a living room setting.
2. Коопсуздук боюнча маанилүү маалымат
Өрт, электр тогуна урунуу жана адамдардын жаракат алуу коркунучун азайтуу үчүн электр шаймандарын колдонууда ар дайым негизги коопсуздук чараларын сактаңыз.
- Ашыкча ысып кетүүдөн коргоо: This electric fireplace is equipped with an automatic overheat protection system. If the unit overheats, it will automatically shut off to prevent damage or fire.
- Ашыкча коргоо: For added safety, the unit includes a tip-over shut-off feature. If the fireplace is accidentally knocked over, it will automatically power off.
- Жайгашкан жери: Place the fireplace on a firm, level surface. Ensure adequate clearance from walls, furniture, curtains, and other combustible materials. Do not place on carpet or soft surfaces that may block air vents.
- Вентиляция: Do not block air intake or exhaust vents. Ensure proper air circulation around the unit.
- Кубат булагы: Plug the unit directly into a properly grounded 120V AC outlet. Do not use extension cords or power strips.
- Балдар жана үй жаныбарлары: Keep children and pets away from the fireplace, especially when it is operating. The top grille area can become hot.
- Жабууга болбойт: Never cover the fireplace or block any openings. This can lead to overheating and fire.
- Тейлөө: Тазалоодон же техникалык тейлөөдөн мурун ар дайым розеткадан ажыратыңыз.

Figure 2: Key safety and operational features of the electric fireplace, including overheat protection and adjustable power settings.
3. Пакеттин мазмуну
Carefully unpack all components and ensure you have received all items listed below. If any parts are missing or damaged, contact customer service.
- Electric Fireplace Stove Unit
- 4 x Пластик буттар
- Screws for Leg Assembly
- Алыстан башкаруу
- Instruction Manual
4. Монтаждоо боюнча нускамалар
Assembly is required for this electric fireplace stove. Please follow these steps:
- Carefully remove the fireplace unit from its packaging.
- Locate the four plastic legs and the accompanying screws.
- Turn the fireplace unit upside down on a soft, non-abrasive surface to prevent scratching.
- Align each leg with the designated mounting points on the bottom of the unit.
- Ар бир бутту берилген бурамалар менен бекитиңиз. Алардын бекем тартылганын текшериңиз, бирок өтө катуу тартпаңыз.
- Carefully turn the assembled fireplace unit upright.

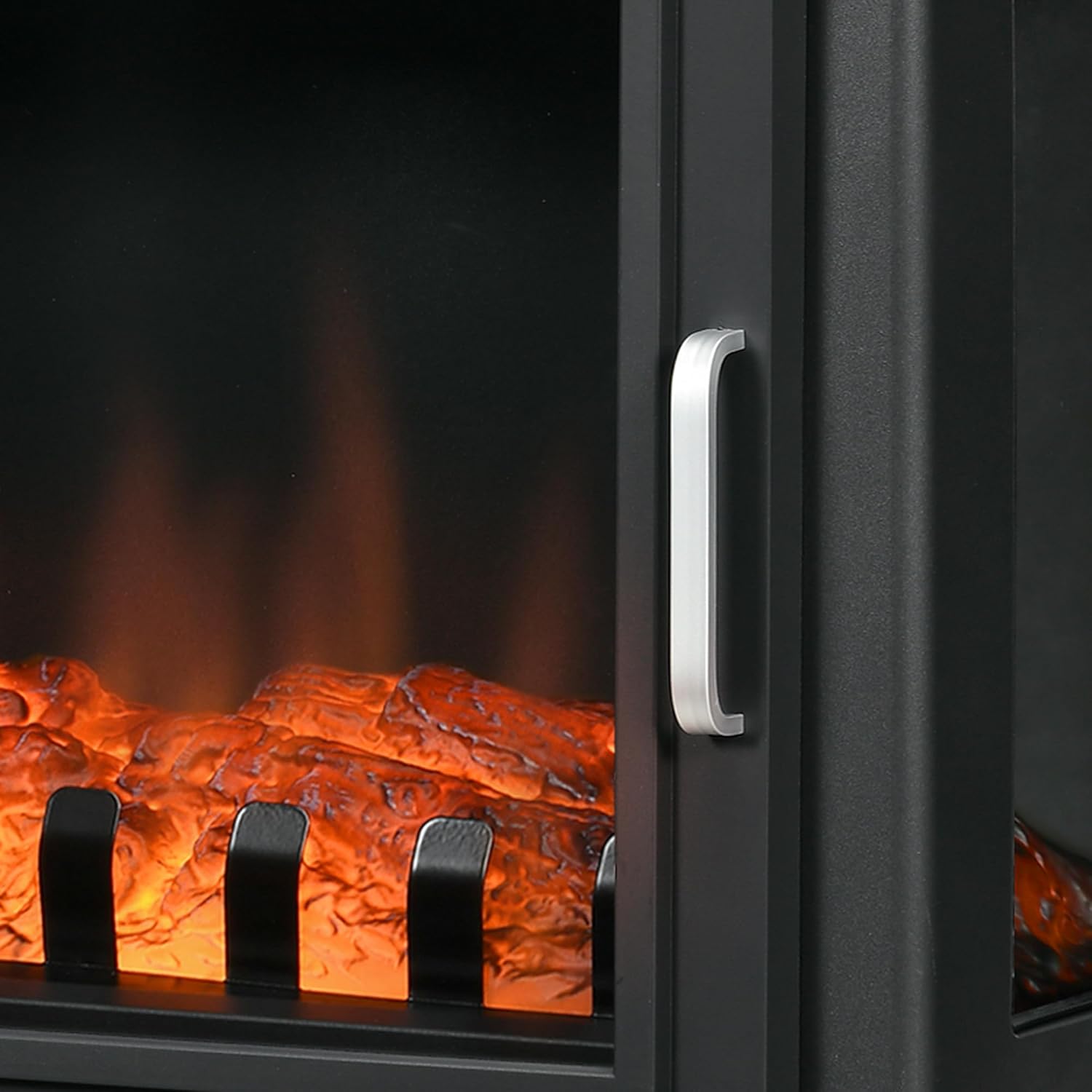

Figure 3: The decorative handle on the fireplace door, which can be opened to access manual controls.
5. Иштөө нускамалары
Your HOMCOM Electric Fireplace Stove can be operated using the control panel located behind the front door or with the included remote control.
5.1 Башкаруу панели
Open the front door to access the control buttons:
- Кубат баскычы: Аппаратты КҮЙГҮЗҮП/ӨЧҮРӨТ.
- Жылыткыч режими: Toggles between 1000W (low heat) and 1500W (high heat) settings.
- Температура жогору/төмөн: Adjusts the desired room temperature (50°F to 95°F).
- Таймер: Автоматтык өчүрүү таймерин 8 саатка чейин орнотот.
- Flame Effect: Cycles through various flame colors and effects.
- Балдар кулпусу: Press and hold the Temperature Up and Down buttons simultaneously for 5 seconds to activate/deactivate.
5.2 Алыстан башкаруу
The remote control offers convenient operation from a distance. It replicates most functions of the control panel:
- Кубат (Күйгүзүү/Өчүрүү): Каминди КҮЙГҮЗҮҮ/ӨЧҮРҮҮ.
- Жылуулук: Toggles between 1000W/1500W heat settings or turns heat off.
- Жалын: Adjusts flame color.
- Flame Bed+: Adjusts the color of the glowing ember bed.
- тунарды: Adjusts the brightness of the flame effect.
- Ылдамдыгы: Adjusts the speed of the flame movement.
- Таймер: Авто өчүрүү таймерин орнотот.
- °F/°C: Toggles temperature display between Fahrenheit and Celsius.

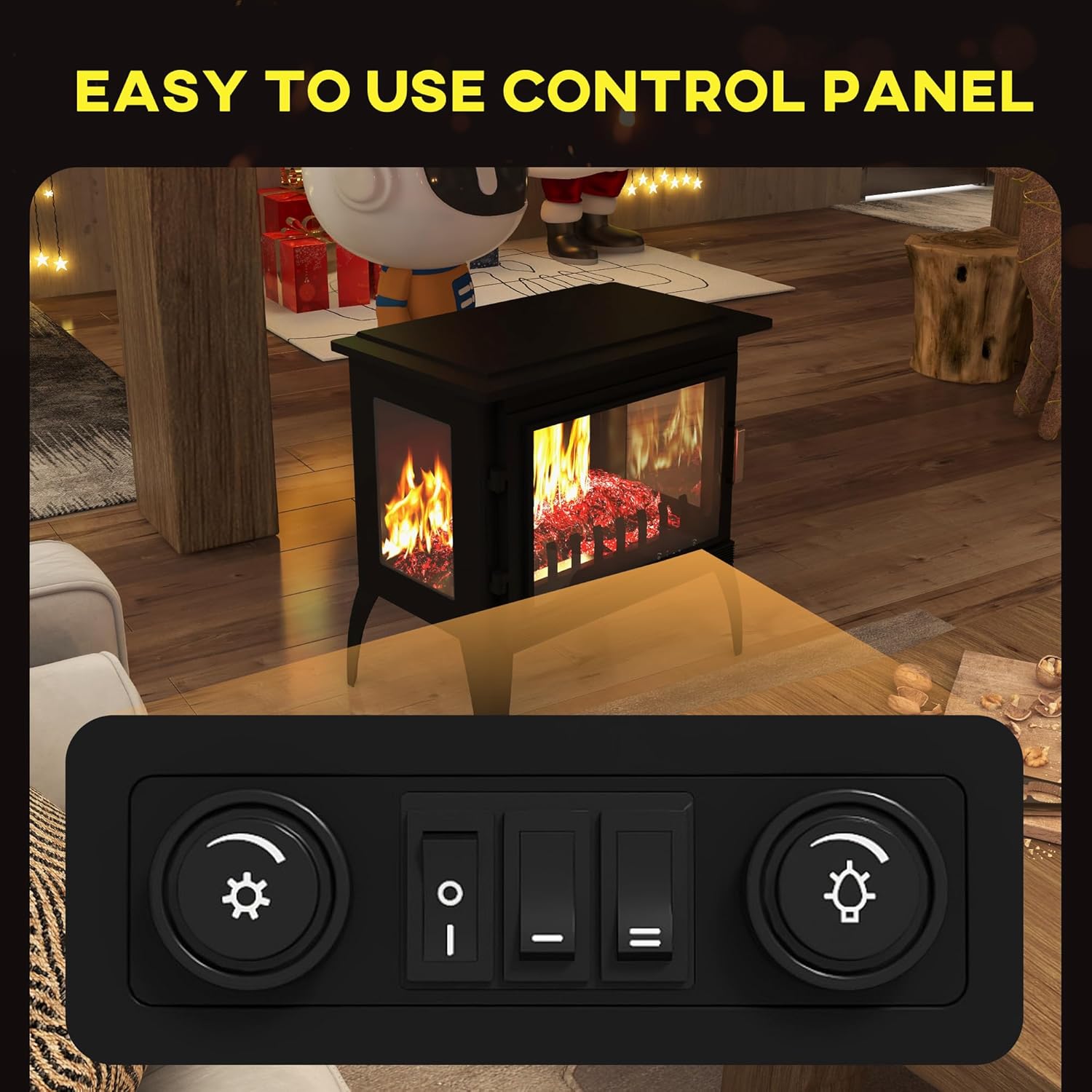

Figure 4: The easy-to-use control panel with buttons for various settings, including heater mode, temperature, timer, and flame effect.
6. Продукциянын өзгөчөлүктөрү
- Сыйкырдуу атмосфера: Experience the charm of a genuine fireplace with realistic flames and a glowing log ember bed. Its compact design creates a cozy atmosphere without occupying much space or needing fuel.
- Adjustable Warmth: The electric stove heater operates with or without heat, allowing you to enjoy the visual comfort of the fireplace in any season, whether on the hottest days or the chilliest nights.
- Ыңгайлуу жылытуу кубаттуулугу: This electric fireplace efficiently heats an area of 161-269 sq.ft., providing substantial warmth to your space, ensuring comfort even in cooler conditions.
- Коопсуздук жана натыйжалуулук: Prioritizing safety and efficiency, our electric fireplace heaters are crafted to provide maximum heat output with minimal energy consumption, keeping your home safe and your expenses low.

Figure 5: The realistic log flame effect can be used independently without the heat function, offering ambiance year-round.
7. Техникалык шарттар
| Бренд | HOMCOM |
| Модель аты | Электр камин |
| Модель номери | 820-389V80BK |
| Power Source | Электр зымдары |
| Продукциянын өлчөмдөрү | 14"D x 24"W x 24"H |
| Материал | Металл |
| Орнотуу түрү | бурун |
| Жылуулук чыгаруу | 5115 BTU саатына Фаренгейттин бир футуна |
| Энергияны керектөө | 1000W/1500W (1500 Watts Max) |
| Жылытуу каптоо | 161-269 кв |
| Элемент Салмагы | 23 фунт |
| Түс | Кара |

Figure 6: Visual representation of the fireplace dimensions (24" W x 14" D x 24" H).
8. Техникалык тейлөө
Proper maintenance ensures the longevity and safe operation of your electric fireplace stove.
- Тазалоо: Тазалоодон мурун ар дайым түзмөктү розеткадан сууруп алыңыз. Жумшак,amp Сырткы беттерди сүртүү үчүн чүпүрөк колдонуңуз. Абразивдүү тазалоочу каражаттарды же эриткичтерди колдонбоңуз.
- Чаңды тазалоо: Regularly vacuum or wipe dust from the air intake and exhaust vents to maintain optimal airflow and prevent overheating.
- Сактагыч: If storing the fireplace for an extended period, ensure it is clean, dry, and stored in a cool, dry place away from direct sunlight and moisture.
9. Кыйынчылыктарды
If you encounter issues with your electric fireplace, refer to the following common problems and solutions:
- Кубат жок/Блок күйбөйт:
- Ensure the power cord is securely plugged into a grounded 120V AC outlet.
- Розетканын иштеп жатканын башка шайманды сайып текшериңиз.
- Verify that the main power switch on the unit (if applicable) is in the ON position.
- No Heat/Flames Not Working:
- Check if the heat function is activated on the control panel or remote.
- Adjust the temperature setting to a level higher than the current room temperature.
- If the unit has overheated, it may have automatically shut off. Unplug, wait 10-15 minutes, and plug back in.
- Түзмөк күтүлбөгөн жерден өчөт:
- This is likely due to the overheat protection or tip-over protection activating. Ensure vents are not blocked and the unit is on a stable surface.
- Allow the unit to cool down completely before attempting to restart.
10. Кепилдик жана колдоо
The HOMCOM 24-inch Electric Fireplace Stove comes with a Limited Warranty. For detailed information regarding warranty coverage, terms, and conditions, please refer to the warranty card included with your product packaging or visit the official HOMCOM website. For technical support or customer service inquiries, please contact the manufacturer directly using the contact information provided in your product documentation.
