Alienware TENKEYLESS оюн клавиатурасы - AW420K колдонуучусунун колдонмосу

1. Киришүү

This manual provides comprehensive instructions for the Alienware TENKEYLESS Gaming Keyboard, model AW420K. It covers setup, operation, maintenance, troubleshooting, and product specifications to ensure optimal performance and longevity of your device.

2. Продукт бүтүп калдыview

The Alienware AW420K is a high-performance tenkeyless gaming keyboard designed for competitive gaming and efficient daily use. It features durable construction, customizable RGB lighting, and responsive mechanical switches.

2.1-сүрөт: жогорудан ылдыйга view of the Alienware AW420K Tenkeyless Gaming Keyboard, showcasinанын компакттуу дизайны жана жандуу RGB арткы жарыгы.

2.1 Негизги өзгөчөлүктөрү

• Tenkeyless Design: Streamlined form factor for more desk space and improved portability.
• Cherry MX кызыл которгучтары: Industry-leading mechanical switches with a 100 million actuation lifecycle for consistent, high-performance keystrokes.
• AlienFX RGB жарыктандыруу: Per-key RGB lighting configurable through Alienware Command Center software, offering up to 16.8 million colors for personalized aesthetics.
• Эки жолу басылуучу PBT баскычтоптору: Two layers of plastic with legends molded into the cap for enhanced durability and wear resistance.
• Integrated Cable Routing: Channels on the underside of the keyboard for organized cable management.
• Жөнгө салынуучу бийиктик: Flip-up risers with three height settings for ergonomic typing angles.

Figure 2.2: The compact TKL design of the AW420K keyboard allows for more space on your gaming setup and easy movability.

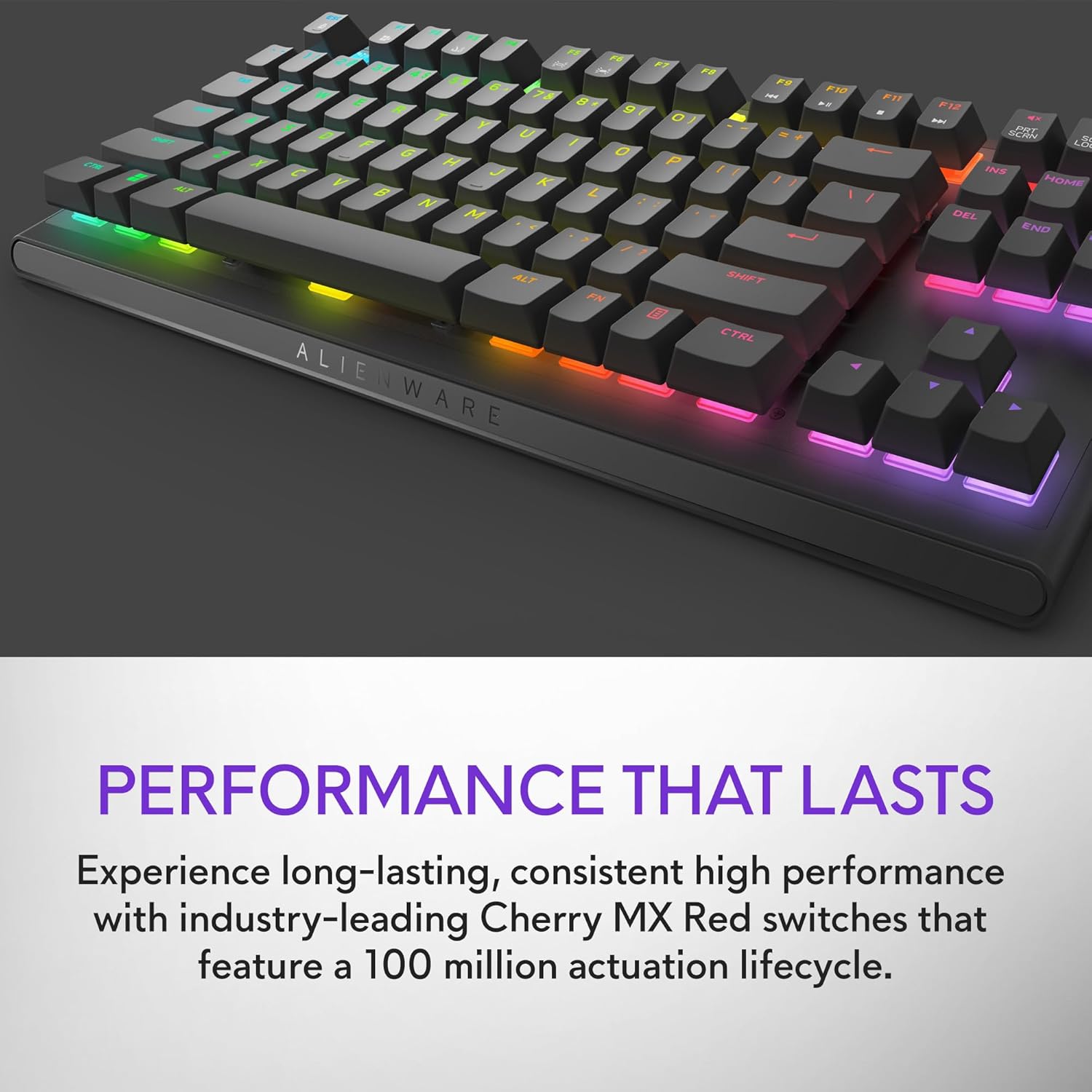

Figure 2.3: The keyboard features Cherry MX Red switches, known for their durability and consistent performance over 100 million keystrokes.

Figure 2.4: Customize your gaming experience with AlienFX per-key RGB lighting, offering up to 16.8 million colors via Alienware Command Center software.

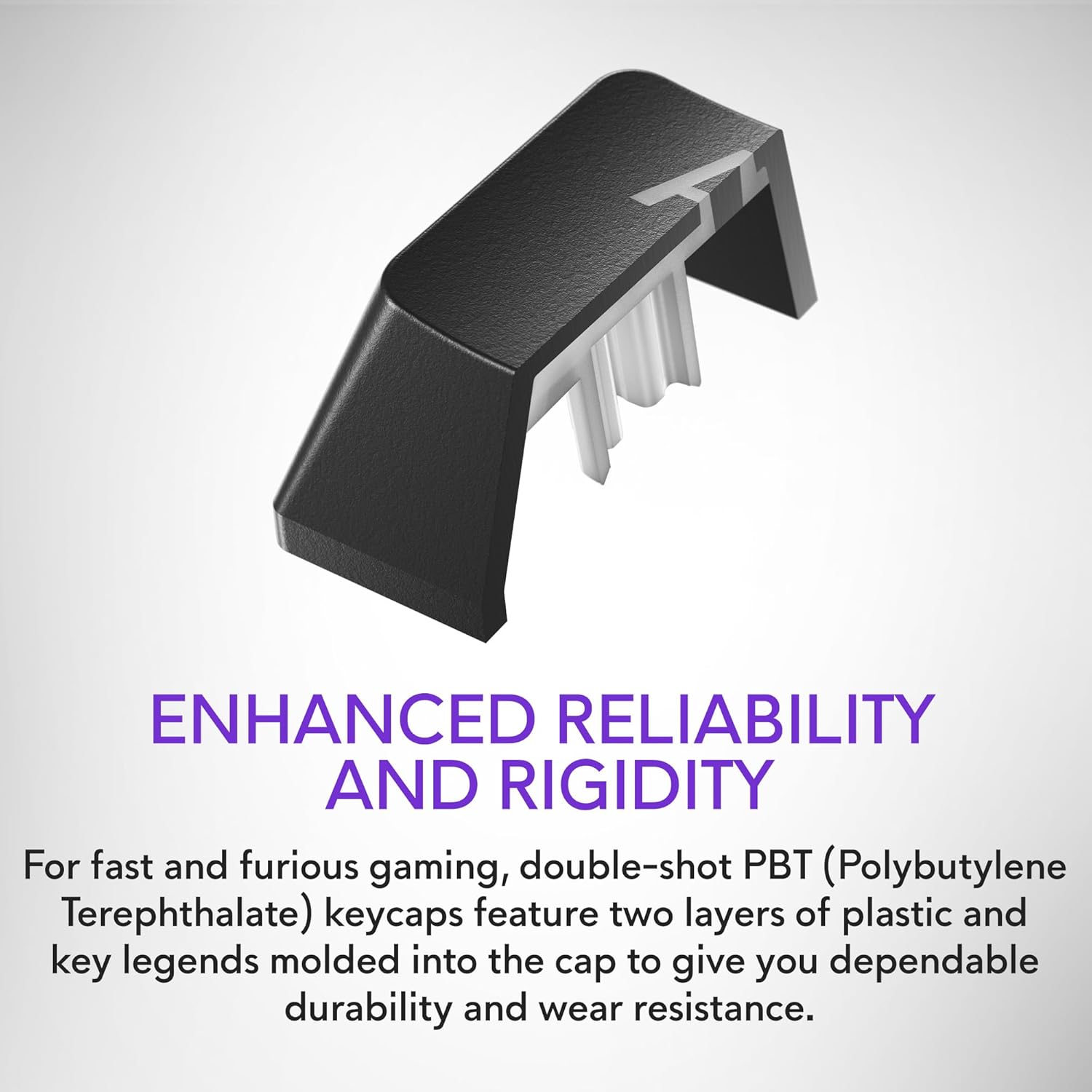

Figure 2.5: Double-shot PBT keycaps provide enhanced reliability and rigidity, ensuring legends do not wear off over time.

3. Орнотуу

Follow these steps to set up your Alienware AW420K Gaming Keyboard:

1. Баскычтопту таңгактан чыгаруу: Carefully remove the keyboard and any included accessories from the packaging.
2. USB кабелин туташтыруу: The keyboard features a detachable USB paracord cable. Connect the USB-C end to the port on the keyboard's underside.
3. Кабель маршруту: Utilize the integrated cable routing channels on the underside of the keyboard to direct the cable to your preferred setup. This helps in keeping your desk tidy.
4. Компьютерге туташуу: Plug the USB-A end of the cable into an available USB port on your computer. The keyboard is USB powered.
5. Бийиктигин тууралоо: Flip up the risers on the back of the keyboard to select one of the three available height settings for your ideal typing angle.
6. Программаны орнотуу (милдеттүү эмес, бирок сунушталат): For full customization of RGB lighting and programmable keys, download and install the Alienware Command Center software from the official Alienware support webсайт.

Figure 3.1: The detachable USB-C cable provides a secure and convenient connection.

Figure 3.2: Integrated cable routing on the underside helps manage the connection cable for a clean setup.

Figure 3.3: Flip-up risers allow for three height settings to achieve your ideal typing angle.

4. Баскычтопту иштетүү

The Alienware AW420K keyboard is designed for intuitive use with advanced features for gaming and productivity.

4.1 Негизги функциялар

• Терүү: Standard QWERTY layout for general typing.
• Оюн: Responsive Cherry MX Red switches provide a smooth and linear feel, ideal for fast-paced gaming.
• Медиа башкаруу элементтери: Dedicated media keys (e.g., volume roller, mute button) are typically located on the top right of the keyboard for quick audio adjustments.

4.2 Customization with Alienware Command Center

The Alienware Command Center software unlocks the full potential of your keyboard:

• RGB жарыктандыруу: Customize per-key RGB lighting with a spectrum of 16.8 million colors. Choose from various effects, create your own profiles, and synchronize lighting with other Alienware devices.
• Макро программалоо: Assign complex macros to programmable keys for in-game advantages or streamlined workflows.
• Profile Башкаруу: Бир нече профессионал түзүңүз жана сактаңызfiles for different games or applications, allowing for quick switching of lighting and key assignments.

5. Техникалык тейлөө

Туура тейлөө клавиатураңыздын узак мөөнөттүү жана оптималдуу иштешин камсыз кылат.

• Клавиатураны тазалоо: The floating keycap design makes cleaning easy. Use a soft brush or compressed air to remove dust and debris from between the keys. For stubborn grime, gently wipe keycaps with a damp, түксүз кездеме. Ашыкча нымдуулуктан сактаныңыз.
• Cleaning the Chassis: Wipe the keyboard chassis with a soft, dry cloth. Do not use harsh chemicals or abrasive materials.
• Кабельге кам көрүү: Зыяндын алдын алуу үчүн USB кабелин курч ийилүүдөн же ашыкча тартуудан алыс болуңуз.

6. Кыйынчылыктарды

If you encounter issues with your Alienware AW420K keyboard, try the following troubleshooting steps:

• Баскычтоп жооп бербейт:
  • USB кабели клавиатурага жана компьютерге бекем туташып турганын текшериңиз.
  • Баскычтопту компьютериңиздин башка USB портуна сайып көрүңүз.
  • Компьютериңизди өчүрүп күйгүзүңүз.
• RGB Lighting Not Working/Customizing:
  • Verify that the Alienware Command Center software is installed and up to date.
  • Check the software settings to ensure lighting effects are enabled and configured correctly.
  • RGB башкаруусуна тоскоол боло турган эч кандай карама-каршы программа иштеп турбагандыгын текшериңиз.
• Катталбаган ачкычтар:
  • Clean any debris from under the affected keycap.
  • If the issue persists, it may indicate a hardware problem.

Эгерде бул кадамдар маселени чечпесе, кошумча жардам алуу үчүн Кепилдик жана колдоо бөлүмүнө кайрылыңыз.

7. Техникалык шарттар

8. Кепилдик жана колдоо

For warranty information and technical support, please refer to the official Alienware website or contact Alienware customer service. Keep your proof of purchase for warranty claims.

You can typically find support resources, drivers, and software updates on the Dell колдоо Webсайт (as Alienware is a Dell brand).
