Nidecker Supermatic Carbon сноубордун байлоочу колдонуучу колдонмосу

1. Киришүү

This manual provides comprehensive instructions for the setup, operation, and maintenance of your Nidecker Supermatic Carbon Snowboard Bindings. The Supermatic binding is designed for universal compatibility, offering a dual-entry, automatic system that functions with any snowboard boot.

The Supermatic system allows for rapid entry and exit, combining the convenience of a step-in system with the performance and feel of a traditional two-strap binding. It features a robust glass-filled nylon baseplate and comfortable AuxTech straps.

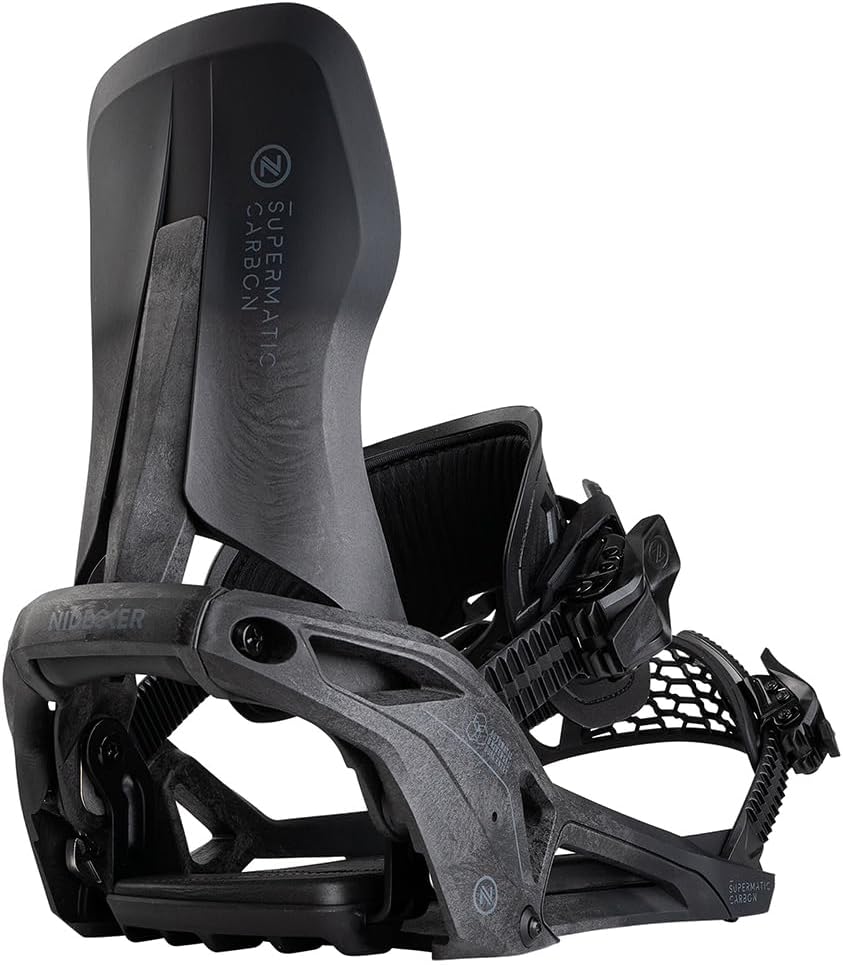

1.1-сүрөт: Негизги view of the Nidecker Supermatic Carbon Snowboard Binding.

2. Негизги өзгөчөлүктөрү

• Жалпы шайкештик: Designed to work with any snowboard boot from any brand, eliminating the need for specialized boots.
• Automatic Dual-Entry System: Allows for quick step-in from the rear by pushing your foot in and stepping down on the heel pedal to engage the highback.
• Traditional Two-Strap Functionality: Can also be operated like a conventional two-strap binding using the ratchets for fine-tuning or in challenging conditions.
• Туруктуу курулуш: Features a bombproof glass-filled nylon baseplate for enhanced durability and performance.
• AuxTech Straps: Engineered for comfort and a perfect wrap around your boot, ensuring secure hold and responsiveness.
• Тез бошотуу рычагы: A simple lever mechanism for rapid and easy exit from the binding.

Figure 2.1: ашыкview of key binding technologies including Multi-Disk, Bankbeds, Slip-N-Grip, and Quick-Set Latches.

Функциянын чоо-жайы:

• Multi-Disk (4HP + 3HP + Channel)

  Our standard Offset Multi-Disk can be mounted on 4x4, 4x2, 3HP and the M6 Channel – without the need for an accessory channel-disk. The hole patterns are offset from the center for more toe-heel or stance-width adjustability.

• Bankbeds

  We design our footbeds with a 2.5° canted contact surface for optimal ankle and knee alignment and efficient energy transmission.

• Slip-N-Grip

  Smooth plates strategically placed inside the binding to reduce friction with the outsole of your boot. Slip-N-Grip allows you to easily slide your foot in and out without compromising the underfoot comfort of our Bankbeds.

• Quick-Set Latches

  Adjust your straps on the medial side to fit the boot and keep them centered. Quick-Set Latches are tool-free, simple and secure, with numbers on the ladder to help you quickly dial in your setting.

3. Орнотуу жана орнотуу

3.1. Кутудан чыгаруу жана текшерүү

Carefully remove the bindings from their packaging. Inspect all components for any signs of damage. Ensure all parts listed in the packing list (if provided) are present.

3.2. Mounting the Bindings to Your Snowboard

The Nidecker Supermatic bindings utilize a Multi-Disk system compatible with 4x4, 4x2, 3HP, and M6 Channel mounting patterns. Follow these steps for proper installation:

1. Determine Stance: Decide on your preferred stance width and angles. Consult a professional if you are unsure.
2. Position Disks: Place the Multi-Disk onto the snowboard's insert pattern. The disk allows for offset adjustments to fine-tune toe-heel and stance width.
3. Align Bindings: Place the binding baseplate over the disk, aligning the screw holes.
4. Кыстаруу бурамалар: Insert the mounting screws through the binding baseplate and disk into the snowboard inserts.
5. Бурамаларды бекемдөө: Using a compatible screwdriver, tighten the screws securely. Do not overtighten, as this can damage the snowboard or binding. Periodically check screw tightness throughout the season.

Figure 3.1: Proper boot alignment for stepping into the binding.

3.3. Adjusting Straps and Highback

Proper adjustment ensures comfort, performance, and secure boot retention.

1. Boot Fit: Place your snowboard boot into the binding.
2. Ankle Strap Adjustment: Adjust the ankle strap using the Quick-Set Latches on the medial side. Ensure the strap is centered over your boot and provides a snug, comfortable fit without pressure points. The numbered ladder helps in replicating settings.
3. Toe Strap Adjustment: Adjust the toe strap to securely hold the front of your boot. It can be worn over the top of the boot or as a cap strap over the toe.
4. Highback Forward Lean: The highback can be adjusted for forward lean. A small amount of forward lean can improve responsiveness, while less lean offers a more relaxed feel. Adjust to your preference using the mechanism at the back of the highback.

Figure 3.2: Detail of the ankle strap and Quick-Set Latch for adjustment.

4. Operating the Supermatic Bindings

4.1. Automatic Step-In Entry

The primary method of entry for the Supermatic bindings is the automatic step-in system:

1. Position Boot: With the highback lowered, slide your boot into the binding from the rear. Ensure your heel is properly seated in the heel cup.
2. Engage Highback: Step down firmly on the heel pedal located at the back of the binding. This action will automatically flip the highback up and lock it into place, securing your boot.
3. Макулдашууну текшерүү: Ensure the highback is fully upright and locked. You should hear a distinct click.

Figure 4.1: Snowboard boot securely in the Supermatic binding, ready for riding.

4.2. Exiting the Bindings

To exit the bindings, use the quick release lever:

1. Locate Release Lever: The release lever is typically located on the side of the binding near the heel.
2. Чыгарууну активдештирүү: Pull the lever to disengage the highback. The highback will drop down, allowing you to easily slide your boot out.

Figure 4.2: Detail of the quick release lever for exiting the binding.

4.3. Traditional Ratchet Operation (Optional)

In certain situations, such as steep slopes or deep powder, you may prefer to use the traditional ratchet system for entry and exit, or to fine-tune your fit:

1. Катуу үчүн: Insert the strap ladder into the ratchet buckle and pump the lever until the desired tightness is achieved.
2. To Loosen/Release: Press the small lever on the ratchet buckle to release the strap.

The Supermatic bindings are designed to feel like a classic two-strap binding when riding, offering flexibility in how you engage and disengage.

5. Техникалык тейлөө жана кам көрүү

Regular maintenance will extend the life of your Nidecker Supermatic bindings and ensure optimal performance.

• Колдонгондон кийин тазалоо: After each use, especially in wet or slushy conditions, wipe down the bindings with a dry cloth to remove snow, ice, and dirt.
• Бурамаларды текшерүү: Periodically check all mounting screws and hardware for tightness. Loose screws can affect performance and safety.
• Check Straps and Ratchets: Inspect straps for any signs of wear, cuts, or fraying. Ensure ratchets and ladders operate smoothly. Clean any debris from the ratchet mechanisms.
• Майлоо: If the highback or release mechanism feels stiff, a small amount of silicone-based lubricant can be applied to pivot points. Avoid petroleum-based lubricants as they can damage plastic components.
• Сактагыч: Store bindings in a cool, dry place away from direct sunlight and extreme temperatures. Loosen straps slightly during off-season storage to relieve tension.

6. Кыйынчылыктарды

7. Техникалык шарттар

Өлчөм диаграммасы:

Figure 7.1: Nidecker Supermatic Snowboard Binding Sizing Chart.

8. Кепилдик жана колдоо

Nidecker products are manufactured to high standards and undergo rigorous quality control. For specific warranty information regarding your Supermatic Carbon Snowboard Bindings, please refer to the warranty card included with your purchase or visit the official Nidecker webсайт.

For technical support, replacement parts, or any inquiries not covered in this manual, please contact Nidecker customer service through their official channels. Keep your proof of purchase for warranty claims.

Official Nidecker Webсайт: www.nidecker.com
